GZ10-HCMZE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8102- )

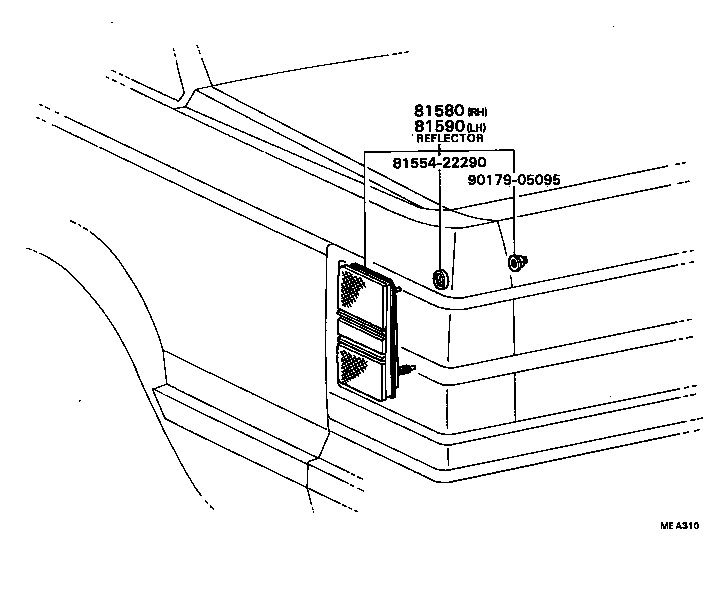

Click highlighted areas on diagram

diagram 8155422290 81580 81590 9017905095
Part # Description Qty Price
81580 - REFLECTOR ASSY, REFLEX SIDE, RH
81580-29015

GZ10,MZ1#

 1
81580-29025

GZ10,MZ1#

 1
81590 - REFLECTOR ASSY, REFLEX SIDE, LH
81590-29015

GZ10,MZ1#

 1
81590-29025

GZ10,MZ1#

 1
Common parts
81554-22290
90179-05095
