GZ10-HCMZE (1981)
Toyota Soarer

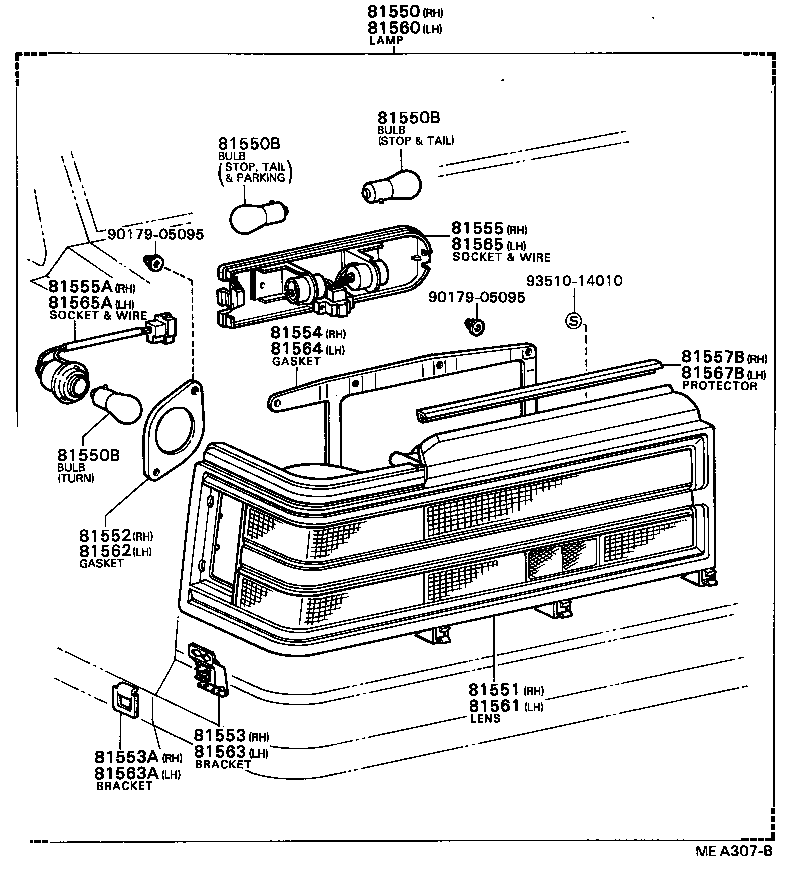

(8102-8302)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-80097 |
GZ10,MZ1# |
1 | ||
| 81550-80158 |
GZ10,MZ1# |
1 | ||
| 81550-80200 |
GZ10,MZ1# |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11230 |
GZ10,MZ1# 12V 23W,12V 23W(TURN) |
2 | ||
| 99132-11230 |
GZ10,MZ1# 12V 23W,12V 23W(BACK UP) |
2 | ||
| 99132-21210 |
GZ10,MZ1# 12V 21/5W,12V 21/5W(STOP,TAIL & PARKING);12V 21/5W(STOP & TAIL) |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11230 |
GZ10,MZ1# 12V 23W,12V 23W(TURN) |
2 | ||
| 99132-11230 |
GZ10,MZ1# 12V 23W,12V 23W(BACK UP) |
2 | ||
| 99132-21210 |
GZ10,MZ1# 12V 21/5W,12V 21/5W(STOP,TAIL & PARKING);12V 21/5W(STOP & TAIL) |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11230 |
GZ10,MZ1# 12V 23W,12V 23W(TURN) |
2 | ||
| 99132-11230 |
GZ10,MZ1# 12V 23W,12V 23W(BACK UP) |
2 | ||
| 99132-21210 |
GZ10,MZ1# 12V 21/5W,12V 21/5W(STOP,TAIL & PARKING);12V 21/5W(STOP & TAIL) |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-24010 |
GZ10,MZ1# |
1 | ||
| 81551-24020 |
GZ10,MZ1# |
1 | ||
| 81552 - GASKET, REAR COMBINATION LAMP LENS, RH | ||||
| 81552-14390 |
GZ10,MZ1# |
1 | ||
| 81553 - BRACKET, REAR COMBINATION LAMP, NO.1 RH | ||||
| 81553-24010 |
GZ10,MZ1# |
1 | ||
| 81553A - BRACKET, REAR COMBINATION LAMP, NO.2 RH | ||||
| 81557-24010 |
GZ10,MZ1# |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-24020 |
GZ10,MZ1# |
1 | ||
| 81554-24010 |
GZ10,MZ1# |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-24010 |
GZ10,MZ1# |
1 | ||
| 81555-24020 |
GZ10,MZ1# |
1 | ||
| 81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81556-24010 |
GZ10,MZ1# |
1 | ||
| 81557B - PROTECTOR, REAR COMBINATION LAMP, RH | ||||
| 81552-24010 |
GZ10,MZ1# |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-80205 |
GZ10,MZ1# |
1 | ||
| 81560-80163 |
GZ10,MZ1# |
1 | ||
| 81560-80101 |
GZ10,MZ1# |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-24020 |
GZ10,MZ1# |
1 | ||
| 81561-24010 |
GZ10,MZ1# |
1 | ||
| 81562 - GASKET, REAR COMBINATION LAMP LENS, LH | ||||
| 81552-14390 |
GZ10,MZ1# |
1 | ||
| 81563 - BRACKET, REAR COMBINATION LAMP, NO.1 LH | ||||
| 81563-24010 |
GZ10,MZ1# |
1 | ||
| 81563A - BRACKET, REAR COMBINATION LAMP, NO.2 LH | ||||
| 81567-24010 |
GZ10,MZ1# |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81554-24010 |
GZ10,MZ1# |
1 | ||
| 81554-24020 |
GZ10,MZ1# |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81565-24010 |
GZ10,MZ1# |
1 | ||
| 81565-24020 |
GZ10,MZ1# |
1 | ||
| 81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81556-24010 |
GZ10,MZ1# |
1 | ||
| 81567B - PROTECTOR, REAR COMBINATION LAMP, LH | ||||
| 81552-24010 |
GZ10,MZ1# |
1 | ||
| Common parts | ||||
| 90179-05095 | ||||
| 93510-14010 | ||||

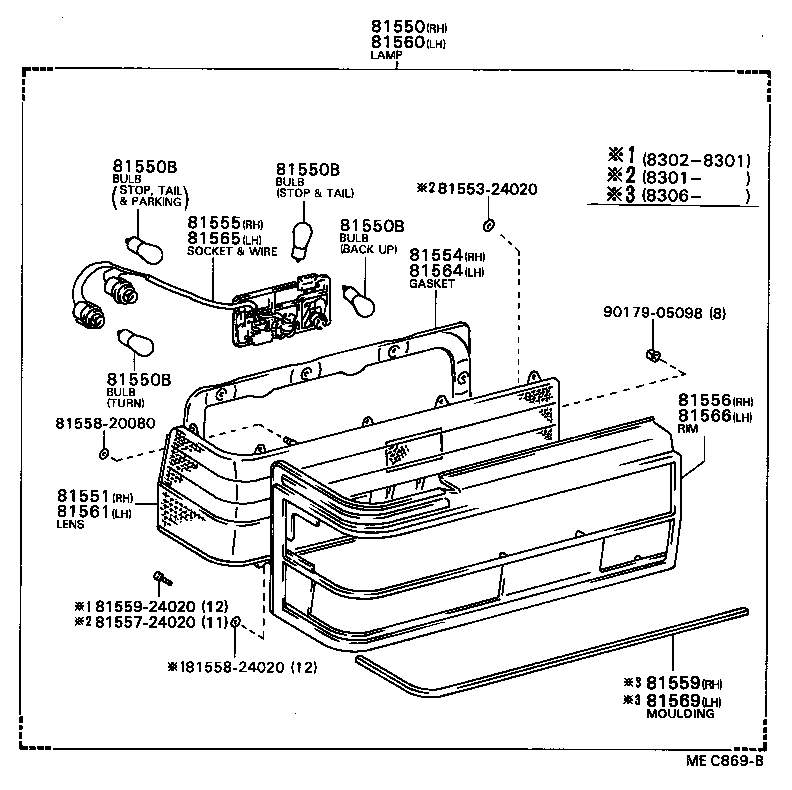

(8302- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550 - LAMP ASSY, REAR COMBINATION, RH | ||||
| 81550-80097 |
GZ10,MZ1# |
1 | ||
| 81550-80158 |
GZ10,MZ1# |
1 | ||
| 81550-80200 |
GZ10,MZ1# |
1 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11230 |
GZ10,MZ1# 12V 23W,12V 23W(TURN) |
2 | ||
| 99132-11230 |
GZ10,MZ1# 12V 23W,12V 23W(BACK UP) |
2 | ||
| 99132-21210 |
GZ10,MZ1# 12V 21/5W,12V 21/5W(STOP,TAIL & PARKING);12V 21/5W(STOP & TAIL) |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11230 |
GZ10,MZ1# 12V 23W,12V 23W(TURN) |
2 | ||
| 99132-11230 |
GZ10,MZ1# 12V 23W,12V 23W(BACK UP) |
2 | ||
| 99132-21210 |
GZ10,MZ1# 12V 21/5W,12V 21/5W(STOP,TAIL & PARKING);12V 21/5W(STOP & TAIL) |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11230 |
GZ10,MZ1# 12V 23W,12V 23W(TURN) |
2 | ||
| 99132-11230 |
GZ10,MZ1# 12V 23W,12V 23W(BACK UP) |
2 | ||
| 99132-21210 |
GZ10,MZ1# 12V 21/5W,12V 21/5W(STOP,TAIL & PARKING);12V 21/5W(STOP & TAIL) |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 99132-11230 |
GZ10,MZ1# 12V 23W,12V 23W(TURN) |
2 | ||
| 99132-11230 |
GZ10,MZ1# 12V 23W,12V 23W(BACK UP) |
2 | ||
| 99132-21210 |
GZ10,MZ1# 12V 21/5W,12V 21/5W(STOP,TAIL & PARKING);12V 21/5W(STOP & TAIL) |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-24010 |
GZ10,MZ1# |
1 | ||
| 81551-24020 |
GZ10,MZ1# |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-24020 |
GZ10,MZ1# |
1 | ||
| 81554-24010 |
GZ10,MZ1# |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-24010 |
GZ10,MZ1# |
1 | ||
| 81555-24020 |
GZ10,MZ1# |
1 | ||
| 81556 - RIM, REAR COMBINATION LAMP, RH | ||||
| 81556-24020 |
GZ10,MZ1# |
1 | ||
| 81556-24021 |
GZ10,MZ1# |
1 | ||
| 81559 - MOULDING, REAR COMBINATION LAMP, RH | ||||
| 81951-24010 |
GZ10,MZ1# |
1 | ||
| 81560 - LAMP ASSY, REAR COMBINATION, LH | ||||
| 81560-80205 |
GZ10,MZ1# |
1 | ||
| 81560-80163 |
GZ10,MZ1# |
1 | ||
| 81560-80101 |
GZ10,MZ1# |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-24020 |
GZ10,MZ1# |
1 | ||
| 81561-24010 |
GZ10,MZ1# |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81554-24010 |
GZ10,MZ1# |
1 | ||
| 81554-24020 |
GZ10,MZ1# |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81565-24010 |
GZ10,MZ1# |
1 | ||
| 81565-24020 |
GZ10,MZ1# |
1 | ||
| 81566 - RIM, REAR COMBINATION LAMP, LH | ||||
| 81566-24020 |
GZ10,MZ1# |
1 | ||
| 81566-24021 |
GZ10,MZ1# |
1 | ||
| 81569 - MOULDING, REAR COMBINATION LAMP, LH | ||||
| 81961-24010 |
GZ10,MZ1# |
1 | ||
| Common parts | ||||
| 81553-24020 | ||||
| 81557-24020 | ||||
| 81558-20080 | ||||
| 81558-24020 | ||||
| 81559-24020 | ||||
| 90179-05098 | ||||
