GZ10-HCMZE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8102- )

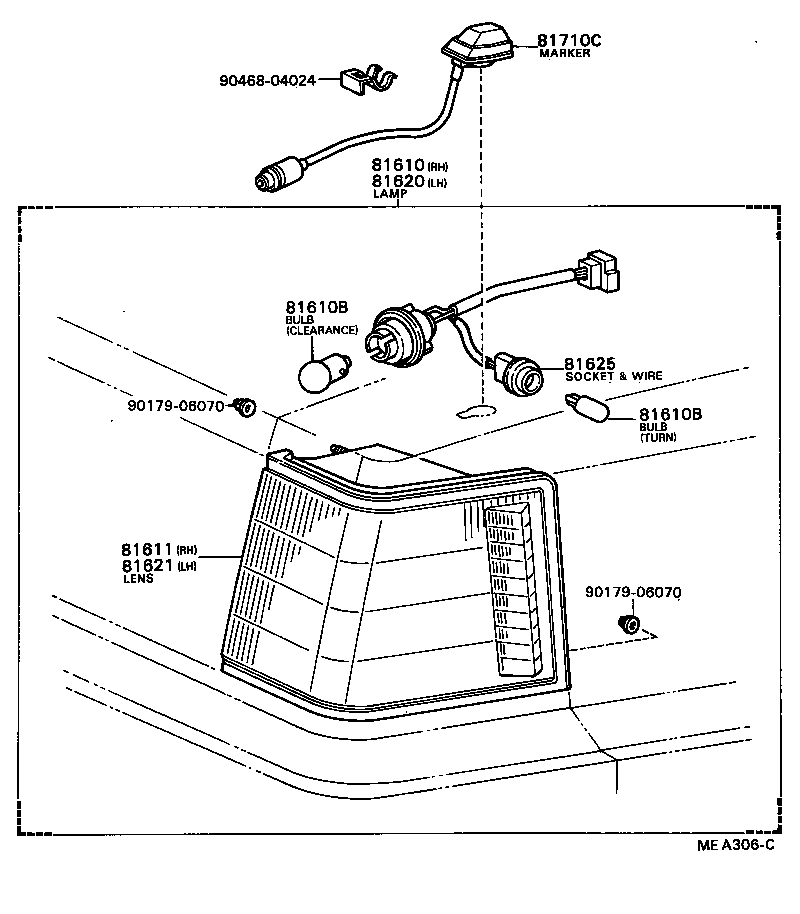

Click highlighted areas on diagram

diagram 81610 81610B 81610B 81611 81620 81621 81625 81710C 9017906070 9017906070 9046804024
Part # Description Qty Price
81610 - LAMP ASSY, PARKING & CLEARANCE, RH
81610-29245

GZ10,MZ1#

 1
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-11050

GZ10,MZ1#

12V 5W,12V 5W(CLEARACE)

 2
99132-12050

GZ10,MZ1#

12V 5W,12V 5W(TURN)

 2
81610B - BULB(FOR PARKING & CLEARANCE LAMP)
99132-11050

GZ10,MZ1#

12V 5W,12V 5W(CLEARACE)

 2
99132-12050

GZ10,MZ1#

12V 5W,12V 5W(TURN)

 2
81611 - LENS, PARKING & CLEARANCE LAMP, RH
81611-24010

GZ10,MZ1#

 1
81620 - LAMP ASSY, PARKING & CLEARANCE, LH
81620-29235

GZ10,MZ1#

 1
81621 - LENS, PARKING & CLEARANCE LAMP, LH
81621-24010

GZ10,MZ1#

 1
81625 - SOCKET AND WIRE, PARKING AND CLEARANCE LAMP
81615-24010

GZ10,MZ1#

 2
81710C - MARKER ASSY, FENDER
81710-24010

GZ10,MZ1#

 2
Common parts
90179-06070
90468-04024
