GZ10-HCMZE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8102- )

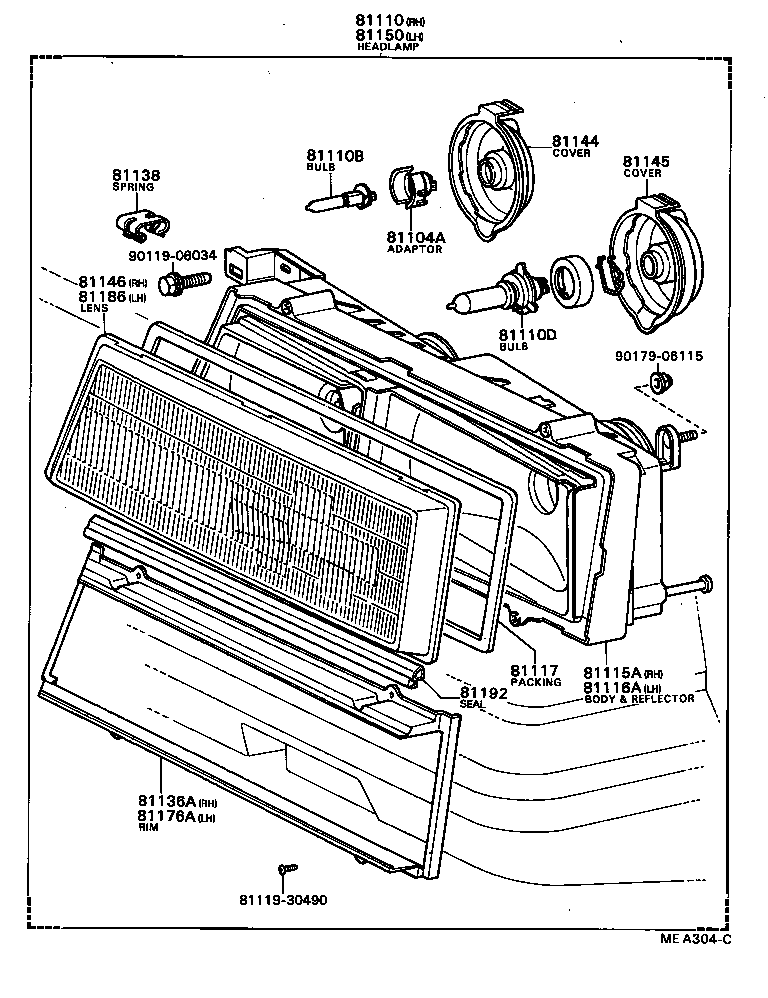

Click highlighted areas on diagram

diagram 81104A 81110 81110B 81110D 81115A 81116A 81117 8111930490 81136A 81138 81144 81145 81146 81150 81176A 81186 81192 9011906034 9017906115
Part # Description Qty Price
81104A - ADAPTER ASSY, HEADLAMP
81104-24010

GZ10,MZ1#

 2
81110 - HEADLAMP ASSY, RH
81110-80110

GZ10,MZ1#

 1
81110-80306

GZ10,MZ1#

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13017

GZ10,MZ1#

12V 55W,*HAL *WH,12V 55W

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13015

GZ10,MZ1#

12V 60/55W,*HAL *WH,12V 60/55W

 2
81115A - BODY AND REFLECTOR SUB-ASSY, HEADLAMP, RH
81105-24011

GZ10,MZ1#

 1
81105-24010

GZ10,MZ1#

 1
81116A - BODY AND REFLECTOR SUB-ASSY, HEADLAMP, LH
81106-24010

GZ10,MZ1#

 1
81106-24011

GZ10,MZ1#

 1
81117 - PACKING, HEADLAMP HOUSING
81147-24010

GZ10,MZ1#

 2
81136A - RIM, HEADLAMP, RH
81136-24010

GZ10,MZ1#

 1
81138 - SPRING, HEADLAMP
81138-24010

GZ10,MZ1#

UPR

 6
81138-30490

GZ10,MZ1#

LWR

 6
81144 - COVER, HEADLAMP, NO.1
81144-24010

GZ10,MZ1#

 2
81145 - COVER, HEADLAMP, NO.2
81145-24010

GZ10,MZ1#

 2
81146 - LENS, HEADLAMP, RH
81146-24010

GZ10,MZ1#

 1
81150 - HEADLAMP ASSY, LH
81150-80107

GZ10,MZ1#

 1
81150-80303

GZ10,MZ1#

 1
81176A - RIM, HEADLAMP, LH
81176-24010

GZ10,MZ1#

 1
81186 - LENS, HEADLAMP, LH
81186-24010

GZ10,MZ1#

 1
81192 - SEAL, HEADLAMP
81192-24011

GZ10,MZ1#

 2
81192-24010

GZ10,MZ11

 2
Common parts
81119-30490
90119-06034
90179-06115
