GZ10-HCMZE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8102- )

Click highlighted areas on diagram

diagram 2211 2211 2211 77241 77241 77241B 77241B 77254 77254A 77254B 77276 77277 77277A 77277B 77281 77740 77740A 77740A 77740B 77740D 77752 8271114100 9011906110 9046107019 9046108196 9046108358 9046108552 9046110210 9046110654 9046206009 9046212011 9046400072 9046400151 9046400156 9046400184 9046400270 9046713001 9046718001 9046806021 9095901105 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9165140816 9613230600 9613230800 9613230800
Part # Description Qty Price

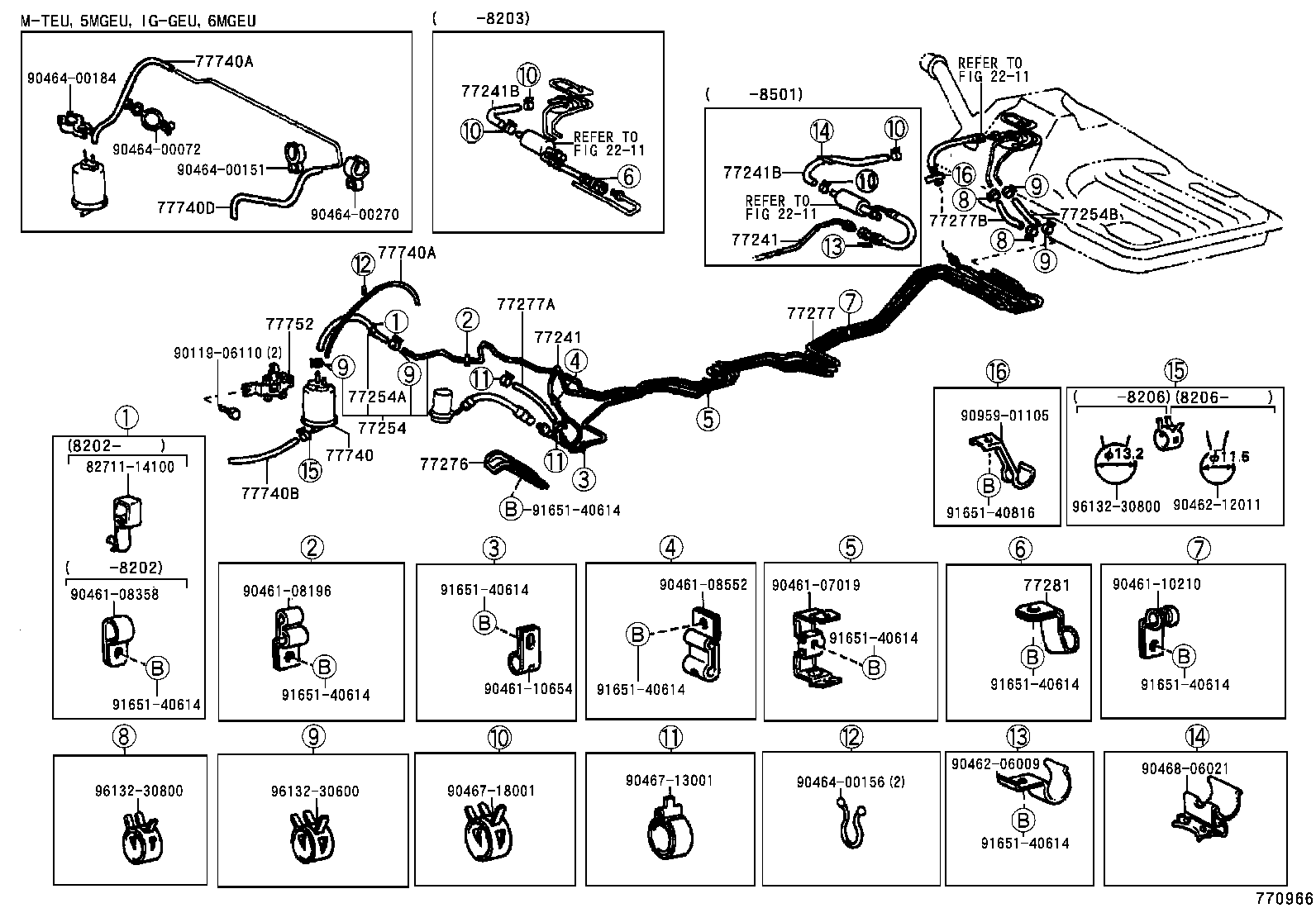

77241 - TUBE, FUEL MAIN, NO.1
77251-24012

GZ10,MZ1#

 1
77251-24010

GZ10,MZ1#

 1
77251-24011

GZ10,MZ1#

 1
77241 - TUBE, FUEL MAIN, NO.1
77251-24012

GZ10,MZ1#

 1
77251-24010

GZ10,MZ1#

 1
77251-24011

GZ10,MZ1#

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
90445-20023

GZ10,MZ1#

 1
90910-05148

GZ10,MZ1#

 1
77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1)
90445-20023

GZ10,MZ1#

 1
90910-05148

GZ10,MZ1#

 1
77254 - TUBE, FUEL EMISSION, NO.1
77261-24010

GZ10,MZ1#

 1
77261-24011

GZ10,MZ1#

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95332-06030

GZ10,MZ1#

*H,L=300

 1
95332-06040

GZ10,MZ1#

*H,L=320

 1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
95332-06020

GZ10,MZ1#

*H,L=140

 1
77276 - PROTECTOR, FUEL HOSE
77276-22010

GZ10,MZ1#

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-24010

GZ10,MZ1#

 1
77255-24011

GZ10,MZ1#

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95335-08030

GZ10..V1,V2,VR,VX

長さ=300

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-08020

GZ10,MZ1#

*H,L=130,内径=7.6

 1
95332-08020

GZ10,MZ1#

*H,L=140,内径=7.6

 1
77281 - BRACKET, FUEL MAIN TUBE, NO.1
77281-14030

GZ10,MZ1#

 1
77740 - CANISTER ASSY, CHARCOAL
77740-24020

GZ10,MZ1#

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19960

GZ10..V1,V2,VR,VX

*H,L=450,ﾏｰｸ=#*

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19960

GZ10..V1,V2,VR,VX

*H,L=450,ﾏｰｸ=#*

 1
77740B - HOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)
90445-12121

GZ10,MZ1#

長さ=200

 1
95332-08020

GZ10,MZ1#

*H,L=200,内径=7.6

 1
77752 - BRACKET, CHARCOAL CANISTER SUPPORT
77705-24010

GZ10,MZ1#

 1
Common parts
82711-14100
90119-06110
90461-07019
90461-08196
90461-08358
90461-08552
90461-10210
90461-10654
90462-06009
90462-12011
90464-00072
90464-00151
90464-00156
90464-00184
90464-00270
90467-13001
90467-18001
90468-06021
90959-01105
91651-40614
91651-40816
96132-30600
96132-30800
Linked diagrams
2211

(8102- )

Click highlighted areas on diagram

diagram 5387922010 77023 77031 77031B 77033 77035 77035A 77035A 77035A 77051 77100 77100A 77100B 77201 77201A 77202 77202J 77206 77206A 77251 77286 77286A 77295 77308 77308A 77366 77377 77387 77606 77606 77606C 77611 77611 77611A 77613 77631 77632 9015950157 9015950157 9015960055 9015960060 9017905095 9017906039 9017908167 9017910074 9017912016 9017912016 9046063008 9046106177 9046310012 9046708011 9046814004 9161560820 9165540620 9166140814 9166140816 9331914010 9338115010 9338115010 9338515014 9354055016 9418040800
Part # Description Qty Price

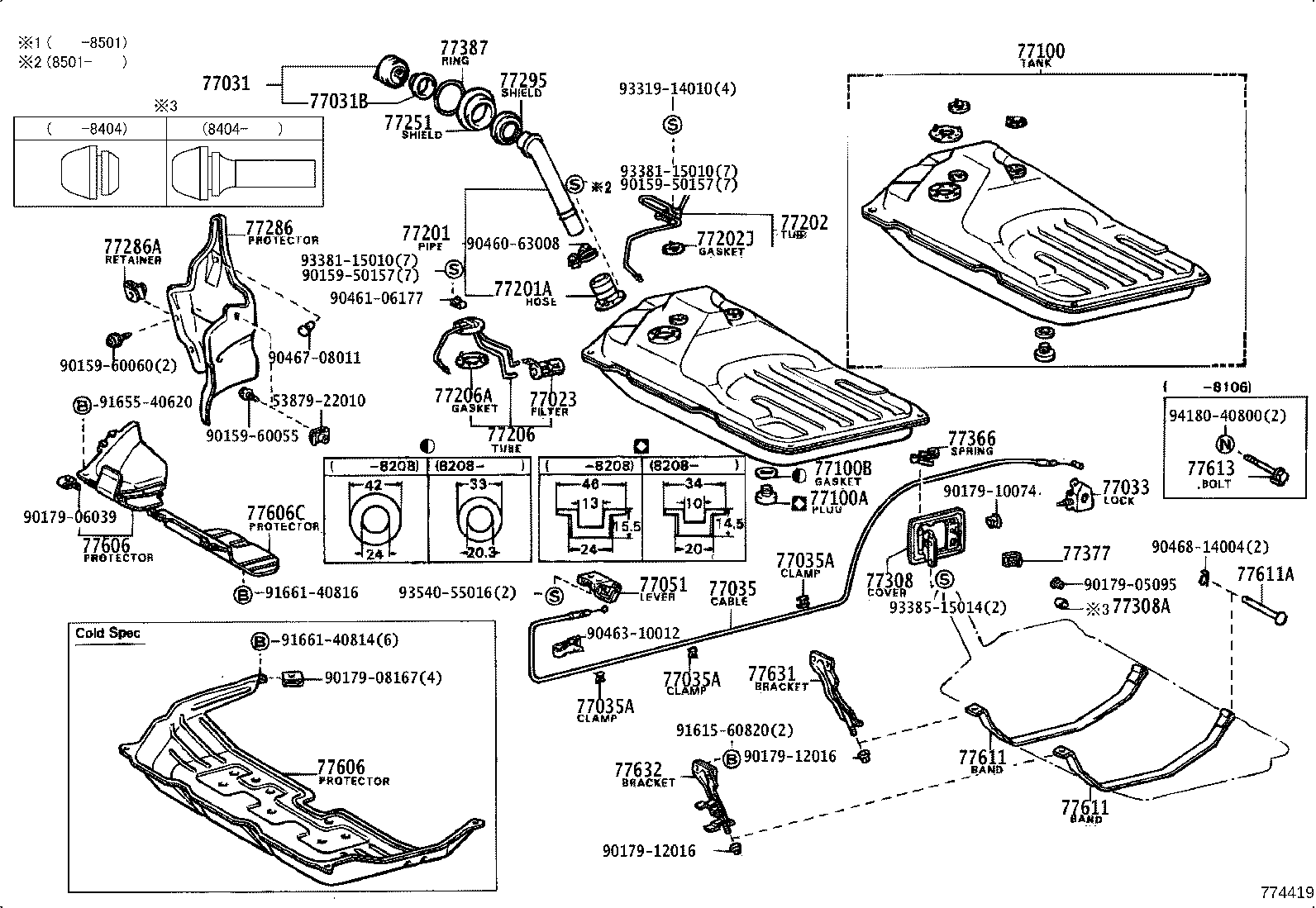

77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-30010

GZ10,MZ1#

 1
77031 - CAP ASSY, FUEL TANK
77310-12100

GZ10,MZ1#

 1
77310-12090

GZ10,MZ11

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-12050

GZ10,MZ1#

 1
77033 - LOCK SUB-ASSY, FUEL TANK CAP
77037-14010

GZ10,MZ1#

 1
77037-24010

GZ10,MZ1#

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-24021

GZ10,MZ1#

 1
77035-24020

GZ10,MZ1#

 1
77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE)
90467-12009

GZ10,MZ1#

 3
69749-12030

GZ10,MZ1#

 1
69749-12010

GZ10,MZ1#

 2
77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE)
90467-12009

GZ10,MZ1#

 3
69749-12030

GZ10,MZ1#

 1
69749-12010

GZ10,MZ1#

 2
77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE)
90467-12009

GZ10,MZ1#

 3
69749-12030

GZ10,MZ1#

 1
69749-12010

GZ10,MZ1#

 2
77051 - LEVER SUB-ASSY, FUEL LID OPEN
77051-2401004

GZ10,MZ1#

BLUE,BLUE,TRIM8#

 1
77051-2401003

GZ10,MZ1#

GRAY,GRAY,TRIM1#

 1
77051-2401005

GZ10,MZ1#

BEIGE,BEIGE,TRIM4#

 1
77051-2401002

GZ10,MZ1#

TERRA COTTA,RED/MAROON,TRIM3#

 1
77051-2401001

GZ10,MZ1#

BLACK,BLACK,TRIM2#

 1
77051-2401012

GZ10,MZ1#

DEEP MAROON,RED/MAROON,TRIM3#

 1
77100 - TANK ASSY, FUEL
77100-29015

GZ10,MZ1#

 1
77100-29016

GZ10,MZ1#

 1
77001-19107

GZ10,MZ1#

 1
77100A - PLUG(FOR FUEL TANK)
90341-24036

GZ10,MZ1#

*24-1.5PX12

 1
90341-20004

GZ10,MZ1#

*20-1.5PX11,OD=42

 1
90341-20003

GZ10,MZ1#

*20-1.5PX11,OD=34

 1
77100B - GASKET(FOR FUEL TANK)
90430-24047

GZ10,MZ1#

ID=24

 1
90430-20006

GZ10,MZ1#

ID=20.3,OD=33

 1
90430-20007

GZ10,MZ1#

ID=20.3,OD=35

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-14180

GZ10,MZ1#

 1
77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77213-14090

GZ10,MZ1#

 1
77202 - TUBE SUB-ASSY, BREATHER
77012-14041

GZ10,MZ1#

 1
77012-14040

GZ10,MZ1#

 1
77202J - GASKET (FOR BREATHER TUBE)
77179-14030

GZ10,MZ1#

 1
77206 - TUBE SUB-ASSY, FUEL TANK SUCTION
77203-24010

GZ10,MZ1#

 1
77206A - GASKET (FOR FUEL TANK SUCTION TUBE)
77169-14010

GZ10,MZ1#

 1
77251 - SHIELD, FUEL TANK, INLET, NO.1
77291-14020

GZ10,MZ1#

 1
77286 - PROTECTOR, FUEL TANK INLET PIPE
77277-24010

GZ10,MZ1#

 1
77286A - RETAINER, FUEL FILLER PIPE PROTECTOR
77279-24010

GZ10,MZ1#

 2
77295 - SHIELD, FUEL FILLER PIPE
77292-14010

GZ10,MZ1#

 1
77308 - COVER SUB-ASSY, FUEL INLET BOX
77350-24010

GZ10,MZ1#

 1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-05018

GZ10,MZ1#

 2
90541-05009

GZ10,MZ1#

 2
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-24010

GZ10,MZ1#

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-24010

GZ10,MZ1#

 1
77387 - RING, FUEL INLET BOX
77391-14010

GZ10,MZ1#

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77641-14070

GZ10,MZ1#

 1
77606-14040

GZ10,MZ1#

COLD SPEC

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77641-14070

GZ10,MZ1#

 1
77606-14040

GZ10,MZ1#

COLD SPEC

 1
77606C - PROTECTOR, FUEL TANK, NO.2
77642-14010

GZ10,MZ1#

 1
77611 - BAND, FUEL TANK
77601-14040

GZ10,MZ1#

RH

 1
77601-14040

GZ10,MZ1#

 2
77602-14030

GZ10,MZ1#

LH

 1
77601-14050

GZ10,MZ1#

COLD SPEC

 2
77601-14060

GZ10,MZ1#

 2
77611 - BAND, FUEL TANK
77601-14040

GZ10,MZ1#

RH

 1
77601-14040

GZ10,MZ1#

 2
77602-14030

GZ10,MZ1#

LH

 1
77601-14050

GZ10,MZ1#

COLD SPEC

 2
77601-14060

GZ10,MZ1#

 2
77611A - PIN (FOR FUEL TANK BAND)
90240-08020

GZ10,MZ1#

 2
77613 - BOLT, FUEL TANK BAND SET
77645-14030

GZ10,MZ11

 2
77631 - BRACKET, FUEL TANK, NO.1
77613-14040

GZ10,MZ1#

 1
77632 - BRACKET, FUEL TANK, NO.2
77614-14040

GZ10,MZ1#

 1
Common parts
53879-22010
90159-50157
90159-60055
90159-60060
90179-05095
90179-06039
90179-08167
90179-10074
90179-12016
90460-63008
90461-06177
90463-10012
90467-08011
90468-14004
91615-60820
91655-40620
91661-40814
91661-40816
93319-14010
93381-15010
93385-15014
93540-55016
94180-40800

(8102- )

Click highlighted areas on diagram

diagram 77652 77652 77652 77652 77652 77652 77652 77654 77654 77655 77656A
Part # Description Qty Price

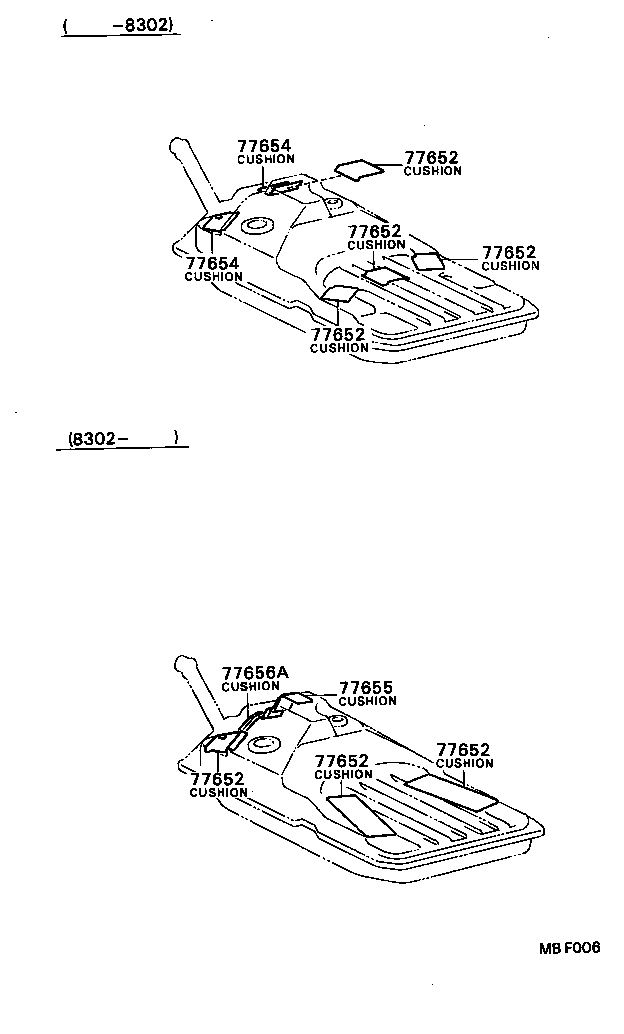

77652 - CUSHION, FUEL TANK, NO.1
77652-20010

GZ10,MZ1#

100X100

 1
77652-20010

GZ10,MZ1#

100X100

 4
77651-14070

GZ10,MZ1#

 2
77652-14080

GZ10,MZ1#

 6
77652 - CUSHION, FUEL TANK, NO.1
77652-20010

GZ10,MZ1#

100X100

 1
77652-20010

GZ10,MZ1#

100X100

 4
77651-14070

GZ10,MZ1#

 2
77652-14080

GZ10,MZ1#

 6
77652 - CUSHION, FUEL TANK, NO.1
77652-20010

GZ10,MZ1#

100X100

 1
77652-20010

GZ10,MZ1#

100X100

 4
77651-14070

GZ10,MZ1#

 2
77652-14080

GZ10,MZ1#

 6
77652 - CUSHION, FUEL TANK, NO.1
77652-20010

GZ10,MZ1#

100X100

 1
77652-20010

GZ10,MZ1#

100X100

 4
77651-14070

GZ10,MZ1#

 2
77652-14080

GZ10,MZ1#

 6
77652 - CUSHION, FUEL TANK, NO.1
77652-20010

GZ10,MZ1#

100X100

 1
77652-20010

GZ10,MZ1#

100X100

 4
77651-14070

GZ10,MZ1#

 2
77652-14080

GZ10,MZ1#

 6
77652 - CUSHION, FUEL TANK, NO.1
77652-20010

GZ10,MZ1#

100X100

 1
77652-20010

GZ10,MZ1#

100X100

 4
77651-14070

GZ10,MZ1#

 2
77652-14080

GZ10,MZ1#

 6
77652 - CUSHION, FUEL TANK, NO.1
77652-20010

GZ10,MZ1#

100X100

 1
77652-20010

GZ10,MZ1#

100X100

 4
77651-14070

GZ10,MZ1#

 2
77652-14080

GZ10,MZ1#

 6
77654 - CUSHION, FUEL TANK, NO.2
77652-14060

GZ10,MZ1#

60X100

 2
77652-14090

GZ10,MZ1#

 1
77654 - CUSHION, FUEL TANK, NO.2
77652-14060

GZ10,MZ1#

60X100

 2
77652-14090

GZ10,MZ1#

 1
77655 - CUSHION, FUEL TANK, NO.3
77653-14050

GZ10,MZ1#

 1
77656A - CUSHION, FUEL TANK, NO.4
77654-14030

GZ10,MZ1#

 1
