GZ10-HCMZE (1981)
Toyota Soarer

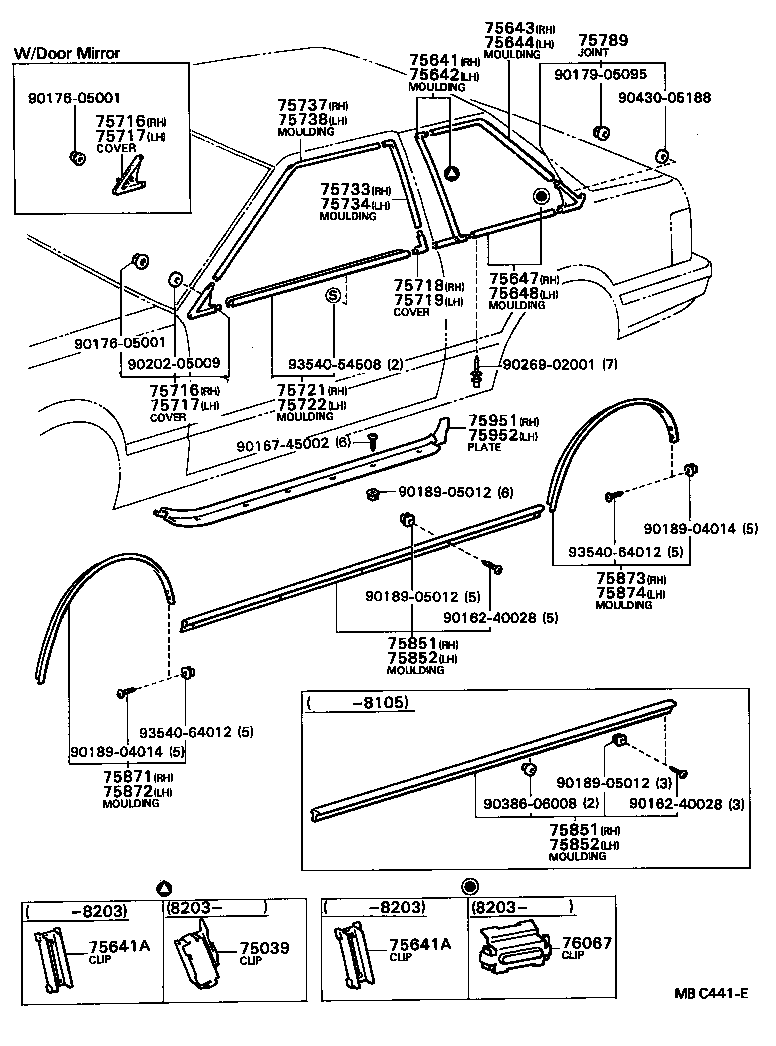

ILLUST NO. 1 OF 2(8102- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75039 - CLIP SUB-ASSY, OUTSIDE MOULDING | ||||
| 75039-24010 |
GZ10,MZ1# |
6 | ||
| 75641 - MOULDING, QUARTER WINDOW, OUTSIDE FRONT RH | ||||
| 75641-24010 |
GZ10,MZ1# |
1 | ||
| 75641A - CLIP(FOR QUARTER WINDOW OUTSIDE MOULDING) | ||||
| 75395-24010 |
GZ10,MZ1# |
14 | ||
| 75641A - CLIP(FOR QUARTER WINDOW OUTSIDE MOULDING) | ||||
| 75395-24010 |
GZ10,MZ1# |
14 | ||
| 75642 - MOULDING, QUARTER WINDOW, OUTSIDE FRONT LH | ||||
| 75642-24010 |
GZ10,MZ1# |
1 | ||
| 75643 - MOULDING, QUARTER WINDOW, OUTSIDE UPPER RH | ||||
| 75643-24010 |
GZ10,MZ1# |
1 | ||
| 75644 - MOULDING, QUARTER WINDOW, OUTSIDE UPPER LH | ||||
| 75644-24010 |
GZ10,MZ1# |
1 | ||
| 75647 - MOULDING, QUARTER WINDOW, OUTSIDE LOWER RH | ||||
| 75647-24010 |
GZ10,MZ1# |
1 | ||
| 75648 - MOULDING, QUARTER WINDOW, OUTSIDE LOWER LH | ||||
| 75648-24010 |
GZ10,MZ1# |
1 | ||
| 75716 - COVER, FRONT DOOR BELT MOULDING END, FRONT RH | ||||
| 75716-29015 |
GZ10,MZ1# |
1 | ||
| 75716-24020 |
GZ10,MZ1# W/DOOR MIRROR |
1 | ||
| 75716 - COVER, FRONT DOOR BELT MOULDING END, FRONT RH | ||||
| 75716-29015 |
GZ10,MZ1# |
1 | ||
| 75716-24020 |
GZ10,MZ1# W/DOOR MIRROR |
1 | ||
| 75717 - COVER, FRONT DOOR BELT MOULDING END, FRONT LH | ||||
| 75717-29015 |
GZ10,MZ1# |
1 | ||
| 75717-24020 |
GZ10,MZ1# W/DOOR MIRROR |
1 | ||
| 75717 - COVER, FRONT DOOR BELT MOULDING END, FRONT LH | ||||
| 75717-29015 |
GZ10,MZ1# |
1 | ||
| 75717-24020 |
GZ10,MZ1# W/DOOR MIRROR |
1 | ||
| 75718 - COVER, FRONT DOOR BELT MOULDING END, REAR RH | ||||
| 75718-24010 |
GZ10,MZ1# |
1 | ||
| 75719 - COVER, FRONT DOOR BELT MOULDING END, REAR LH | ||||
| 75719-24010 |
GZ10,MZ1# |
1 | ||
| 75721 - MOULDING, FRONT DOOR BELT, RH | ||||
| 75710-29085 |
GZ10,MZ1# W/DOOR MIRROR |
1 | ||
| 75710-29055 |
GZ10,MZ1# |
1 | ||
| 75722 - MOULDING, FRONT DOOR BELT, LH | ||||
| 75720-29075 |
GZ10,MZ1# W/DOOR MIRROR |
1 | ||
| 75720-29055 |
GZ10,MZ1# |
1 | ||
| 75733 - MOULDING, FRONT DOOR WINDOW FRAME, REAR RH | ||||
| 75755-24010 |
GZ10,MZ1# |
1 | ||
| 75734 - MOULDING, FRONT DOOR WINDOW FRAME, REAR LH | ||||
| 75756-24010 |
GZ10,MZ1# |
1 | ||
| 75737 - MOULDING, FRONT DOOR WINDOW FRAME, FRONT RH | ||||
| 75751-24010 |
GZ10,MZ1# |
1 | ||
| 75738 - MOULDING, FRONT DOOR WINDOW FRAME, FRONT LH | ||||
| 75752-24010 |
GZ10,MZ1# |
1 | ||
| 75789 - JOINT, QUARTER WINDOW MOULDING | ||||
| 75889-24010 |
GZ10,MZ1# RH |
1 | ||
| 75899-24010 |
GZ10,MZ1# LH |
1 | ||
| 75851 - MOULDING, ROCKER PANEL, RH | ||||
| 75850-29095 |
GZ10,MZ11 |
1 | ||
| 75850-29096 |
GZ10,MZ1# |
1 | ||
| 75851 - MOULDING, ROCKER PANEL, RH | ||||
| 75850-29095 |
GZ10,MZ11 |
1 | ||
| 75850-29096 |
GZ10,MZ1# |
1 | ||
| 75852 - MOULDING, ROCKER PANEL, LH | ||||
| 75850-29096 |
GZ10,MZ1# |
1 | ||
| 75850-29095 |
GZ10,MZ11 |
1 | ||
| 75852 - MOULDING, ROCKER PANEL, LH | ||||
| 75850-29096 |
GZ10,MZ1# |
1 | ||
| 75850-29095 |
GZ10,MZ11 |
1 | ||
| 75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH | ||||
| 67910-2401002 |
GZ10,MZ1# TERRA COTTA,RED/MAROON,TRIM3# |
1 | ||
| 67910-2401004 |
GZ10,MZ1# BLUE,BLUE,TRIM8# |
1 | ||
| 67910-2401005 |
GZ10,MZ1# BEIGE,BEIGE,TRIM4# |
1 | ||
| 67910-2401001 |
GZ10,MZ1# BLACK,BLACK,TRIM2# |
1 | ||
| 67910-2401012 |
GZ10,MZ1# DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67910-2401003 |
GZ10,MZ1# GRAY,GRAY,TRIM1# |
1 | ||
| 75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67920-2401005 |
GZ10,MZ1# BEIGE,BEIGE,TRIM4# |
1 | ||
| 67920-2401001 |
GZ10,MZ1# BLACK,BLACK,TRIM2# |
1 | ||
| 67920-2401003 |
GZ10,MZ1# GRAY,GRAY,TRIM1# |
1 | ||
| 67920-2401004 |
GZ10,MZ1# BLUE,BLUE,TRIM8# |
1 | ||
| 67920-2401012 |
GZ10,MZ1# DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 67920-2401002 |
GZ10,MZ1# TERRA COTTA,RED/MAROON,TRIM3# |
1 | ||
| 76067 - CLIP SUB-ASSY, QUARTER BELT MOULDING, NO.1 | ||||
| 76067-24010 |
GZ10,MZ1# |
8 | ||
| Common parts | ||||
| 90162-40028 | ||||
| 90167-45002 | ||||
| 90176-05001 | ||||
| 90179-05095 | ||||
| 90189-04014 | ||||
| 90189-05012 | ||||
| 90202-05009 | ||||
| 90269-02001 | ||||
| 90386-06008 | ||||
| 90430-05188 | ||||
| 93540-54508 | ||||
| 93540-64012 | ||||

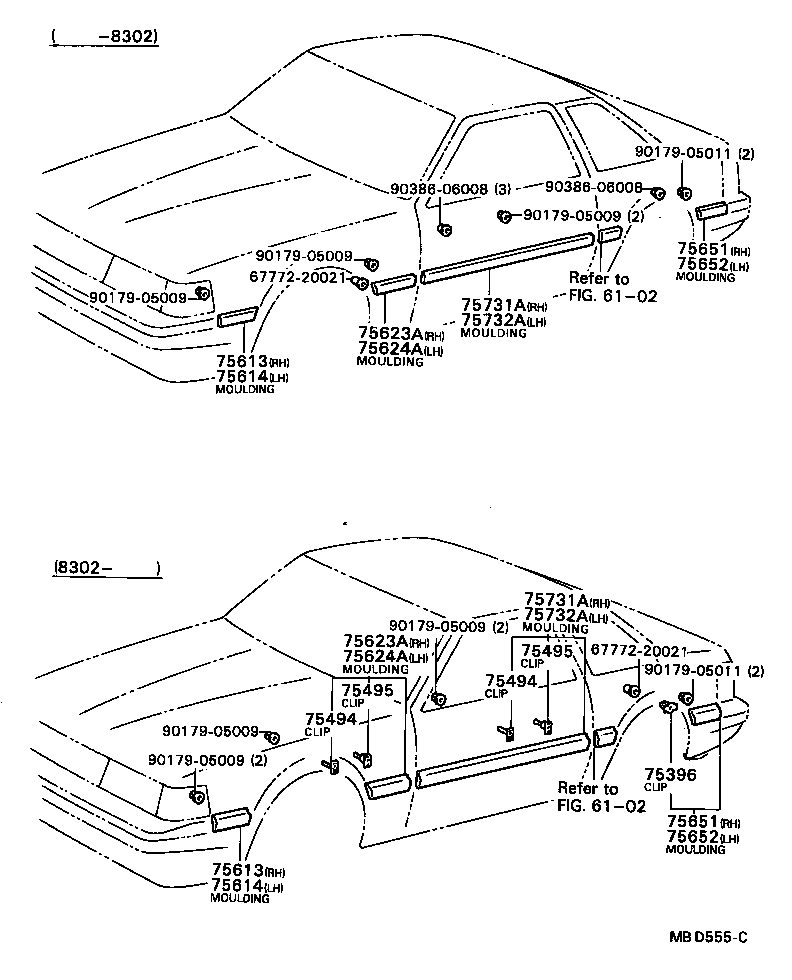

ILLUST NO. 2 OF 2(8102- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75396 - CLIP, OUTSIDE MOULDING, NO.2 | ||||
| 75396-24020 |
GZ10,MZ1# |
2 | ||
| 75494 - CLIP, OUTSIDE MOULDING, NO.3 | ||||
| 75494-24010 |
GZ10,MZ1# |
6 | ||
| 75494 - CLIP, OUTSIDE MOULDING, NO.3 | ||||
| 75494-24010 |
GZ10,MZ1# |
6 | ||
| 75495 - CLIP, OUTSIDE MOULDING, NO.4 | ||||
| 75495-24011 |
GZ10,MZ1# |
8 | ||
| 75495 - CLIP, OUTSIDE MOULDING, NO.4 | ||||
| 75495-24011 |
GZ10,MZ1# |
8 | ||
| 75613 - MOULDING, FRONT FENDER, OUTSIDE RH | ||||
| 75611-2401004 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75611-2401006 |
GZ10,MZ1# DARK BROWN,BROWN |
1 | ||
| 75611-2401101 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLACK,BLACK |
1 | ||
| 75611-2401001 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75611-2401101 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75611-2401106 |
GZ10,MZ1# DARK BROWN,BROWN |
1 | ||
| 75611-2401104 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLUE,BLUE |
1 | ||
| 75611-2401104 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75613 - MOULDING, FRONT FENDER, OUTSIDE RH | ||||
| 75611-2401004 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75611-2401006 |
GZ10,MZ1# DARK BROWN,BROWN |
1 | ||
| 75611-2401101 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLACK,BLACK |
1 | ||
| 75611-2401001 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75611-2401101 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75611-2401106 |
GZ10,MZ1# DARK BROWN,BROWN |
1 | ||
| 75611-2401104 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLUE,BLUE |
1 | ||
| 75611-2401104 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75614 - MOULDING, FRONT FENDER, OUTSIDE LH | ||||
| 75612-2401106 |
GZ10,MZ1# DARK BROWN,BROWN |
1 | ||
| 75612-2401001 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75612-2401006 |
GZ10,MZ1# DARK BROWN,BROWN |
1 | ||
| 75612-2401004 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75612-2401104 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLUE,BLUE |
1 | ||
| 75612-2401101 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75612-2401101 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLACK,BLACK |
1 | ||
| 75612-2401104 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75614 - MOULDING, FRONT FENDER, OUTSIDE LH | ||||
| 75612-2401106 |
GZ10,MZ1# DARK BROWN,BROWN |
1 | ||
| 75612-2401001 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75612-2401006 |
GZ10,MZ1# DARK BROWN,BROWN |
1 | ||
| 75612-2401004 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75612-2401104 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLUE,BLUE |
1 | ||
| 75612-2401101 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75612-2401101 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLACK,BLACK |
1 | ||
| 75612-2401104 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH | ||||
| 75623-2401001 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75623-2401106 |
GZ10,MZ1# DARK BROWN,BROWN |
1 | ||
| 75623-2401104 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75623-2401101 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLACK,BLACK |
1 | ||
| 75623-2401104 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLUE,BLUE |
1 | ||
| 75623-2401006 |
GZ10,MZ1# DARK BROWN,BROWN |
1 | ||
| 75623-2401101 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75623-2401004 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75623A - MOULDING, FRONT FENDER, OUTSIDE REAR RH | ||||
| 75623-2401001 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75623-2401106 |
GZ10,MZ1# DARK BROWN,BROWN |
1 | ||
| 75623-2401104 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75623-2401101 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLACK,BLACK |
1 | ||
| 75623-2401104 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLUE,BLUE |
1 | ||
| 75623-2401006 |
GZ10,MZ1# DARK BROWN,BROWN |
1 | ||
| 75623-2401101 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75623-2401004 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH | ||||
| 75624-2401004 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75624-2401001 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75624-2401101 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75624-2401104 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75624-2401104 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLUE,BLUE |
1 | ||
| 75624-2401006 |
GZ10,MZ1# DARK BROWN,BROWN |
1 | ||
| 75624-2401106 |
GZ10,MZ1# DARK BROWN,BROWN |
1 | ||
| 75624-2401101 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLACK,BLACK |
1 | ||
| 75624A - MOULDING, FRONT FENDER, OUTSIDE REAR LH | ||||
| 75624-2401004 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75624-2401001 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75624-2401101 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75624-2401104 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75624-2401104 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLUE,BLUE |
1 | ||
| 75624-2401006 |
GZ10,MZ1# DARK BROWN,BROWN |
1 | ||
| 75624-2401106 |
GZ10,MZ1# DARK BROWN,BROWN |
1 | ||
| 75624-2401101 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLACK,BLACK |
1 | ||
| 75651 - MOULDING, QUARTER, OUTSIDE RH | ||||
| 75653-2401101 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLACK,BLACK |
1 | ||
| 75653-2401001 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75653-2401004 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75653-2401006 |
GZ10,MZ1# DARK BROWN,BROWN |
1 | ||
| 75653-2401106 |
GZ10,MZ1# BROWN,BROWN |
1 | ||
| 75653-2401104 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75653-2401104 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLUE,BLUE |
1 | ||
| 75653-2401101 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75651 - MOULDING, QUARTER, OUTSIDE RH | ||||
| 75653-2401101 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLACK,BLACK |
1 | ||
| 75653-2401001 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75653-2401004 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75653-2401006 |
GZ10,MZ1# DARK BROWN,BROWN |
1 | ||
| 75653-2401106 |
GZ10,MZ1# BROWN,BROWN |
1 | ||
| 75653-2401104 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75653-2401104 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLUE,BLUE |
1 | ||
| 75653-2401101 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75652 - MOULDING, QUARTER, OUTSIDE LH | ||||
| 75654-2401001 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75654-2401006 |
GZ10,MZ1# DARK BROWN,BROWN |
1 | ||
| 75654-2401104 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLUE,BLUE |
1 | ||
| 75654-2401104 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75654-2401101 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75654-2401101 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLACK,BLACK |
1 | ||
| 75654-2401106 |
GZ10,MZ1# BROWN,BROWN |
1 | ||
| 75654-2401004 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75652 - MOULDING, QUARTER, OUTSIDE LH | ||||
| 75654-2401001 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75654-2401006 |
GZ10,MZ1# DARK BROWN,BROWN |
1 | ||
| 75654-2401104 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLUE,BLUE |
1 | ||
| 75654-2401104 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75654-2401101 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75654-2401101 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLACK,BLACK |
1 | ||
| 75654-2401106 |
GZ10,MZ1# BROWN,BROWN |
1 | ||
| 75654-2401004 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75731A - MOULDING, FRONT DOOR, OUTSIDE RH | ||||
| 75731-2401006 |
GZ10,MZ1# DARK BROWN,BROWN |
1 | ||
| 75731-2401001 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75731-2401004 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75731-2401206 |
GZ10,MZ1# BROWN,BROWN |
1 | ||
| 75731-2401201 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75731-2401204 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75731-2401204 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLUE,BLUE |
1 | ||
| 75731-2401201 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLACK,BLACK |
1 | ||
| 75731A - MOULDING, FRONT DOOR, OUTSIDE RH | ||||
| 75731-2401006 |
GZ10,MZ1# DARK BROWN,BROWN |
1 | ||
| 75731-2401001 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75731-2401004 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75731-2401206 |
GZ10,MZ1# BROWN,BROWN |
1 | ||
| 75731-2401201 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75731-2401204 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75731-2401204 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLUE,BLUE |
1 | ||
| 75731-2401201 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLACK,BLACK |
1 | ||
| 75732A - MOULDING, FRONT DOOR, OUTSIDE LH | ||||
| 75732-2401001 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75732-2401204 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75732-2401206 |
GZ10,MZ1# BROWN,BROWN |
1 | ||
| 75732-2401201 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75732-2401201 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLACK,BLACK |
1 | ||
| 75732-2401204 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLUE,BLUE |
1 | ||
| 75732-2401004 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75732-2401006 |
GZ10,MZ1# DARK BROWN,BROWN |
1 | ||
| 75732A - MOULDING, FRONT DOOR, OUTSIDE LH | ||||
| 75732-2401001 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75732-2401204 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75732-2401206 |
GZ10,MZ1# BROWN,BROWN |
1 | ||
| 75732-2401201 |
GZ10,MZ1# BLACK,BLACK |
1 | ||
| 75732-2401201 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLACK,BLACK |
1 | ||
| 75732-2401204 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLUE,BLUE |
1 | ||
| 75732-2401004 |
GZ10,MZ1# BLUE,BLUE |
1 | ||
| 75732-2401006 |
GZ10,MZ1# DARK BROWN,BROWN |
1 | ||
| Common parts | ||||
| 67772-20021 | ||||
| 90179-05009 | ||||
| 90179-05011 | ||||
| 90386-06008 | ||||
| Linked diagrams | ||||
| 6102 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
