GZ10-HCMZE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8102- )

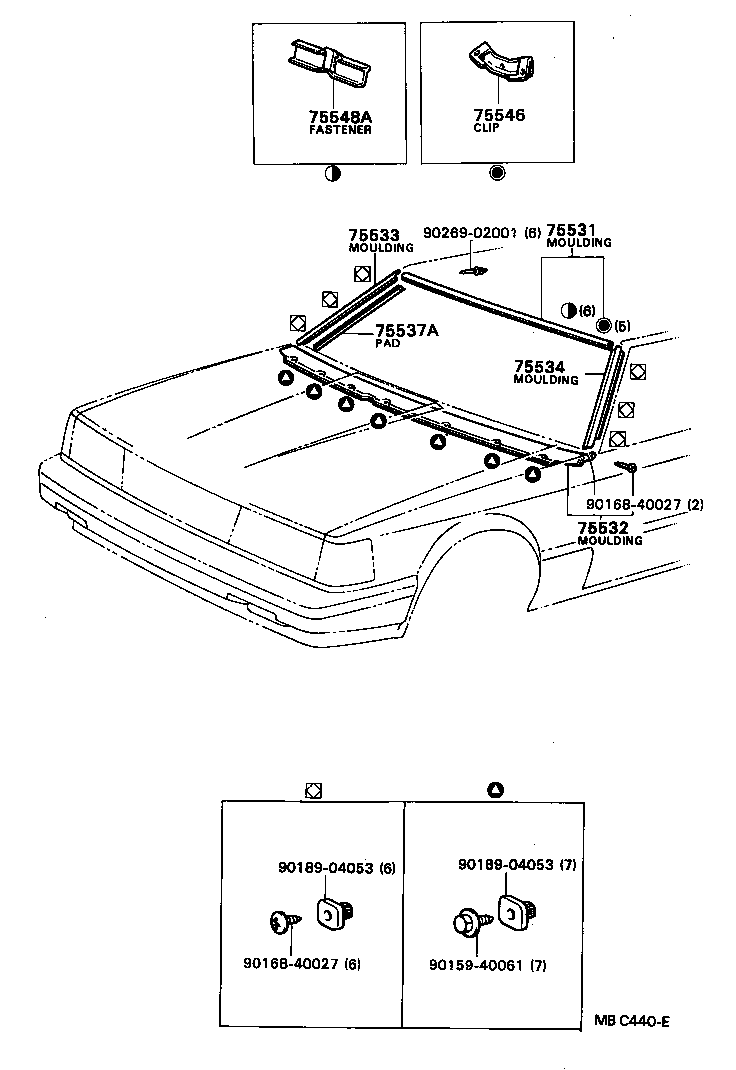

Click highlighted areas on diagram

diagram 75531 75532 75533 75534 75537A 75546 75548A 9015940061 9016840027 9016840027 9018904053 9018904053 9026902001
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-24020

GZ10,MZ1#

 1
75532 - MOULDING, WINDSHIELD, LOWER
75504-24010

GZ10,MZ1#

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-24010

GZ10,MZ1#

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-24010

GZ10,MZ1#

 1
75537A - PAD, WINDSHIELD MOULDING
75537-24010

GZ10,MZ1#

COLD SPEC

 1
75546 - CLIP, WINDSHIELD OUTSIDE MOULDING
75962-24010

GZ10,MZ1#

 5
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-24020

GZ10,MZ1#

 6
Common parts
90159-40061
90168-40027
90189-04053
90269-02001
