GZ10-HCMZE (1981)
Toyota Soarer
Production
Feb 1981
-
Dec 1985
Engine
1GEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8102- )

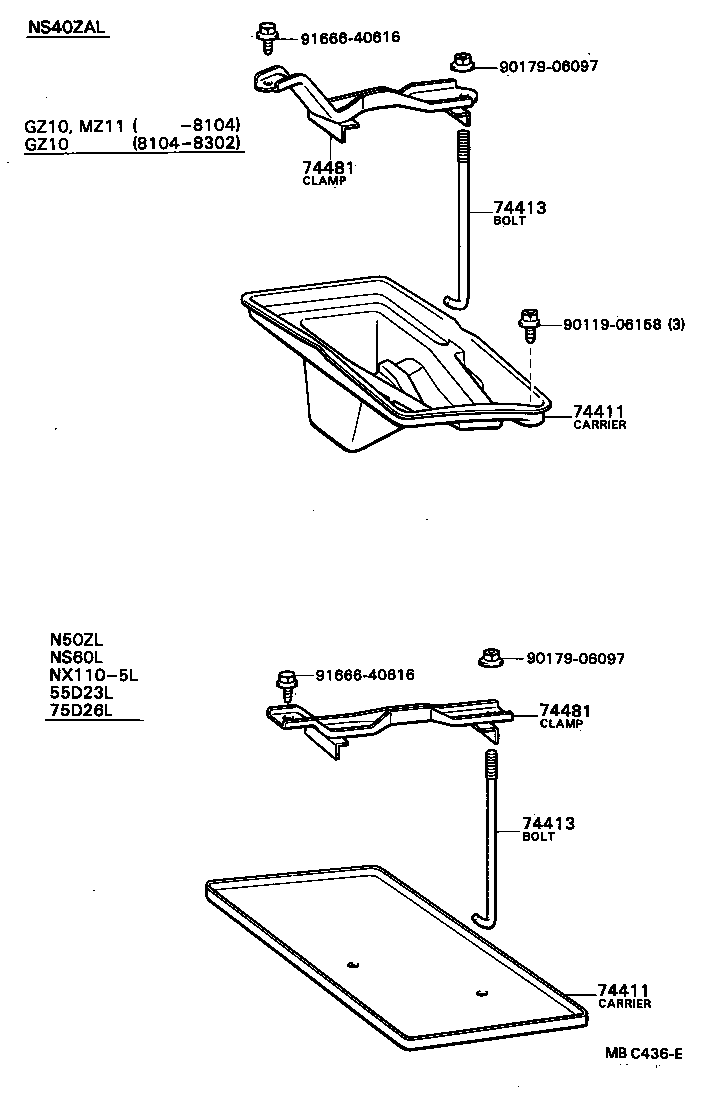

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74411 - CARRIER, BATTERY | ||||
| 74431-24010 |
GZ10,MZ11 NS40ZAL |
1 | ||
| 74431-14030 |
GZ10,MZ1# N50ZL,NX110-5L,55D23L |
1 | ||
| 74431-24010 |
GZ10 NS40ZAL |
1 | ||
| 74431-14020 |
GZ10,MZ10 NS60L |
1 | ||
| 74431-14030 |
GZ10,MZ1# NX110-5L,55D23L |
1 | ||
| 74411 - CARRIER, BATTERY | ||||
| 74431-24010 |
GZ10,MZ11 NS40ZAL |
1 | ||
| 74431-14030 |
GZ10,MZ1# N50ZL,NX110-5L,55D23L |
1 | ||
| 74431-24010 |
GZ10 NS40ZAL |
1 | ||
| 74431-14020 |
GZ10,MZ10 NS60L |
1 | ||
| 74431-14030 |
GZ10,MZ1# NX110-5L,55D23L |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-14010 |
GZ10,MZ1# |
1 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-14010 |
GZ10,MZ1# |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74404-24020 |
GZ10 NS40ZAL |
1 | ||
| 74404-24020 |
GZ10,MZ11 NS40ZAL |
1 | ||
| 74404-24010 |
GZ10,MZ1# N50ZL,NX110-5L,55D23L |
1 | ||
| 74404-24010 |
GZ10,MZ1# NX110-5L,55D23L |
1 | ||
| 74404-14160 |
GZ10,MZ10 NS60L |
1 | ||
| 74481 - CLAMP, BATTERY HOLD DOWN | ||||
| 74404-24020 |
GZ10 NS40ZAL |
1 | ||
| 74404-24020 |
GZ10,MZ11 NS40ZAL |
1 | ||
| 74404-24010 |
GZ10,MZ1# N50ZL,NX110-5L,55D23L |
1 | ||
| 74404-24010 |
GZ10,MZ1# NX110-5L,55D23L |
1 | ||
| 74404-14160 |
GZ10,MZ10 NS60L |
1 | ||
| Common parts | ||||
| 90119-06158 | ||||
| 90179-06097 | ||||
| 91666-40616 | ||||
