GZ10-HCMZE (1981)
Toyota Soarer
(8102- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73013A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH | ||||
| 73013-2401003 |
GZ10,MZ1# GRAY,GRAY,TRIM1#,2# |
1 | ||
| 73013-2401005 |
GZ10,MZ1# LIGHT BEIGE,BEIGE,TRIM3# |
1 | ||
| 73013-2401004 |
GZ10,MZ1# LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 73013-2401014 |
MZ11,12;GZ10..V2,VR,VX BLUE,BLUE,TRIM8# |
1 | ||
| 73013-2401002 |
MZ11,12;GZ10..V2,VR,VX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73013-2401005 |
MZ11,12;GZ10..V2,VR,VX BEIGE,BEIGE,TRIM4# |
1 | ||
| 73013A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH | ||||
| 73013-2401003 |
GZ10,MZ1# GRAY,GRAY,TRIM1#,2# |
1 | ||
| 73013-2401005 |
GZ10,MZ1# LIGHT BEIGE,BEIGE,TRIM3# |
1 | ||
| 73013-2401004 |
GZ10,MZ1# LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 73013-2401014 |
MZ11,12;GZ10..V2,VR,VX BLUE,BLUE,TRIM8# |
1 | ||
| 73013-2401002 |
MZ11,12;GZ10..V2,VR,VX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73013-2401005 |
MZ11,12;GZ10..V2,VR,VX BEIGE,BEIGE,TRIM4# |
1 | ||
| 73014A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH | ||||
| 73014-2401004 |
GZ10,MZ1# LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 73014-2401003 |
GZ10,MZ1# GRAY,GRAY,TRIM1#,2# |
1 | ||
| 73014-2401005 |
GZ10,MZ1# LIGHT BEIGE,BEIGE,TRIM3# |
1 | ||
| 73014-2401002 |
MZ11,12;GZ10..V2,VR,VX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73014-2401014 |
MZ11,12;GZ10..V2,VR,VX BLUE,BLUE,TRIM8# |
1 | ||
| 73014-2401005 |
MZ11,12;GZ10..V2,VR,VX BEIGE,BEIGE,TRIM4# |
1 | ||
| 73014A - PLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, LH | ||||
| 73014-2401004 |
GZ10,MZ1# LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 73014-2401003 |
GZ10,MZ1# GRAY,GRAY,TRIM1#,2# |
1 | ||
| 73014-2401005 |
GZ10,MZ1# LIGHT BEIGE,BEIGE,TRIM3# |
1 | ||
| 73014-2401002 |
MZ11,12;GZ10..V2,VR,VX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73014-2401014 |
MZ11,12;GZ10..V2,VR,VX BLUE,BLUE,TRIM8# |
1 | ||
| 73014-2401005 |
MZ11,12;GZ10..V2,VR,VX BEIGE,BEIGE,TRIM4# |
1 | ||
| 73137 - CAP, FRONT SEAT BELT INNER ANCHOR, RH | ||||
| 73137-2401004 |
GZ10,MZ1# LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 73137-2401005 |
GZ10,MZ1# LIGHT BEIGE,BEIGE,TRIM3# |
1 | ||
| 73137-2401002 |
MZ11,12;GZ10..V2,VR,VX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73137-2401003 |
GZ10,MZ1# GRAY,GRAY,TRIM1#,2# |
1 | ||
| 73137-2401014 |
MZ11,12;GZ10..V2,VR,VX BLUE,BLUE,TRIM8# |
1 | ||
| 73137-2401005 |
MZ11,12;GZ10..V2,VR,VX BEIGE,BEIGE,TRIM4# |
1 | ||
| 73137 - CAP, FRONT SEAT BELT INNER ANCHOR, RH | ||||
| 73137-2401004 |
GZ10,MZ1# LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 73137-2401005 |
GZ10,MZ1# LIGHT BEIGE,BEIGE,TRIM3# |
1 | ||
| 73137-2401002 |
MZ11,12;GZ10..V2,VR,VX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73137-2401003 |
GZ10,MZ1# GRAY,GRAY,TRIM1#,2# |
1 | ||
| 73137-2401014 |
MZ11,12;GZ10..V2,VR,VX BLUE,BLUE,TRIM8# |
1 | ||
| 73137-2401005 |
MZ11,12;GZ10..V2,VR,VX BEIGE,BEIGE,TRIM4# |
1 | ||
| 73138 - CAP, FRONT SEAT BELT INNER ANCHOR, LH | ||||
| 73138-2401004 |
GZ10,MZ1# LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 73138-2401002 |
MZ11,12;GZ10..V2,VR,VX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73138-2401005 |
MZ11,12;GZ10..V2,VR,VX BEIGE,BEIGE,TRIM4# |
1 | ||
| 73138-2401014 |
MZ11,12;GZ10..V2,VR,VX BLUE,BLUE,TRIM8# |
1 | ||
| 73138-2401003 |
GZ10,MZ1# GRAY,GRAY,TRIM1#,2# |
1 | ||
| 73138-2401005 |
GZ10,MZ1# LIGHT BEIGE,BEIGE,TRIM3# |
1 | ||
| 73138 - CAP, FRONT SEAT BELT INNER ANCHOR, LH | ||||
| 73138-2401004 |
GZ10,MZ1# LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 73138-2401002 |
MZ11,12;GZ10..V2,VR,VX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73138-2401005 |
MZ11,12;GZ10..V2,VR,VX BEIGE,BEIGE,TRIM4# |
1 | ||
| 73138-2401014 |
MZ11,12;GZ10..V2,VR,VX BLUE,BLUE,TRIM8# |
1 | ||
| 73138-2401003 |
GZ10,MZ1# GRAY,GRAY,TRIM1#,2# |
1 | ||
| 73138-2401005 |
GZ10,MZ1# LIGHT BEIGE,BEIGE,TRIM3# |
1 | ||
| 73180 - BRACKET ASSY, SEAT BELT INNER ANCHOR, RH | ||||
| 73011-24010 |
GZ10..V2,VR,VX |
1 | ||
| 73011-24010 |
GZ10,MZ1# |
1 | ||
| 73180 - BRACKET ASSY, SEAT BELT INNER ANCHOR, RH | ||||
| 73011-24010 |
GZ10..V2,VR,VX |
1 | ||
| 73011-24010 |
GZ10,MZ1# |
1 | ||
| 73180 - BRACKET ASSY, SEAT BELT INNER ANCHOR, RH | ||||
| 73011-24010 |
GZ10..V2,VR,VX |
1 | ||
| 73011-24010 |
GZ10,MZ1# |
1 | ||
| 73190 - BRACKET ASSY, SEAT BELT INNER ANCHOR, LH | ||||
| 73012-24010 |
GZ10,MZ1# |
1 | ||
| 73012-24010 |
MZ11,12;GZ10..V2,VR,VX |
1 | ||
| 73190 - BRACKET ASSY, SEAT BELT INNER ANCHOR, LH | ||||
| 73012-24010 |
GZ10,MZ1# |
1 | ||
| 73012-24010 |
MZ11,12;GZ10..V2,VR,VX |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-2401004 |
GZ10,MZ10..TBO,V1,V2,VR LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 73210-2401005 |
GZ10,MZ10..TBO,V1,V2,VR LIGHT BEIGE,BEIGE,TRIM3# |
1 | ||
| 73210-2401003 |
GZ10,MZ10..TBO,V1,V2,VR GRAY,GRAY,TRIM1#,2# |
1 | ||
| 73210-2404002 |
GZ10..V2,VR DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73210-2404102 |
GZ10..V2,VR DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 73210-2401013 |
GZ10,MZ10..TBO,V2,VR GRAY,GRAY,TRIM1# |
1 | ||
| 73210-2404014 |
GZ10..V2,VR BLUE,BLUE,TRIM8# |
1 | ||
| 73210-2404015 |
GZ10..V2,VR BEIGE,BEIGE,TRIM4# |
1 | ||
| 73210-2404104 |
GZ10..V2,VR BLUE,BLUE,TRIM8# |
1 | ||
| 73210-2404105 |
GZ10..V2,VR BEIGE,BEIGE,TRIM4# |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-2401004 |
GZ10,MZ10..TBO,V1,V2,VR LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 73210-2401005 |
GZ10,MZ10..TBO,V1,V2,VR LIGHT BEIGE,BEIGE,TRIM3# |
1 | ||
| 73210-2401003 |
GZ10,MZ10..TBO,V1,V2,VR GRAY,GRAY,TRIM1#,2# |
1 | ||
| 73210-2404002 |
GZ10..V2,VR DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73210-2404102 |
GZ10..V2,VR DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 73210-2401013 |
GZ10,MZ10..TBO,V2,VR GRAY,GRAY,TRIM1# |
1 | ||
| 73210-2404014 |
GZ10..V2,VR BLUE,BLUE,TRIM8# |
1 | ||
| 73210-2404015 |
GZ10..V2,VR BEIGE,BEIGE,TRIM4# |
1 | ||
| 73210-2404104 |
GZ10..V2,VR BLUE,BLUE,TRIM8# |
1 | ||
| 73210-2404105 |
GZ10..V2,VR BEIGE,BEIGE,TRIM4# |
1 | ||
| 73210B - CAP (FOR FRONT SEAT OUTER BELT) | ||||
| 73178-1201011 |
GZ10,MZ1# BLACK,BLACK,TRIM2# |
2 | ||
| 73178-1201012 |
GZ10,MZ1# TERRACOTTA,RED/MAROON,TRIM3# |
2 | ||
| 73178-1201023 |
GZ10,MZ1# GRAY,GRAY,TRIM1# |
2 | ||
| 73178-1201014 |
GZ10,MZ1# BLUE,BLUE,TRIM8# |
2 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-2401005 |
GZ10,MZ1# LIGHT BEIGE,BEIGE,TRIM3# |
1 | ||
| 73220-2403104 |
GZ10,MZ1# BLUE,BLUE,TRIM8# |
1 | ||
| 73220-2403014 |
GZ10,MZ1# BLUE,BLUE,TRIM8# |
1 | ||
| 73220-2401003 |
GZ10,MZ1# GRAY,GRAY,TRIM1#,2# |
1 | ||
| 73220-2401013 |
GZ10,MZ1# GRAY,GRAY,TRIM1# |
1 | ||
| 73220-2403105 |
GZ10,MZ1# BEIGE,BEIGE,TRIM4# |
1 | ||
| 73220-2403102 |
GZ10,MZ1# DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 73220-2403015 |
GZ10,MZ1# BEIGE,BEIGE,TRIM4# |
1 | ||
| 73220-2403002 |
GZ10,MZ1# DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73220-2401004 |
GZ10,MZ1# LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-2401005 |
GZ10,MZ10..TBO,V1,V2,VR LIGHT BEIGE,BEIGE,TRIM3# |
1 | ||
| 73230-2401003 |
GZ10,MZ10..TBO,V1,V2,VR GRAY,GRAY,TRIM1#,2# |
1 | ||
| 73230-2405002 |
GZ10..V2,VR DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73230-2401004 |
GZ10,MZ10..TBO,V1,V2,VR LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 73230-2405014 |
GZ10..V2,VR BLUE,BLUE,TRIM8# |
1 | ||
| 73230-2405005 |
GZ10..V2,VR BEIGE,BEIGE,TRIM4# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-2401003 |
GZ10,MZ1# GRAY,GRAY,TRIM1#,2# |
1 | ||
| 73230-2401005 |
GZ10,MZ1# LIGHT BEIGE,BEIGE,TRIM3# |
1 | ||
| 73230-2401004 |
GZ10,MZ1# LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 73230-2405002 |
MZ11,12;GZ10..V2,VR,VX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73230-2405005 |
MZ11,12;GZ10..V2,VR,VX BEIGE,BEIGE,TRIM4# |
1 | ||
| 73230-2405014 |
MZ11,12;GZ10..V2,VR,VX BLUE,BLUE,TRIM8# |
1 | ||
| 73330 - BELT ASSY, REAR SEAT LAP TYPE, RH | ||||
| 73330-2401003 |
GZ10,MZ1# GRAY,GRAY,TRIM1#,2# |
1 | ||
| 73330-2401005 |
GZ10,MZ1# LIGHT BEIGE,BEIGE,TRIM3# |
1 | ||
| 73330-2401004 |
GZ10,MZ1# LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 73330-2402014 |
GZ10,MZ1# BLUE,BLUE,TRIM8# |
1 | ||
| 73330-2402002 |
GZ10,MZ1# DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 73330-2402015 |
GZ10,MZ1# BEIGE,BEIGE,TRIM4# |
1 | ||
| 73340 - BELT ASSY, REAR SEAT LAP TYPE, LH | ||||
| 73330-2401003 |
GZ10,MZ1# GRAY,GRAY,TRIM1#,2# |
1 | ||
| 73330-2401005 |
GZ10,MZ1# LIGHT BEIGE,BEIGE,TRIM3# |
1 | ||
| 73330-2402014 |
GZ10,MZ1# BLUE,BLUE,TRIM8# |
1 | ||
| 73330-2402015 |
GZ10,MZ1# BEIGE,BEIGE,TRIM4# |
1 | ||
| 73330-2401004 |
GZ10,MZ1# LIGHT BLUE,BLUE,TRIM8# |
1 | ||
| 73330-2402002 |
GZ10,MZ1# DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 90109-11003 | ||||
| 90109-11005 | ||||
| 90205-07002 | ||||
| 90205-09001 | ||||
| 90206-15002 | ||||
| 90206-16001 | ||||
| 90387-11009 | ||||
| 90387-11017 | ||||
| 90560-08028 | ||||
| 91651-60616 | ||||
| 91651-60818 | ||||
| 91651-61020 | ||||
| 93540-54012 | ||||
| 94511-01100 | ||||

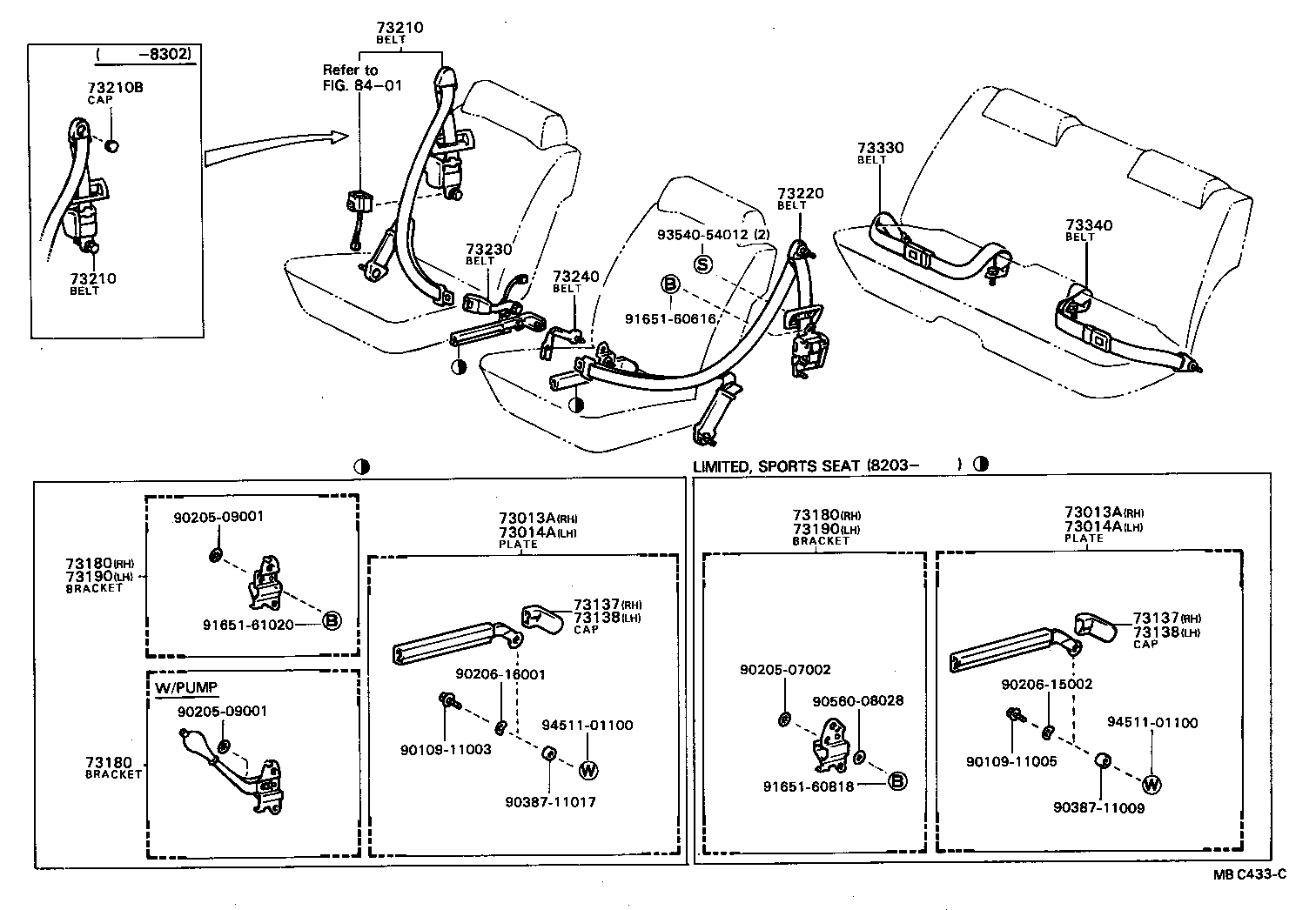

| Linked diagrams | ||||
| 8401 | ||||
