GZ10-HCMZE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8102- )

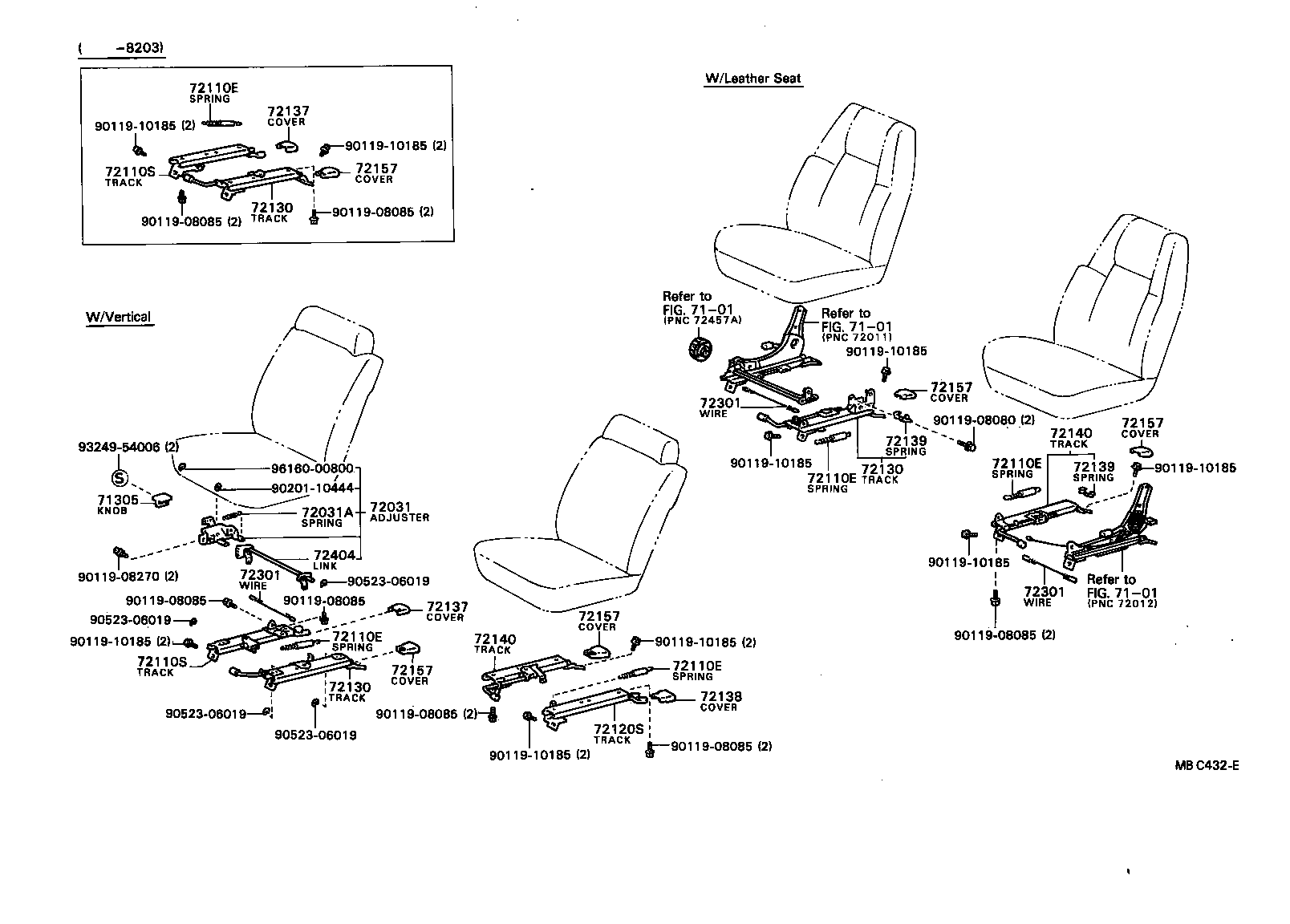

Click highlighted areas on diagram

diagram 7101 7101 7101 71305 72031 72031A 72110E 72110E 72110E 72110E 72110E 72110S 72110S 72120S 72130 72130 72130 72137 72137 72138 72139 72139 72140 72140 72157 72157 72157 72157 72157 72301 72301 72301 72404 9011908080 9011908085 9011908085 9011908085 9011908085 9011908085 9011908085 9011908085 9011908270 9011910185 9011910185 9011910185 9011910185 9011910185 9011910185 9011910185 9011910185 9011910185 9020110444 9052306019 9052306019 9052306019 9052306019 9324954006 9616000800
Part # Description Qty Price
71305 - KNOB SUB-ASSY, FRONT SEAT ADJUSTING
72457-1401012

MZ11,12;GZ10..V2,VR,VX

DEEP MAROON,RED/MAROON,TRIM3#

 1
72457-1401025

GZ10,MZ1#..GT,TBO,V2,VR,VX

LIGHT BEIGE,BEIGE,TRIM3#

 1
72457-1401024

GZ10,MZ1#..GT,TBO,V2,VR,VX

LIGHT BLUE,BLUE,TRIM8#

 1
72457-1401044

MZ11,12;GZ10..V2,VR,VX

BLUE,BLUE,TRIM8#

 1
72457-1401003

GZ10,MZ1#..GT,TBO,V2,VR,VX

GRAY,GRAY,TRIM1#,2#

 1
72457-1401025

MZ11,12;GZ10..V2,VR,VX

BEIGE,BEIGE,TRIM4#

 1
72031 - ADJUSTER ASSY, FRONT SEAT VERTICAL
72310-24010

GZ10,MZ1#..GT,TBO,V2,VR,VX

 1
72310-24010

MZ11,12;GZ10..V2,VR,VX

 1
72031A - SPRING, TENSION (FOR VERTICAL ADJUSTER)
90506-18025

GZ10,MZ1#..GT,TBO,V2,VR,VX

 1
90506-22001

MZ11,12;GZ10..V2,VR,VX

 1
90506-22001

GZ10,MZ1#

 1
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90507-18005

GZ10,MZ1#

 2
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90507-18005

GZ10,MZ1#

 2
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90507-18005

GZ10,MZ1#

 2
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90507-18005

GZ10,MZ1#

 2
72110E - SPRING, TENSION, NO.1 (FOR SEAT TRACK)
90507-18005

GZ10,MZ1#

 2
72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
72110-24020

GZ10,MZ1#..GT,TBO,V2,VR,VX

 1
72110-24020

MZ11,12;GZ10..V2,VR,VX

 1
72110S - TRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)
72110-24020

GZ10,MZ1#..GT,TBO,V2,VR,VX

 1
72110-24020

MZ11,12;GZ10..V2,VR,VX

 1
72120S - TRACK ASSY, LH SEAT, OUTER (FOR SEPARATE SEAT)
72120-24010

GZ10,MZ1#

 1
72120-24020

MZ11,12;GZ10..V2,VR,VX

 1
72130 - TRACK ASSY, RH SEAT, INNER
72130-24020

MZ11,12;GZ10..V2,VR,VX

 1
72130-24020

GZ10,MZ1#..GT,TBO,V2,VR,VX

 1
72130 - TRACK ASSY, RH SEAT, INNER
72130-24020

MZ11,12;GZ10..V2,VR,VX

 1
72130-24020

GZ10,MZ1#..GT,TBO,V2,VR,VX

 1
72130 - TRACK ASSY, RH SEAT, INNER
72130-24020

MZ11,12;GZ10..V2,VR,VX

 1
72130-24020

GZ10,MZ1#..GT,TBO,V2,VR,VX

 1
72137 - COVER, SEAT TRACK, OUTER RH
72137-2401004

GZ10,MZ1#

LIGHT BLUE,BLUE,TRIM8#

 1
72137-2401002

MZ11,12;GZ10..V2,VR,VX

DEEP MAROON,RED/MAROON,TRIM3#

 1
72137-2401005

MZ11,12;GZ10..V2,VR,VX

BEIGE,BEIGE,TRIM4#

 1
72137-2401003

GZ10,MZ1#

GRAY,GRAY,TRIM1#,2#

 1
72137-2401005

GZ10,MZ1#

LIGHT BEIGE,BEIGE,TRIM3#

 1
72137-2401014

MZ11,12;GZ10..V2,VR,VX

BLUE,BLUE,TRIM8#

 1
72137 - COVER, SEAT TRACK, OUTER RH
72137-2401004

GZ10,MZ1#

LIGHT BLUE,BLUE,TRIM8#

 1
72137-2401002

MZ11,12;GZ10..V2,VR,VX

DEEP MAROON,RED/MAROON,TRIM3#

 1
72137-2401005

MZ11,12;GZ10..V2,VR,VX

BEIGE,BEIGE,TRIM4#

 1
72137-2401003

GZ10,MZ1#

GRAY,GRAY,TRIM1#,2#

 1
72137-2401005

GZ10,MZ1#

LIGHT BEIGE,BEIGE,TRIM3#

 1
72137-2401014

MZ11,12;GZ10..V2,VR,VX

BLUE,BLUE,TRIM8#

 1
72138 - COVER, SEAT TRACK, OUTER LH
72137-2401005

GZ10,MZ1#

LIGHT BEIGE,BEIGE,TRIM3#

 1
72137-2401004

GZ10,MZ1#

LIGHT BLUE,BLUE,TRIM8#

 1
72137-2401003

GZ10,MZ1#

GRAY,GRAY,TRIM1#,2#

 1
72137-2401014

MZ11,12;GZ10..V2,VR,VX

BLUE,BLUE,TRIM8#

 1
72137-2401002

MZ11,12;GZ10..V2,VR,VX

DEEP MAROON,RED/MAROON,TRIM3#

 1
72137-2401005

MZ11,12;GZ10..V2,VR,VX

BEIGE,BEIGE,TRIM4#

 1
72140 - TRACK ASSY, LH SEAT, INNER
72140-24020

MZ11,12;GZ10..V2,VR,VX

 1
72140-24010

GZ10,MZ1#

 1
72140 - TRACK ASSY, LH SEAT, INNER
72140-24020

MZ11,12;GZ10..V2,VR,VX

 1
72140-24010

GZ10,MZ1#

 1
72157 - COVER, SEAT TRACK BRACKET, INNER
72157-2401003

GZ10,MZ1#

GRAY,GRAY,TRIM1#,2#

 2
72157-2401005

GZ10,MZ1#

LIGHT BEIGE,BEIGE,TRIM3#

 2
72157-2401002

MZ11,12;GZ10..V2,VR,VX

DEEP MAROON,RED/MAROON,TRIM3#

 2
72157-2401014

MZ11,12;GZ10..V2,VR,VX

BLUE,BLUE,TRIM8#

 2
72157-2401004

GZ10,MZ1#

LIGHT BLUE,BLUE,TRIM8#

 2
72157-2401005

MZ11,12;GZ10..V2,VR,VX

BEIGE,BEIGE,TRIM4#

 2
72157 - COVER, SEAT TRACK BRACKET, INNER
72157-2401003

GZ10,MZ1#

GRAY,GRAY,TRIM1#,2#

 2
72157-2401005

GZ10,MZ1#

LIGHT BEIGE,BEIGE,TRIM3#

 2
72157-2401002

MZ11,12;GZ10..V2,VR,VX

DEEP MAROON,RED/MAROON,TRIM3#

 2
72157-2401014

MZ11,12;GZ10..V2,VR,VX

BLUE,BLUE,TRIM8#

 2
72157-2401004

GZ10,MZ1#

LIGHT BLUE,BLUE,TRIM8#

 2
72157-2401005

MZ11,12;GZ10..V2,VR,VX

BEIGE,BEIGE,TRIM4#

 2
72157 - COVER, SEAT TRACK BRACKET, INNER
72157-2401003

GZ10,MZ1#

GRAY,GRAY,TRIM1#,2#

 2
72157-2401005

GZ10,MZ1#

LIGHT BEIGE,BEIGE,TRIM3#

 2
72157-2401002

MZ11,12;GZ10..V2,VR,VX

DEEP MAROON,RED/MAROON,TRIM3#

 2
72157-2401014

MZ11,12;GZ10..V2,VR,VX

BLUE,BLUE,TRIM8#

 2
72157-2401004

GZ10,MZ1#

LIGHT BLUE,BLUE,TRIM8#

 2
72157-2401005

MZ11,12;GZ10..V2,VR,VX

BEIGE,BEIGE,TRIM4#

 2
72157 - COVER, SEAT TRACK BRACKET, INNER
72157-2401003

GZ10,MZ1#

GRAY,GRAY,TRIM1#,2#

 2
72157-2401005

GZ10,MZ1#

LIGHT BEIGE,BEIGE,TRIM3#

 2
72157-2401002

MZ11,12;GZ10..V2,VR,VX

DEEP MAROON,RED/MAROON,TRIM3#

 2
72157-2401014

MZ11,12;GZ10..V2,VR,VX

BLUE,BLUE,TRIM8#

 2
72157-2401004

GZ10,MZ1#

LIGHT BLUE,BLUE,TRIM8#

 2
72157-2401005

MZ11,12;GZ10..V2,VR,VX

BEIGE,BEIGE,TRIM4#

 2
72157 - COVER, SEAT TRACK BRACKET, INNER
72157-2401003

GZ10,MZ1#

GRAY,GRAY,TRIM1#,2#

 2
72157-2401005

GZ10,MZ1#

LIGHT BEIGE,BEIGE,TRIM3#

 2
72157-2401002

MZ11,12;GZ10..V2,VR,VX

DEEP MAROON,RED/MAROON,TRIM3#

 2
72157-2401014

MZ11,12;GZ10..V2,VR,VX

BLUE,BLUE,TRIM8#

 2
72157-2401004

GZ10,MZ1#

LIGHT BLUE,BLUE,TRIM8#

 2
72157-2401005

MZ11,12;GZ10..V2,VR,VX

BEIGE,BEIGE,TRIM4#

 2
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-24010

MZ11,12;GZ10..V2,VR,VX

 2
72301-24010

GZ10,MZ1#..GT,TBO,V2,VR,VX

 2
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-24010

MZ11,12;GZ10..V2,VR,VX

 2
72301-24010

GZ10,MZ1#..GT,TBO,V2,VR,VX

 2
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-24010

MZ11,12;GZ10..V2,VR,VX

 2
72301-24010

GZ10,MZ1#..GT,TBO,V2,VR,VX

 2
72404 - LINK SUB-ASSY, VERTICAL SEAT
72404-24010

GZ10,MZ1#..GT,TBO,V2,VR,VX

 1
72404-24010

MZ11,12;GZ10..V2,VR,VX

 1
Common parts
90119-08080
90119-08085
90119-08270
90119-10185
90201-10444
90523-06019
93249-54006
96160-00800
Linked diagrams
7101
