GZ10-HCMZE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8102- )

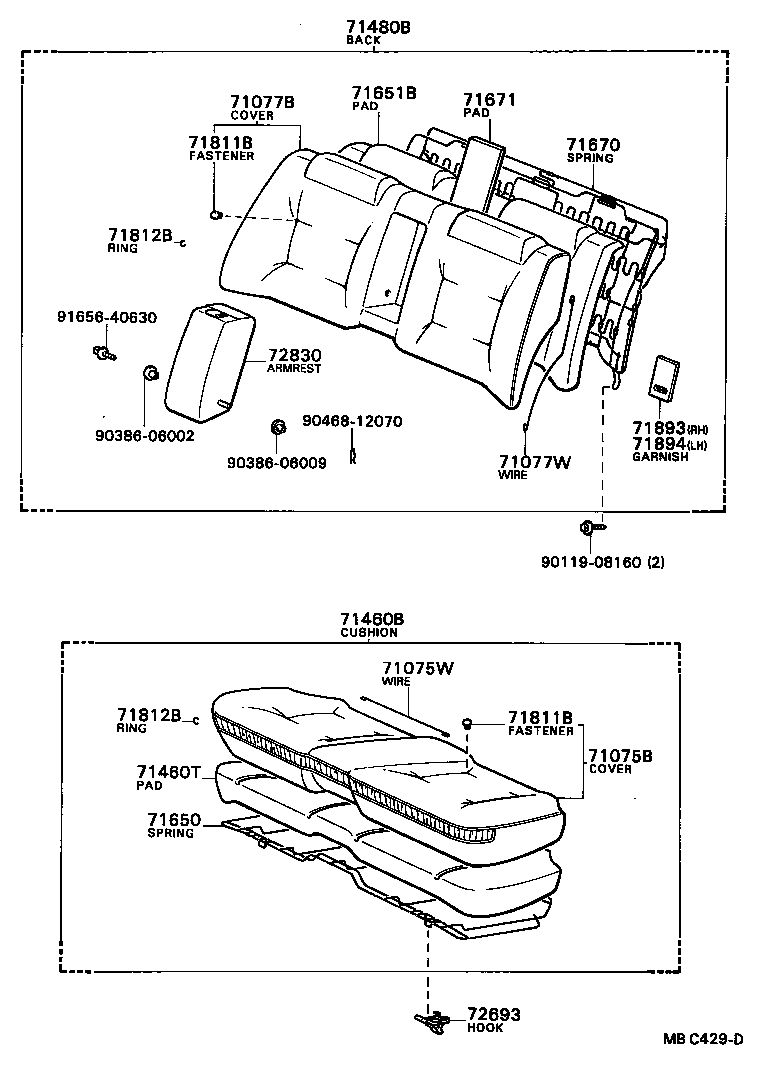

Click highlighted areas on diagram

diagram 71075B 71075W 71077B 71077W 71460B 71460T 71480B 71650 71651B 71670 71671 71811B 71811B 71812B 71812B 71893 71894 72693 72830 9011908160 9038606002 9038606009 9046812070 9165640630
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-2402004

GZ10,MZ10..TBO,VR

FB,LIGHT BLUE,BLUE,TRIM8#

 1
71075-2402005

GZ10,MZ10..TBO,VR

FB,LIGHT BEIGE,BEIGE,TRIM3#

 1
71075-2402003

GZ10,MZ10..TBO,VR

FB,GRAY,GRAY,TRIM1#,2#

 1
71075-2402102

GZ10..V2,VR

FB,DEEP MAROON,RED/MAROON,TRIM3#

 1
71075-2402105

GZ10..V2,VR

FB,BEIGE,BEIGE,TRIM4#

 1
71075-2402104

GZ10..V2,VR

FB,BLUE,BLUE,TRIM8#

 1
71075W - WIRE, REAR SEAT CUSHION COVER
90580-20007

GZ10,MZ1#

L=1200

 1
90580-20107

GZ10,MZ1#

L=1180

 1
90580-20020

GZ10,MZ1#

L=450

 2
90580-20106

GZ10,MZ1#

L=530

 2
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-2402004

GZ10,MZ10..TBO,VR

FB,LIGHT BLUE,BLUE,TRIM8#

 1
71077-2402003

GZ10,MZ10..TBO,VR

FB,GRAY,GRAY,TRIM1#,2#

 1
71077-2402005

GZ10,MZ10..TBO,VR

FB,LIGHT BEIGE,BEIGE,TRIM3#

 1
71077-2402105

GZ10..V2,VR

FB,BEIGE,BEIGE,TRIM4#

 1
71077-2402102

GZ10..V2,VR

FB,DEEP MAROON,RED/MAROON,TRIM3#

 1
71077-2402104

GZ10..V2,VR

FB,BLUE,BLUE,TRIM8#

 1
71077W - WIRE, REAR SEAT BACK COVER
90580-20096

GZ10,MZ1#

L=980

 1
90580-20107

GZ10,MZ1#

L=1210

 1
90580-20108

GZ10,MZ1#

L=580

 2
90580-20136

GZ10,MZ1#

L=140

 2
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-2402005

GZ10,MZ10..TBO,VR

FB,LIGHT BEIGE,BEIGE,TRIM3#

 1
71460-2402004

GZ10,MZ10..TBO,VR

FB,LIGHT BLUE,BLUE,TRIM8#

 1
71460-2402104

GZ10..V2,VR

FB,BLUE,BLUE,TRIM8#

 1
71460-2402105

GZ10..V2,VR

FB,BEIGE,BEIGE,TRIM4#

 1
71460-2402003

GZ10,MZ10..TBO,VR

FB,GRAY,GRAY,TRIM1#,2#

 1
71460-2402102

GZ10..V2,VR

FB,DEEP MAROON,RED/MAROON,TRIM3#

 1
71460T - PAD SUB-ASSY, REAR SEAT CUSHION, NO.1
71611-24010

GZ10,MZ10

 1
71611-24010

GZ10,MZ1#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-2402003

GZ10,MZ10..TBO,VR

FB,GRAY,GRAY,TRIM1#,2#

 1
71480-2402004

GZ10,MZ10..TBO,VR

FB,LIGHT BLUE,BLUE,TRIM8#

 1
71480-2402005

GZ10,MZ10..TBO,VR

FB,LIGHT BEIGE,BEIGE,TRIM3#

 1
71480-2402104

GZ10..V2,VR

FB,BLUE,BLUE,TRIM8#

 1
71480-2402102

GZ10..V2,VR

FB,DEEP MAROON,RED/MAROON,TRIM3#

 1
71480-2402105

GZ10..V2,VR

FB,BEIGE,BEIGE,TRIM4#

 1
71650 - SPRING ASSY, REAR SEAT CUSHION
71015-24010

GZ10,MZ1#

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-24010

GZ10..V2,VR

 1
71651-24010

GZ10,MZ10..TBO,V1,V2,VR

 1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-24010

GZ10,MZ10..TBO,V1,V2,VR

 1
71670-24010

GZ10..V2,VR

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

GZ10,MZ1#

 1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90468-18071

GZ10,MZ1#

 1
71893 - GARNISH, REAR SEAT BACK SIDE, LOWER RH
71893-22010

GZ10,MZ1#

 1
71894 - GARNISH, REAR SEAT BACK SIDE, LOWER LH
71893-22010

GZ10,MZ1#

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-24010

GZ10,MZ1#

 2
Common parts
90119-08160
90386-06002
90386-06009
90468-12070
91656-40630
