GZ10-HCMZE (1981)
Toyota Soarer

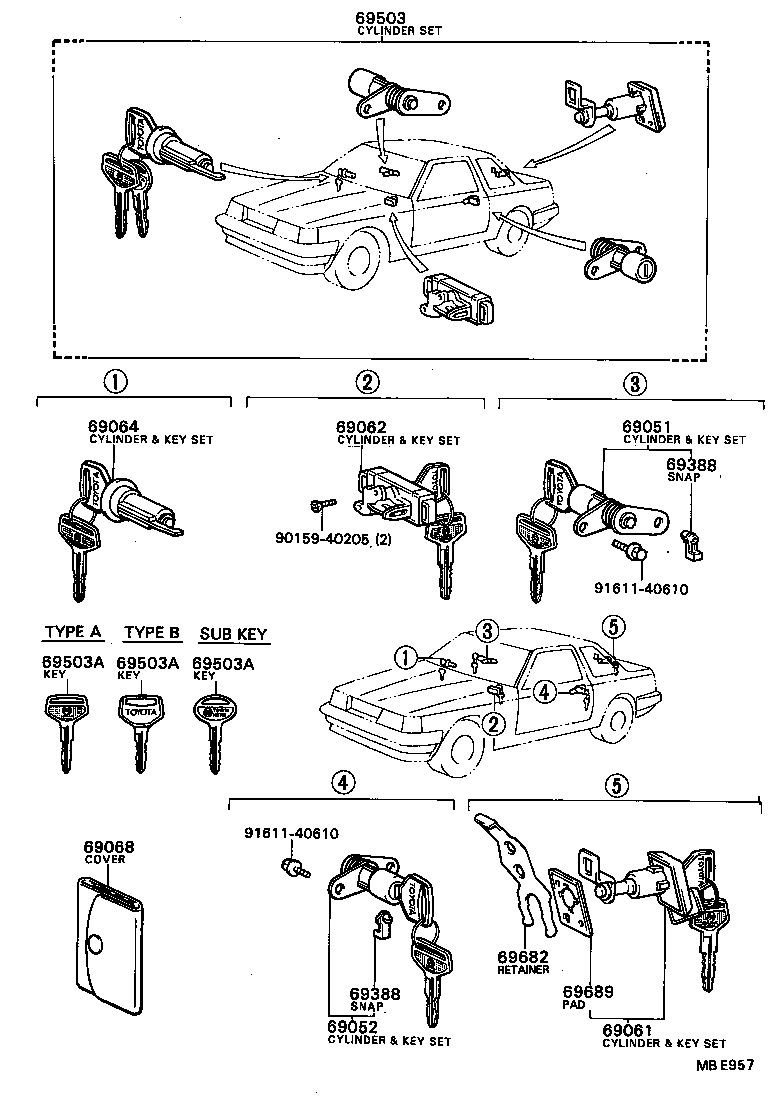

(8102-8302)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-24010 |
GZ10,MZ1# |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-24010 |
GZ10,MZ1# |
1 | ||
| 69061 - CYLINDER & KEY SET, LUGGAGE LOCK | ||||
| 69055-24011 |
GZ10,MZ1# |
1 | ||
| 69055-29215 |
GZ10,MZ1# |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-24010 |
GZ10,MZ1# |
1 | ||
| 69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-24020 |
GZ10,MZ1# |
1 | ||
| 69068 - COVER SUB-ASSY, KEY | ||||
| 69555-24010 |
GZ10,MZ1# |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-24090 |
GZ10,MZ1# LH |
1 | ||
| 69759-24080 |
GZ10,MZ1# RH |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-24090 |
GZ10,MZ1# LH |
1 | ||
| 69759-24080 |
GZ10,MZ1# RH |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-24020 |
GZ10,MZ1# |
1 | ||
| 69005-24021 |
GZ10,MZ1# |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00070 |
GZ10,MZ1# SUB KEY |
1 | ||
| 90999-00083 |
GZ10,MZ1# MASTER KEY TYPE B,W/PROTECTOR |
1 | ||
| 90999-00069 |
GZ10,MZ1# ﾏｽﾀｰｷｰ,MASTER KEY TYPE A |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00070 |
GZ10,MZ1# SUB KEY |
1 | ||
| 90999-00083 |
GZ10,MZ1# MASTER KEY TYPE B,W/PROTECTOR |
1 | ||
| 90999-00069 |
GZ10,MZ1# ﾏｽﾀｰｷｰ,MASTER KEY TYPE A |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00070 |
GZ10,MZ1# SUB KEY |
1 | ||
| 90999-00083 |
GZ10,MZ1# MASTER KEY TYPE B,W/PROTECTOR |
1 | ||
| 90999-00069 |
GZ10,MZ1# ﾏｽﾀｰｷｰ,MASTER KEY TYPE A |
1 | ||
| 69682 - RETAINER, LOCK CYLINDER | ||||
| 69561-24010 |
GZ10,MZ1# |
1 | ||
| 69689 - PAD, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER | ||||
| 69563-24010 |
GZ10,MZ1# |
1 | ||
| 69563-24011 |
GZ10,MZ1# |
1 | ||
| Common parts | ||||
| 90159-40205 | ||||
| 91611-40610 | ||||

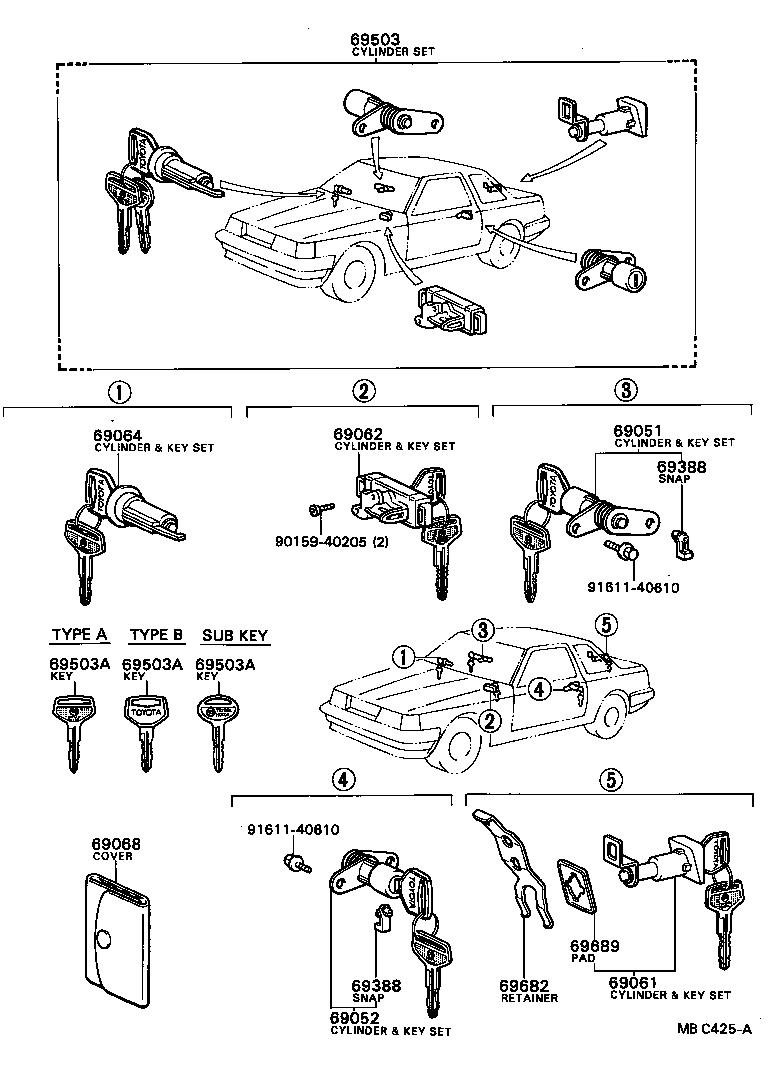

(8302- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-24010 |
GZ10,MZ1# |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-24010 |
GZ10,MZ1# |
1 | ||
| 69061 - CYLINDER & KEY SET, LUGGAGE LOCK | ||||
| 69055-24011 |
GZ10,MZ1# |
1 | ||
| 69055-29215 |
GZ10,MZ1# |
1 | ||
| 69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK | ||||
| 69056-24010 |
GZ10,MZ1# |
1 | ||
| 69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-24020 |
GZ10,MZ1# |
1 | ||
| 69068 - COVER SUB-ASSY, KEY | ||||
| 69555-24010 |
GZ10,MZ1# |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-24090 |
GZ10,MZ1# LH |
1 | ||
| 69759-24080 |
GZ10,MZ1# RH |
1 | ||
| 69388 - SNAP, ROD(FOR DOOR LOCK) | ||||
| 69759-24090 |
GZ10,MZ1# LH |
1 | ||
| 69759-24080 |
GZ10,MZ1# RH |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-24020 |
GZ10,MZ1# |
1 | ||
| 69005-24021 |
GZ10,MZ1# |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00070 |
GZ10,MZ1# SUB KEY |
1 | ||
| 90999-00083 |
GZ10,MZ1# MASTER KEY TYPE B,W/PROTECTOR |
1 | ||
| 90999-00069 |
GZ10,MZ1# ﾏｽﾀｰｷｰ,MASTER KEY TYPE A |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00070 |
GZ10,MZ1# SUB KEY |
1 | ||
| 90999-00083 |
GZ10,MZ1# MASTER KEY TYPE B,W/PROTECTOR |
1 | ||
| 90999-00069 |
GZ10,MZ1# ﾏｽﾀｰｷｰ,MASTER KEY TYPE A |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00070 |
GZ10,MZ1# SUB KEY |
1 | ||
| 90999-00083 |
GZ10,MZ1# MASTER KEY TYPE B,W/PROTECTOR |
1 | ||
| 90999-00069 |
GZ10,MZ1# ﾏｽﾀｰｷｰ,MASTER KEY TYPE A |
1 | ||
| 69682 - RETAINER, LOCK CYLINDER | ||||
| 69561-24010 |
GZ10,MZ1# |
1 | ||
| 69689 - PAD, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER | ||||
| 69563-24010 |
GZ10,MZ1# |
1 | ||
| 69563-24011 |
GZ10,MZ1# |
1 | ||
| Common parts | ||||
| 90159-40205 | ||||
| 91611-40610 | ||||
