GZ10-HCMZE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8102- )

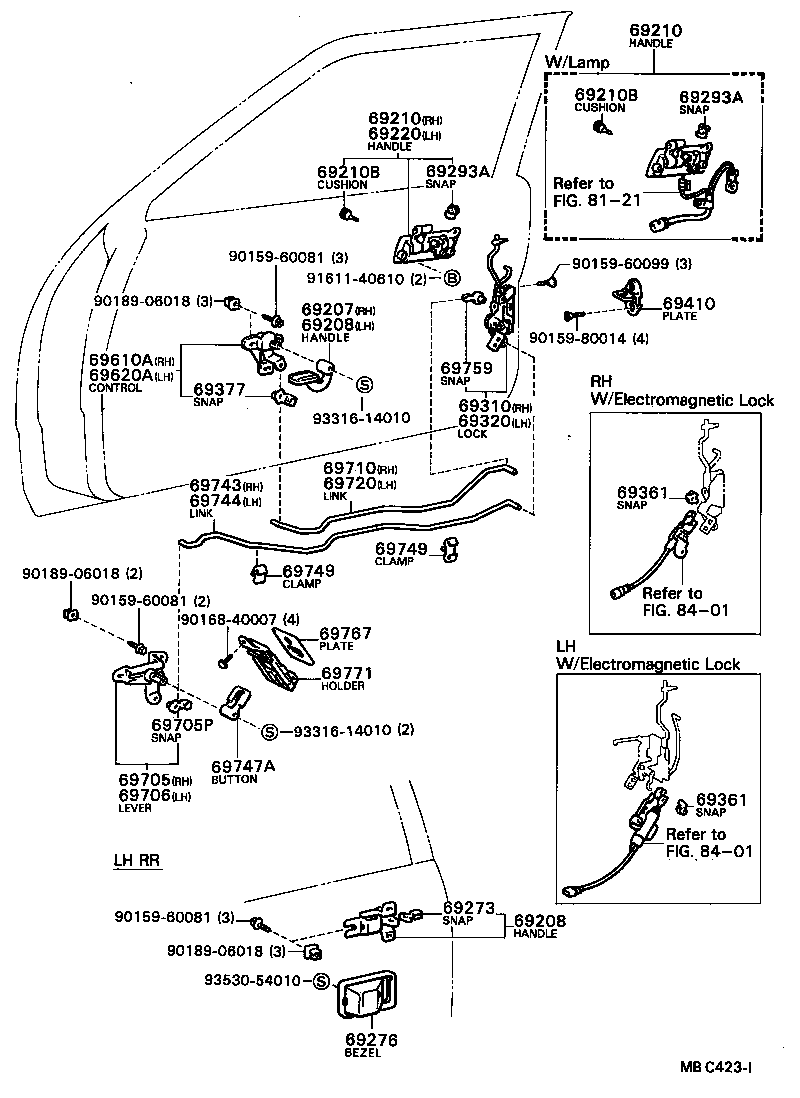

Click highlighted areas on diagram

diagram 69207 69208 69208 69210 69210 69210B 69210B 69220 69273 69276 69293A 69293A 69310 69320 69361 69361 69377 69410 69610A 69620A 69705 69705P 69706 69710 69720 69743 69744 69747A 69749 69749 69759 69767 69771 8121 8401 8401 9015960081 9015960081 9015960081 9015960099 9015980014 9016840007 9018906018 9018906018 9018906018 9161140610 9331614010 9331614010 9353054010
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69271-24010

GZ10,MZ1#

 1
69271-24011

GZ10,MZ1#

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69272-24011

GZ10,MZ1#

FR

 1
69272-24010

GZ10,MZ1#

FR

 1
69206-24010

GZ10,MZ1#

RR

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69272-24011

GZ10,MZ1#

FR

 1
69272-24010

GZ10,MZ1#

FR

 1
69206-24010

GZ10,MZ1#

RR

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-24020

GZ10,MZ1#

 1
69210-24020

GZ10,MZ1#..GT,TBO,V2,VR,VX

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-24020

GZ10,MZ1#

 1
69210-24020

GZ10,MZ1#..GT,TBO,V2,VR,VX

 1
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

GZ10,MZ1#

 4
69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
90541-03021

GZ10,MZ1#

 4
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-24010

GZ10,MZ1#

 1
69273 - SNAP, DOOR INSIDE HANDLE ROD
69759-24070

GZ10,MZ1#

 1
69276 - BEZEL, FRONT DOOR INSIDE HANDLE
69277-1604001

GZ10,MZ1#

BLACK,BLACK,TRIM2#

 1
69277-1604022

GZ10,MZ1#

DEEP MAROON,RED/MAROON,TRIM3#

 1
69277-1604035

GZ10,MZ1#

BEIGE,BEIGE,TRIM4#

 1
69277-1604013

GZ10,MZ1#

GRAY,GRAY,TRIM1#

 1
69277-1604012

GZ10,MZ1#

TERRA COTTA,RED/MAROON,TRIM3#

 1
69277-1604014

GZ10,MZ1#

BLUE,BLUE,TRIM8#

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-24010

GZ10,MZ1#

RH

 1
69293-24020

GZ10,MZ1#

LH

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-24010

GZ10,MZ1#

RH

 1
69293-24020

GZ10,MZ1#

LH

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-24020

GZ10,MZ1#..GT,TBO,V2,VR,VX

 1
69310-24020

GZ10,MZ1#

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-24020

GZ10,MZ1#

 1
69320-24020

GZ10,MZ1#..GT,TBO,V2,VR,VX

 1
69361 - SNAP, DOOR LOCK CONNECTING ROD
69759-24010

GZ10,MZ1#

RH

 1
69759-24010

GZ10,MZ1#..GT,TBO,V2,VR,VX

RH

 1
69759-24020

GZ10,MZ1#

LH

 1
69759-24020

GZ10,MZ1#..GT,TBO,V2,VR,VX

LH

 1
69361 - SNAP, DOOR LOCK CONNECTING ROD
69759-24010

GZ10,MZ1#

RH

 1
69759-24010

GZ10,MZ1#..GT,TBO,V2,VR,VX

RH

 1
69759-24020

GZ10,MZ1#

LH

 1
69759-24020

GZ10,MZ1#..GT,TBO,V2,VR,VX

LH

 1
69377 - SNAP, FRONT DOOR LOCK CONTROL ROD
69759-24090

GZ10,MZ1#

RH

 1
69759-24080

GZ10,MZ1#

LH

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-22030

GZ10,MZ1#

 2
69610A - CONTROL ASSY, FRONT DOOR LOCK REMOTE, RH
69610-24011

GZ10,MZ1#

 1
69610-24010

GZ10,MZ1#

 1
69620A - CONTROL ASSY, FRONT DOOR LOCK REMOTE, LH
69620-24011

GZ10,MZ1#

 1
69620-24010

GZ10,MZ1#

 1
69705 - LEVER ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-24010

GZ10,MZ1#

 1
69705P - SNAP, FRONT DOOR INSIDE LOCKING LEVER
69759-24030

GZ10,MZ1#

LH

 1
69759-24040

GZ10,MZ1#

RH

 1
69706 - LEVER ASSY, FRONT DOOR INSIDE LOCKING, LH
69760-24010

GZ10,MZ1#

 1
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-24010

GZ10,MZ1#

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-24010

GZ10,MZ1#

 1
69743 - LINK, FRONT DOOR LOCKING CONTROL, NO.1 RH
69733-24010

GZ10,MZ1#

 1
69744 - LINK, FRONT DOOR LOCKING CONTROL, NO.1 LH
69734-24010

GZ10,MZ1#

 1
69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR)
69741-24010

GZ10,MZ1#

 2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-12010

GZ10,MZ1#

FR

 2
69749-30020

GZ10,MZ1#

FR

 2
69749-12010

GZ10,MZ1#

FR

 2
69749-30020

GZ10,MZ1#

FR

 2
69749-12030

GZ10,MZ1#

RR

 2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-12010

GZ10,MZ1#

FR

 2
69749-30020

GZ10,MZ1#

FR

 2
69749-12010

GZ10,MZ1#

FR

 2
69749-30020

GZ10,MZ1#

FR

 2
69749-12030

GZ10,MZ1#

RR

 2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-24060

GZ10,MZ1#

LH

 1
69759-24050

GZ10,MZ1#

RH

 2
69767 - PLATE, DOOR LOCKING KNOB SLIDE
69761-24010

GZ10,MZ1#

 2
69771 - HOLDER, DOOR LOCKING KNOB SLIDE PLATE
69771-24010

GZ10,MZ1#

 2
Common parts
90159-60081
90159-60099
90159-80014
90168-40007
90189-06018
91611-40610
93316-14010
93530-54010
Linked diagrams
8121
8401
