GZ10-HCMZE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8102- )

Click highlighted areas on diagram

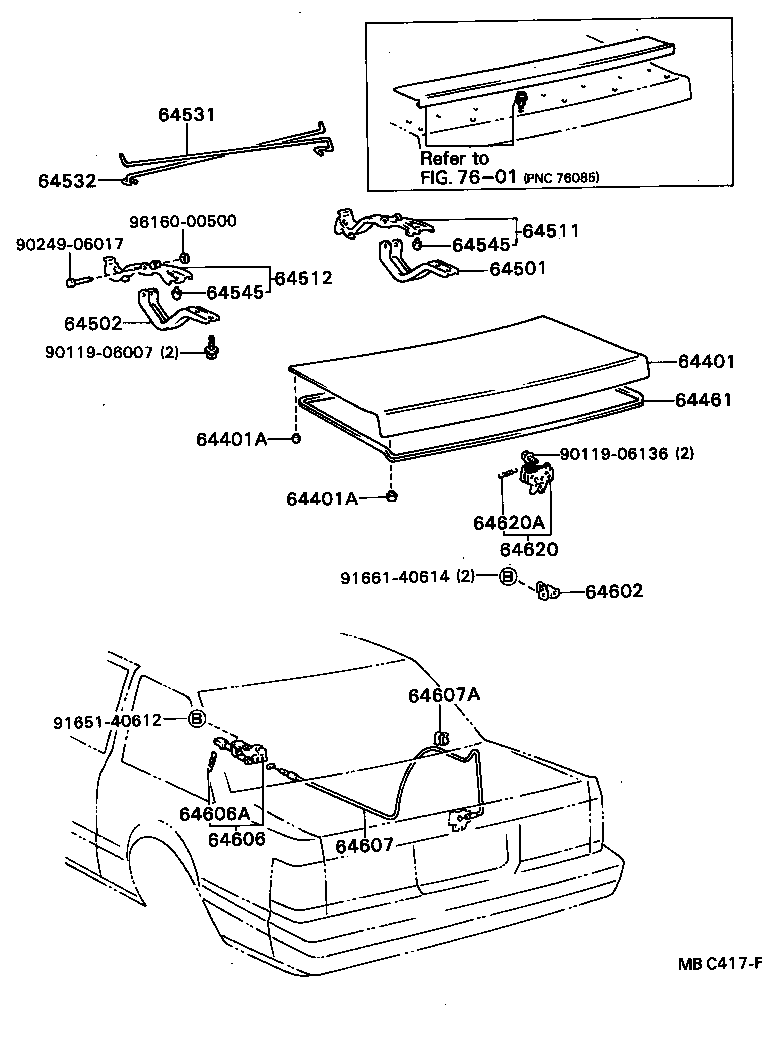

diagram 64401 64401A 64401A 64461 64501 64502 64511 64512 64531 64532 64545 64545 64602 64606 64606A 64607 64607A 64620 64620A 7601 9011906007 9011906136 9024906017 9165140612 9166140614 9616000500
Part # Description Qty Price
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-24030

GZ10,MZ1#..GT,GTL,TBO,VR

W/RR SPOILER

 1
64401-24010

GZ10,MZ1#

 1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-07046

GZ10,MZ1#

OD=14

 2
90541-09016

GZ10,MZ1#

OD=17

 2
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-07046

GZ10,MZ1#

OD=14

 2
90541-09016

GZ10,MZ1#

OD=17

 2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-24010

GZ10,MZ1#

 1
64501 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH
64510-24010

GZ10,MZ1#

 1
64510-24011

GZ10,MZ1#

 1
64502 - HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH
64520-24010

GZ10,MZ1#

 1
64520-24011

GZ10,MZ1#

 1
64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64511-24011

GZ10,MZ1#

 1
64511-24010

GZ10,MZ1#

 1
64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64512-24011

GZ10,MZ1#

 1
64512-24010

GZ10,MZ1#

 1
64531 - BAR, LUGGAGE DOOR HINGE TORSION, RH
64531-24010

GZ10,MZ1#

 1
64531-24011

GZ10,MZ1#

 1
64531-24020

GZ10,MZ1#..GT,GTL,TBO,VR

W/RR SPOILER

 1
64532 - BAR, LUGGAGE DOOR HINGE TORSION, LH
64532-24010

GZ10,MZ1#

 1
64532-24011

GZ10,MZ1#

 1
64532-24020

GZ10,MZ1#..GT,GTL,TBO,VR

W/RR SPOILER

 1
64545 - CUSHION, LUGGAGE DOOR HINGE
90541-09014

GZ10,MZ1#

 2
64545 - CUSHION, LUGGAGE DOOR HINGE
90541-09014

GZ10,MZ1#

 2
64602 - STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK
64620-22030

GZ10,MZ1#

 1
64606 - LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64606-2401003

GZ10,MZ1#

GRAY,GRAY,TRIM1#,2#

 1
64606-2401005

GZ10,MZ1#

BEIGE,BEIGE,TRIM4#

 1
64606-2401012

GZ10,MZ1#

DEEP MAROON,RED/MAROON,TRIM3#

 1
64606-2401005

GZ10,MZ1#

LIGHT BEIGE,BEIGE,TRIM3#

 1
64606-2401014

GZ10,MZ1#

BLUE,BLUE,TRIM8#

 1
64606-2401004

GZ10,MZ1#

LIGHT BLUE,BLUE,TRIM8#

 1
64606A - SPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)
90506-09004

GZ10,MZ1#

 1
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-24020

GZ10,MZ1#

 1
64607A - CLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
90463-05002

GZ10,MZ1#

 1
64620 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-24010

GZ10,MZ1#

 1
64620A - SPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
90506-09001

GZ10,MZ1#

 1
Common parts
90119-06007
90119-06136
90249-06017
91651-40612
91661-40614
96160-00500
Linked diagrams
7601
