GZ10-HCMZE (1981)
Toyota Soarer
Production
Feb 1981
-
Dec 1985
Engine
1GEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8102- )

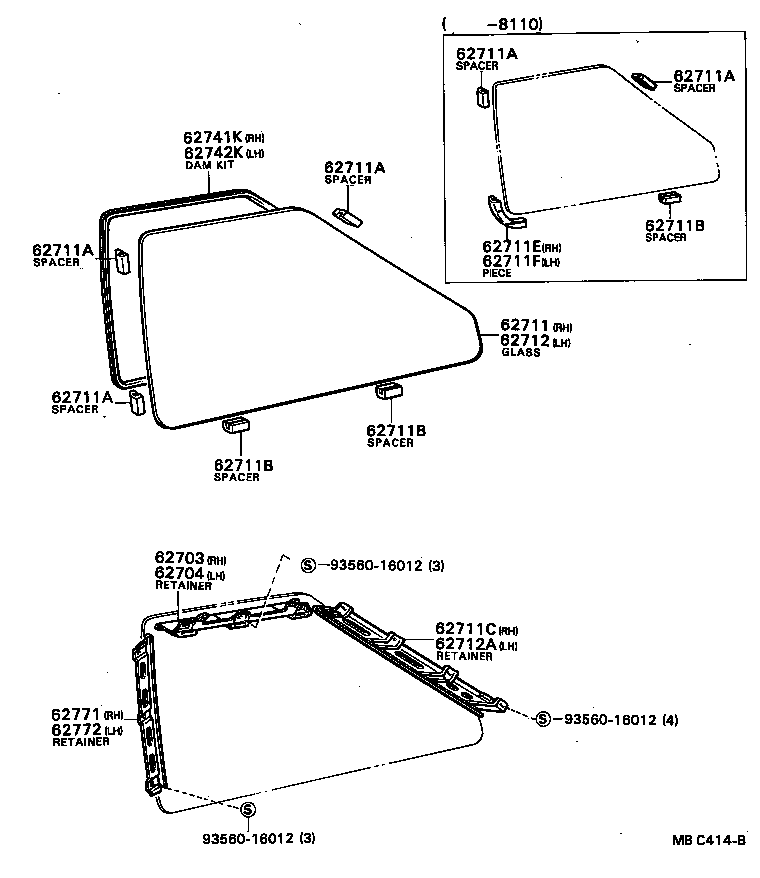

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62703 - RETAINER SUB-ASSY, QUARTER WINDOW GLASS, RH | ||||
| 62763-24010 |
GZ10,MZ1# |
1 | ||
| 62704 - RETAINER SUB-ASSY, QUARTER WINDOW GLASS, LH | ||||
| 62764-24010 |
GZ10,MZ1# |
1 | ||
| 62711 - GLASS, QUARTER WINDOW, RH | ||||
| 62711-24020 |
GZ10,MZ11..GT,VR,VX BRONZE,*TEM,T=4.0 |
1 | ||
| 62711-24010 |
GZ10,MZ1# *TT,T=3.5 |
1 | ||
| 62711-24010 |
GZ10,MZ10 *TT,T=3.5 |
1 | ||
| 62711A - SPACER, QUARTER WINDOW GLASS, NO.1 | ||||
| 62785-24010 |
GZ10,MZ1# |
6 | ||
| 62785-24010 |
GZ10,MZ1# |
4 | ||
| 62711A - SPACER, QUARTER WINDOW GLASS, NO.1 | ||||
| 62785-24010 |
GZ10,MZ1# |
6 | ||
| 62785-24010 |
GZ10,MZ1# |
4 | ||
| 62711A - SPACER, QUARTER WINDOW GLASS, NO.1 | ||||
| 62785-24010 |
GZ10,MZ1# |
6 | ||
| 62785-24010 |
GZ10,MZ1# |
4 | ||
| 62711A - SPACER, QUARTER WINDOW GLASS, NO.1 | ||||
| 62785-24010 |
GZ10,MZ1# |
6 | ||
| 62785-24010 |
GZ10,MZ1# |
4 | ||
| 62711A - SPACER, QUARTER WINDOW GLASS, NO.1 | ||||
| 62785-24010 |
GZ10,MZ1# |
6 | ||
| 62785-24010 |
GZ10,MZ1# |
4 | ||
| 62711B - SPACER, QUARTER WINDOW GLASS, NO.2 | ||||
| 62786-24010 |
GZ10,MZ1# |
4 | ||
| 62786-24010 |
GZ10,MZ1# |
2 | ||
| 62711B - SPACER, QUARTER WINDOW GLASS, NO.2 | ||||
| 62786-24010 |
GZ10,MZ1# |
4 | ||
| 62786-24010 |
GZ10,MZ1# |
2 | ||
| 62711B - SPACER, QUARTER WINDOW GLASS, NO.2 | ||||
| 62786-24010 |
GZ10,MZ1# |
4 | ||
| 62786-24010 |
GZ10,MZ1# |
2 | ||
| 62711C - RETAINER, QUARTER WINDOW GLASS, RH | ||||
| 62767-24010 |
GZ10,MZ1# |
1 | ||
| 62711E - PIECE, QUARTER WINDOW GLASS GUIDE, NO.1 | ||||
| 69988-24010 |
GZ10,MZ1# |
1 | ||
| 62711F - PIECE, QUARTER WINDOW GLASS GUIDE, NO.2 | ||||
| 69989-24010 |
GZ10,MZ1# |
1 | ||
| 62712 - GLASS, QUARTER WINDOW, LH | ||||
| 62712-24010 |
GZ10,MZ1# *TT,T=3.5 |
1 | ||
| 62712-24020 |
GZ10,MZ11..GT,VR,VX BRONZE,*TEM,T=4.0 |
1 | ||
| 62712-24010 |
GZ10,MZ10 *TT,T=3.5 |
1 | ||
| 62712A - RETAINER, QUARTER WINDOW GLASS, LH | ||||
| 62768-24010 |
GZ10,MZ1# |
1 | ||
| 62741K - DAM KIT, QUARTER WINDOW, RH | ||||
| 04621-24010 |
GZ10,MZ1# |
1 | ||
| 62742K - DAM KIT, QUARTER WINDOW, LH | ||||
| 04621-24010 |
GZ10,MZ1# |
1 | ||
| 62771 - RETAINER, QUARTER WINDOW GLASS, FRONT INNER RH | ||||
| 62761-24010 |
GZ10,MZ1# |
1 | ||
| 62772 - RETAINER, QUARTER WINDOW GLASS, FRONT INNER LH | ||||
| 62762-24010 |
GZ10,MZ1# |
1 | ||
| Common parts | ||||
| 93560-16012 | ||||
