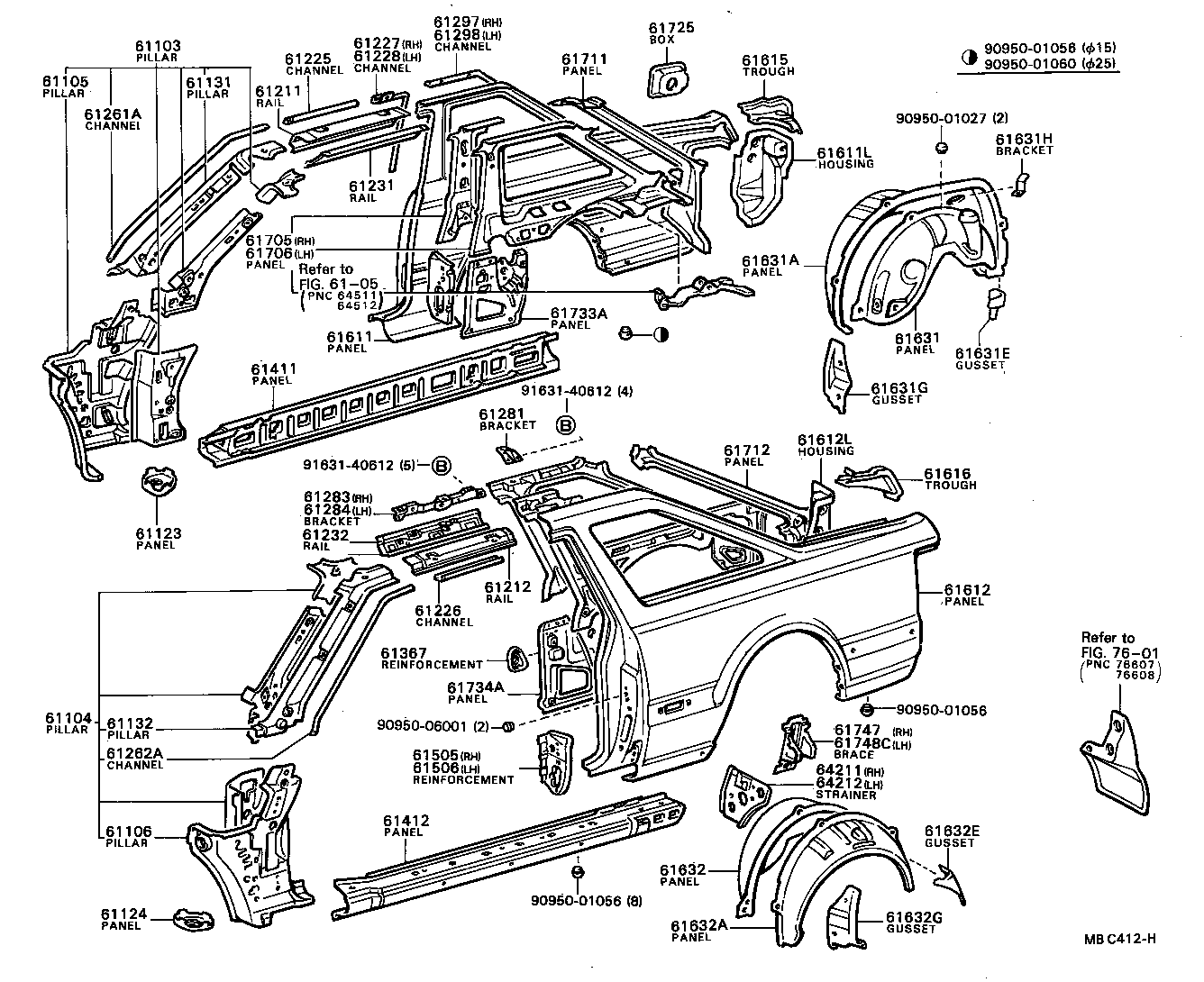

GZ10-HCMZE (1981)
Toyota Soarer
(8102- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-24010 |
GZ10,MZ1# |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-24010 |
GZ10,MZ1# |
1 | ||
| 61105 - PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, RH | ||||
| 61025-24010 |
GZ10,MZ1# |
1 | ||
| 61106 - PILLAR SUB-ASSY, FRONT BODY LOWER OUTER, LH | ||||
| 61026-24010 |
GZ10,MZ1# |
1 | ||
| 61123 - PANEL, COWL SIDE LOWER, RH | ||||
| 61123-24010 |
GZ10,MZ1# |
1 | ||
| 61124 - PANEL, COWL SIDE LOWER, LH | ||||
| 61124-24010 |
GZ10,MZ1# |
1 | ||
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61131-24010 |
GZ10,MZ1# |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61132-24010 |
GZ10,MZ1# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-24010 |
GZ10,MZ1# |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-24010 |
GZ10,MZ1# |
1 | ||
| 61225 - CHANNEL, ROOF DRIP, CENTER RH | ||||
| 61265-24010 |
GZ10,MZ1# |
1 | ||
| 61226 - CHANNEL, ROOF DRIP, CENTER LH | ||||
| 61266-24010 |
GZ10,MZ1# |
1 | ||
| 61227 - CHANNEL, ROOF DRIP SIDE, REAR RH | ||||
| 61267-24010 |
GZ10,MZ1# |
1 | ||
| 61228 - CHANNEL, ROOF DRIP SIDE, REAR LH | ||||
| 61268-24010 |
GZ10,MZ1# |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-24010 |
GZ10,MZ1# |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-24010 |
GZ10,MZ1# |
1 | ||
| 61261A - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61263-24010 |
GZ10,MZ1# |
1 | ||
| 61262A - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61264-24010 |
GZ10,MZ1# |
1 | ||
| 61281 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1 | ||||
| 61281-24010 |
GZ10,MZ1#..GT,GTL,TBO,VR,VX W/SUN ROOF |
2 | ||
| 61281-24010 |
GZ10,MZ1#..GT,TBO,VR,VX W/SUN ROOF |
2 | ||
| 61281-24010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX W/SUN ROOF |
2 | ||
| 61283 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH | ||||
| 61283-24010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX W/SUN ROOF |
1 | ||
| 61283-24010 |
GZ10,MZ1#..GT,TBO,VR,VX W/SUN ROOF |
1 | ||
| 61283-24010 |
GZ10,MZ1#..GT,GTL,TBO,VR,VX W/SUN ROOF |
1 | ||
| 61284 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH | ||||
| 61284-24010 |
GZ10,MZ1#..GT,TBO,VR,VX W/SUN ROOF |
1 | ||
| 61284-24010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX W/SUN ROOF |
1 | ||
| 61284-24010 |
GZ10,MZ1#..GT,GTL,TBO,VR,VX W/SUN ROOF |
1 | ||
| 61297 - CHANNEL, ROOF DRIP SIDE, REAR NO.2, RH | ||||
| 61297-24010 |
GZ10,MZ1# |
1 | ||
| 61298 - CHANNEL, ROOF DRIP SIDE, REAR NO.2, LH | ||||
| 61298-24010 |
GZ10,MZ1# |
1 | ||
| 61367 - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER | ||||
| 61367-24010 |
GZ10,MZ1# |
2 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61401-24010 |
GZ10,MZ1# |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61402-24010 |
GZ10,MZ1# |
1 | ||
| 61505 - REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, RH | ||||
| 61505-24010 |
GZ10,MZ1# |
1 | ||
| 61506 - REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH | ||||
| 61506-24010 |
GZ10,MZ1# |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-24011 |
GZ10,MZ1# |
1 | ||
| 61611-24010 |
GZ10,MZ11 |
1 | ||
| 61611L - HOUSING, QUARTER PANEL END, RH | ||||
| 61697-24010 |
GZ10,MZ1# |
1 | ||
| 61697-24011 |
GZ10,MZ1# |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-24010 |
GZ10,MZ1# |
1 | ||
| 61612L - HOUSING,QUARTER PANEL END, LH | ||||
| 61698-24011 |
GZ10,MZ1# |
1 | ||
| 61698-24010 |
GZ10,MZ1# |
1 | ||
| 61615 - TROUGH, LUGGAGE COMPARTMENT OPENING, RH | ||||
| 61621-24010 |
GZ10,MZ1# |
1 | ||
| 61616 - TROUGH, LUGGAGE COMPARTMENT OPENING, LH | ||||
| 61622-24010 |
GZ10,MZ1# |
1 | ||
| 61631 - PANEL, QUARTER WHEEL HOUSE, RH | ||||
| 61607-14020 |
GZ10,MZ1# |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-24010 |
GZ10,MZ1# |
1 | ||
| 61631E - GUSSET, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61645-14020 |
GZ10,MZ1# |
1 | ||
| 61631G - GUSSET, QUARTER WHEEL HOUSE, FRONT RH | ||||
| 61641-24010 |
GZ10,MZ1# |
1 | ||
| 61631H - BRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.2 | ||||
| 77676-24010 |
GZ10,MZ1# RH |
1 | ||
| 61632 - PANEL, QUARTER WHEEL HOUSE, LH | ||||
| 61608-14020 |
GZ10,MZ1# |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-24010 |
GZ10,MZ1# |
1 | ||
| 61632E - GUSSET, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61646-24010 |
GZ10,MZ1# |
1 | ||
| 61632G - GUSSET, QUARTER WHEEL HOUSE, FRONT LH | ||||
| 61642-24010 |
GZ10,MZ1# |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-24900 |
GZ10,MZ1# |
1 | ||
| 61705-24901 |
GZ10,MZ1# |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-24901 |
GZ10,MZ1# |
1 | ||
| 61706-24900 |
GZ10,MZ1# |
1 | ||
| 61711 - PANEL, ROOF SIDE, OUTER RH | ||||
| 61711-24010 |
GZ10,MZ1# |
1 | ||
| 61712 - PANEL, ROOF SIDE, OUTER LH | ||||
| 61712-24010 |
GZ10,MZ1# |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61725-24010 |
GZ10,MZ1# |
1 | ||
| 61733A - PANEL, ROOF SIDE, INNER FRONT RH | ||||
| 61733-24010 |
GZ10,MZ1# |
1 | ||
| 61734A - PANEL, ROOF SIDE, INNER FRONT LH | ||||
| 61734-24010 |
GZ10,MZ1# |
1 | ||
| 61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH | ||||
| 61747-24010 |
GZ10,MZ1# |
1 | ||
| 61748C - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH | ||||
| 61747-24010 |
GZ10,MZ1# |
1 | ||
| 64211 - STRAINER, PACKAGE TRAY TO FLOOR, RH | ||||
| 64211-24010 |
GZ10,MZ1# |
1 | ||
| 64212 - STRAINER, PACKAGE TRAY TO FLOOR, LH | ||||
| 64212-24010 |
GZ10,MZ1# |
1 | ||
| Common parts | ||||
| 90950-01027 | ||||
| 90950-01056 | ||||
| 90950-01060 | ||||
| 90950-06001 | ||||
| 91631-40612 | ||||
| Linked diagrams | ||||
| 6105 | ||||
| 7601 | ||||
