GZ10-HCMZE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8102- )

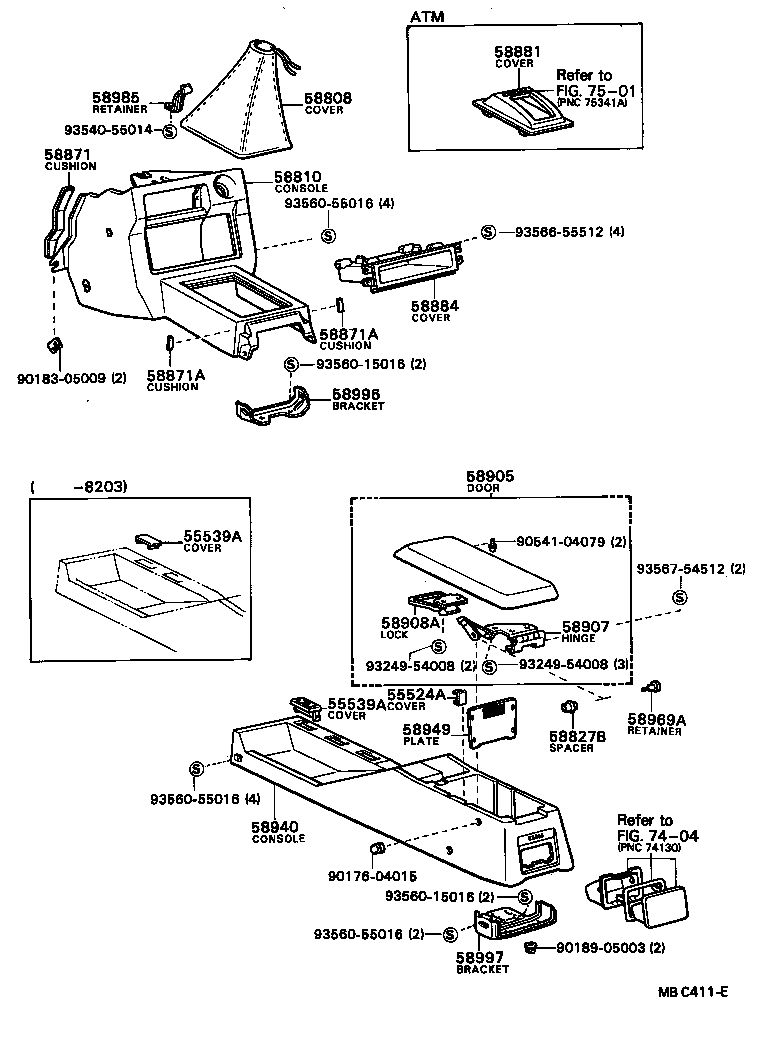

Click highlighted areas on diagram

diagram 55524A 55539A 55539A 58808 58810 58827B 58871 58871A 58871A 58881 58884 58905 58907 58908A 58940 58949 58969A 58985 58996 58997 7404 7501 9017604015 9018305009 9018905003 9054104079 9324954008 9354055014 9356015016 9356015016 9356055016 9356055016 9356055016 9356655512 9356754512 9824954008
Part # Description Qty Price
55524A - COVER, SWITCH BASE HOLE
55524-24010

GZ10,MZ1#

 1
55539A - COVER, SPARE SWITCH HOLE
55539-2401001

GZ10,MZ11..5F

BLACK,BLACK,TRIM2#

 1
55539-2401002

GZ10,MZ11..5F

TERRA COTTA,RED/MAROON,TRIM3#

 1
55539-1403102

GZ10,MZ1#

TERRA COTTA,RED/MAROON,TRIM3#

 2
55539-2401004

GZ10,MZ11..5F

BLUE,BLUE,TRIM8#

 1
55539-2401001

GZ10,MZ1#

BLACK,BLACK,TRIM2#

 2
55539-1403002

GZ10,MZ1#

TERRA COTTA,RED/MAROON,TRIM3#

 2
55539-2401002

GZ10,MZ1#

TERRA COTTA,RED/MAROON,TRIM3#

 2
55539-2401004

GZ10,MZ1#

BLUE,BLUE,TRIM8#

 2
55539-1403105

GZ10,MZ1#

BEIGE,BEIGE,TRIM4#

 2
55539-1403112

GZ10,MZ1#

DEEP MAROON,RED/MAROON,TRIM3#

 2
55539-1403103

GZ10,MZ1#

GRAY,GRAY,TRIM1#

 2
55539-1403104

GZ10,MZ1#

BLUE,BLUE,TRIM8#

 2
55539-1403004

GZ10,MZ1#

BLUE,BLUE,TRIM8#

 2
55539-1403003

GZ10,MZ1#

GRAY,GRAY,TRIM1#

 2
55539A - COVER, SPARE SWITCH HOLE
55539-2401001

GZ10,MZ11..5F

BLACK,BLACK,TRIM2#

 1
55539-2401002

GZ10,MZ11..5F

TERRA COTTA,RED/MAROON,TRIM3#

 1
55539-1403102

GZ10,MZ1#

TERRA COTTA,RED/MAROON,TRIM3#

 2
55539-2401004

GZ10,MZ11..5F

BLUE,BLUE,TRIM8#

 1
55539-2401001

GZ10,MZ1#

BLACK,BLACK,TRIM2#

 2
55539-1403002

GZ10,MZ1#

TERRA COTTA,RED/MAROON,TRIM3#

 2
55539-2401002

GZ10,MZ1#

TERRA COTTA,RED/MAROON,TRIM3#

 2
55539-2401004

GZ10,MZ1#

BLUE,BLUE,TRIM8#

 2
55539-1403105

GZ10,MZ1#

BEIGE,BEIGE,TRIM4#

 2
55539-1403112

GZ10,MZ1#

DEEP MAROON,RED/MAROON,TRIM3#

 2
55539-1403103

GZ10,MZ1#

GRAY,GRAY,TRIM1#

 2
55539-1403104

GZ10,MZ1#

BLUE,BLUE,TRIM8#

 2
55539-1403004

GZ10,MZ1#

BLUE,BLUE,TRIM8#

 2
55539-1403003

GZ10,MZ1#

GRAY,GRAY,TRIM1#

 2
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-2401004

GZ10,MZ11,12..5F

BLUE,BLUE,TRIM8#

 1
58808-2401003

GZ10,MZ11..5F

GRAY,GRAY,TRIM1#

 1
58808-2401001

GZ10,MZ11..5F

BLACK,BLACK,TRIM2#

 1
58808-2401005

GZ10,MZ11,12..5F

BEIGE,BEIGE,TRIM4#

 1
58808-2401002

GZ10,MZ11..5F

TERRA COTTA,RED/MAROON,TRIM3#

 1
58808-2401012

GZ10,MZ11,12..5F

DEEP MAROON,RED/MAROON,TRIM3#

 1
58810 - CONSOLE ASSY
58811-2401002

GZ10,MZ1#

TERRA COTTA,RED/MAROON,TRIM3#

 1
58811-2401001

GZ10,MZ1#

BLACK,BLACK,TRIM2#

 1
58811-2401004

GZ10,MZ1#

BLUE,BLUE,TRIM8#

 1
58811-2401012

GZ10,MZ1#

DEEP MAROON,RED/MAROON,TRIM3#

 1
58811-2401003

GZ10,MZ1#

GRAY,GRAY,TRIM1#

 1
58811-2401005

GZ10,MZ1#

BEIGE,BEIGE,TRIM4#

 1
58827B - SPACER, CONSOLE COMPARTMENT DOOR STOPPER
58827-20021

GZ10,MZ1#

 1
58871 - CUSHION, CONSOLE BOX
58871-24010

GZ10,MZ1#

 1
58871A - CUSHION, CONSOLE BOX, NO.2
58872-24010

GZ10,MZ1#

 2
58871A - CUSHION, CONSOLE BOX, NO.2
58872-24010

GZ10,MZ1#

 2
58884 - COVER, STEREO OPENING
55521-22020

GZ10,MZ10..TBO,V2,VR

 1
55521-22020

GZ10,MZ10

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-2401004

GZ10,MZ1#

BLUE,BLUE,TRIM8#

 1
58905-2401012

GZ10,MZ1#

DEEP MAROON,RED/MAROON,TRIM3#

 1
58905-2401002

GZ10,MZ1#

TERRA COTTA,RED/MAROON,TRIM3#

 1
58905-2401003

GZ10,MZ1#

GRAY,GRAY,TRIM1#

 1
58905-2401001

GZ10,MZ1#

BLACK,BLACK,TRIM2#

 1
58905-2401005

GZ10,MZ1#

BEIGE,BEIGE,TRIM4#

 1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-14010

GZ10,MZ1#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-14010

GZ10,MZ1#

 1
58940 - CONSOLE ASSY, REAR
58901-2401001

GZ10,MZ1#

BLACK,BLACK,TRIM2#

 1
58901-2401002

GZ10,MZ1#

TERRA COTTA,RED/MAROON,TRIM3#

 1
58901-2401004

GZ10,MZ1#

BLUE,BLUE,TRIM8#

 1
58901-2401102

GZ10,MZ1#

TERRA COTTA,RED/MAROON,TRIM3#

 1
58901-2401104

GZ10,MZ1#

BLUE,BLUE,TRIM8#

 1
58901-2401101

GZ10,MZ1#

BLACK,BLACK,TRIM2#

 1
58901-2401104

GZ10,MZ10

BLUE,BLUE,TRIM8#

 1
58901-2401102

GZ10,MZ10

TERRA COTTA,RED/MAROON,TRIM3#

 1
58901-2401104

GZ10,MZ10..TBO,V2,VR,VX

BLUE,BLUE,TRIM8#

 1
58901-2401112

GZ10,MZ10..TBO,V2,VR,VX

DEEP MAROON,RED/MAROON,TRIM3#

 1
58901-2401105

GZ10,MZ10..TBO,V2,VR,VX

BEIGE,BEIGE,TRIM4#

 1
58901-2401103

GZ10,MZ10

GRAY,GRAY,TRIM1#

 1
58901-2401104

GZ10..V2,VR,VX

BLUE,BLUE,TRIM8#

 1
58901-2401112

GZ10..V2,VR,VX

DEEP MAROON,RED/MAROON,TRIM3#

 1
58901-2401105

GZ10..V2,VR,VX

BEIGE,BEIGE,TRIM4#

 1
58949 - PLATE, CONSOLE BOX
58919-24010

GZ10,MZ1#

 2
58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER
58969-20010

GZ10,MZ1#

 1
58985 - RETAINER, CONSOLE BOX
58985-24010

GZ10,MZ11,12..5F

 1
58996 - BRACKET, CONSOLE BOX MOUNTING, NO.1
58996-24010

GZ10,MZ1#

 1
58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3
58997-24010

GZ10,MZ1#

 1
Common parts
90176-04015
90183-05009
90189-05003
90541-04079
93249-54008
93540-55014
93560-15016
93560-55016
93566-55512
93567-54512
98249-54008
