GZ10-HCMZE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8102- )

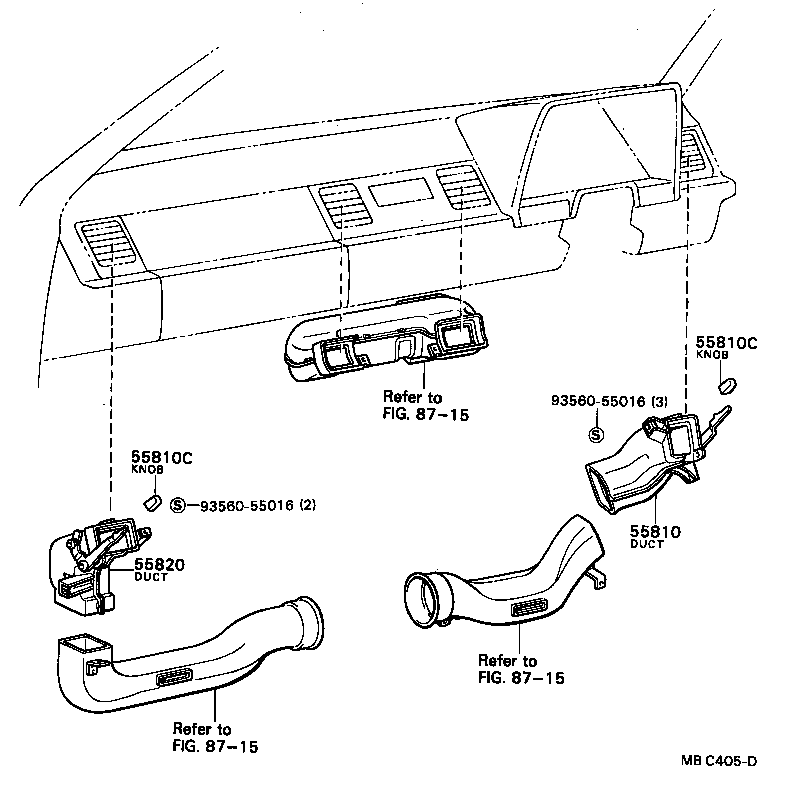

Click highlighted areas on diagram

diagram 55810 55810C 55810C 55820 8715 8715 8715 9356055016 9356055016
Part # Description Qty Price
55810 - DUCT ASSY, SIDE VENTILATOR, RH
55084-24010

GZ10,MZ1#

 1
55810C - KNOB SUB-ASSY, CONTROL(FOR VENTILATOR DUCT)
55905-1205001

GZ10,MZ1#

BLACK

 2
55810C - KNOB SUB-ASSY, CONTROL(FOR VENTILATOR DUCT)
55905-1205001

GZ10,MZ1#

BLACK

 2
55820 - DUCT ASSY, SIDE VENTILATOR, LH
55088-24010

GZ10,MZ1#

 1
Common parts
93560-55016
Linked diagrams
8715
