GZ10-HCMZE (1981)
Toyota Soarer
(8102- )

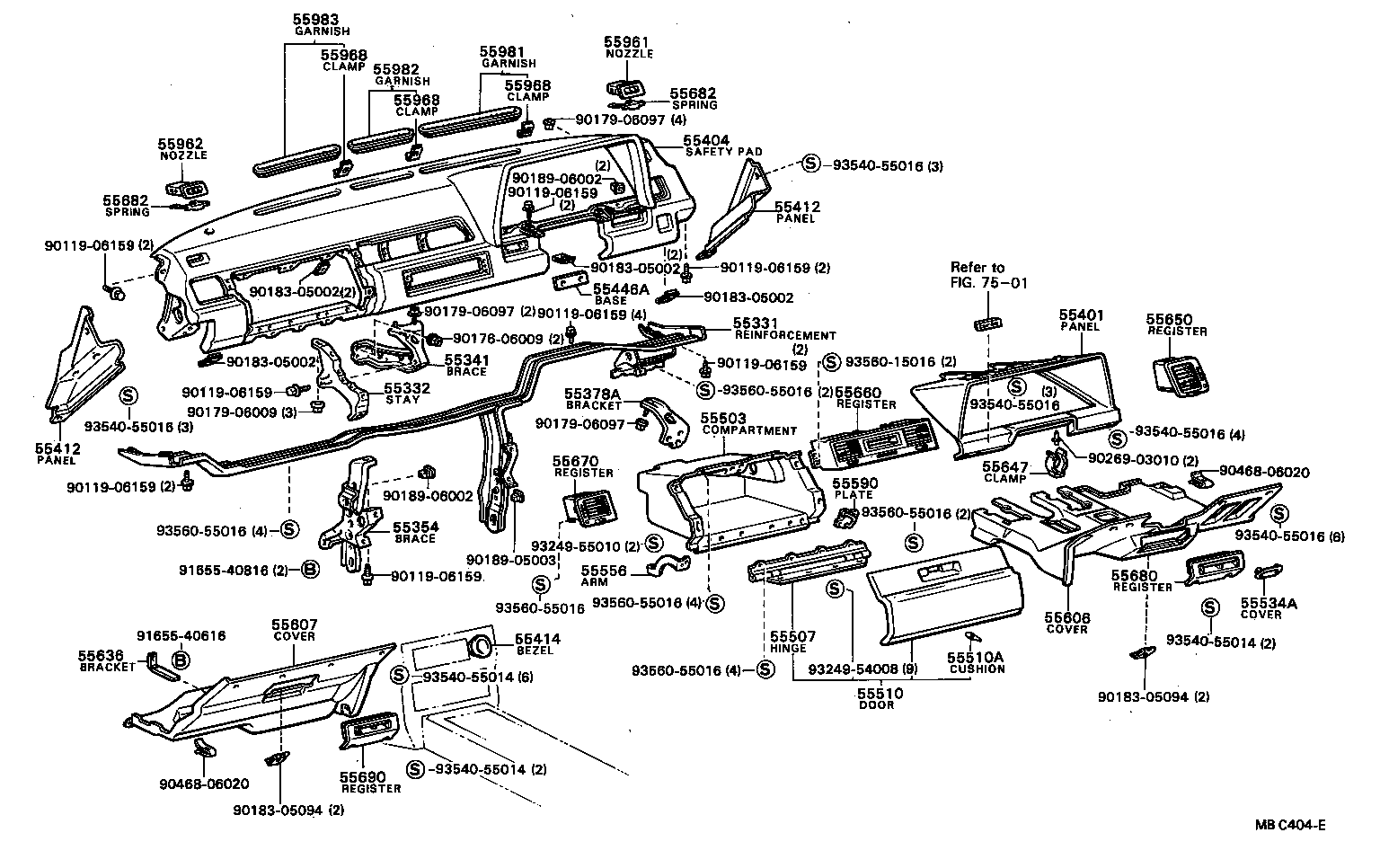

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55305-24010 |
GZ10,MZ1# |
1 | ||
| 55305-24020 |
GZ10,MZ1# |
1 | ||
| 55332 - STAY, INSTRUMENT PANEL | ||||
| 55326-24010 |
GZ10,MZ1# |
1 | ||
| 55341 - BRACE, INSTRUMENT PANEL, NO.1 | ||||
| 55306-24010 |
GZ10,MZ1# |
1 | ||
| 55354 - BRACE, INSTRUMENT PANEL TO FLOOR | ||||
| 55309-24010 |
GZ10,MZ1# |
1 | ||
| 55378A - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING | ||||
| 55378-24010 |
GZ10,MZ1# |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-24010 |
GZ10,MZ11 |
1 | ||
| 55404-24030 |
GZ10,MZ1# |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55401-2401004 |
GZ10,MZ1# BLUE,BLUE,TRIM8# |
1 | ||
| 55401-2401003 |
GZ10,MZ1# GRAY,GRAY,TRIM1# |
1 | ||
| 55401-2401012 |
GZ10,MZ1# DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55401-2401005 |
GZ10,MZ1# BEIGE,BEIGE,TRIM4# |
1 | ||
| 55401-2401001 |
GZ10,MZ1# BLACK,BLACK,TRIM2# |
1 | ||
| 55401-2401002 |
GZ10,MZ1# TERRA COTTA,RED/MAROON,TRIM3# |
1 | ||
| 55412 - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55436-2401001 |
GZ10,MZ1# LH,BLACK,BLACK,TRIM2# |
1 | ||
| 55436-2401002 |
GZ10,MZ1# LH,TERRA COTTA,RED/MAROON,TRIM3# |
1 | ||
| 55436-2401003 |
GZ10,MZ1# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 55435-2401001 |
GZ10,MZ1# RH,BLACK,BLACK,TRIM2# |
1 | ||
| 55436-2401004 |
GZ10,MZ1# LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55435-2401012 |
GZ10,MZ1# RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55435-2401004 |
GZ10,MZ1# RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55435-2401003 |
GZ10,MZ1# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 55436-2401005 |
GZ10,MZ1# LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55436-2401012 |
GZ10,MZ1# LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55435-2401002 |
GZ10,MZ1# RH,TERRA COTTA,RED/MAROON,TRIM3# |
1 | ||
| 55435-2401005 |
GZ10,MZ1# RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55412 - PANEL, INSTRUMENT CLUSTER FINISH, END | ||||
| 55436-2401001 |
GZ10,MZ1# LH,BLACK,BLACK,TRIM2# |
1 | ||
| 55436-2401002 |
GZ10,MZ1# LH,TERRA COTTA,RED/MAROON,TRIM3# |
1 | ||
| 55436-2401003 |
GZ10,MZ1# LH,GRAY,GRAY,TRIM1# |
1 | ||
| 55435-2401001 |
GZ10,MZ1# RH,BLACK,BLACK,TRIM2# |
1 | ||
| 55436-2401004 |
GZ10,MZ1# LH,BLUE,BLUE,TRIM8# |
1 | ||
| 55435-2401012 |
GZ10,MZ1# RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55435-2401004 |
GZ10,MZ1# RH,BLUE,BLUE,TRIM8# |
1 | ||
| 55435-2401003 |
GZ10,MZ1# RH,GRAY,GRAY,TRIM1# |
1 | ||
| 55436-2401005 |
GZ10,MZ1# LH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55436-2401012 |
GZ10,MZ1# LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55435-2401002 |
GZ10,MZ1# RH,TERRA COTTA,RED/MAROON,TRIM3# |
1 | ||
| 55435-2401005 |
GZ10,MZ1# RH,BEIGE,BEIGE,TRIM4# |
1 | ||
| 55414 - BEZEL, CIGAR LIGHTER HOLE | ||||
| 55477-24020 |
GZ10,MZ1# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-24010 |
GZ10,MZ1# |
1 | ||
| 55447-24010 |
GZ10,MZ1# |
1 | ||
| 55447-24020 |
GZ10,MZ1# W/O MULTI DISPLAY |
1 | ||
| 55503 - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55581-24010 |
GZ10,MZ1# |
1 | ||
| 55507 - HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55505-24010 |
GZ10,MZ1# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-2401001 |
GZ10,MZ1# BLACK,BLACK,TRIM2# |
1 | ||
| 55550-2401003 |
GZ10,MZ1# GRAY,GRAY,TRIM1# |
1 | ||
| 55550-2401005 |
GZ10,MZ1# BEIGE,BEIGE,TRIM4# |
1 | ||
| 55550-2401004 |
GZ10,MZ1# BLUE,BLUE,TRIM8# |
1 | ||
| 55550-2401012 |
GZ10,MZ1# DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55550-2401002 |
GZ10,MZ1# TERRA COTTA,RED/MAROON,TRIM3# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-03015 |
GZ10,MZ1# |
2 | ||
| 55556 - ARM, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-24010 |
GZ10,MZ1# |
1 | ||
| 55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER | ||||
| 55590-12010 |
GZ10,MZ1# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-2401004 |
GZ10,MZ1# BLUE,BLUE,TRIM8# |
1 | ||
| 55606-2401002 |
GZ10,MZ1# TERRA COTTA,RED/MAROON,TRIM3# |
1 | ||
| 55606-2401001 |
GZ10,MZ1# BLACK,BLACK,TRIM2# |
1 | ||
| 55606-2401003 |
GZ10,MZ1# GRAY,GRAY,TRIM1# |
1 | ||
| 55606-2401012 |
GZ10,MZ1# DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55606-2401005 |
GZ10,MZ1# BEIGE,BEIGE,TRIM4# |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-2401001 |
GZ10,MZ11 BLACK,BLACK,TRIM2# |
1 | ||
| 55607-2401002 |
GZ10,MZ11 TERRA COTTA,RED/MAROON,TRIM3# |
1 | ||
| 55607-2401003 |
GZ10;MZ11..5F GRAY,GRAY,TRIM1# |
1 | ||
| 55607-2401002 |
GZ10;MZ11..5F TERRA COTTA,RED/MAROON,TRIM3# |
1 | ||
| 55607-2401004 |
GZ10,MZ11 BLUE,BLUE,TRIM8# |
1 | ||
| 55607-2401005 |
GZ10..V2,VR,VX BEIGE,BEIGE,TRIM4# |
1 | ||
| 55607-2401004 |
GZ10;MZ11..5F BLUE,BLUE,TRIM8# |
1 | ||
| 55607-2401004 |
GZ10..V2,VR,VX BLUE,BLUE,TRIM8# |
1 | ||
| 55607-2401012 |
GZ10..V2,VR,VX DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55636 - BRACKET, INSTRUMENT PANEL UNDER COVER, NO.1 | ||||
| 55636-24010 |
GZ10,MZ1# |
1 | ||
| 55647 - CLAMP, INSTRUMENT PANEL UNDER COVER | ||||
| 55647-30010 |
GZ10,MZ1# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-24010 |
GZ10,MZ1# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-24031 |
MZ10;GZ10,MZ11..GT,VR,VX W/CRUISE COMPUTER |
1 | ||
| 55660-24030 |
MZ10;GZ10,MZ11..GT,VR,VX W/CRUISE COMPUTER |
1 | ||
| 55660-24020 |
GZ10,MZ1# |
1 | ||
| 55660-24020 |
GZ10,MZ10..TBO,VR |
1 | ||
| 55660-24020 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 55660-24020 |
GZ10,MZ10..TBO,V2,VR |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-24010 |
GZ10,MZ1# |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-2401001 |
GZ10,MZ1# BLACK,BLACK,TRIM2# |
1 | ||
| 55680-2401004 |
GZ10,MZ1# BLUE,BLUE,TRIM8# |
1 | ||
| 55680-2401005 |
GZ10,MZ1# BEIGE,BEIGE,TRIM4# |
1 | ||
| 55680-2401012 |
GZ10,MZ1# DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55680-2401002 |
GZ10,MZ1# TERRA COTTA,RED/MAROON,TRIM3# |
1 | ||
| 55680-2401003 |
GZ10,MZ1# GRAY,GRAY,TRIM1# |
1 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 55963-24010 |
GZ10,MZ1# |
2 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 55963-24010 |
GZ10,MZ1# |
2 | ||
| 55690 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.2 | ||||
| 55680-2401003 |
GZ10,MZ1# GRAY,GRAY,TRIM1# |
1 | ||
| 55680-2401001 |
GZ10,MZ1# BLACK,BLACK,TRIM2# |
1 | ||
| 55680-2401004 |
GZ10,MZ1# BLUE,BLUE,TRIM8# |
1 | ||
| 55680-2401012 |
GZ10,MZ1# DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55680-2401005 |
GZ10,MZ1# BEIGE,BEIGE,TRIM4# |
1 | ||
| 55680-2401002 |
GZ10,MZ1# TERRA COTTA,RED/MAROON,TRIM3# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-2401003 |
GZ10,MZ1# GRAY,GRAY,TRIM1# |
1 | ||
| 55961-2401002 |
GZ10,MZ1# TERRA COTTA,RED/MAROON,TRIM3# |
1 | ||
| 55961-2401004 |
GZ10,MZ1# BLUE,BLUE,TRIM8# |
1 | ||
| 55961-2401012 |
GZ10,MZ1# DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55961-2401005 |
GZ10,MZ1# BEIGE,BEIGE,TRIM4# |
1 | ||
| 55961-2401001 |
GZ10,MZ1# BLACK,BLACK,TRIM2# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-2401002 |
GZ10,MZ1# TERRA COTTA,RED/MAROON,TRIM3# |
1 | ||
| 55962-2401001 |
GZ10,MZ1# BLACK,BLACK,TRIM2# |
1 | ||
| 55962-2401004 |
GZ10,MZ1# BLUE,BLUE,TRIM8# |
1 | ||
| 55962-2401003 |
GZ10,MZ1# GRAY,GRAY,TRIM1# |
1 | ||
| 55962-2401005 |
GZ10,MZ1# BEIGE,BEIGE,TRIM4# |
1 | ||
| 55962-2401012 |
GZ10,MZ1# DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55968 - CLAMP, DEFROSTER NOZZLE | ||||
| 55968-24010 |
GZ10,MZ1# |
8 | ||
| 55968 - CLAMP, DEFROSTER NOZZLE | ||||
| 55968-24010 |
GZ10,MZ1# |
8 | ||
| 55968 - CLAMP, DEFROSTER NOZZLE | ||||
| 55968-24010 |
GZ10,MZ1# |
8 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-2401005 |
GZ10,MZ1# BEIGE,BEIGE,TRIM4# |
1 | ||
| 55981-2401003 |
GZ10,MZ1# GRAY,GRAY,TRIM1# |
1 | ||
| 55981-2401004 |
GZ10,MZ1# BLUE,BLUE,TRIM8# |
1 | ||
| 55981-2401001 |
GZ10,MZ1# BLACK,BLACK,TRIM2# |
1 | ||
| 55981-2401002 |
GZ10,MZ1# TERRA COTTA,RED/MAROON,TRIM3# |
1 | ||
| 55981-2401012 |
GZ10,MZ1# DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-2401012 |
GZ10,MZ1# DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55982-2401003 |
GZ10,MZ1# GRAY,GRAY,TRIM1# |
1 | ||
| 55982-2401002 |
GZ10,MZ1# TERRA COTTA,RED/MAROON,TRIM3# |
1 | ||
| 55982-2401001 |
GZ10,MZ1# BLACK,BLACK,TRIM2# |
1 | ||
| 55982-2401004 |
GZ10,MZ1# BLUE,BLUE,TRIM8# |
1 | ||
| 55982-2401005 |
GZ10,MZ1# BEIGE,BEIGE,TRIM4# |
1 | ||
| 55983 - GARNISH, DEFROSTER NOZZLE, NO.3 | ||||
| 55983-2401012 |
GZ10,MZ1# DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 55983-2401002 |
GZ10,MZ1# TERRA COTTA,RED/MAROON,TRIM3# |
1 | ||
| 55983-2401005 |
GZ10,MZ1# BEIGE,BEIGE,TRIM4# |
1 | ||
| 55983-2401003 |
GZ10,MZ1# GRAY,GRAY,TRIM1# |
1 | ||
| 55983-2401004 |
GZ10,MZ1# BLUE,BLUE,TRIM8# |
1 | ||
| 55983-2401001 |
GZ10,MZ1# BLACK,BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-06159 | ||||
| 90176-06009 | ||||
| 90179-06009 | ||||
| 90179-06097 | ||||
| 90183-05002 | ||||
| 90183-05094 | ||||
| 90189-05003 | ||||
| 90189-06002 | ||||
| 90269-03010 | ||||
| 90468-06020 | ||||
| 91655-40616 | ||||
| 91655-40816 | ||||
| 93249-54008 | ||||
| 93249-55010 | ||||
| 93540-55014 | ||||
| 93540-55016 | ||||
| 93560-15016 | ||||
| 93560-55016 | ||||
| Linked diagrams | ||||
| 7501 | ||||
