GZ10-HCMZE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8102- )

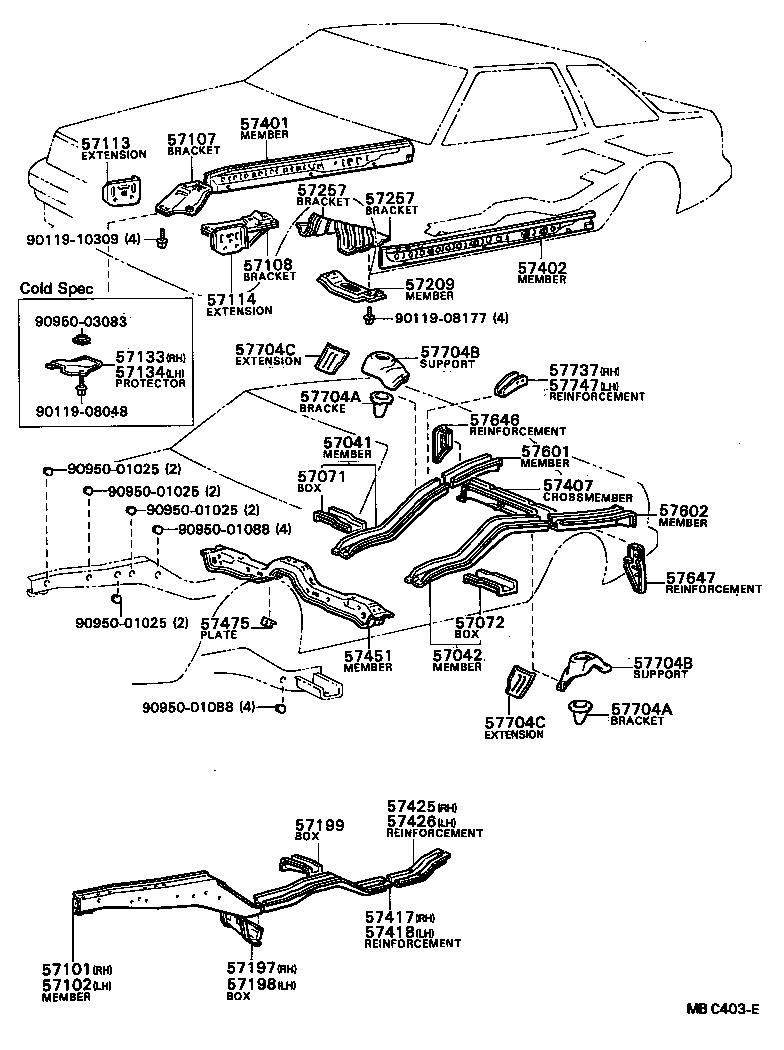

Click highlighted areas on diagram

diagram 57041 57042 57071 57072 57101 57102 57107 57108 57113 57114 57133 57134 57197 57198 57199 57209 57257 57257 57401 57402 57407 57417 57418 57425 57426 57451 57475 57601 57602 57646 57647 57704A 57704A 57704B 57704B 57704C 57704C 57737 57747 9011908048 9011908177 9011910309 9095001025 9095001025 9095001025 9095001025 9095001088 9095001088 9095003083
Part # Description Qty Price
57041 - MEMBER SUB-ASSY, CENTER FLOOR SIDE, RH
57041-24010

GZ10,MZ1#

 1
57042 - MEMBER SUB-ASSY, CENTER FLOOR SIDE, LH
57042-24010

GZ10,MZ1#

 1
57071 - BOX SUB-ASSY, TORQUE, REAR RH
57071-24010

GZ10,MZ1#

 1
57072 - BOX SUB-ASSY, TORQUE, REAR LH
57072-24010

GZ10,MZ1#

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-24901

GZ10,MZ1#

 1
57101-24900

GZ10,MZ1#

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-24900

GZ10,MZ1#

 1
57102-24901

GZ10,MZ1#

 1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-24010

GZ10,MZ1#

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-24010

GZ10,MZ1#

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-24010

GZ10,MZ1#

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-24010

GZ10,MZ1#

 1
57133 - PROTECTOR, STRUT BAR BRACKET, RH
57133-14020

GZ10,MZ1#

COLD SPEC

 1
57134 - PROTECTOR, STRUT BAR BRACKET, LH
57133-14020

GZ10,MZ1#

COLD SPEC

 1
57197 - BOX, TORQUE, FRONT RH
57197-24010

GZ10,MZ1#

 1
57198 - BOX, TORQUE, FRONT LH
57198-24010

GZ10,MZ1#

 1
57199 - BOX, TORQUE, FRONT, NO.2
58173-14010

GZ10,MZ1#

 2
57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT
57209-24010

GZ10,MZ11,12..5F

 1
57257 - BRACKET, ENGINE REAR SUPPORT MEMBER
57258-24010

GZ10,MZ1#

LH

 1
57257-24010

GZ10,MZ1#

RH

 1
57257 - BRACKET, ENGINE REAR SUPPORT MEMBER
57258-24010

GZ10,MZ1#

LH

 1
57257-24010

GZ10,MZ1#

RH

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-24010

GZ10,MZ1#

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-24010

GZ10,MZ1#

 1
57407 - CROSS MEMBER SUB-ASSY, CENTER FLOOR, NO.1
57405-24011

GZ10,MZ1#

 1
57405-24010

GZ10,MZ1#

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-24010

GZ10,MZ1#

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-24010

GZ10,MZ1#

 1
57425 - REINFORCEMENT, FRONT FLOOR, NO.2 RH
57425-24010

GZ10,MZ1#

 1
57426 - REINFORCEMENT, FRONT FLOOR, NO.2 LH
57426-24010

GZ10,MZ1#

 1
57451 - MEMBER, FRONT FLOOR CROSS
57451-24010

GZ10,MZ1#

 1
57475 - PLATE, FRONT FLOOR CROSSMEMBER
57475-24010

GZ10,MZ1#

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-14090

GZ10,MZ1#

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-14080

GZ10,MZ1#

 1
57646 - REINFORCEMENT, REAR SIDE MEMBER TO BODY, RH
57646-24010

GZ10,MZ1#

 1
57647 - REINFORCEMENT, REAR SIDE MEMBER TO BODY, LH
57647-24010

GZ10,MZ1#

 1
57704A - BRACKET, REAR AXLE BUMPER
57714-14010

GZ10,MZ1#

LH

 1
57713-14020

GZ10,MZ1#

RH

 1
57704A - BRACKET, REAR AXLE BUMPER
57714-14010

GZ10,MZ1#

LH

 1
57713-14020

GZ10,MZ1#

RH

 1
57704B - SUPPORT, REAR SUSPENSION SPRING
57723-14030

GZ10,MZ1#

RH

 1
57724-14020

GZ10,MZ1#

LH

 1
57704B - SUPPORT, REAR SUSPENSION SPRING
57723-14030

GZ10,MZ1#

RH

 1
57724-14020

GZ10,MZ1#

LH

 1
57704C - EXTENSION, CENTER FLOOR TO PACKAGE TRAY
64217-24010

GZ10,MZ1#

RH

 1
64218-24010

GZ10,MZ1#

LH

 1
57704C - EXTENSION, CENTER FLOOR TO PACKAGE TRAY
64217-24010

GZ10,MZ1#

RH

 1
64218-24010

GZ10,MZ1#

LH

 1
57737 - REINFORCEMENT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, RH
57737-24010

GZ10,MZ1#

 1
57747 - REINFORCEMENT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, LH
57747-24010

GZ10,MZ1#

 1
Common parts
90119-08048
90119-08177
90119-10309
90950-01025
90950-01088
90950-03083
