GZ10-HCMZE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8102- )

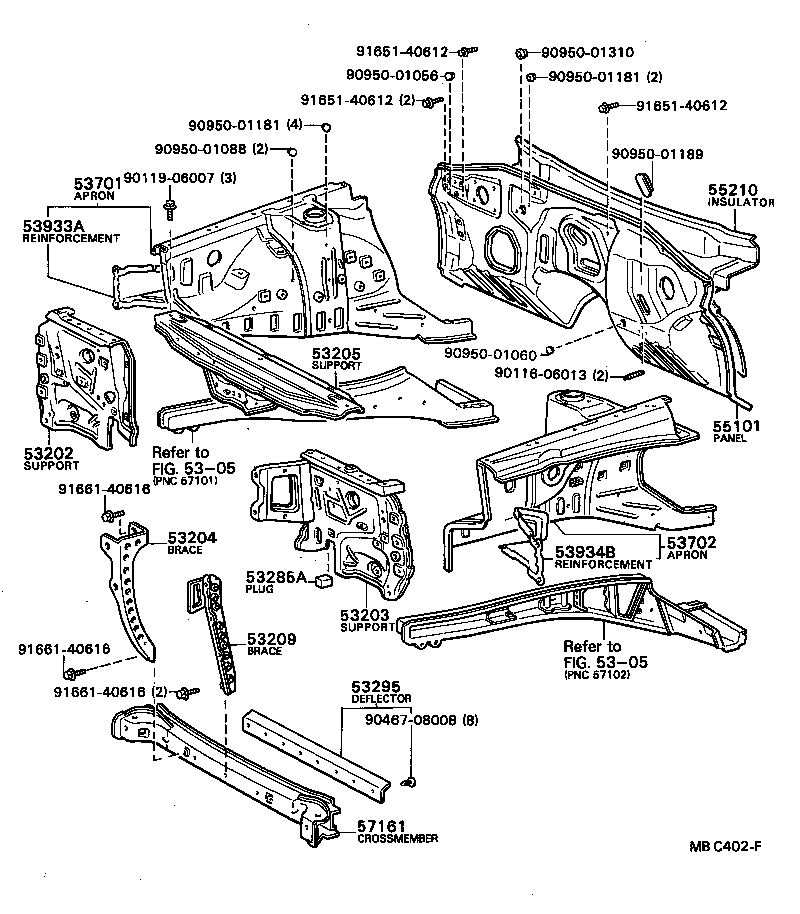

Click highlighted areas on diagram

diagram 5305 5305 53202 53203 53204 53205 53209 53285A 53295 53701 53702 53933A 53934B 55101 55210 57161 9011606013 9011906007 9046708008 9095001056 9095001060 9095001088 9095001181 9095001181 9095001189 9095001310 9165140612 9165140612 9165140612 9166140616 9166140616 9166140616
Part # Description Qty Price
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-24010

GZ10,MZ1#

 1
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-24900

GZ10,MZ1#

 1
53204 - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER
53217-24010

GZ10,MZ1#

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-24010

GZ10,MZ1#

 1
53205-24010

GZ10,MZ11

 1
53209 - BRACE SUB-ASSY, HOOD LOCK
53208-24010

GZ10,MZ1#

 1
53208-24011

GZ10,MZ1#

 1
53295 - DEFLECTOR, RADIATOR LOWER AIR
53295-14030

GZ10,MZ1#

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-24010

GZ10,MZ1#

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53702-24020

GZ10

COLD SPEC

 1
53702-24020

GZ10,MZ1#

 1
53702-24010

GZ10,MZ11

 1
53702-24020

GZ10,MZ11

COLD SPEC

 1
53702-24010

GZ10

 1
53933A - REINFORCEMENT, FRONT END PANEL, RH
53933-24010

GZ10,MZ1#

 1
53934B - REINFORCEMENT, FRONT END PANEL, LH
53934-24010

GZ10,MZ1#

 1
55101 - PANEL SUB-ASSY, DASH
55101-24020

GZ10,MZ1#

 1
55101-24021

GZ10,MZ1#

 1
55210 - INSULATOR ASSY, DASH PANEL
55210-24010

GZ10,MZ11..5F

 1
55210-24010

GZ10,MZ1#

 1
57161 - CROSSMEMBER, FRONT
57104-24010

GZ10,MZ1#

 1
Common parts
90116-06013
90119-06007
90467-08008
90950-01056
90950-01060
90950-01088
90950-01181
90950-01189
90950-01310
91651-40612
91661-40616
Linked diagrams
5305
