GZ10-HCMZE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8102- )

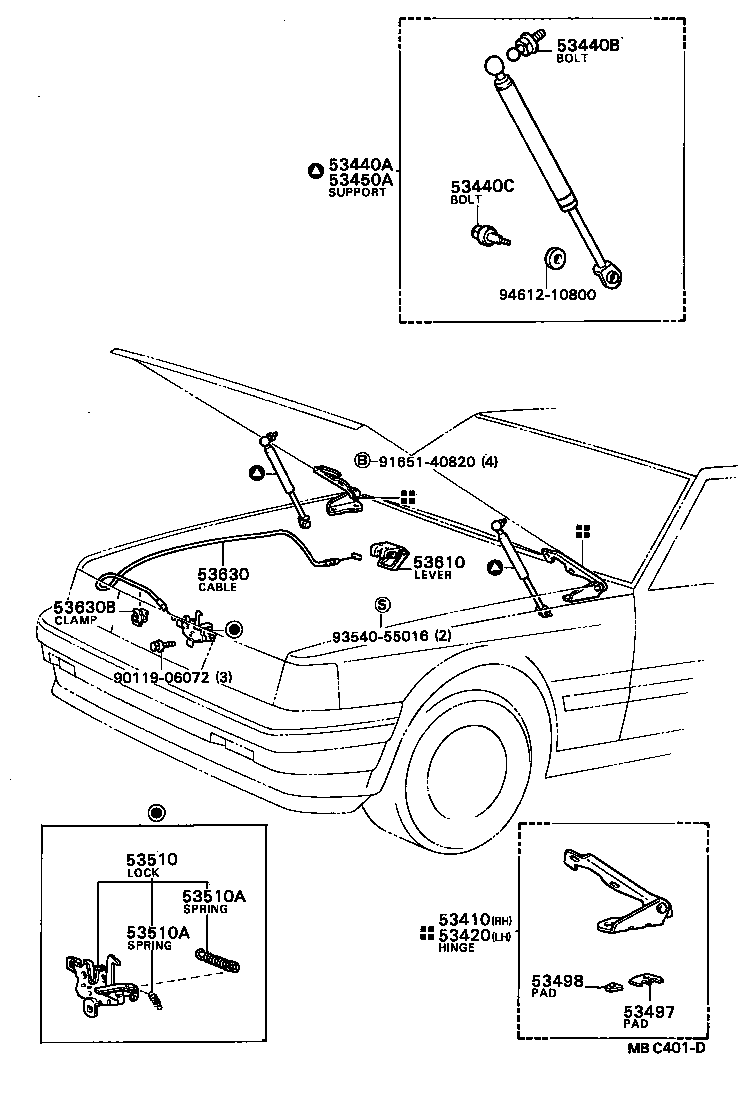

Click highlighted areas on diagram

diagram 53410 53420 53440A 53440B 53440C 53450A 53497 53498 53510 53510A 53510A 53610 53630 53630B 9011906072 9165140820 9354055016 9461210800
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-24010

GZ10,MZ1#

 1
53420 - HINGE ASSY, HOOD, LH
53420-24010

GZ10,MZ1#

 1
53440A - SUPPORT ASSY, HOOD, RH
53440-29025

GZ10,MZ1#

TOKIKO

 1
53440-29015

GZ10,MZ1#

KAYABA

 1
53440B - BOLT, HOOD SUPPORT, NO.1
68961-14040

GZ10,MZ1#

 2
53440C - BOLT, HOOD SUPPORT, NO.2
68961-96440

GZ10,MZ1#

 2
53450A - SUPPORT ASSY, HOOD, LH
53450-29025

GZ10,MZ1#

TOKIKO

 1
53450-29015

GZ10,MZ1#

KAYABA

 1
53497 - PAD, HOOD HINGE, NO.1
53497-24010

GZ10,MZ1#

 2
53498 - PAD, HOOD HINGE, NO.2
53498-24010

GZ10,MZ1#

 2
53510 - LOCK ASSY, HOOD
53510-24010

GZ10,MZ1#

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-18024

GZ10,MZ1#

WD=1.8

 1
90506-09008

GZ10,MZ1#

線径=0.9,ｺｲﾙ巻数=21.25,WD=0.9

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-18024

GZ10,MZ1#

WD=1.8

 1
90506-09008

GZ10,MZ1#

線径=0.9,ｺｲﾙ巻数=21.25,WD=0.9

 1
53610 - LEVER ASSY, HOOD LOCK RELEASE
53601-1201001

GZ10,MZ1#

BLACK,BLACK,TRIM2#

 1
53601-1201003

GZ10,MZ1#

GRAY,GRAY,TRIM1#

 1
53601-1201022

GZ10,MZ1#

DEEP MAROON,RED/MAROON,TRIM3#

 1
53601-1201002

GZ10,MZ1#

TERRA COTTA,RED/MAROON,TRIM3#

 1
53601-2401005

GZ10,MZ1#

BEIGE,BEIGE,TRIM4#

 1
53601-1201014

GZ10,MZ1#

BLUE,BLUE,TRIM8#

 1
53601-2401002

GZ10,MZ1#

DEEP MAROON,RED/MAROON,TRIM3#

 1
53601-2401004

GZ10,MZ1#

BLUE,BLUE,TRIM8#

 1
53601-1201015

GZ10,MZ1#

BEIGE,BEIGE,TRIM4#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-24010

GZ10,MZ1#

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90467-09031

GZ10,MZ1#

BLACK

 1
90467-09025

GZ10,MZ1#

 1
90467-09043

GZ10,MZ1#

DARK BROWN

 1
Common parts
90119-06072
91651-40820
93540-55016
94612-10800
