GZ10-HCMZE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8102- )

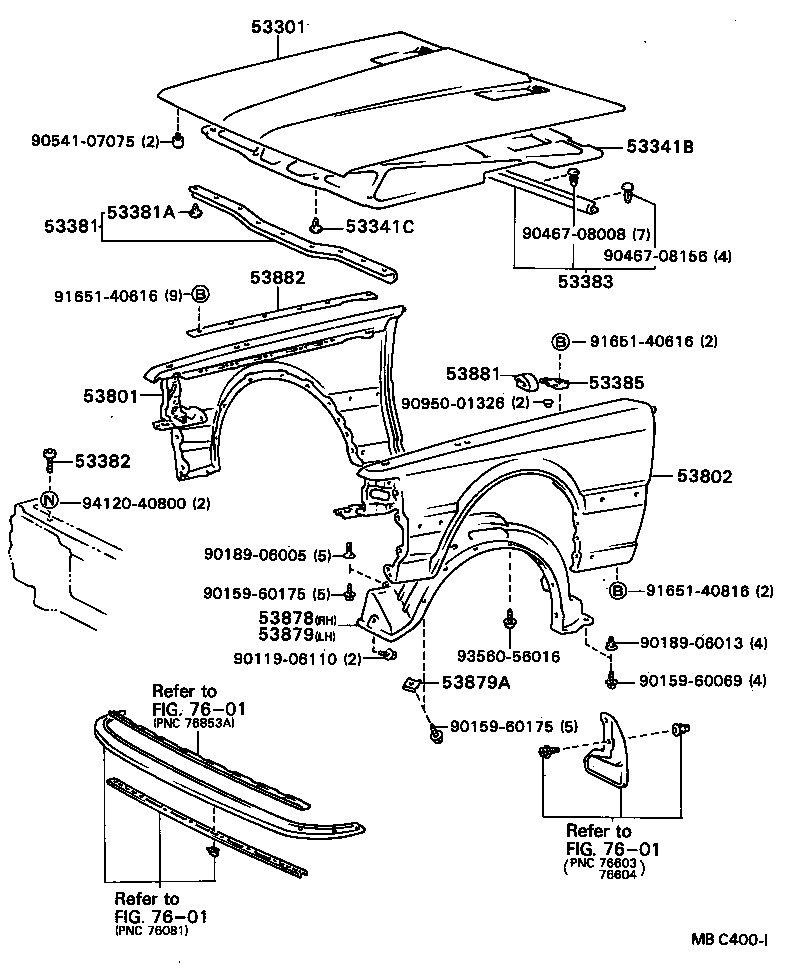

Click highlighted areas on diagram

diagram 53301 53341B 53341C 53381 53381A 53382 53383 53385 53801 53802 53878 53879 53879A 53881 53882 7601 7601 7601 9011906110 9015960069 9015960175 9015960175 9018906005 9018906013 9046708008 9046708156 9054107075 9095001326 9165140616 9165140616 9165140816 9356056016 9412040800
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-24010

GZ10,MZ1#

 1
53341B - INSULATOR, HOOD
53341-24010

GZ10,MZ11

 1
53341-24030

GZ10,MZ11,12

 1
53341C - CLIP(FOR HOOD INSULATOR)
90467-09008

GZ10,MZ11,12

PLASTIC

 17
53381 - SEAL, HOOD TO RADIATOR SUPPORT
53381-24010

GZ10,MZ1#

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
90467-08011

GZ10,MZ1#

 9
53382 - BUMPER, HOOD, FRONT
53382-20011

GZ10,MZ1#

 2
53383 - SEAL, HOOD TO COWL TOP
53383-24010

GZ10,MZ1#

 1
53385 - RETAINER, HOOD, BUMPER
53385-14010

GZ10,MZ1#

LH

 1
53386-14010

GZ10,MZ1#

RH

 1
53801 - FENDER SUB-ASSY, FRONT RH
53801-24011

GZ10,MZ1#

 1
53801-24010

GZ10,MZ1#

 1
53801-24030

GZ10,MZ1#

W/DOOR MIRROR

 1
53802 - FENDER SUB-ASSY, FRONT LH
53802-24011

GZ10,MZ1#

 1
53802-24010

GZ10,MZ1#

 1
53802-24030

GZ10,MZ1#

W/DOOR MIRROR

 1
53878 - LINER, FRONT FENDER, RH
53875-24010

GZ10,MZ1#

 1
53879 - LINER, FRONT FENDER, LH
53876-24010

GZ10,MZ1#

 1
53879A - RETAINER, FRONT FENDER LINER
53879-22010

GZ10,MZ1#

 10
53881 - BUMPER, FENDER TO HOOD
53384-14030

GZ10,MZ1#

 2
53882 - PACKING, FRONT FENDER MAIN
53882-24010

GZ10,MZ1#

 2
Common parts
90119-06110
90159-60069
90159-60175
90189-06005
90189-06013
90467-08008
90467-08156
90541-07075
90950-01326
91651-40616
91651-40816
93560-56016
94120-40800
Linked diagrams
7601
