GZ10-HCMZE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8102-8302)

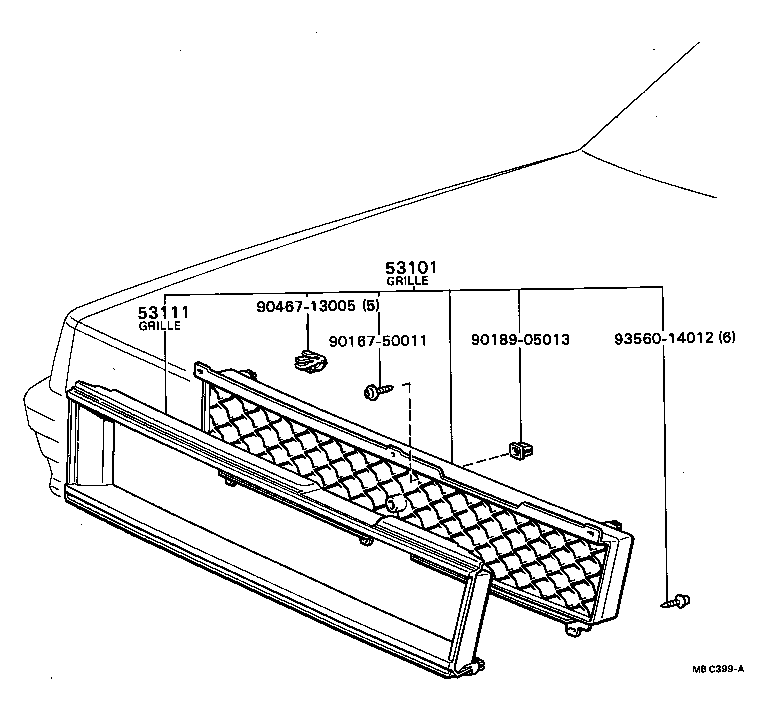

Click highlighted areas on diagram

diagram 53101 53111 9016750011 9018905013 9046713005 9356014012
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53100-29165

GZ10,MZ1#

 1
53111-29255

GZ10,MZ1#

 1
53111 - GRILLE, RADIATOR
53111-24010

GZ10,MZ1#

 1
Common parts
90167-50011
90189-05013
90467-13005
93560-14012

(8302- )

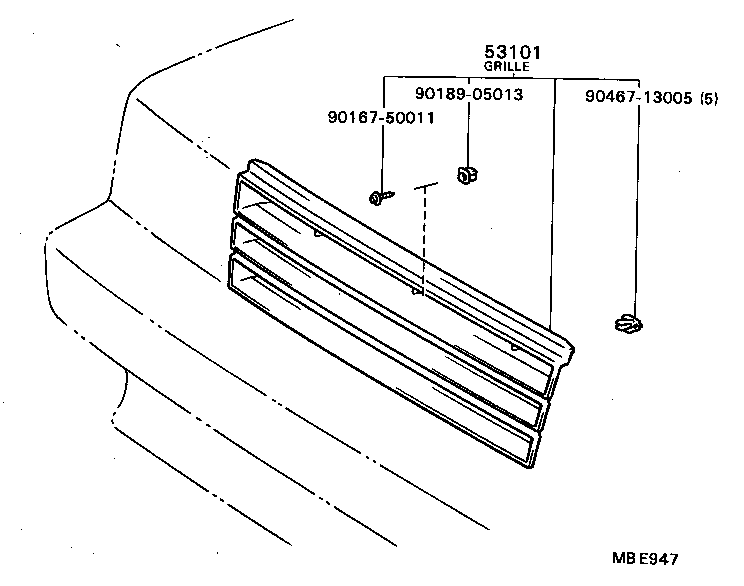

Click highlighted areas on diagram

diagram 53101 9016750011 9018905013 9046713005
Part # Description Qty Price
53101 - GRILLE SUB-ASSY, RADIATOR
53100-29165

GZ10,MZ1#

 1
53111-29255

GZ10,MZ1#

 1
Common parts
90167-50011
90189-05013
90467-13005
