GZ10-HCMZE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

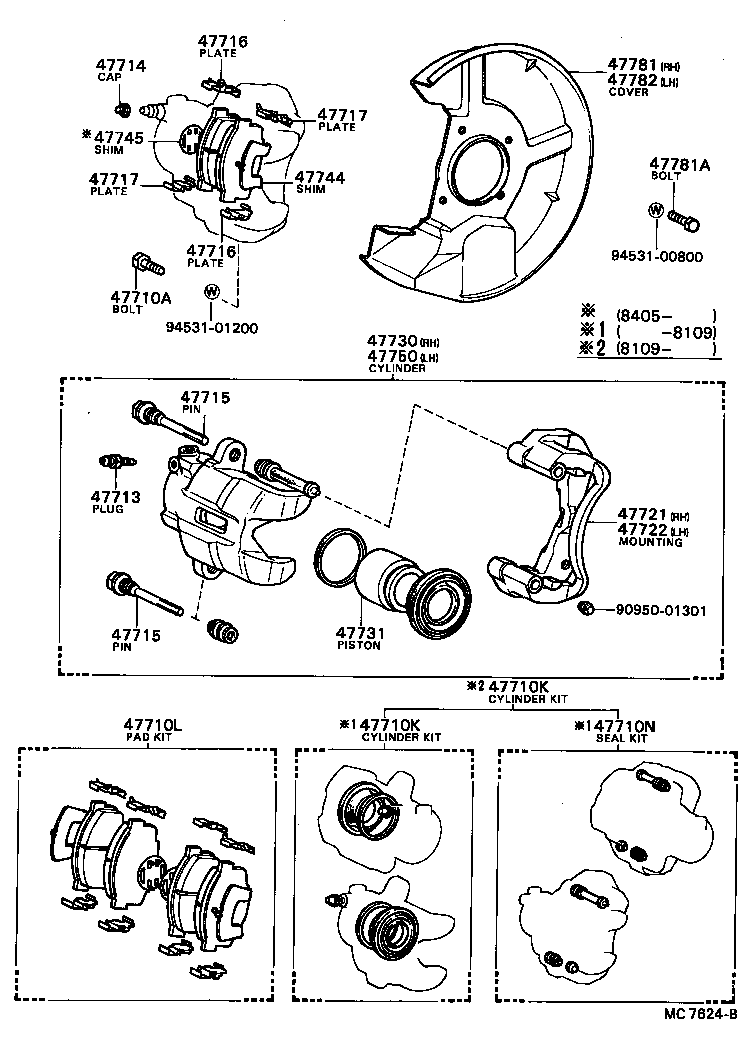

ILLUST NO. 1 OF 2(8102- )

Click highlighted areas on diagram

diagram 47710A 47710K 47710K 47710L 47710N 47713 47714 47715 47715 47716 47716 47717 47717 47721 47722 47730 47731 47744 47745 47750 47781 47781A 47782 9095001301 9453100800 9453101200
Part # Description Qty Price
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90101-12067

GZ10,MZ1#

 4
47710K - CYLINDER KIT, DISC BRAKE, FRONT
04479-30050

GZ10,MZ1#

 1
04479-22010

GZ10,MZ1#

 1
47710K - CYLINDER KIT, DISC BRAKE, FRONT
04479-30050

GZ10,MZ1#

 1
04479-22010

GZ10,MZ1#

 1
47710L - PAD KIT, DISC BRAKE, FRONT
04491-22160

GZ10,MZ1#

 1
04491-22130

MZ10;GZ10,MZ11..GT,VR

 1
04491-22161

GZ10,MZ1#

 1
47710N - SEAL KIT, DISC BRAKE, FRONT
04498-22010

GZ10,MZ1#

 1
47713 - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-12040

GZ10,MZ1#

 2
47714 - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

GZ10,MZ1#

 2
47715 - PIN, MAIN(FOR FRONT DISC BRAKE CYLINDER SLIDE)
47715-22010

GZ10,MZ1#

 4
47715 - PIN, MAIN(FOR FRONT DISC BRAKE CYLINDER SLIDE)
47715-22010

GZ10,MZ1#

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-22010

GZ10,MZ1#

 4
47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47716-22010

GZ10,MZ1#

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-22010

GZ10,MZ1#

 4
47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47717-22010

GZ10,MZ1#

 4
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-24020

MZ10;GZ10,MZ11..GT,VR

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47722-24020

MZ10;GZ10,MZ11..GT,VR

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-24020

MZ10;GZ10,MZ11..GT,VR

 1
47731 - PISTON, FRONT DISC BRAKE
47731-30050

GZ10,MZ10,11

 2
47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)
47744-22040

GZ10,MZ1#

 2
47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)
47744-22050

GZ10,MZ1#

 1
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-24020

MZ10;GZ10,MZ11..GT,VR

 1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-24010

GZ10,MZ10,11

 1
47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
90101-08341

GZ10,MZ1#

 8
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-24010

GZ10,MZ10,11

 1
Common parts
90950-01301
94531-00800
94531-01200

ILLUST NO. 2 OF 2(8102- )

Click highlighted areas on diagram

diagram 04465 04945 04947
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-22140

GZ10,MZ1#

ﾏｰｸ ADVICS PS534

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-22020

GZ10,MZ1#

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-22050

GZ10,MZ1#

 1
