GZ10-HCMZE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8102- )GZ10..V2,VR,VX

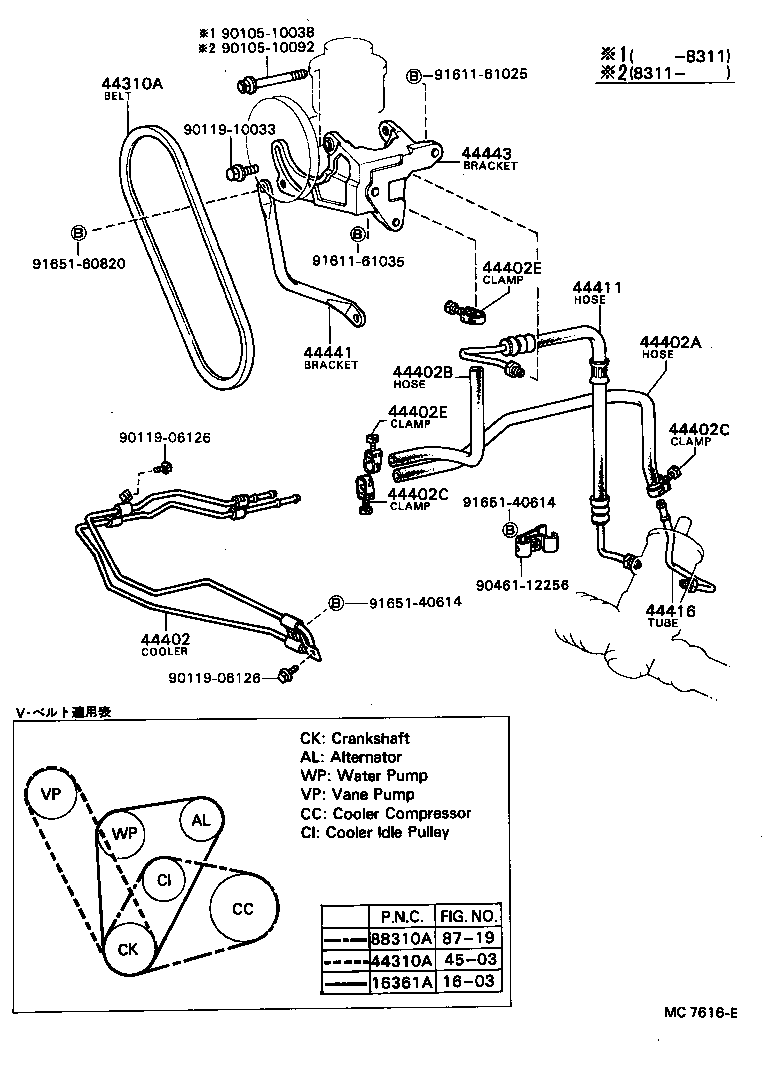

Click highlighted areas on diagram

diagram 1603 16361A 44310A 44310A 44402 44402A 44402B 44402C 44402C 44402E 44402E 44411 44416 44441 44443 4503 8719 88310A 9010510038 9010510092 9011906126 9011906126 9011910033 9046112256 9161161025 9161161035 9165140614 9165140614 9165160820
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99332-51130

1GEU..GZ10

 1
99364-01100

1GEU..GZ10

 1
44310A - BELT, V(FOR VANE PUMP)
90916-02092

GZ10..V2,VR,VX

 1
44310A - BELT, V(FOR VANE PUMP)
90916-02092

GZ10..V2,VR,VX

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-24010

GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX

 1
44402A - HOSE, POWER STEERING OIL COOLER INLET
44412-24010

GZ10,MZ11,12..GT,GTL,V2,VR,VX

 1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
90445-18094

GZ10..V2,VR,VX

 1
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX

 2
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX

 2
44411 - HOSE, PRESSURE FEED
44411-14090

GZ10..V2,VR,VX

 1
44411-24020

GZ10..V2,VR,VX

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-24010

GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX

 1
44441 - BRACKET, PUMP, FRONT
44441-22010

GZ10..V2,VR,VX

 1
44443 - BRACKET, PUMP
44443-22030

GZ10..V2,VR,VX

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-00910

GZ10..V1,V2,VR,VX

 1
99364-00850

GZ10..V2,VR,VX

長さ=850

 1
Common parts
90105-10038
90105-10092
90119-06126
90119-10033
90461-12256
91611-61025
91611-61035
91651-40614
91651-60820
Linked diagrams
1603
4503
8719
