GZ10-HCMZE (1981)
Toyota Soarer

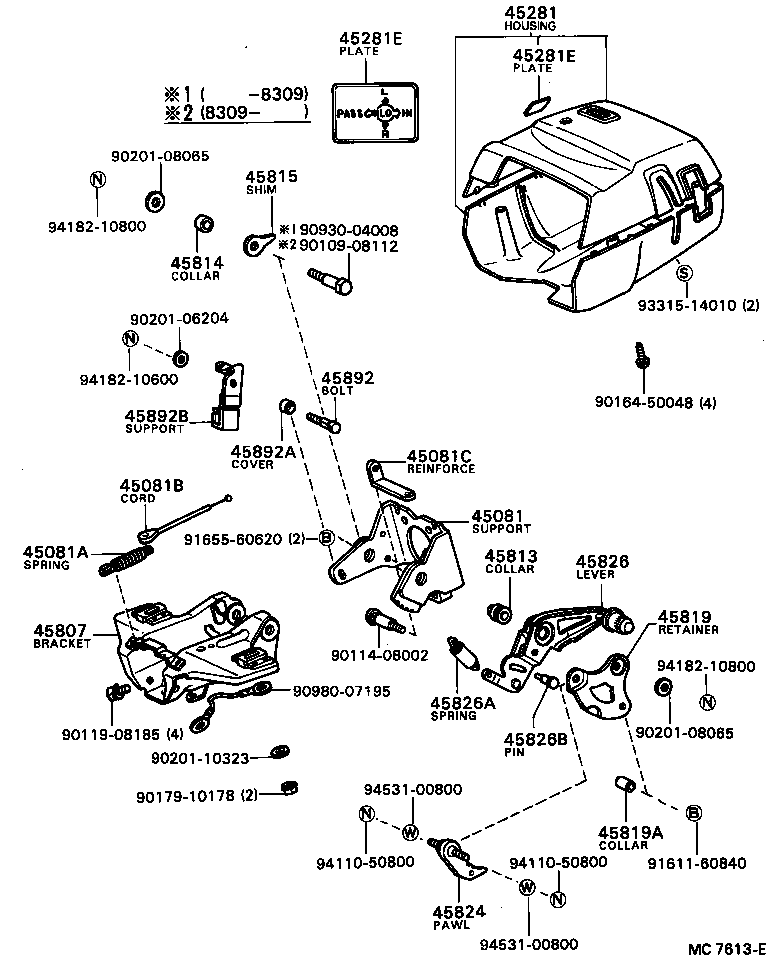

ILLUST NO. 1 OF 4(8102- )GT,GTL,TBO,V2,VR,VX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081 - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45081-22020 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-23009 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02034 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX 長さ=107.5 |
2 | ||
| 45081C - REINFORCE, TILT STEERING SUPPORT | ||||
| 45821-22010 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45286-2490204 |
GZ10,MZ1# BLUE,BLUE,TRIM8# |
1 | ||
| 45286-2490104 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLUE,BLUE,TRIM8# |
1 | ||
| 45286-2490101 |
GZ10,MZ1#..GT,TBO,V2,VR,VX BLACK,BLACK,TRIM2# |
1 | ||
| 45286-2490102 |
GZ10,MZ1#..GT,TBO,V2,VR,VX TERRACOTTA,RED/MAROON,TRIM3# |
1 | ||
| 45286-2490103 |
GZ10,MZ1# GRAY,GRAY,TRIM1# |
1 | ||
| 45286-2490212 |
GZ10,MZ1# DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
GZ10,MZ1# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-22010 |
GZ10,MZ1# |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45082-14050 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX W/TILT STEERING |
1 | ||
| 45082-22030 |
GZ10,MZ11..GT,V2,VR,VX W/TILT STEERING |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-22040 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX 外径=18.017−18.024,D=18.017-18.024 |
1 | ||
| 45813-22030 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX 外径=18.010−18.017,D=18.010-18.017 |
1 | ||
| 45813-22020 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX 外径=18.003−18.010,D=18.003-18.010 |
1 | ||
| 45813-22010 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX 外径=17.996−18.003,D=17.996-18.003 |
1 | ||
| 45813-22050 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX 外径=17.989−17.996,D=17.989-17.996 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-22010 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX 外径=17.982−18.000,OD=17.982-18.000 |
1 | ||
| 45814-22020 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX 外径=18.000−18.018,OD=18.000-18.018 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22100 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX 厚さ=1.8,T=1.8 |
2 | ||
| 45815-22090 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX 厚さ=1.4,T=1.4 |
2 | ||
| 45815-22070 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX 厚さ=0.5,T=0.5 |
2 | ||
| 45815-22060 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX 厚さ=0.2,T=0.2 |
2 | ||
| 45815-22080 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX 厚さ=0.8,T=0.8 |
2 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22011 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08002 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 45824 - PAWL, TILT STEERING | ||||
| 45890-22050 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45804-22010 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-14001 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 45892 - BOLT, TILT STEERING SUPPORT STOPPER | ||||
| 45898-22010 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 45892A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 45892B - SUPPORT, TILT STEERING COLUMN COVER | ||||
| 45289-22020 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| Common parts | ||||
| 90109-08112 | ||||
| 90114-08002 | ||||
| 90119-08185 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90201-10323 | ||||
| 90930-04008 | ||||
| 90980-07195 | ||||
| 91611-60840 | ||||
| 91655-60620 | ||||
| 93315-14010 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94531-00800 | ||||

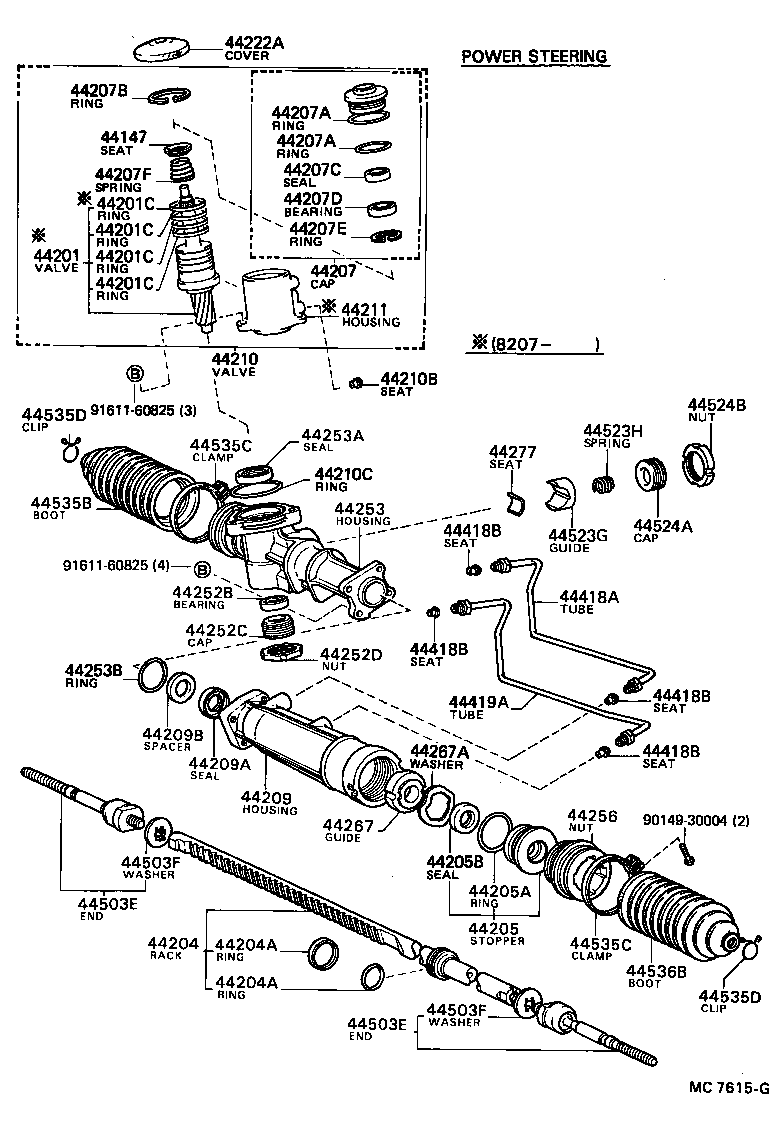

ILLUST NO. 4 OF 4(8102- )GT,GTL,TBO,V2,VR,VX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44147 - SEAT, SPOOL VALVE SPRING | ||||
| 44147-24020 |
GZ10,MZ1# |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-24030 |
GZ10,MZ1#..GT,GTL,TBO,VR |
1 | ||
| 44201-24021 |
MZ10;GZ10,MZ11..GT,VR |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-38001 |
GZ10,MZ1# |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-38001 |
GZ10,MZ1# |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-38001 |
GZ10,MZ1# |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-38001 |
GZ10,MZ1# |
4 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-24010 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-37001 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX OUTER |
1 | ||
| 90301-33003 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX INNER |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-37001 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX OUTER |
1 | ||
| 90301-33003 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX INNER |
1 | ||
| 44205 - STOPPER SUB-ASSY, CYLINDER END | ||||
| 44205-24010 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 44205A - RING, O(FOR CYLINDER END STOPPER) | ||||
| 90301-49004 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 44205B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90311-25014 |
GZ10,MZ1# KOYO |
1 | ||
| 90311-25008 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX NOK |
1 | ||
| 44207 - CAP SUB-ASSY, VALVE | ||||
| 44207-24010 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 44207A - RING, O(FOR VALVE CAP SUB-ASSY) | ||||
| 90301-41001 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX OD=45,T=1.9 |
1 | ||
| 90301-37001 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX OD=42.6,T=2.4 |
1 | ||
| 44207A - RING, O(FOR VALVE CAP SUB-ASSY) | ||||
| 90301-41001 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX OD=45,T=1.9 |
1 | ||
| 90301-37001 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX OD=42.6,T=2.4 |
1 | ||
| 44207B - RING, SNAP(FOR VALVE CAP SUB-ASSY) | ||||
| 96151-04500 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 44207C - SEAL, OIL(FOR VALVE CAP SUB-ASSY) | ||||
| 90311-19006 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 44207D - BEARING(FOR VALVE CAP SUB-ASSY) | ||||
| 90363-19002 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 44207E - RING, SNAP(FOR VALVE CAP SUB-ASSY) | ||||
| 96151-03500 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 44207F - SPRING, CONICAL(FOR VALVE CAP SUB-ASSY) | ||||
| 90502-15001 |
GZ10,MZ1# |
1 | ||
| 44209 - HOUSING SUB-ASSY, POWER STEERING CYLINDER | ||||
| 44209-24010 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 44209A - SEAL(FOR POWER STEERING CYLINDER HOUSING) | ||||
| 90311-25006 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX NOK |
1 | ||
| 90311-25013 |
GZ10,MZ1# KOYO |
1 | ||
| 44209B - SPACER(FOR POWER STEERING CYLINDER HOUSING) | ||||
| 90560-26004 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-24021 |
MZ10;GZ10,MZ11..GT,VR |
1 | ||
| 44210-24020 |
MZ10;GZ10,MZ11..GT,VR |
1 | ||
| 44210-24030 |
GZ10,MZ1#..GT,GTL,TBO,VR |
1 | ||
| 44210-24022 |
MZ10;GZ10,MZ11..GT,VR |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06002 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
2 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 96710-02060 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 96711-24060 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-14020 |
GZ10,MZ1# |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-24010 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 44252B - BEARING(FOR POWER STEERING PINION) | ||||
| 90363-13002 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 44252C - CAP(FOR POWER STEERING PINION) | ||||
| 45524-16010 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 44252D - NUT(FOR POWER STEERING PINION CAP) | ||||
| 90179-36002 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 44253 - HOUSING, POWER STEERING RACK | ||||
| 44253-24012 |
GZ10,MZ1# |
1 | ||
| 44253-14032 |
GZ10,MZ1# |
1 | ||
| 44253-24010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 44253-24011 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-31001 |
GZ10,MZ1# |
1 | ||
| 90310-30002 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 90310-31001 |
GZ10,MZ1# |
1 | ||
| 44253B - RING, O(FOR POWER STEERING RACK HOUSING) | ||||
| 90301-38001 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 44256 - NUT, CYLINDER END STOPPER | ||||
| 44256-24010 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 44267 - GUIDE, RACK END | ||||
| 44267-24010 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 44267A - WASHER(FOR RACK END GUIDE) | ||||
| 90206-43001 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-24010 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-24011 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-05004 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
4 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-05004 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
4 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-05004 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
4 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-05004 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
4 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-24011 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-29015 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
2 | ||
| 45503-29016 |
GZ10,MZ1# |
2 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-29015 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
2 | ||
| 45503-29016 |
GZ10,MZ1# |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14005 |
GZ10,MZ1# OD=41 |
2 | ||
| 90214-14003 |
GZ10,MZ1#..GT,TBO,V2,VR,VX OD=43 |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14005 |
GZ10,MZ1# OD=41 |
2 | ||
| 90214-14003 |
GZ10,MZ1#..GT,TBO,V2,VR,VX OD=43 |
2 | ||
| 44523G - GUIDE, RACK(FOR POWER STEERING) | ||||
| 45523-24010 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-23024 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-16010 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING) | ||||
| 45535-24010 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90461-10554 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
2 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90461-10554 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
2 | ||
| 44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING) | ||||
| 45535-24010 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 91611-60825 | ||||

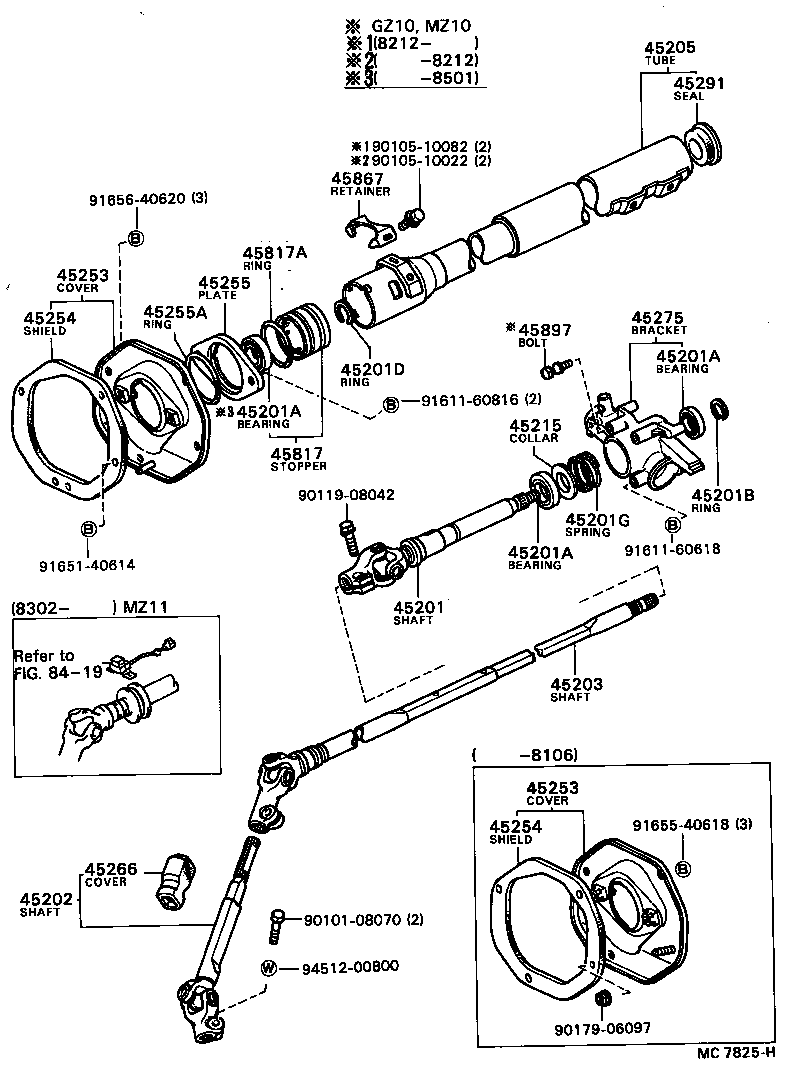

ILLUST NO. 2 OF 4(8102- )GT,GTL,TBO,V2,VR,VX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-22050 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX UPR |
1 | ||
| 90363-30007 |
GZ10,MZ1# LWR |
1 | ||
| 90363-28001 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX CTR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX UPR |
1 | ||
| 90363-30007 |
GZ10,MZ1# LWR |
1 | ||
| 90363-28001 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX CTR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18001 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX UPR |
1 | ||
| 90363-30007 |
GZ10,MZ1# LWR |
1 | ||
| 90363-28001 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX CTR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX 厚さ=1.20 |
1 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96152-00300 |
GZ10,MZ1# |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45260-24020 |
GZ10,MZ11..GT,V2,VR,VX |
1 | ||
| 45260-14020 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 45260-14020 |
GZ10,MZ11..GT,V2,VR,VX |
1 | ||
| 45203 - SHAFT SUB-ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45220-14120 |
GZ10,MZ10 |
1 | ||
| 45220-14120 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 45220-24010 |
GZ10,MZ11..GT,V2,VR,VX |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45870-24020 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 45870-24020 |
GZ10,MZ10 |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-24010 |
GZ10,MZ11 |
1 | ||
| 45025-24011 |
GZ10,MZ1# |
1 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-24010 |
GZ10,MZ11 |
1 | ||
| 45025-24011 |
GZ10,MZ1# |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-24010 |
GZ10,MZ11 |
1 | ||
| 45254-24011 |
GZ10,MZ1# |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-24010 |
GZ10,MZ11 |
1 | ||
| 45254-24011 |
GZ10,MZ1# |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12030 |
GZ10,MZ1# |
1 | ||
| 45255A - GROMMET OR RING, O(FOR STEERING COLUMN CLAMP) | ||||
| 90301-60122 |
GZ10,MZ1# |
1 | ||
| 90301-60122 |
GZ10,MZ10 ID=60 |
1 | ||
| 45266 - COVER, STEERING INTERMEDIATE SHAFT DUST | ||||
| 45266-12020 |
GZ10,MZ1# |
1 | ||
| 45275 - BRACKET, STEERING COLUMN, UPPER | ||||
| 45280-24010 |
GZ10,MZ11..GT,V2,VR,VX |
1 | ||
| 45280-24012 |
GZ10,MZ10 |
1 | ||
| 45280-24011 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 45280-24012 |
GZ10,MZ10 |
1 | ||
| 45291 - SEAL, MAIN SHAFT UPPER DUST | ||||
| 45282-22010 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45808-12020 |
GZ10,MZ1# |
1 | ||
| 45808-12030 |
GZ10,MZ1# |
1 | ||
| 45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER) | ||||
| 96711-24053 |
GZ10,MZ1# |
1 | ||
| 45867 - RETAINER, STEERING MAIN SHAFT STOPPER | ||||
| 45867-12010 |
GZ10,MZ1# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-30020 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 45897-14010 |
GZ10,MZ10 |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90105-10022 | ||||
| 90105-10082 | ||||
| 90119-08042 | ||||
| 90179-06097 | ||||
| 91611-60618 | ||||
| 91611-60816 | ||||
| 91651-40614 | ||||
| 91655-40618 | ||||
| 91656-40620 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8419 | ||||

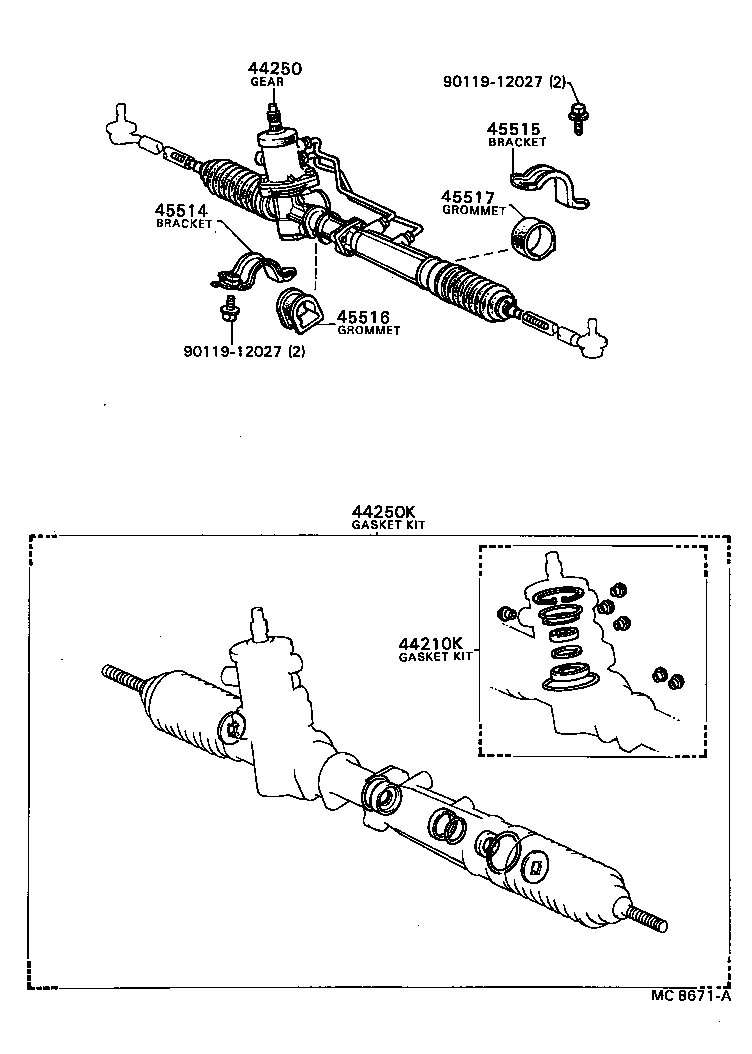

ILLUST NO. 3 OF 4(8102- )GT,GTL,TBO,V2,VR,VX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44210K - GASKET KIT, POWER STEERING CONTROL VALVE OVERHAUL | ||||
| 04455-24010 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-24020 |
MZ10;GZ10,MZ11..GT,VR |
1 | ||
| 44250-24030 |
GZ10,MZ1#..GT,GTL,TBO,VR |
1 | ||
| 44250K - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-24011 |
GZ10,MZ1# |
1 | ||
| 04445-24012 |
GZ10,MZ1# |
1 | ||
| 04445-24010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-24010 |
GZ10,MZ1# |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-24021 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-24010 |
GZ10,MZ1# |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-24011 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 45517-24012 |
GZ10,MZ1# |
1 | ||
| Common parts | ||||
| 90119-12027 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
