GZ10-HCMZE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8102- )5F

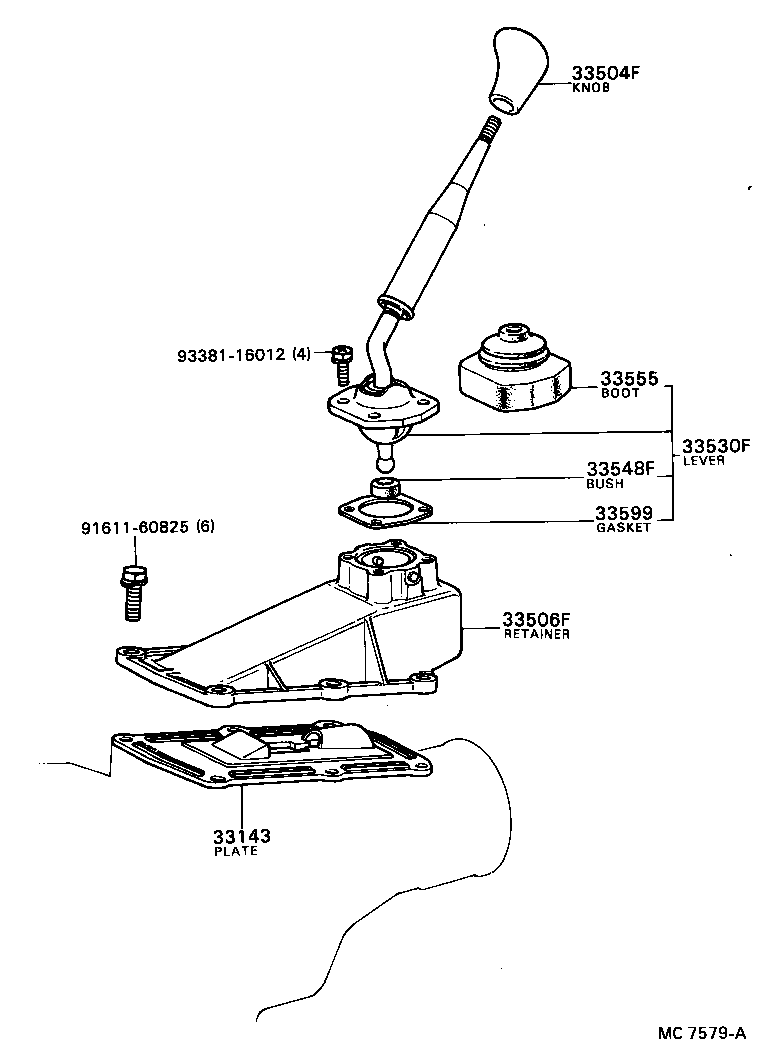

Click highlighted areas on diagram

diagram 33143 33504F 33506F 33530F 33548F 33555 33599 9161160825 9338116012
Part # Description Qty Price
33143 - PLATE, EXTENSION HOUSING OIL BAFFLE
33143-22020

GZ10,MZ11,12..5F

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-2402003

GZ10,MZ11..5F..(GT,VR)

LEATHER,GRAY,GRAY,TRIM1#

 1
33504-2402004

GZ10,MZ11..5F..(GT,VR)

LEATHER,BLUE,BLUE,TRIM8#

 1
33504-2402002

GZ10,MZ11..5F..(GT,VR)

LEATHER,TERRACOTTA,RED/MAROON,TRIM3#

 1
33504-2402005

GZ10,MZ11,12..5F..(GT,GTL,VR,VX)

LEATHER,BEIGE,BEIGE,TRIM4#

 1
33504-2402004

GZ10,MZ11,12..5F..(GT,GTL,VR,VX)

LEATHER,BLUE,BLUE,TRIM8#

 1
33504-2402001

GZ10,MZ11..5F..(GT,VR)

LEATHER,BLACK,BLACK,TRIM2#

 1
33504-2402012

GZ10,MZ11,12..5F..(GT,GTL,VR,VX)

LEATHER,DEEP MAROON,RED/MAROON,TRIM3#

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33570-22070

GZ10,MZ11,12..5F

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-24012

GZ10,MZ11,12..5F

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-31010

GZ10,MZ11,12..5F

 1
33555 - BOOT, SHIFT LEVER
33555-22050

GZ10,MZ11,12..5F

 1
33599 - GASKET, CONTROL SHIFT LEVER RETAINER, NO.2
33584-22020

GZ10,MZ11,12..5F

 1
Common parts
91611-60825
93381-16012
