GZ10-HCMZE (1981)
Toyota Soarer
(8102- )GZ10..5F

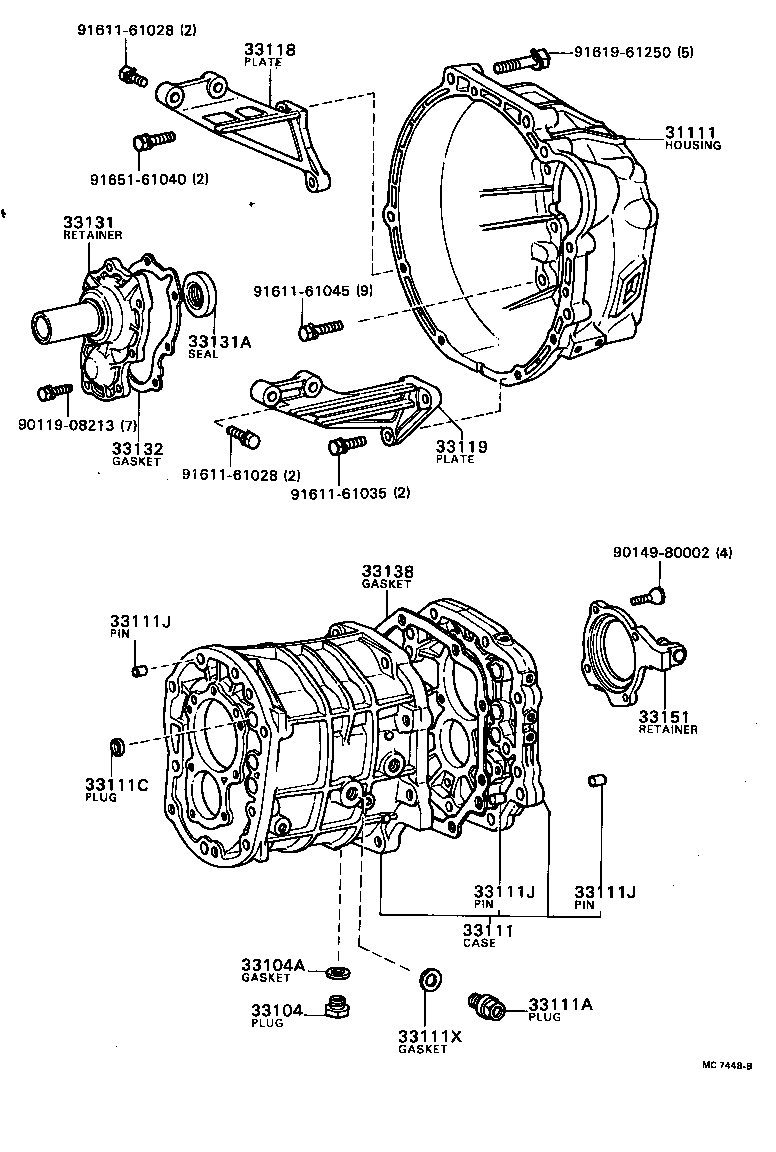

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-22100 |
GZ10..5F |
1 | ||
| 31111-22130 |
GZ10..5F |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
GZ10,MZ11,12..5F |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18007 |
GZ10,MZ11..5F |
1 | ||
| 90430-18008 |
GZ10,MZ11,12..5F |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-22021 |
GZ10,MZ11,12..5F |
1 | ||
| 33101-22030 |
GZ10..5F |
1 | ||
| 33101-22010 |
GZ10,MZ11..5F |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18002 |
GZ10,MZ11,12..5F |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
GZ10,MZ11,12..5F 外径=14 |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
GZ10,MZ11..5F 長さ=16,外径=12,L=16,D=12 |
4 | ||
| 90250-12002 |
GZ10,MZ11,12..5F 長さ=16,外径=12,L=16,D=12 |
6 | ||
| 90250-12146 |
GZ10,MZ11..5F 長さ=17,外径=12,L=17,D=12 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
GZ10,MZ11..5F 長さ=16,外径=12,L=16,D=12 |
4 | ||
| 90250-12002 |
GZ10,MZ11,12..5F 長さ=16,外径=12,L=16,D=12 |
6 | ||
| 90250-12146 |
GZ10,MZ11..5F 長さ=17,外径=12,L=17,D=12 |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
GZ10,MZ11..5F 長さ=16,外径=12,L=16,D=12 |
4 | ||
| 90250-12002 |
GZ10,MZ11,12..5F 長さ=16,外径=12,L=16,D=12 |
6 | ||
| 90250-12146 |
GZ10,MZ11..5F 長さ=17,外径=12,L=17,D=12 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18007 |
GZ10,MZ11..5F |
1 | ||
| 90430-18008 |
GZ10,MZ11,12..5F |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-22050 |
GZ10..5F |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-22041 |
GZ10..5F |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-22020 |
GZ10,MZ11,12..5F |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30115 |
GZ10,MZ11,12..5F |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-22010 |
GZ10,MZ11,12..5F |
1 | ||
| 33138 - GASKET, INTERMEDIATE PLATE | ||||
| 33142-22010 |
GZ10,MZ11,12..5F |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33107-22010 |
GZ10,MZ11,12..5F |
1 | ||
| Common parts | ||||
| 90119-08213 | ||||
| 90149-80002 | ||||
| 91611-61028 | ||||
| 91611-61035 | ||||
| 91611-61045 | ||||
| 91619-61250 | ||||
| 91651-61040 | ||||
