GZ10-HCMZE (1981)
Toyota Soarer

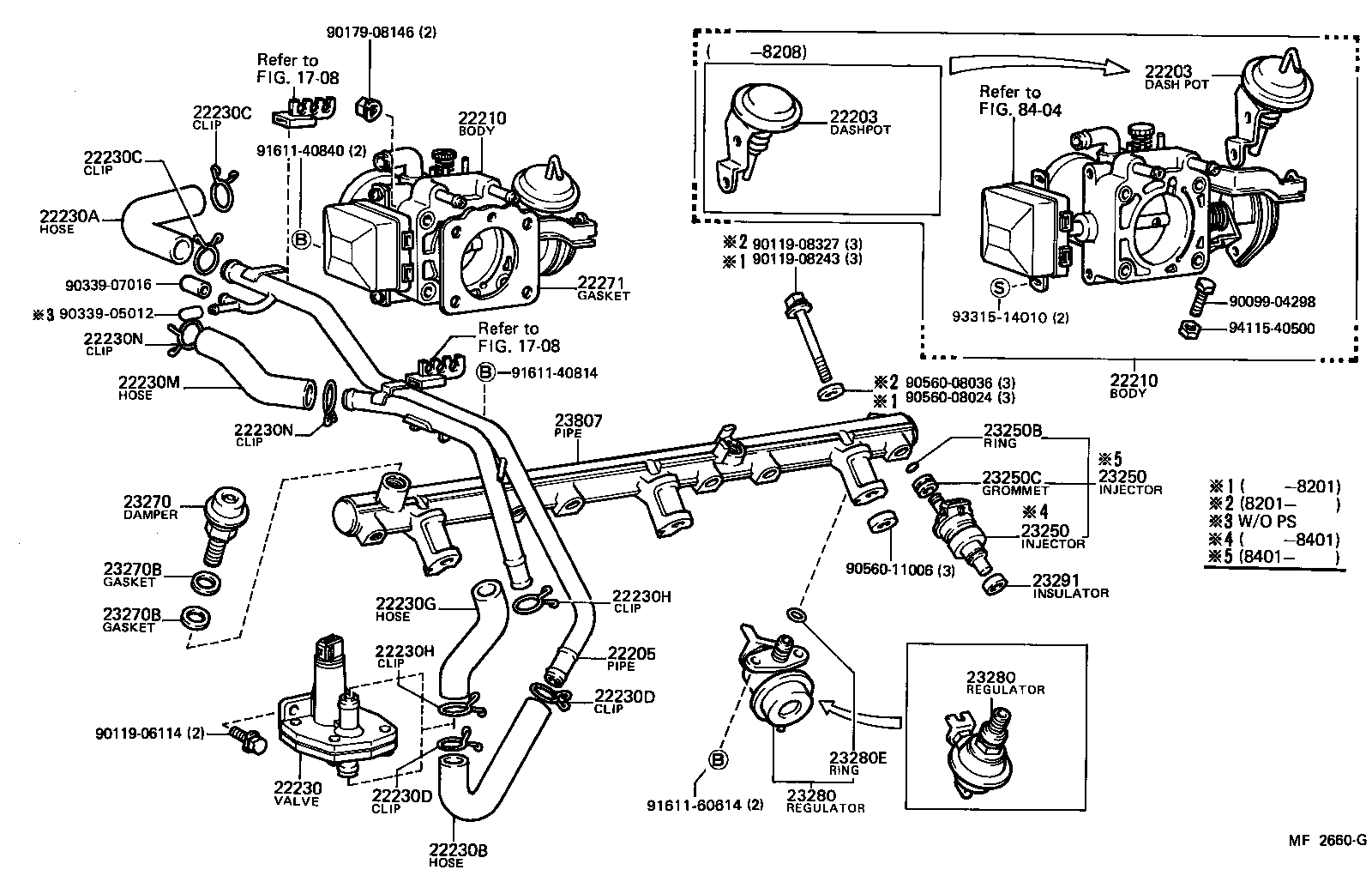

ILLUST NO. 1 OF 3(8102-8501)1GEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY) | ||||
| 22203-70010 |
1GEU..GZ10 |
1 | ||
| 22203-70030 |
1GEU..GZ10 |
1 | ||
| 22203-70011 |
1GEU..GZ10 |
1 | ||
| 22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY) | ||||
| 22203-70010 |
1GEU..GZ10 |
1 | ||
| 22203-70030 |
1GEU..GZ10 |
1 | ||
| 22203-70011 |
1GEU..GZ10 |
1 | ||
| 22205 - PIPE SUB-ASSY, AUXILIARY AIR | ||||
| 22205-70020 |
1GEU..GZ10 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-70010 |
1GEU..GZ10 |
1 | ||
| 22210-70012 |
1GEU..GZ10 |
1 | ||
| 22210-70080 |
1GEU..GZ10 |
1 | ||
| 22210-70011 |
1GEU..GZ10 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-70010 |
1GEU..GZ10 |
1 | ||
| 22210-70012 |
1GEU..GZ10 |
1 | ||
| 22210-70080 |
1GEU..GZ10 |
1 | ||
| 22210-70011 |
1GEU..GZ10 |
1 | ||
| 22230 - VALVE ASSY, AUXILIARY AIR | ||||
| 22230-70011 |
1GEU..GZ10 |
1 | ||
| 22230-70040 |
1GEU..GZ10 |
1 | ||
| 22230-70010 |
1GEU..GZ10 |
1 | ||
| 22230-70021 |
1GEU..GZ10 |
1 | ||
| 22230A - HOSE, AUXILIARY AIR VALVE, NO.1 | ||||
| 22233-70020 |
1GEU..GZ10 |
1 | ||
| 22230B - HOSE, AUXILIARY AIR VALVE, NO.2 | ||||
| 22234-70010 |
1GEU..GZ10 |
1 | ||
| 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 | ||||
| 90467-21152 |
1GEU..GZ10 |
2 | ||
| 90467-20002 |
1GEU..GZ10 |
2 | ||
| 22230C - CLIP, AUXILIARY AIR VALVE HOSE, NO.1 | ||||
| 90467-21152 |
1GEU..GZ10 |
2 | ||
| 90467-20002 |
1GEU..GZ10 |
2 | ||
| 22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2 | ||||
| 90467-20002 |
1GEU..GZ10 |
2 | ||
| 90467-21152 |
1GEU..GZ10 |
2 | ||
| 22230D - CLIP, AUXILIARY AIR VALVE HOSE, NO.2 | ||||
| 90467-20002 |
1GEU..GZ10 |
2 | ||
| 90467-21152 |
1GEU..GZ10 |
2 | ||
| 22230G - HOSE, AUXILIARY AIR VALVE, NO.3 | ||||
| 22237-70010 |
1GEU..GZ10 |
1 | ||
| 22230H - CLIP, AUXILIARY AIR VALVE HOSE, NO.3 | ||||
| 90467-21152 |
1GEU..GZ10 |
2 | ||
| 90467-20002 |
1GEU..GZ10 |
2 | ||
| 22230H - CLIP, AUXILIARY AIR VALVE HOSE, NO.3 | ||||
| 90467-21152 |
1GEU..GZ10 |
2 | ||
| 90467-20002 |
1GEU..GZ10 |
2 | ||
| 22230M - HOSE, AUXILIARY AIR VALVE, NO.4 | ||||
| 22237-70010 |
1GEU..GZ10 |
1 | ||
| 22230N - CLIP, AUXILIARY AIR VALVE, NO.4 | ||||
| 90467-20002 |
1GEU..GZ10 |
2 | ||
| 90467-21152 |
1GEU..GZ10 |
2 | ||
| 22230N - CLIP, AUXILIARY AIR VALVE, NO.4 | ||||
| 90467-20002 |
1GEU..GZ10 |
2 | ||
| 90467-21152 |
1GEU..GZ10 |
2 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-70010 |
1GEU..GZ10 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23250-70010 |
1GEU..GZ10 |
6 | ||
| 23209-70010 |
1GEU..GZ10 |
6 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23250-70010 |
1GEU..GZ10 |
6 | ||
| 23209-70010 |
1GEU..GZ10 |
6 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
1G#..GZ10 |
6 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
1G#..GZ10 |
6 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-70010 |
1GEU..GZ10 |
1 | ||
| 23270-70010 |
1GEU..GZ10 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-14002 |
1GEU..GZ10 DELIVERY PIPE SIDE |
1 | ||
| 90430-17002 |
1GEU..GZ10 ID=17.3 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-14002 |
1GEU..GZ10 DELIVERY PIPE SIDE |
1 | ||
| 90430-17002 |
1GEU..GZ10 ID=17.3 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-70020 |
1GEU..GZ10 |
1 | ||
| 23280-70010 |
1GEU..GZ10 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-70020 |
1GEU..GZ10 |
1 | ||
| 23280-70010 |
1GEU..GZ10 |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07001 |
1GEU..GZ10 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
1G#..GZ10 |
6 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-70010 |
1GEU..GZ10 |
1 | ||
| 23807-70020 |
1GEU..GZ10 |
1 | ||
| Common parts | ||||
| 90099-04298 | ||||
| 90119-06114 | ||||
| 90119-08243 | ||||
| 90119-08327 | ||||
| 90179-08146 | ||||
| 90339-05012 | ||||
| 90339-07016 | ||||
| 90560-08024 | ||||
| 90560-08036 | ||||
| 90560-11006 | ||||
| 91611-40814 | ||||
| 91611-40840 | ||||
| 91611-60614 | ||||
| 93315-14010 | ||||
| 94115-40500 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 8404 | ||||

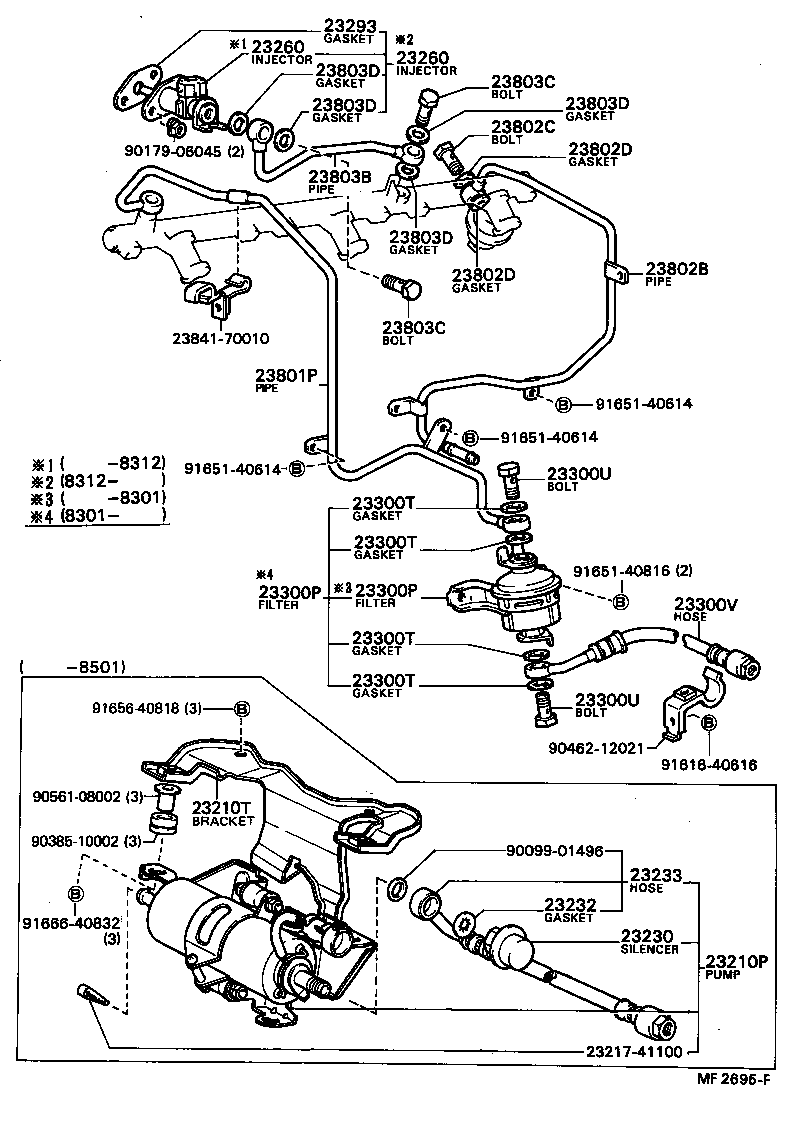

ILLUST NO. 2 OF 3(8102-8203)1GEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23210P - PUMP ASSY, FUEL W/MOTOR & BRACKET | ||||
| 23210-26110 |
1GEU..GZ10 |
1 | ||
| 23210-70040 |
1G#..GZ10 |
1 | ||
| 23210-70021 |
1GEU..GZ10 |
1 | ||
| 23230 - SILENCER ASSY | ||||
| 23230-26080 |
1G#..GZ10 |
1 | ||
| 23232 - GASKET(FOR FUEL PUMP HOSE) | ||||
| 23232-26080 |
1GEU..GZ10 |
1 | ||
| 23232-41081 |
1G#..GZ10 |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-16010 |
1G#..GZ10 PUMP TO BRACKET |
1 | ||
| 90923-01288 |
1G#..GZ10 BRACKET TO FUEL PIPE |
1 | ||
| 90999-99117 |
1G#..GZ10 |
1 | ||
| 90999-99080 |
1GEU..GZ10 |
1 | ||
| 90999-99094 |
1GEU..GZ10 |
1 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-70020 |
1GEU..GZ10 |
1 | ||
| 23260-79025 |
1GEU..GZ10 |
1 | ||
| 23260-70010 |
1GEU..GZ10 |
1 | ||
| 23260-79075 |
1GEU..GZ10 |
1 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-70010 |
1GEU..GZ10 |
1 | ||
| 23293-70020 |
1GEU..GZ10 |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-79015 |
1GEU..GZ10 |
1 | ||
| 23300-70010 |
1GEU..GZ10 |
1 | ||
| 23300-70011 |
1GEU..GZ10 |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1G#..GZ10 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1G#..GZ10 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1G#..GZ10 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1G#..GZ10 |
4 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
1G#..GZ10 |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
1G#..GZ10 |
2 | ||
| 23300V - HOSE, FUEL(FOR FUEL INLET) | ||||
| 90923-01247 |
1G#..GZ10 |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-70030 |
1GEU..GZ10 |
1 | ||
| 23801-70010 |
1GEU..GZ10 |
1 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-70040 |
1GEU..GZ10 |
1 | ||
| 23802-70010 |
1GEU..GZ10 |
1 | ||
| 23802-70011 |
1GEU..GZ10 |
1 | ||
| 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) | ||||
| 90401-08003 |
1GEU..GZ10 |
1 | ||
| 90401-10011 |
1GEU..GZ10 |
1 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90099-01459 |
1GEU..GZ10 |
2 | ||
| 90430-08005 |
1GEU..GZ10 |
2 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90099-01459 |
1GEU..GZ10 |
2 | ||
| 90430-08005 |
1GEU..GZ10 |
2 | ||
| 23803B - PIPE SUB-ASSY, FUEL, NO.3 | ||||
| 23803-70010 |
1GEU..GZ10 |
1 | ||
| 23803-70030 |
1GEU..GZ10 |
1 | ||
| 23803-70020 |
1GEU..GZ10 |
1 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-10011 |
1GEU..GZ10 |
2 | ||
| 90401-08003 |
1G#..GZ10 |
2 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-10011 |
1GEU..GZ10 |
2 | ||
| 90401-08003 |
1G#..GZ10 |
2 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90099-01459 |
1GEU..GZ10 |
4 | ||
| 90430-08005 |
1G#..GZ10 |
4 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90099-01459 |
1GEU..GZ10 |
4 | ||
| 90430-08005 |
1G#..GZ10 |
4 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90099-01459 |
1GEU..GZ10 |
4 | ||
| 90430-08005 |
1G#..GZ10 |
4 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90099-01459 |
1GEU..GZ10 |
4 | ||
| 90430-08005 |
1G#..GZ10 |
4 | ||
| Common parts | ||||
| 23841-70010 | ||||
| 90099-01012 | ||||
| 90179-06045 | ||||
| 90385-10002 | ||||
| 90385-10009 | ||||
| 90462-12021 | ||||
| 90561-08002 | ||||
| 90561-08003 | ||||
| 91616-40616 | ||||
| 91651-40614 | ||||
| 91651-40816 | ||||
| 91665-40814 | ||||
| 91666-40832 | ||||

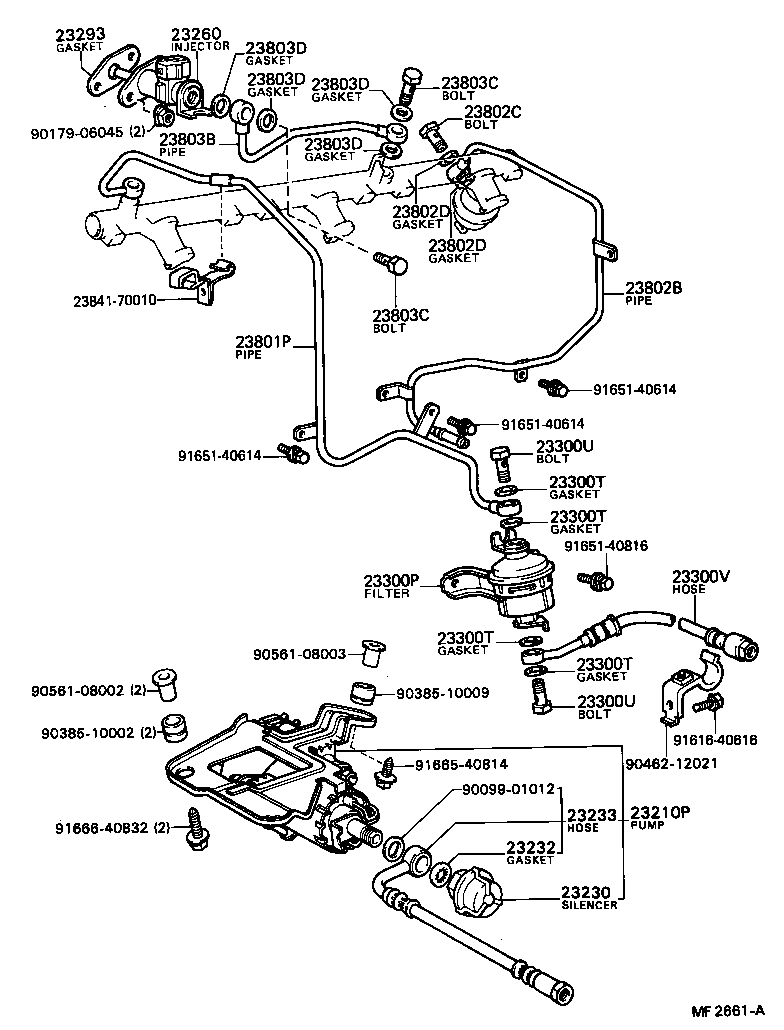

ILLUST NO. 2 OF 3(8203- )1GEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23210P - PUMP ASSY, FUEL W/MOTOR & BRACKET | ||||
| 23210-26110 |
1GEU..GZ10 |
1 | ||
| 23210-70040 |
1G#..GZ10 |
1 | ||
| 23210-70021 |
1GEU..GZ10 |
1 | ||
| 23210T - BRACKET, FUEL PUMP | ||||
| 23265-70010 |
1G#..GZ10 |
1 | ||
| 23230 - SILENCER ASSY | ||||
| 23230-26080 |
1G#..GZ10 |
1 | ||
| 23232 - GASKET(FOR FUEL PUMP HOSE) | ||||
| 23232-26080 |
1GEU..GZ10 |
1 | ||
| 23232-41081 |
1G#..GZ10 |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-16010 |
1G#..GZ10 PUMP TO BRACKET |
1 | ||
| 90923-01288 |
1G#..GZ10 BRACKET TO FUEL PIPE |
1 | ||
| 90999-99117 |
1G#..GZ10 |
1 | ||
| 90999-99080 |
1GEU..GZ10 |
1 | ||
| 90999-99094 |
1GEU..GZ10 |
1 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-70020 |
1GEU..GZ10 |
1 | ||
| 23260-79025 |
1GEU..GZ10 |
1 | ||
| 23260-70010 |
1GEU..GZ10 |
1 | ||
| 23260-79075 |
1GEU..GZ10 |
1 | ||
| 23260 - INJECTOR ASSY, COLD START FUEL | ||||
| 23260-70020 |
1GEU..GZ10 |
1 | ||
| 23260-79025 |
1GEU..GZ10 |
1 | ||
| 23260-70010 |
1GEU..GZ10 |
1 | ||
| 23260-79075 |
1GEU..GZ10 |
1 | ||
| 23293 - GASKET, COLD START INJECTOR | ||||
| 23293-70010 |
1GEU..GZ10 |
1 | ||
| 23293-70020 |
1GEU..GZ10 |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-79015 |
1GEU..GZ10 |
1 | ||
| 23300-70010 |
1GEU..GZ10 |
1 | ||
| 23300-70011 |
1GEU..GZ10 |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-79015 |
1GEU..GZ10 |
1 | ||
| 23300-70010 |
1GEU..GZ10 |
1 | ||
| 23300-70011 |
1GEU..GZ10 |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1G#..GZ10 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1G#..GZ10 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1G#..GZ10 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
1G#..GZ10 |
4 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
1G#..GZ10 |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
1G#..GZ10 |
2 | ||
| 23300V - HOSE, FUEL(FOR FUEL INLET) | ||||
| 90923-01247 |
1G#..GZ10 |
1 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-70030 |
1GEU..GZ10 |
1 | ||
| 23801-70010 |
1GEU..GZ10 |
1 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-70040 |
1GEU..GZ10 |
1 | ||
| 23802-70010 |
1GEU..GZ10 |
1 | ||
| 23802-70011 |
1GEU..GZ10 |
1 | ||
| 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) | ||||
| 90401-08003 |
1GEU..GZ10 |
1 | ||
| 90401-10011 |
1GEU..GZ10 |
1 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90099-01459 |
1GEU..GZ10 |
2 | ||
| 90430-08005 |
1GEU..GZ10 |
2 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90099-01459 |
1GEU..GZ10 |
2 | ||
| 90430-08005 |
1GEU..GZ10 |
2 | ||
| 23803B - PIPE SUB-ASSY, FUEL, NO.3 | ||||
| 23803-70010 |
1GEU..GZ10 |
1 | ||
| 23803-70030 |
1GEU..GZ10 |
1 | ||
| 23803-70020 |
1GEU..GZ10 |
1 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-10011 |
1GEU..GZ10 |
2 | ||
| 90401-08003 |
1G#..GZ10 |
2 | ||
| 23803C - GASKET(NOZZLE LEKAGE PIPE NO.3) | ||||
| 90401-10011 |
1GEU..GZ10 |
2 | ||
| 90401-08003 |
1G#..GZ10 |
2 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90099-01459 |
1GEU..GZ10 |
4 | ||
| 90430-08005 |
1G#..GZ10 |
4 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90099-01459 |
1GEU..GZ10 |
4 | ||
| 90430-08005 |
1G#..GZ10 |
4 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90099-01459 |
1GEU..GZ10 |
4 | ||
| 90430-08005 |
1G#..GZ10 |
4 | ||
| 23803D - BOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3) | ||||
| 90099-01459 |
1GEU..GZ10 |
4 | ||
| 90430-08005 |
1G#..GZ10 |
4 | ||
| Common parts | ||||
| 23217-41100 | ||||
| 23841-70010 | ||||
| 90099-01496 | ||||
| 90179-06045 | ||||
| 90385-10002 | ||||
| 90462-12021 | ||||
| 90561-08002 | ||||
| 91616-40616 | ||||
| 91651-40614 | ||||
| 91651-40816 | ||||
| 91656-40818 | ||||
| 91666-40832 | ||||
ILLUST NO. 1 OF 3(8501- )1GEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

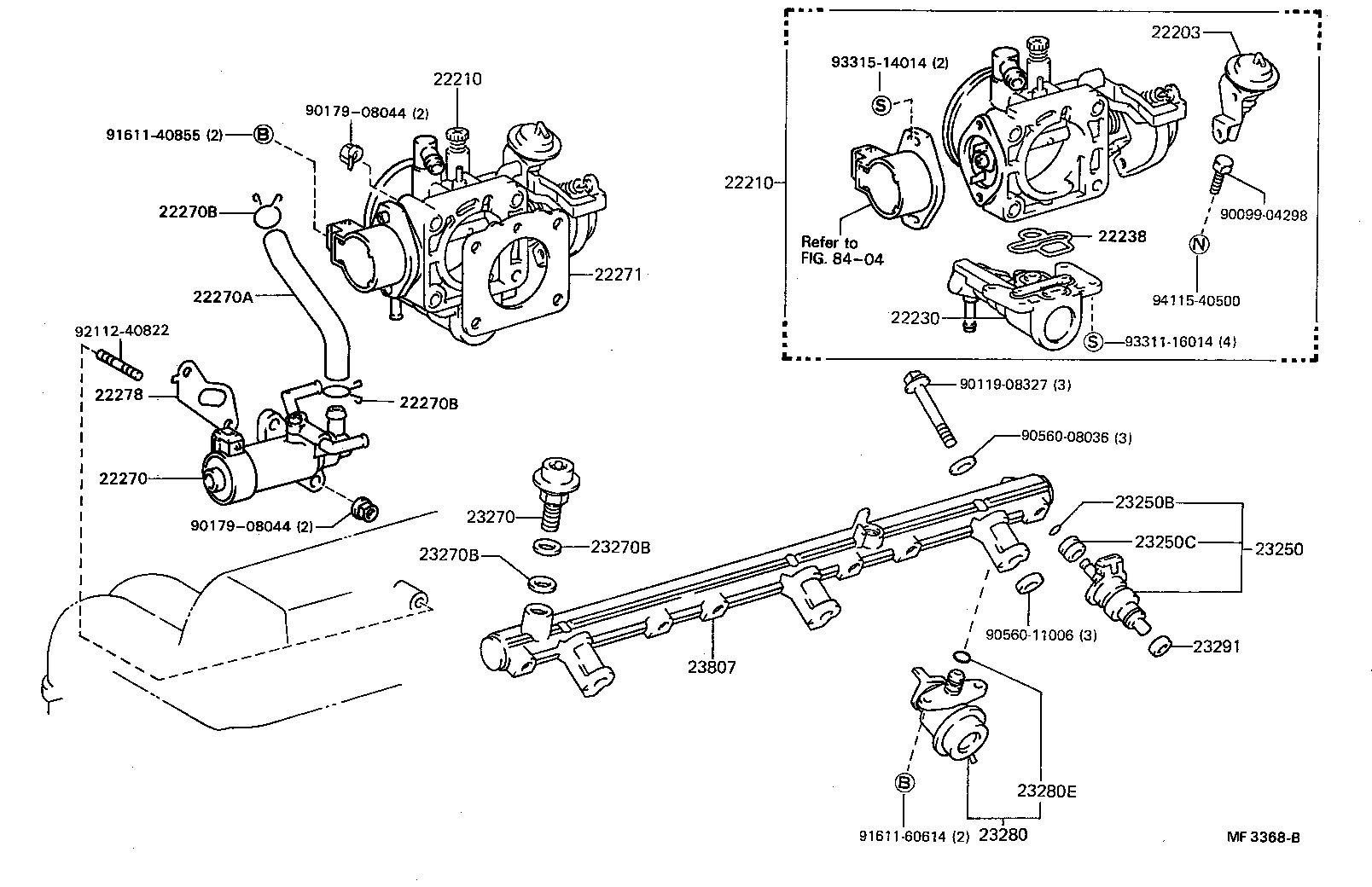

| 22203 - DASH POT SUB-ASSY(FOR THROTTLE BODY) | ||||
| 22203-70010 |
1GEU..GZ10 |
1 | ||
| 22203-70030 |
1GEU..GZ10 |
1 | ||
| 22203-70011 |
1GEU..GZ10 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-70010 |
1GEU..GZ10 |
1 | ||
| 22210-70012 |
1GEU..GZ10 |
1 | ||
| 22210-70080 |
1GEU..GZ10 |
1 | ||
| 22210-70011 |
1GEU..GZ10 |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-70010 |
1GEU..GZ10 |
1 | ||
| 22210-70012 |
1GEU..GZ10 |
1 | ||
| 22210-70080 |
1GEU..GZ10 |
1 | ||
| 22210-70011 |
1GEU..GZ10 |
1 | ||
| 22230 - VALVE ASSY, AUXILIARY AIR | ||||
| 22230-70011 |
1GEU..GZ10 |
1 | ||
| 22230-70040 |
1GEU..GZ10 |
1 | ||
| 22230-70010 |
1GEU..GZ10 |
1 | ||
| 22230-70021 |
1GEU..GZ10 |
1 | ||
| 22238 - GASKET, AUXILIARY AIR VALVE | ||||
| 22238-70010 |
1GEU..GZ10 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-70040 |
1GEU..GZ10 |
1 | ||
| 22270A - HOSE, AIR, NO.1(FOR IDLE SPEED CONTROL VALVE) | ||||
| 17343-70020 |
1GEU..GZ10 |
1 | ||
| 22270B - CLIP(FOR AIR HOSE) | ||||
| 90467-20002 |
1GEU..GZ10 |
2 | ||
| 22270B - CLIP(FOR AIR HOSE) | ||||
| 90467-20002 |
1GEU..GZ10 |
2 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-70010 |
1GEU..GZ10 |
1 | ||
| 22278 - GASKET, IDLE SPEED CONTROL VALVE | ||||
| 22278-70010 |
1GEU..GZ10 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23250-70010 |
1GEU..GZ10 |
6 | ||
| 23209-70010 |
1GEU..GZ10 |
6 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
1G#..GZ10 |
6 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
1G#..GZ10 |
6 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-70010 |
1GEU..GZ10 |
1 | ||
| 23270-70010 |
1GEU..GZ10 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-14002 |
1GEU..GZ10 DELIVERY PIPE SIDE |
1 | ||
| 90430-17002 |
1GEU..GZ10 ID=17.3 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-14002 |
1GEU..GZ10 DELIVERY PIPE SIDE |
1 | ||
| 90430-17002 |
1GEU..GZ10 ID=17.3 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-70020 |
1GEU..GZ10 |
1 | ||
| 23280-70010 |
1GEU..GZ10 |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07001 |
1GEU..GZ10 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
1G#..GZ10 |
6 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-70010 |
1GEU..GZ10 |
1 | ||
| 23807-70020 |
1GEU..GZ10 |
1 | ||
| Common parts | ||||
| 90099-04298 | ||||
| 90119-08327 | ||||
| 90179-08044 | ||||
| 90560-08036 | ||||
| 90560-11006 | ||||
| 91611-40855 | ||||
| 91611-60614 | ||||
| 92112-40822 | ||||
| 93311-16014 | ||||
| 93315-14014 | ||||
| 94115-40500 | ||||
| Linked diagrams | ||||
| 8404 | ||||
ILLUST NO. 3 OF 3(8501- )1G#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

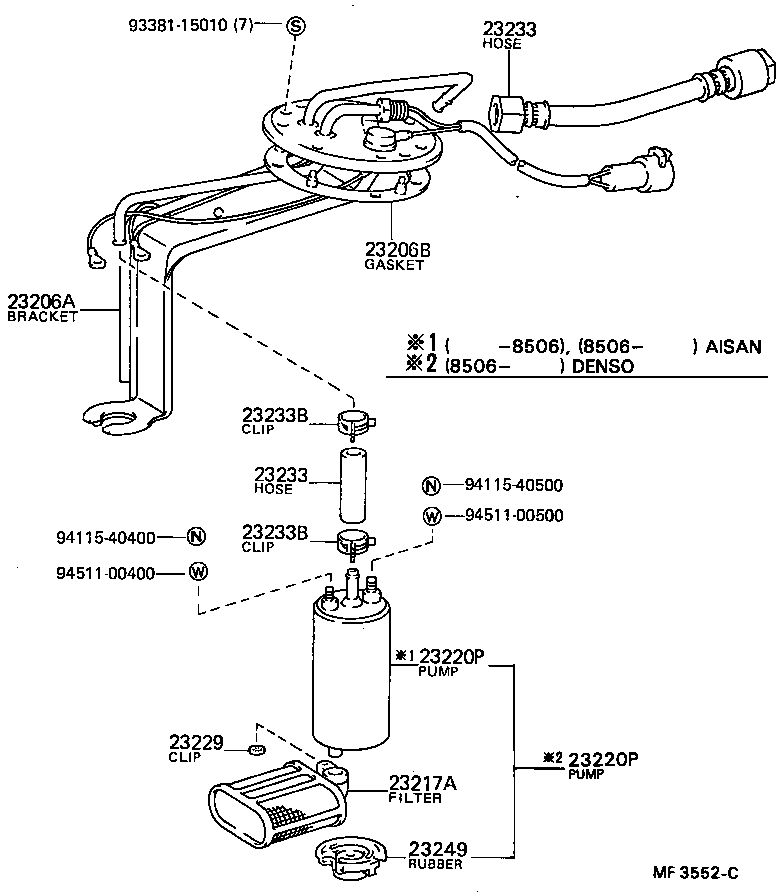

| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-70070 |
1G#..GZ10 |
1 | ||
| 23206-70070 |
1G#..GZ10 |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-14010 |
1G#..GZ10 |
1 | ||
| 77169-14010 |
1G#..GZ10 |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-16042 |
1G#..GZ10 AISAN |
1 | ||
| 23217-16042 |
1G#..GZ10 AISAN |
1 | ||
| 23217-16043 |
1G#..GZ10 AISAN |
1 | ||
| 23217-16043 |
1G#..GZ10 AISAN |
1 | ||
| 23217-16030 |
1G#..GZ10 DENSO |
1 | ||
| 23217-16030 |
1G#..GZ10 DENSO |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-16081 |
1G#..GZ10 |
1 | ||
| 23220-16081 |
1G#..GZ10 |
1 | ||
| 23220-19015 |
1G#..GZ10 DENSO |
1 | ||
| 23220-19015 |
1G#..GZ10 DENSO |
1 | ||
| 23220-16082 |
1G#..GZ10 AISAN |
1 | ||
| 23220-16082 |
1G#..GZ10 AISAN |
1 | ||
| 23220-16081 |
1G#..GZ10 AISAN |
1 | ||
| 23220-16081 |
1G#..GZ10 AISAN |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-16081 |
1G#..GZ10 |
1 | ||
| 23220-16081 |
1G#..GZ10 |
1 | ||
| 23220-19015 |
1G#..GZ10 DENSO |
1 | ||
| 23220-19015 |
1G#..GZ10 DENSO |
1 | ||
| 23220-16082 |
1G#..GZ10 AISAN |
1 | ||
| 23220-16082 |
1G#..GZ10 AISAN |
1 | ||
| 23220-16081 |
1G#..GZ10 AISAN |
1 | ||
| 23220-16081 |
1G#..GZ10 AISAN |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
1G#..GZ10 |
1 | ||
| 23229-16010 |
1G#..GZ10 |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-16010 |
1G#..GZ10 PUMP TO BRACKET |
1 | ||
| 23239-16010 |
1G#..GZ10 PUMP TO BRACKET |
1 | ||
| 90923-01288 |
1G#..GZ10 BRACKET TO FUEL PIPE |
1 | ||
| 90923-01288 |
1G#..GZ10 BRACKET TO FUEL PIPE |
1 | ||
| 90999-99117 |
1G#..GZ10 |
1 | ||
| 90999-99117 |
1G#..GZ10 |
1 | ||
| 90999-99080 |
1GEU..GZ10 |
1 | ||
| 90999-99080 |
1GEU..GZ10 |
1 | ||
| 90999-99094 |
1GEU..GZ10 |
1 | ||
| 90999-99094 |
1GEU..GZ10 |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-16010 |
1G#..GZ10 PUMP TO BRACKET |
1 | ||
| 23239-16010 |
1G#..GZ10 PUMP TO BRACKET |
1 | ||
| 90923-01288 |
1G#..GZ10 BRACKET TO FUEL PIPE |
1 | ||
| 90923-01288 |
1G#..GZ10 BRACKET TO FUEL PIPE |
1 | ||
| 90999-99117 |
1G#..GZ10 |
1 | ||
| 90999-99117 |
1G#..GZ10 |
1 | ||
| 90999-99080 |
1GEU..GZ10 |
1 | ||
| 90999-99080 |
1GEU..GZ10 |
1 | ||
| 90999-99094 |
1GEU..GZ10 |
1 | ||
| 90999-99094 |
1GEU..GZ10 |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13001 |
1G#..GZ10 |
2 | ||
| 90467-13001 |
1G#..GZ10 |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13001 |
1G#..GZ10 |
2 | ||
| 90467-13001 |
1G#..GZ10 |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-43080 |
1G#..GZ10 |
1 | ||
| 23249-43080 |
1G#..GZ10 |
1 | ||
| 23249-16010 |
1G#..GZ10 |
1 | ||
| 23249-16010 |
1G#..GZ10 |
1 | ||
| Common parts | ||||
| 93381-15010 | ||||
| 94115-40400 | ||||
| 94115-40500 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
