GZ10-HCMQF (1983)
Toyota Soarer
(8302- )GZ10..GT

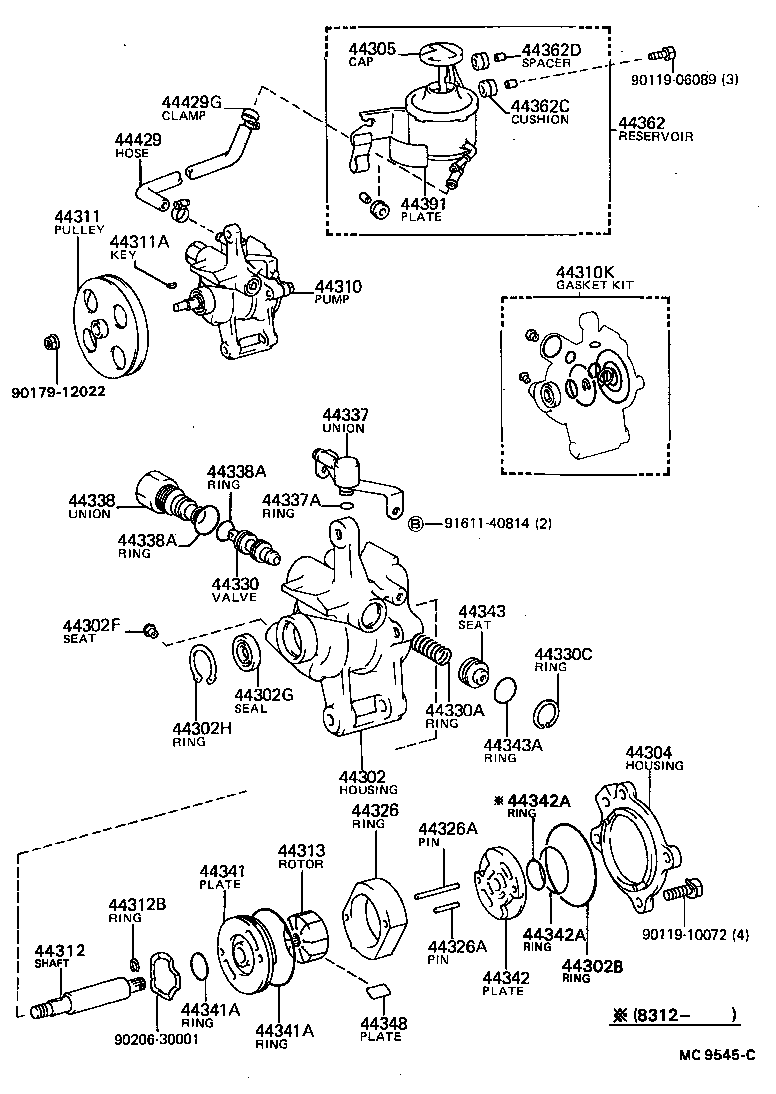

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-22031 |
GZ10..GT |
1 | ||
| 44302-22030 |
GZ10..GT |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-63002 |
GZ10..GT |
1 | ||
| 44302F - SEAT, UNION(FOR VANE PUMP HOUSING) | ||||
| 90410-05035 |
GZ10,MZ11,12..GT,GTL,V2,VR,VX |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18003 |
GZ10..GT |
1 | ||
| 90311-18008 |
GZ10..GT |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90521-32001 |
GZ10..GT |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44324-32010 |
GZ10..GT |
1 | ||
| 44324-22030 |
GZ10..GT |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-24010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 44305-30020 |
GZ10,MZ1# |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44320-14141 |
GZ10..GT |
1 | ||
| 44320-14140 |
GZ10..GT |
1 | ||
| 44320-24010 |
GZ10,MZ11..GT,V2,VR,VX |
1 | ||
| 44310K - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-16011 |
GZ10..GT |
1 | ||
| 04446-16010 |
GZ10..GT |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-22041 |
GZ10..GT |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12020 |
GZ10..GT |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
GZ10..GT |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-12030 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX ﾏｰｸ 2,MARK 2 |
1 | ||
| 44313-12020 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX ﾏｰｸ 1,MARK 1 |
1 | ||
| 44313-12010 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX ﾏｰｸ無し |
1 | ||
| 44313-12040 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX ﾏｰｸ 3,MARK 3 |
1 | ||
| 44313-12050 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX ﾏｰｸ 4,MARK 4 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-12030 |
GZ10,MZ1# ﾏｰｸ 2,MARK 2 |
1 | ||
| 44325-12020 |
GZ10,MZ1# ﾏｰｸ 1,MARK 1 |
1 | ||
| 44325-12050 |
GZ10,MZ1# ﾏｰｸ 4,MARK 4 |
1 | ||
| 44325-12010 |
GZ10,MZ1# ﾏｰｸ無し |
1 | ||
| 44325-12040 |
GZ10,MZ1# ﾏｰｸ 3,MARK 3 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-05017 |
GZ10..GT 長さ=43.5,外径=5.0,L=43.5 |
1 | ||
| 90250-05008 |
GZ10..GT 長さ=25,外径=5.0,L=25 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-05017 |
GZ10..GT 長さ=43.5,外径=5.0,L=43.5 |
1 | ||
| 90250-05008 |
GZ10..GT 長さ=25,外径=5.0,L=25 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-24010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX ﾏｰｸ A,MARK A |
1 | ||
| 44330-24030 |
GZ10,MZ1#..GT,TBO,V2,VR,VX ﾏｰｸ C,MARK C |
1 | ||
| 44330-24040 |
GZ10,MZ1#..GT,TBO,V2,VR,VX ﾏｰｸ D,MARK D |
1 | ||
| 44330-24050 |
GZ10,MZ1#..GT,TBO,V2,VR,VX ﾏｰｸ E,MARK E |
1 | ||
| 44330-24020 |
GZ10,MZ1#..GT,TBO,V2,VR,VX ﾏｰｸ B,MARK B |
1 | ||
| 44330-12130 |
GZ10..GT ﾏｰｸ A,MARK A |
1 | ||
| 44330-12140 |
GZ10..GT ﾏｰｸ B,MARK B |
1 | ||
| 44330-12160 |
GZ10..GT ﾏｰｸ D,MARK D |
1 | ||
| 44330-12150 |
GZ10..GT ﾏｰｸ C,MARK C |
1 | ||
| 44330-24060 |
GZ10,MZ1#..GT,TBO,V2,VR,VX ﾏｰｸ F,MARK F |
1 | ||
| 44330-12170 |
GZ10..GT ﾏｰｸ E,MARK E |
1 | ||
| 44330-12180 |
GZ10..GT ﾏｰｸ F,MARK F |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12447 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 90501-12103 |
GZ10..GT |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-02200 |
GZ10..GT |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-22030 |
GZ10..GT |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 96711-19013 |
GZ10..GT |
1 | ||
| 44338 - UNION, PRESSURE PORT | ||||
| 44308-14060 |
GZ10,MZ1# |
1 | ||
| 44308-14040 |
GZ10,MZ1# |
1 | ||
| 44308-14041 |
GZ10,MZ1# |
1 | ||
| 44308-22020 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96710-01014 |
GZ10,MZ1#..GT,TBO,V2,VR,VX 内径=14,外径=17,ID=14,OD=17 |
1 | ||
| 90301-22001 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX 外径=25.5,内径=22.5,ID=22.5,OD=25.5 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96710-01014 |
GZ10,MZ1#..GT,TBO,V2,VR,VX 内径=14,外径=17,ID=14,OD=17 |
1 | ||
| 90301-22001 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX 外径=25.5,内径=22.5,ID=22.5,OD=25.5 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-12020 |
GZ10..GT |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-56002 |
GZ10..GT OUTER |
1 | ||
| 90301-21001 |
GZ10..GT INNER |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-56002 |
GZ10..GT OUTER |
1 | ||
| 90301-21001 |
GZ10..GT INNER |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-12010 |
GZ10..GT |
1 | ||
| 44341-12010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 44342-22010 |
GZ10..GT |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-53002 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 90301-13004 |
GZ10..GT ID=13.4 |
1 | ||
| 90301-30004 |
GZ10..GT ID=30 |
1 | ||
| 90301-37002 |
GZ10..GT ID=37.5 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-53002 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 90301-13004 |
GZ10..GT ID=13.4 |
1 | ||
| 90301-30004 |
GZ10..GT ID=30 |
1 | ||
| 90301-37002 |
GZ10..GT ID=37.5 |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 44343-12030 |
GZ10..GT |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19019 |
GZ10..GT |
1 | ||
| 96710-01014 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 44348 - PLATE, VANE PUMP | ||||
| 44345-12030 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX 長さ=14.993,MARK 2 |
10 | ||
| 44345-12010 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX 長さ=14.997 |
10 | ||
| 44345-12020 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX 長さ=14.995,MARK 1 |
10 | ||
| 44345-12040 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX 長さ=14.991,MARK 3 |
10 | ||
| 44345-12050 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX 長さ=14.989,MARK 4 |
10 | ||
| 44362 - RESERVOIR, OIL(FOR VANE PUMP) | ||||
| 44360-14041 |
GZ10..GT |
1 | ||
| 44306-24010 |
GZ10,MZ1#..GT,TBO,V2,VR,VX |
1 | ||
| 44360-14040 |
GZ10..GT |
1 | ||
| 44362C - CUSHION(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90540-09004 |
GZ10..GT |
3 | ||
| 44362D - SPACER(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90560-06014 |
GZ10..GT |
3 | ||
| 44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION | ||||
| 44391-30020 |
GZ10,MZ1#..GT,GTL,TBO,V2,VR,VX |
1 | ||
| 44429 - HOSE, RESERVOIR TO OIL PUMP | ||||
| 44348-14041 |
GZ10..GT |
1 | ||
| 44348-14040 |
GZ10..GT |
1 | ||
| 44429G - CLAMP, RESERVOIR TO OIL PUMP HOSE | ||||
| 90460-26001 |
GZ10..GT |
2 | ||
| Common parts | ||||
| 90119-06089 | ||||
| 90119-10072 | ||||
| 90179-12022 | ||||
| 90206-30001 | ||||
| 91611-40814 | ||||
