GZ10-HCMQF (1983)

Toyota Soarer

Production Feb 1983 - Dec 1985
Engine 1GGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8302- )1GGEU

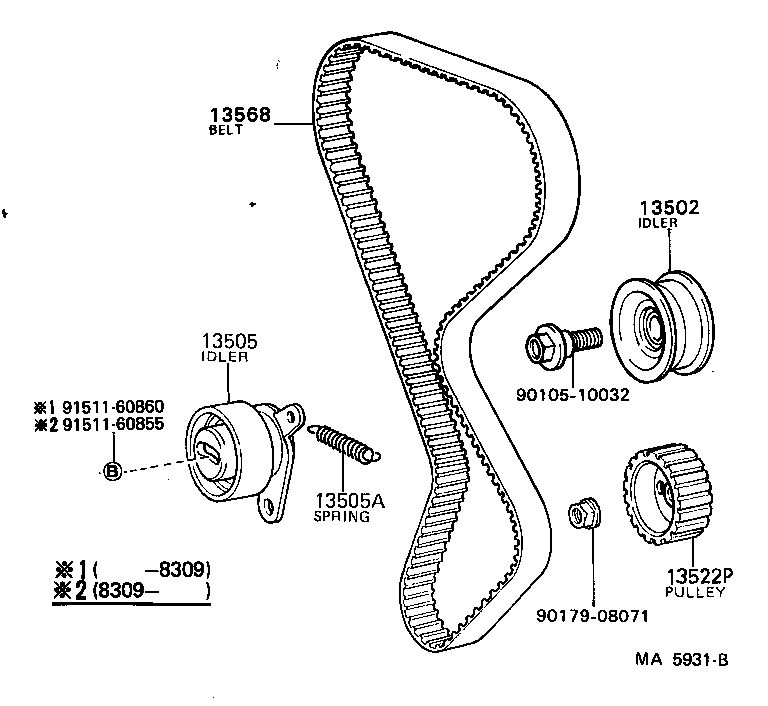

Click highlighted areas on diagram

diagram 13502 13505 13505A 13522P 13568 9010510032 9017908071 9151160855 9151160860
Part # Description Qty Price
13502 - IDLER SUB-ASSY, TIMING BELT, NO.2
13503-88300

1GGEU..GZ10

 1
13505 - IDLER SUB-ASSY, TIMING BELT, NO.1
13505-88301

1GGEU..GZ10

 1
13505-88300

1GGEU..GZ10

 1
13505-70012

1G#..GZ10

 1
13505A - SPRING, TENSION(FOR IDLER)
90506-16047

1GGEU..GZ10

 1
90506-18050

1GGEU..GZ10

 1
13522P - PULLEY, PUMP DRIVE SHAFT
13524-88301

1GGEU..GZ10

 1
13524-88300

1GGEU..GZ10

 1
13568 - BELT, TIMING
13568-88300

1GGEU..GZ10

 1
Common parts
90105-10032
90179-08071
91511-60855
91511-60860
