GZ10-HCMNE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8102- )1GEU

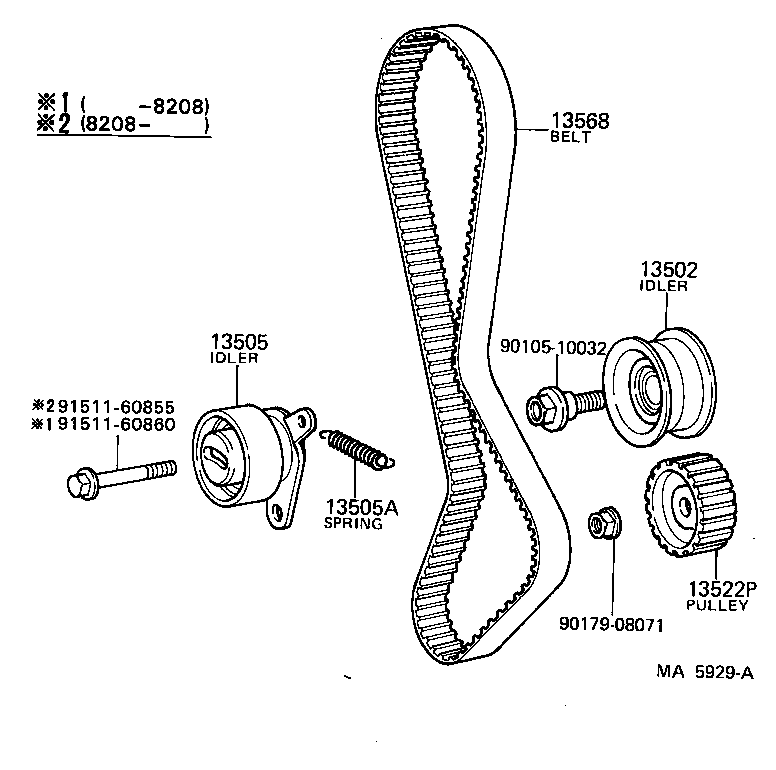

Click highlighted areas on diagram

diagram 13502 13505 13505A 13522P 13568 9010510032 9017908071 9151160855 9151160860
Part # Description Qty Price
13502 - IDLER SUB-ASSY, TIMING BELT, NO.2
13503-70020

1GEU..GZ10

 1
13503-70040

1GEU..GZ10

 1
13505 - IDLER SUB-ASSY, TIMING BELT, NO.1
13505-70020

1GEU..GZ10

 1
13505-70012

1G#..GZ10

 1
13505-70021

1GEU..GZ10

 1
13505A - SPRING, TENSION(FOR IDLER)
90506-14034

1GEU..GZ10

 1
13522P - PULLEY, PUMP DRIVE SHAFT
13524-70011

1GEU..GZ10

 1
13524-70010

1GEU..GZ10

 1
13524-70030

1GEU..GZ10

 1
13568 - BELT, TIMING
13568-70030

1GEU..GZ10

 1
13568-70010

1GEU..GZ10

 1
Common parts
90105-10032
90179-08071
91511-60855
91511-60860
