GZ10-HCMGE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 6(8102- )

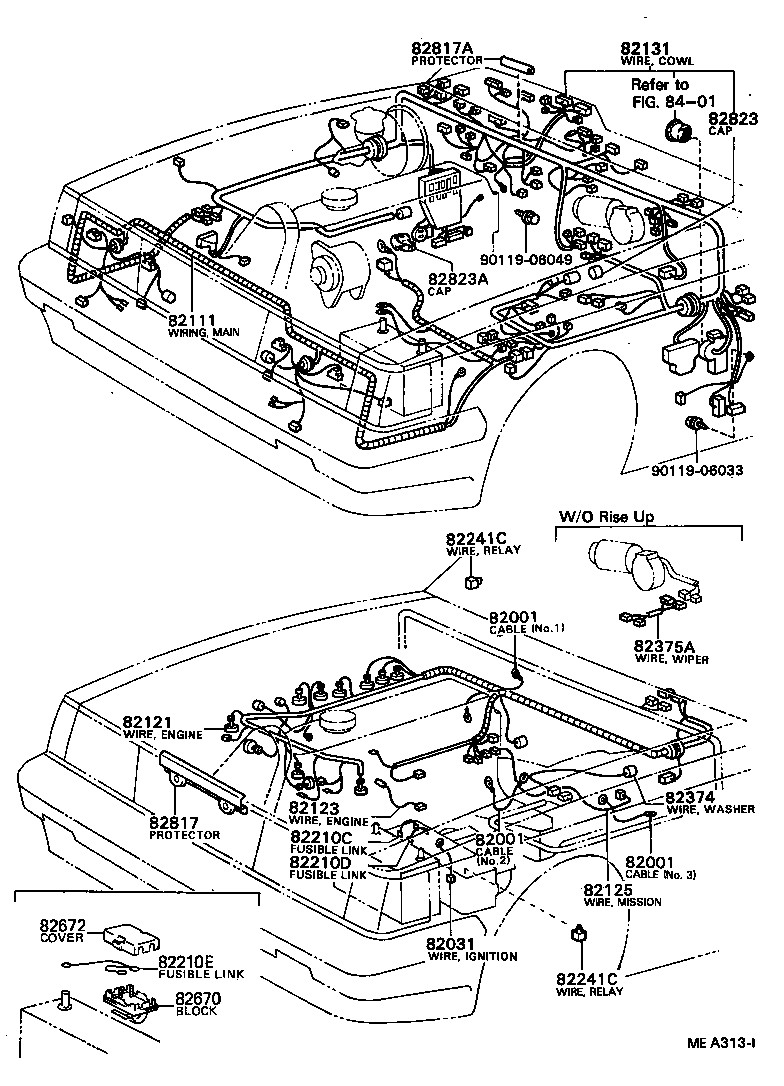

Click highlighted areas on diagram

diagram 82001 82001 82001 82031 82111 82121 82123 82125 82131 82210C 82210D 82210E 82241C 82241C 82374 82375A 82670 82672 82817 82817A 82823 82823A 8401 9011906033 9011906049
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-07176

GZ10,MZ1#

L=300(NO.3)

 1
90980-07148

GZ10,MZ1#

L=260(NO.2),(NO.3)

 2
90980-07148

GZ10,MZ1#

L=260(NO.2)

 1
90980-07109

GZ10..V2,VR,VX

L=400(NO.1)

 1
82001 - CABLE, BOND, NO.1
90980-07176

GZ10,MZ1#

L=300(NO.3)

 1
90980-07148

GZ10,MZ1#

L=260(NO.2),(NO.3)

 2
90980-07148

GZ10,MZ1#

L=260(NO.2)

 1
90980-07109

GZ10..V2,VR,VX

L=400(NO.1)

 1
82001 - CABLE, BOND, NO.1
90980-07176

GZ10,MZ1#

L=300(NO.3)

 1
90980-07148

GZ10,MZ1#

L=260(NO.2),(NO.3)

 2
90980-07148

GZ10,MZ1#

L=260(NO.2)

 1
90980-07109

GZ10..V2,VR,VX

L=400(NO.1)

 1
82031 - WIRE SUB-ASSY, IGNITION COIL
82031-12060

GZ10

 1
82111 - WIRE, ENGINE ROOM MAIN
82210-24010

GZ10

 1
82111-24010

GZ10

 1
82111-24030

GZ10..V2,VR,VX

 1
82111-24070

GZ10

 1
82111-24040

GZ10..V2,VR,VX

 1
82121 - WIRE, ENGINE
82121-24010

GZ10

 1
82121-24050

GZ10..V2,VR,VX

 1
82121-24110

GZ10..V2,VR,VX

 1
82125 - WIRE, TRANSMISSION
82310-24010

GZ10,MZ11..5F

 1
82125-24010

GZ10,MZ11,12..5F

 1
82131 - WIRE, COWL
82220-24080

GZ10..VX

W/HEADLAMP CLEANER

 1
82131-24090

GZ10..VX

 1
82220-24070

GZ10..VX

 1
82131-24020

GZ10..VX

 1
82131-24180

GZ10..VX

 1
82131-24270

GZ10..VX

 1
82131-24091

GZ10..VX

 1
82210C - FUSIBLE LINK
90982-08157

GZ10,MZ1#

FL 0.3 ﾋﾟﾝｸ

 1
82210D - FUSIBLE LINK
90982-08125

GZ10,MZ1#

1.0ｲｴﾛｰ,長さ=110

 1
82210E - FUSIBLE LINK
90982-08211

GZ10,MZ1#

 1
82374 - WIRE, WASHER
82374-24010

GZ10,MZ1#..GT,TBO,V2,VR,VX

W/ESC OR HEADLAMP CLEANER

 1
82375A - WIRE, WIPER MOTOR
82375-24010

GZ10,MZ1#

W/O RISE UP

 1
82375-14040

GZ10,MZ11

W/O RISE UP

 1
82670 - BLOCK ASSY, JUNCTION, NO.1
82671-22020

GZ10,MZ1#

SUMITOMO

 1
82671-30030

GZ10,MZ1#

YAZAKI

 1
82672 - COVER, JUNKTION BLOCK
82672-22040

GZ10,MZ1#

 1
Common parts
90119-06033
90119-06049
Linked diagrams
8401

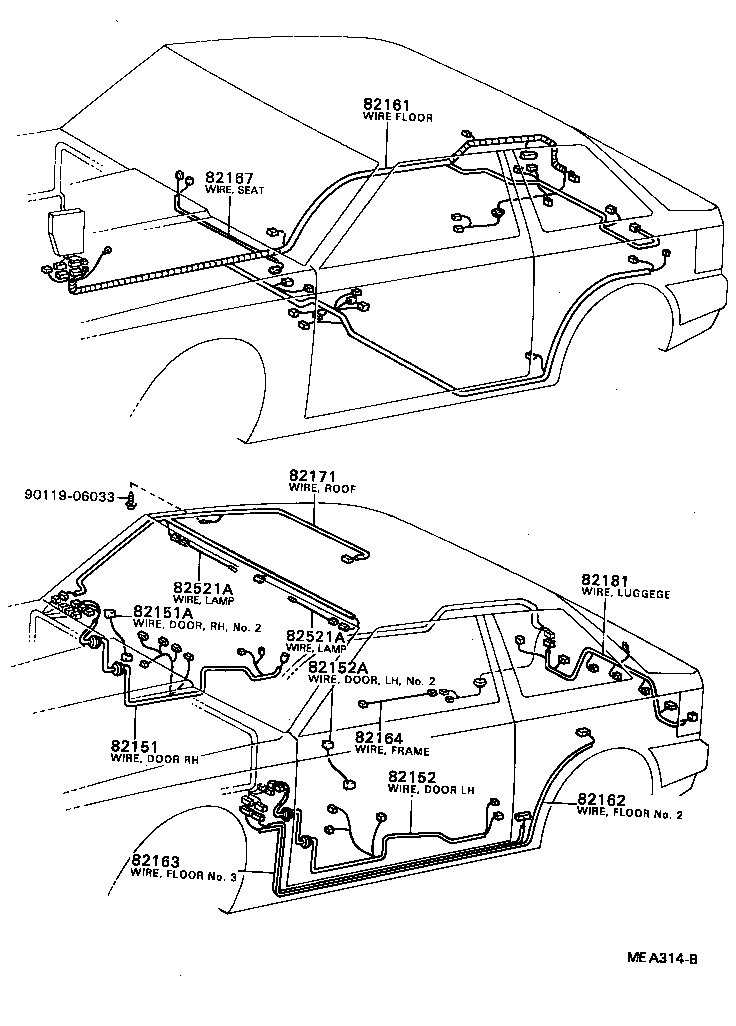

ILLUST NO. 2 OF 6(8102- )

Click highlighted areas on diagram

diagram 82151 82151A 82152 82152A 82161 82162 82163 82164 82167 82171 82181 82521A 82521A 9011906033
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82350-24020

GZ10,MZ1#..GT,TBO,V2,VR,VX

 1
82151-24030

GZ10,MZ10

 1
82151-24050

GZ10,MZ10

 1
82151-24010

GZ10,MZ1#

 1
82151A - WIRE, FRONT DOOR, NO.2, RH
82151-24070

GZ10,MZ1#

 1
82152 - WIRE, FRONT DOOR, LH
82152-24010

GZ10,MZ1#

 1
82360-24020

GZ10,MZ1#..GT,TBO,V2,VR,VX

 1
82152-24030

GZ10,MZ1#

 1
82152-24020

GZ10,MZ1#

 1
82152A - WIRE, FRONT DOOR, NO.2, LH
82151-24070

GZ10,MZ1#

 1
82161 - WIRE, FLOOR
82420-24010

GZ10,MZ11

 1
82161-24090

GZ10..V2,VR,VX

 1
82161-24010

GZ10

 1
82161-24130

GZ10..V2,VR,VX

 1
82420-24011

GZ10,MZ11

 1
82161-24050

GZ10..V2,VR,VX

 1
82164 - WIRE, FRAME
82415-14010

GZ10,MZ1#

 1
82164-14011

GZ10,MZ1#

 1
82171 - WIRE, ROOF, NO.1
82171-24010

GZ10,MZ1#

 1
82510-24010

GZ10,MZ1#

 1
82171-24020

GZ10,MZ1#..GT,TBO,VR,VX

W/SUN ROOF

 1
82510-24020

GZ10,MZ1#..GT,TBO,VR,VX

W/SUN ROOF

 1
82171-24050

GZ10,MZ10,11

 1
82171-24060

GZ10,MZ1#..GT,TBO,VR,VX

W/SUN ROOF

 1
82181 - WIRE, LUGGAGE ROOM, NO.1
82410-24010

GZ10,MZ1#

 1
82181-24010

GZ10,MZ1#

 1
82181-24020

GZ10,MZ1#

 1
82181-24030

GZ10,MZ1#

 1
Common parts
90119-06033

ILLUST NO. 4 OF 6(8102- )

Click highlighted areas on diagram

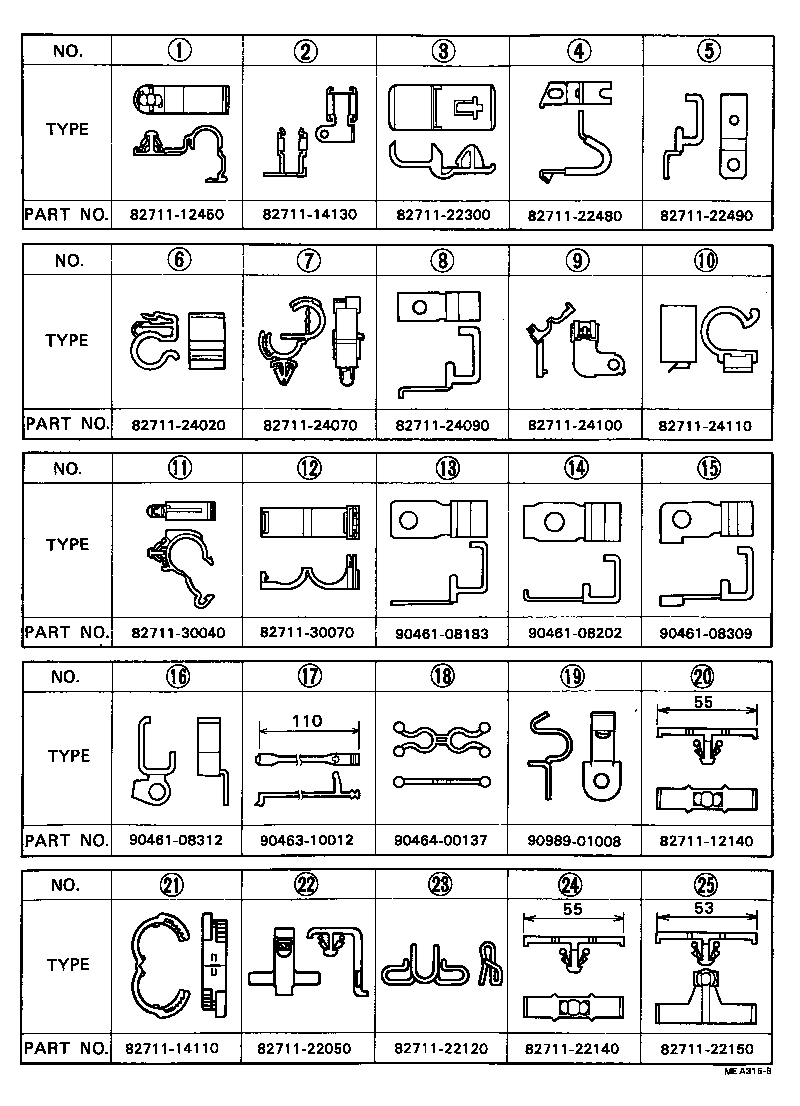

diagram 8271112140 8271112450 8271114110 8271114130 8271122050 8271122120 8271122140 8271122150 8271122300 8271122480 8271122490 8271124020 8271124070 8271124090 8271124100 8271124110 8271130040 8271130070 9046108183 9046108202 9046108309 9046108312 9046310012 9046400137 9098901008
Part # Description Qty Price
Common parts
82711-12140
82711-12450
82711-14110
82711-14130
82711-22050
82711-22120
82711-22140
82711-22150
82711-22300
82711-22480
82711-22490
82711-24020
82711-24070
82711-24090
82711-24100
82711-24110
82711-30040
82711-30070
90461-08183
90461-08202
90461-08309
90461-08312
90463-10012
90464-00137
90989-01008

ILLUST NO. 5 OF 6(8102- )

Click highlighted areas on diagram

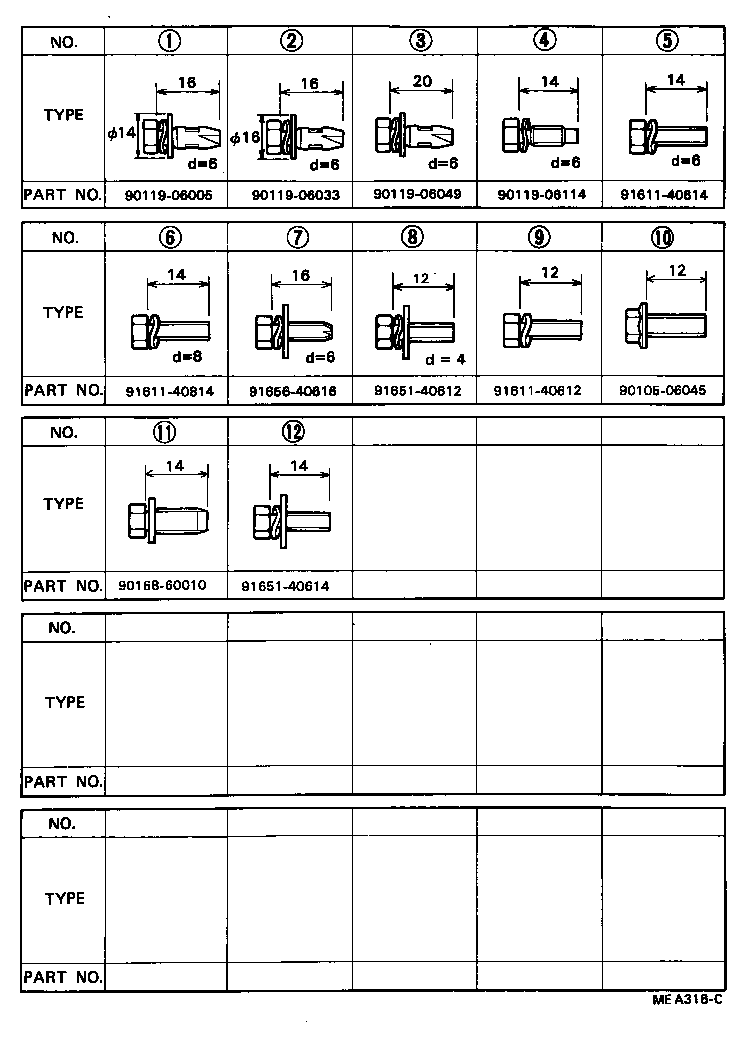

diagram 9010506045 9011906005 9011906033 9011906049 9011906114 9016860010 9161140612 9161140614 9161140814 9165140612 9165140614 9165640616
Part # Description Qty Price
Common parts
90105-06045
90119-06005
90119-06033
90119-06049
90119-06114
90168-60010
91611-40612
91611-40614
91611-40814
91651-40612
91651-40614
91656-40616

ILLUST NO. 4 OF 6(8102- )

Click highlighted areas on diagram

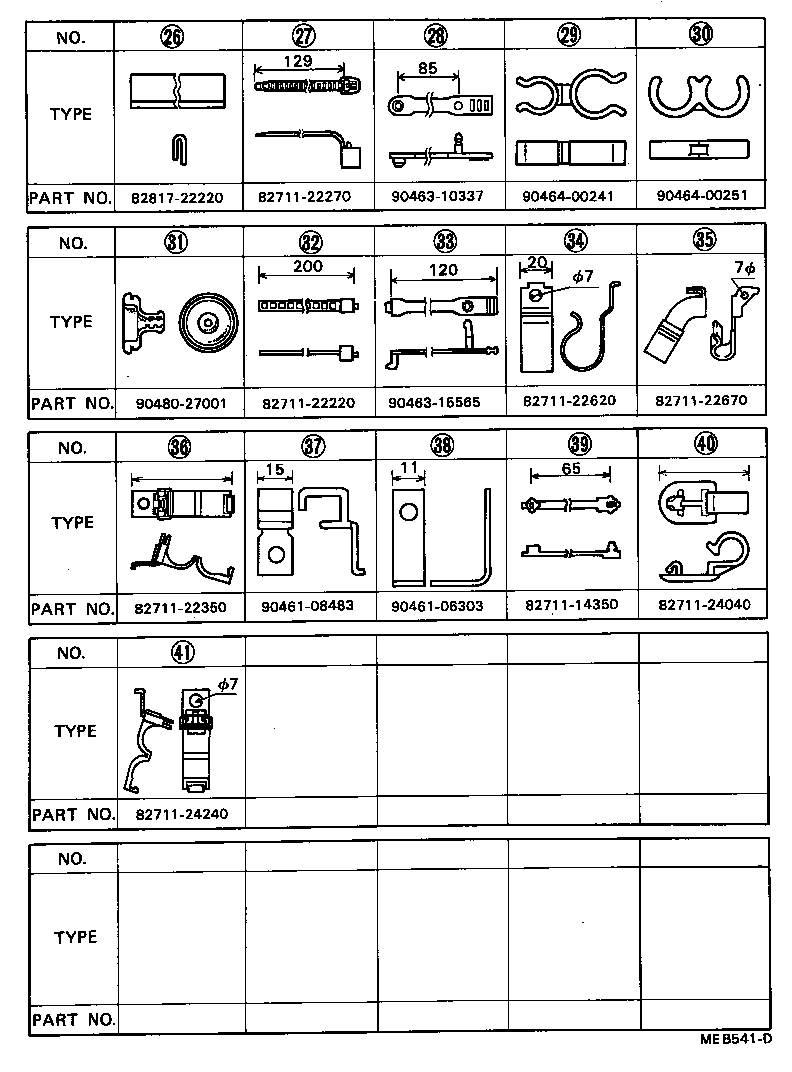

diagram 8271114350 8271122220 8271122270 8271122350 8271122620 8271122670 8271124040 8271124240 8281722220 9046106303 9046108483 9046310337 9046315565 9046400241 9046400251 9048027001
Part # Description Qty Price
Common parts
82711-14350
82711-22220
82711-22270
82711-22350
82711-22620
82711-22670
82711-24040
82711-24240
82817-22220
90461-06303
90461-08483
90463-10337
90463-15565
90464-00241
90464-00251
90480-27001

ILLUST NO. 3 OF 6(8102- )

Click highlighted areas on diagram

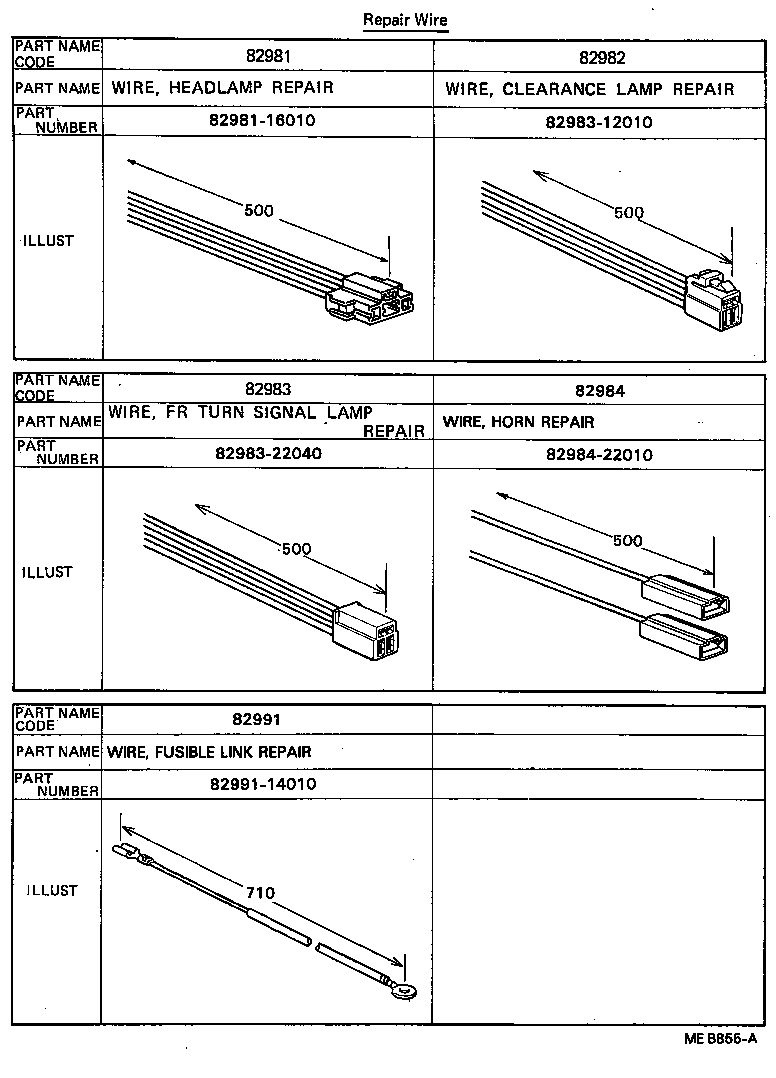

diagram 82981 8298116010 82982 82983 8298312010 8298322040 82984 8298422010 82991 8299114010
Part # Description Qty Price
82981 - WIRE, HEADLAMP REPAIR
82981-16010

GZ10,MZ1#

 1
82982 - WIRE, CLEARANCE LAMP REPAIR
82983-12010

GZ10,MZ1#

 1
82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR
82983-22040

GZ10,MZ1#

 1
82984 - WIRE, HORN REPAIR
82984-22010

GZ10,MZ1#

 1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-14010

GZ10,MZ1#

 1
Common parts
82981-16010
82983-12010
82983-22040
82984-22010
82991-14010

ILLUST NO. 6 OF 6(8102- )

Click highlighted areas on diagram

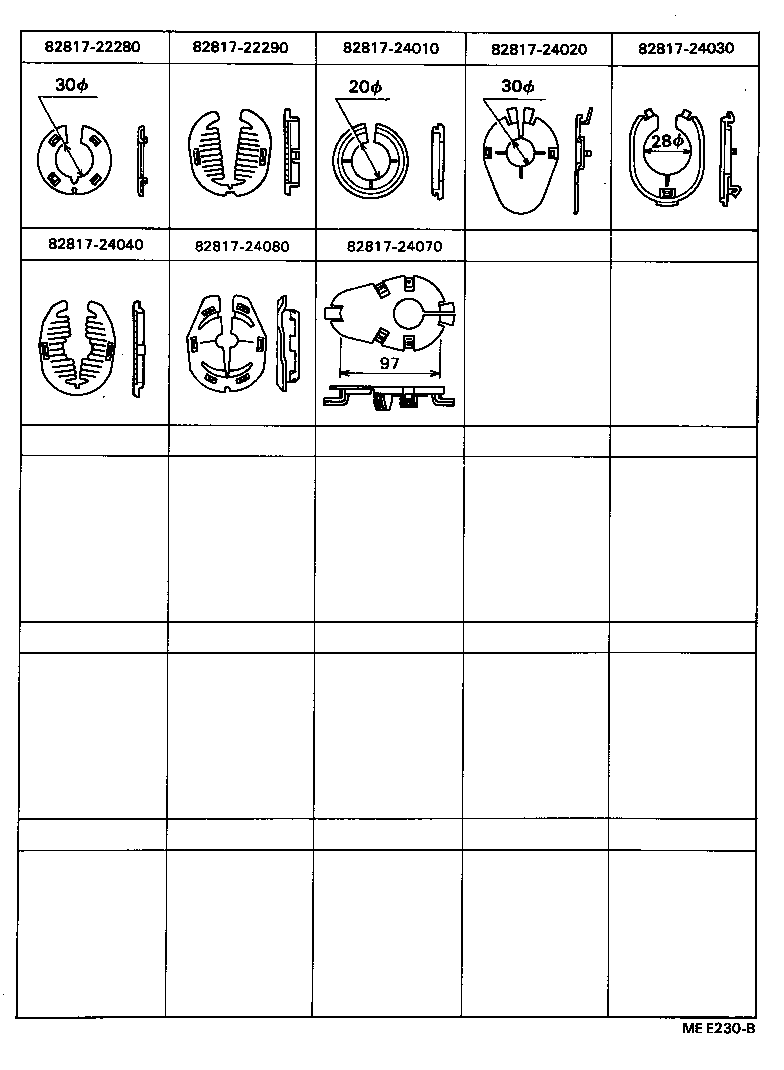

diagram 8281722280 8281722290 8281724010 8281724020 8281724030 8281724040 8281724070 8281724080
Part # Description Qty Price
Common parts
82817-22280
82817-22290
82817-24010
82817-24020
82817-24030
82817-24040
82817-24070
82817-24080
