GZ10-HCMGE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8102-8302)

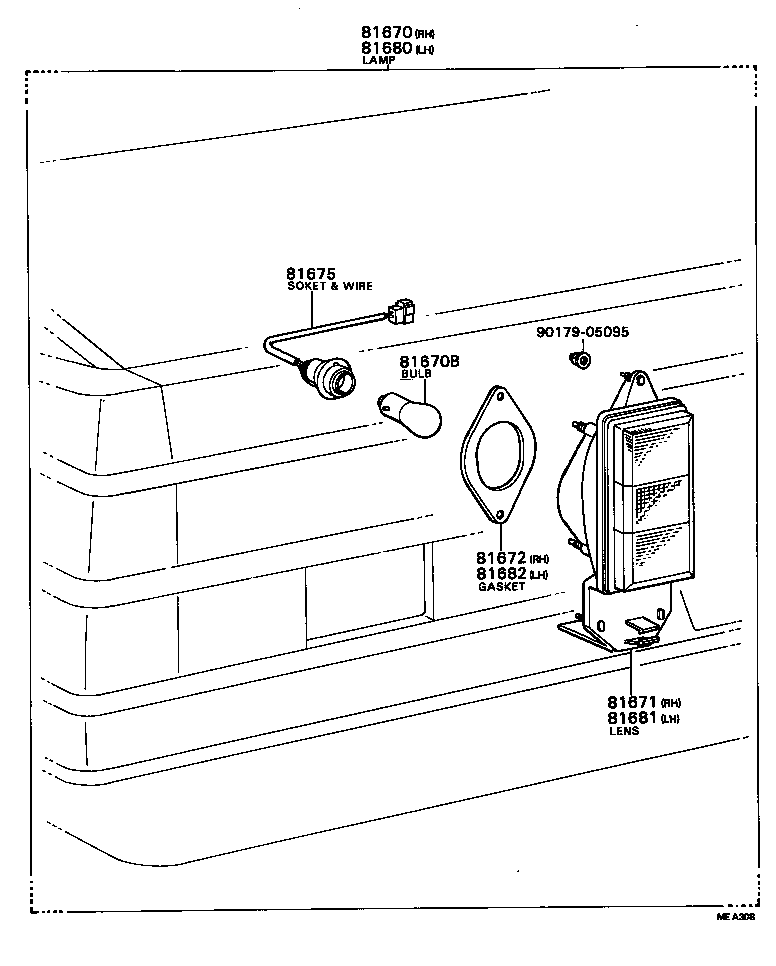

Click highlighted areas on diagram

diagram 81670 81670B 81671 81672 81675 81680 81681 81682 9017905095
Part # Description Qty Price
81670 - LAMP ASSY, BACK-UP, RH
81670-29095

GZ10,MZ1#

 1
81670B - BULB(FOR BACK-UP LAMP)
99132-11230

GZ10,MZ1#

12V 23W,12V 23W

 2
81671 - LENS, BACK-UP LAMP, RH
81671-24010

GZ10,MZ1#

 1
81672 - GASKET, BACK-UP LAMP LENS, RH
81672-24010

GZ10,MZ1#

 1
81675 - SOCKET & WIRE, BACK-UP LAMP
81556-24010

GZ10,MZ1#

 2
81680 - LAMP ASSY, BACK UP, LH
81670-29095

GZ10,MZ1#

 1
81681 - LENS, BACK-UP LAMP, LH
81671-24010

GZ10,MZ1#

 1
81682 - GASKET, BACK UP LAMP LENS, LH
81672-24010

GZ10,MZ1#

 1
Common parts
90179-05095
