GZ10-HCMGE (1981)

Toyota Soarer

Production Feb 1981 - Dec 1985
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8102- )

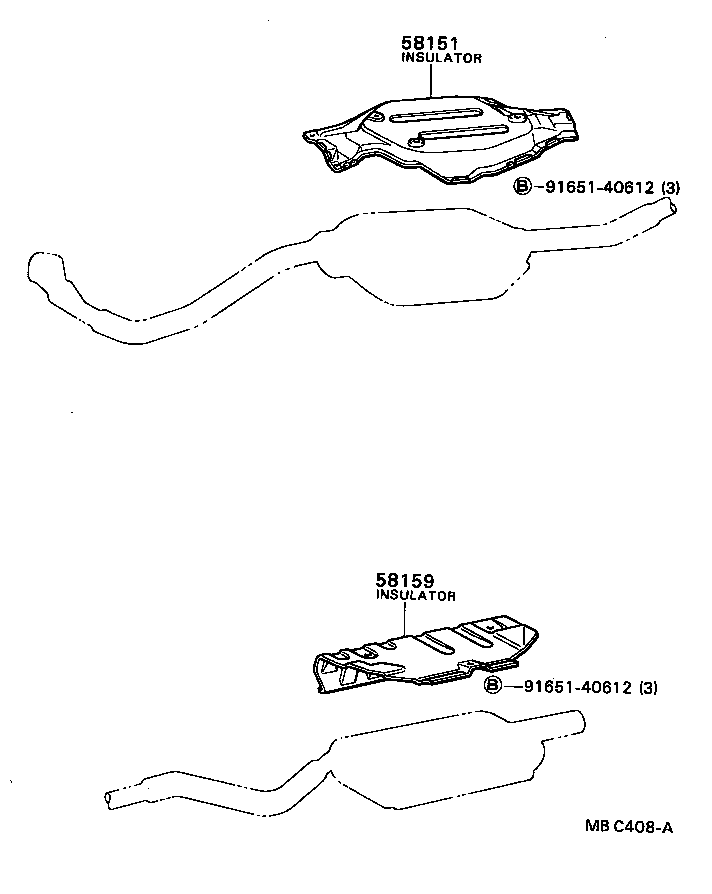

Click highlighted areas on diagram

diagram 58151 58159 9165140612 9165140612
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58041-24010

GZ10,MZ1#

 1
58041-24010

GZ10..V2,VR,VX

 1
58151-24020

GZ10,MZ1#

 1
58159 - INSULATOR, MAIN MAFFLAR HEAT
58327-14020

GZ10,MZ1#

 1
Common parts
91651-40612
