GZ10-HCMDE (1981)

Toyota Soarer

Production Feb 1981 - Mar 1982
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

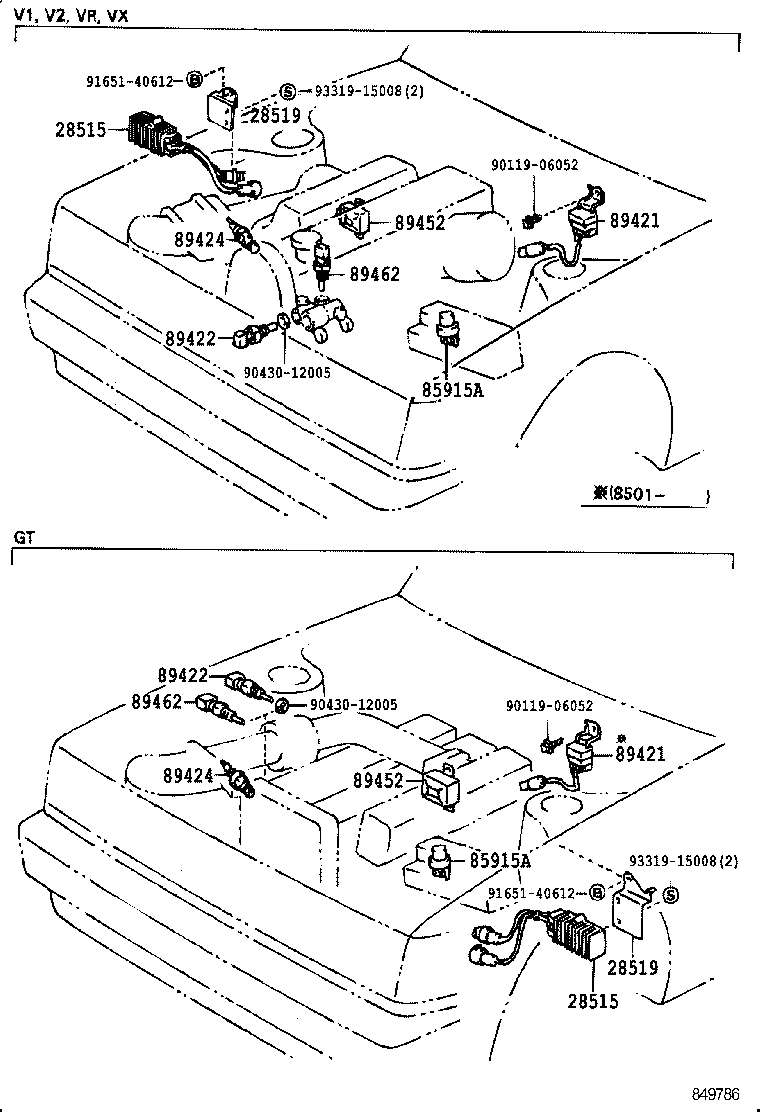

ILLUST NO. 1 OF 2(8102- )GZ10

Click highlighted areas on diagram

diagram 28515 28515 28519 28519 85915A 85915A 89421 89421 89422 89422 89424 89424 89452 89452 89462 89462 9011906052 9011906052 9043012005 9043012005 9165140612 9165140612 9331915008 9331915008
Part # Description Qty Price
28515 - RESISTOR, SOLENOID
28515-43010

1G#,5MGEU,6MGEU,MTEU..GZ10,MZ1#

 1
28515 - RESISTOR, SOLENOID
28515-43010

1G#,5MGEU,6MGEU,MTEU..GZ10,MZ1#

 1
28519 - BRACKET, SOLENOID RESISTOR
28519-24010

1GEU..GZ10

 1
28519 - BRACKET, SOLENOID RESISTOR
28519-24010

1GEU..GZ10

 1
85915A - RELAY, MAIN
90987-02004

GZ10,MZ1#

 1
85915A - RELAY, MAIN
90987-02004

GZ10,MZ1#

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-30020

GZ10,MZ1#

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-30020

GZ10,MZ1#

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-22010

GZ10,MZ1#

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-22010

GZ10,MZ1#

 1
89462 - SWITCH, START INJECTOR TIME
89462-40010

GZ10,MZ11

 1
89462 - SWITCH, START INJECTOR TIME
89462-40010

GZ10,MZ11

 1
Common parts
90119-06052
90430-12005
91651-40612
93319-15008

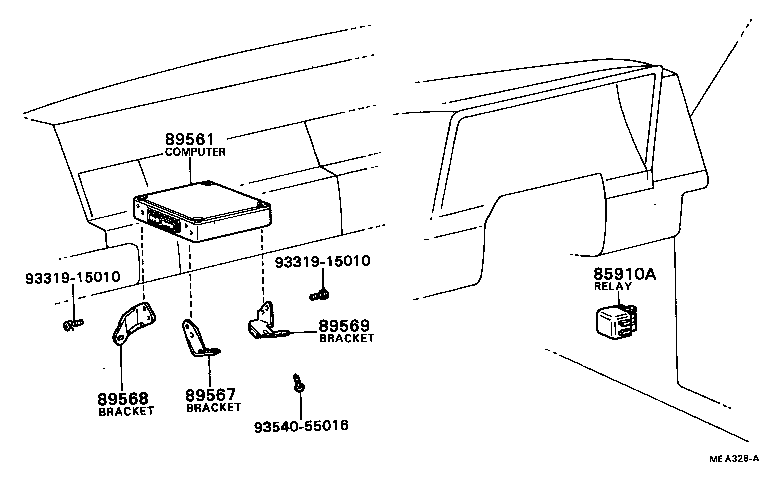

ILLUST NO. 2 OF 2(8102- )

Click highlighted areas on diagram

diagram 85910A 89561 89567 89568 89569 9331915010 9331915010 9354055016
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-30050

GZ10,MZ1#

 1
89561 - COMPUTER, FUEL INJECTION
89561-22030

GZ10

 1
89567 - BRACKET, FUEL INJECTION COMPUTER
89567-24010

GZ10,MZ1#

 1
89568 - BRACKET, FUEL INJECTION COMPUTER
89568-24010

GZ10,MZ1#

 1
89569 - BRACKET, FUEL INJECTION COMPUTER
89569-24010

GZ10,MZ1#

 1
Common parts
93319-15010
93540-55016
