GZ10-HCMDE (1981)
Toyota Soarer
Production
Feb 1981
-
Mar 1982
Engine
1GEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8102- )

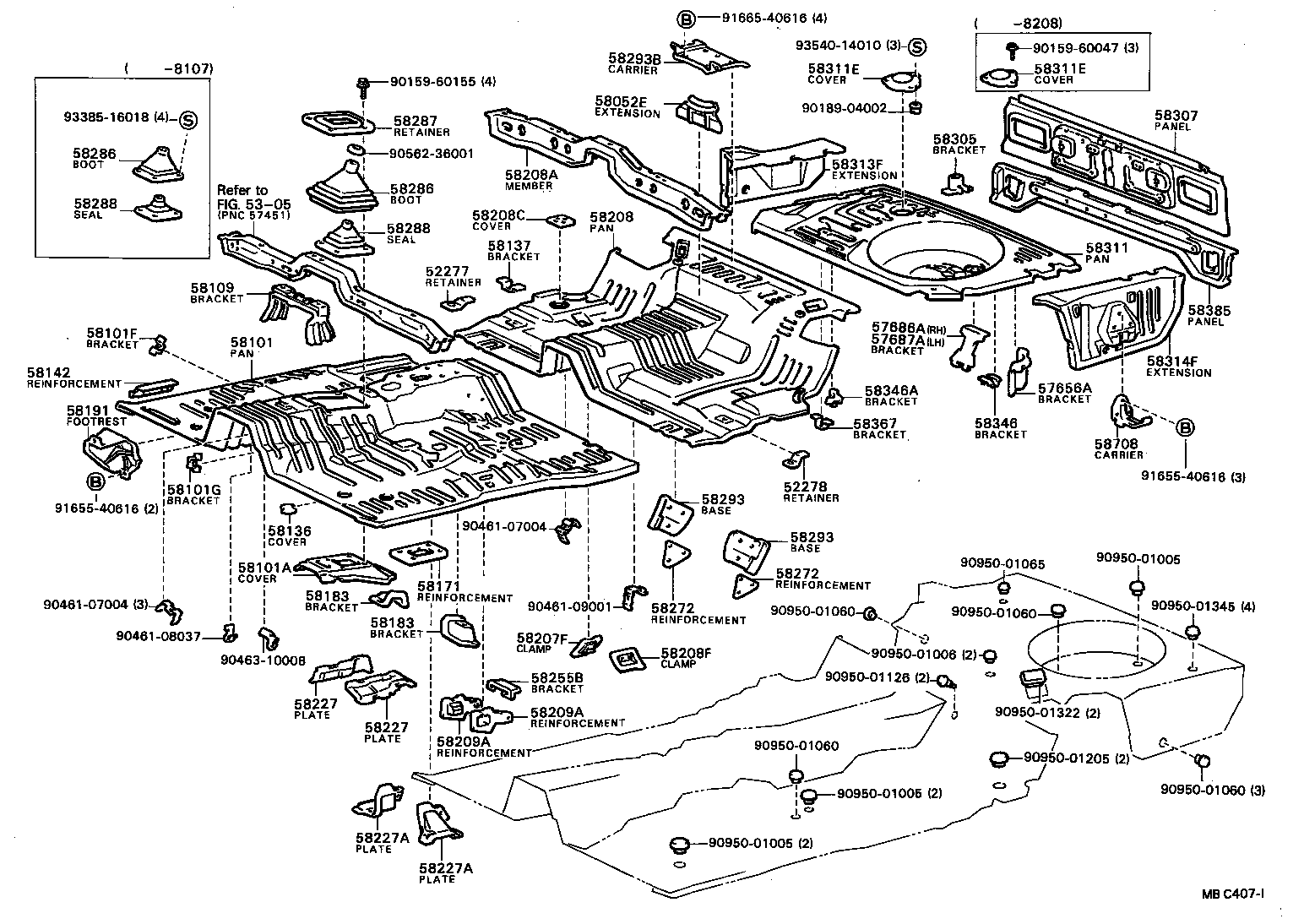

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52277 - RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH | ||||
| 52277-14010 |
GZ10,MZ1# |
1 | ||
| 52278 - RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, LH | ||||
| 52278-14010 |
GZ10,MZ1# |
1 | ||
| 57656A - BRACKET, EXHAUST PIPE MOUNTING, NO.1 | ||||
| 57656-14030 |
GZ10,MZ1# |
1 | ||
| 57686A - BRACKET, FUEL TANK MOUNTING, REAR RH | ||||
| 57683-24010 |
GZ10,MZ1# |
1 | ||
| 57687A - BRACKET, FUEL TANK MOUNTING, REAR LH | ||||
| 57683-24010 |
GZ10,MZ1# |
1 | ||
| 58052E - EXTENSION, CENTER FLOOR TO BRACE | ||||
| 64227-22020 |
GZ10,MZ1# |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58111-24010 |
GZ10,MZ1# |
1 | ||
| 58101A - COVER, TRANSMISSION AUXILIARY | ||||
| 58281-24010 |
GZ10,MZ11..5F |
1 | ||
| 58101F - BRACKET, MOUNTING, FLOOR, NO.1 | ||||
| 58131-12020 |
GZ10,MZ1# |
5 | ||
| 58101G - BRACKET, MOUNTING, FLOOR, NO.2 | ||||
| 58266-14040 |
GZ10,MZ1# |
1 | ||
| 58109 - BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-24010 |
GZ10,MZ1# |
1 | ||
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-24010 |
GZ10,MZ1# |
2 | ||
| 58137 - BRACKET, CENTER FLOOR HEAT INSULATOR, NO.4 | ||||
| 58236-14010 |
GZ10,MZ1# |
1 | ||
| 58142 - REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN | ||||
| 58141-24010 |
GZ10,MZ1# |
2 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58171-24010 |
GZ10,MZ1# |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58184-24010 |
GZ10,MZ1# LH |
1 | ||
| 58183-24010 |
GZ10,MZ1# RH |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58184-24010 |
GZ10,MZ1# LH |
1 | ||
| 58183-24010 |
GZ10,MZ1# RH |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-24010 |
GZ10,MZ1# |
1 | ||
| 58207F - CLAMP SUB-ASSY, PARKING BRAKE CABLE, RH | ||||
| 58207-14030 |
GZ10,MZ1# |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-24010 |
GZ10,MZ1# |
1 | ||
| 58208A - MEMBER, CENTER FLOOR CROSS, NO.1 | ||||
| 57461-24010 |
GZ10,MZ1# |
1 | ||
| 58208F - CLAMP SUB-ASSY, PARKING BRAKE CABLE, LH | ||||
| 58208-14030 |
GZ10,MZ1# |
1 | ||
| 58209A - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT | ||||
| 58278-24010 |
GZ10,MZ1# LH |
1 | ||
| 58277-24010 |
GZ10,MZ1# RH |
1 | ||
| 58209A - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT | ||||
| 58278-24010 |
GZ10,MZ1# LH |
1 | ||
| 58277-24010 |
GZ10,MZ1# RH |
1 | ||
| 58227 - PLATE, AIR GUIDE, OUTSIDE | ||||
| 58226-24010 |
GZ10,MZ1# RH |
1 | ||
| 58227-24010 |
GZ10,MZ1# LH |
1 | ||
| 58227 - PLATE, AIR GUIDE, OUTSIDE | ||||
| 58226-24010 |
GZ10,MZ1# RH |
1 | ||
| 58227-24010 |
GZ10,MZ1# LH |
1 | ||
| 58227A - PLATE, AIR GUIDE | ||||
| 58228-24010 |
GZ10,MZ1# RH |
1 | ||
| 58229-24010 |
GZ10,MZ1# LH |
1 | ||
| 58227A - PLATE, AIR GUIDE | ||||
| 58228-24010 |
GZ10,MZ1# RH |
1 | ||
| 58229-24010 |
GZ10,MZ1# LH |
1 | ||
| 58255B - BRACKET, PARKING BRAKE CABLE GUIDE, NO.1 | ||||
| 58264-14010 |
GZ10,MZ1# |
1 | ||
| 58272 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN | ||||
| 58274-24010 |
GZ10,MZ1# LH |
1 | ||
| 58273-24010 |
GZ10,MZ1# RH |
1 | ||
| 58272 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN | ||||
| 58274-24010 |
GZ10,MZ1# LH |
1 | ||
| 58273-24010 |
GZ10,MZ1# RH |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58280-20030 |
GZ10,MZ11..5F |
1 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58280-20030 |
GZ10,MZ11..5F |
1 | ||
| 58288 - SEAL, SHIFT LEVER BOOT | ||||
| 58288-20050 |
GZ10,MZ11..5F |
1 | ||
| 58288 - SEAL, SHIFT LEVER BOOT | ||||
| 58288-20050 |
GZ10,MZ11..5F |
1 | ||
| 58293 - BASE, BELT ANCHOR TO FLOOR PAN, NO.4 | ||||
| 58296-14010 |
GZ10,MZ1# LH |
1 | ||
| 58295-14010 |
GZ10,MZ1# RH |
1 | ||
| 58293 - BASE, BELT ANCHOR TO FLOOR PAN, NO.4 | ||||
| 58296-14010 |
GZ10,MZ1# LH |
1 | ||
| 58295-14010 |
GZ10,MZ1# RH |
1 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-10011 |
GZ10,MZ1# |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-24010 |
GZ10,MZ1# |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-24010 |
GZ10,MZ1# |
1 | ||
| 58311E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-14020 |
GZ10,MZ1# |
1 | ||
| 58311E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-14020 |
GZ10,MZ1# |
1 | ||
| 58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH | ||||
| 58313-24010 |
GZ10,MZ1# |
1 | ||
| 58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH | ||||
| 58306-24010 |
GZ10,MZ1# |
1 | ||
| 58346 - BRACKET, REAR FLOOR HEAT INSULATOR | ||||
| 58345-14010 |
GZ10,MZ1# |
1 | ||
| 58346A - BRACKET, REAR FLOOR HEAT INSULATOR, NO.2 | ||||
| 58346-14010 |
GZ10,MZ1# |
2 | ||
| 58367 - BRACKET, FUEL TUBE CLAMP | ||||
| 58367-24010 |
GZ10,MZ1# |
1 | ||
| 58385 - PANEL, REAR VALANCE | ||||
| 58381-24010 |
GZ10,MZ1# |
1 | ||
| 58708 - CARRIER SUB-ASSY, JACK | ||||
| 58791-12050 |
GZ10,MZ1# |
1 | ||
| Common parts | ||||
| 90159-60047 | ||||
| 90159-60155 | ||||
| 90189-04002 | ||||
| 90461-07004 | ||||
| 90461-08037 | ||||
| 90461-09001 | ||||
| 90463-10008 | ||||
| 90562-36001 | ||||
| 90950-01005 | ||||
| 90950-01006 | ||||
| 90950-01060 | ||||
| 90950-01065 | ||||
| 90950-01126 | ||||
| 90950-01205 | ||||
| 90950-01322 | ||||
| 90950-01345 | ||||
| 91655-40616 | ||||
| 91665-40616 | ||||
| 93385-16018 | ||||
| 93540-14010 | ||||
| Linked diagrams | ||||
| 5305 | ||||
