GZ10-HCMDE (1981)

Toyota Soarer

Production Feb 1981 - Mar 1982
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

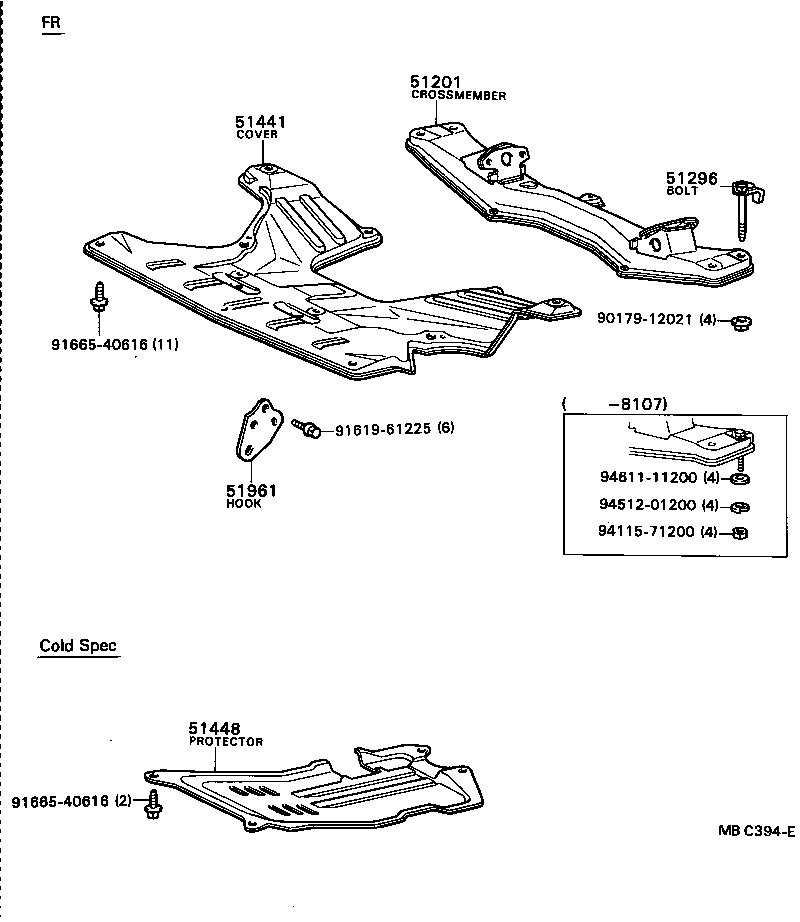

ILLUST NO. 1 OF 2(8102- )

Click highlighted areas on diagram

diagram 51201 51296 51441 51448 51961 9017912021 9161961225 9166540616 9166540616 9411571200 9451201200 9461111200
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-24020

GZ10..V1

 1
51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING
51296-24010

GZ10,MZ1#

 4
51441 - COVER, ENGINE UNDER, NO.1
51441-24010

GZ10,MZ1#

 1
51448 - PROTECTOR, OIL PAN
51447-14020

GZ10,MZ1#

COLD SPEC

 1
51961 - HOOK, NO.1
51963-24010

GZ10,MZ1#

 2
Common parts
90179-12021
91619-61225
91665-40616
94115-71200
94512-01200
94611-11200

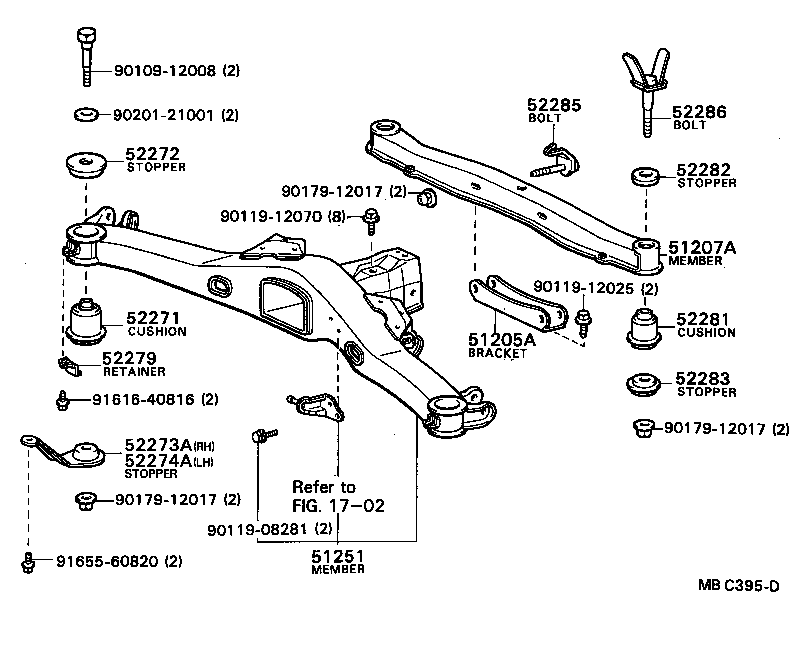

ILLUST NO. 2 OF 2(8102- )

Click highlighted areas on diagram

diagram 1702 51205A 51207A 51251 52271 52272 52273A 52274A 52279 52281 52282 52283 52285 52286 9010912008 9011908281 9011912025 9011912070 9017912017 9017912017 9017912017 9020121001 9161640816 9165560820
Part # Description Qty Price
51205A - BRACKET SUB-ASSY, DIFFERENTIAL SUPPORT
51205-14010

GZ10,MZ1#

 1
51207A - MEMBER SUB-ASSY, DIFFERENTIAL SUPPORT
51207-24010

GZ10,MZ1#

 1
51251 - MEMBER SUB-ASSY, REAR SUSPENSION
51206-24020

GZ10

 1
52271 - CUSHION, REAR SUSPENSION MEMBER
52271-24010

GZ10,MZ1#

 2
52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER
52272-14010

GZ10,MZ1#

 2
52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH
52273-14010

GZ10,MZ1#

 1
52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH
52273-14010

GZ10,MZ1#

 1
52279 - RETAINER, REAR SUSPENSION MEMBER CUSHION
52279-14010

GZ10,MZ1#

 2
52281 - CUSHION, DIFFERENTIAL SUPPORT MEMBER
52281-14010

GZ10,MZ1#

 2
52282 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER
52282-14010

GZ10,MZ1#

 2
52283 - STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER
52283-14010

GZ10,MZ11

 2
52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1
52285-14010

GZ10,MZ1#

 2
52286 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2
52286-14010

GZ10,MZ11

 2
Common parts
90109-12008
90119-08281
90119-12025
90119-12070
90179-12017
90201-21001
91616-40816
91655-60820
Linked diagrams
1702
