GZ10-HCMDE (1981)
Toyota Soarer
Production
Feb 1981
-
Mar 1982
Engine
1GEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

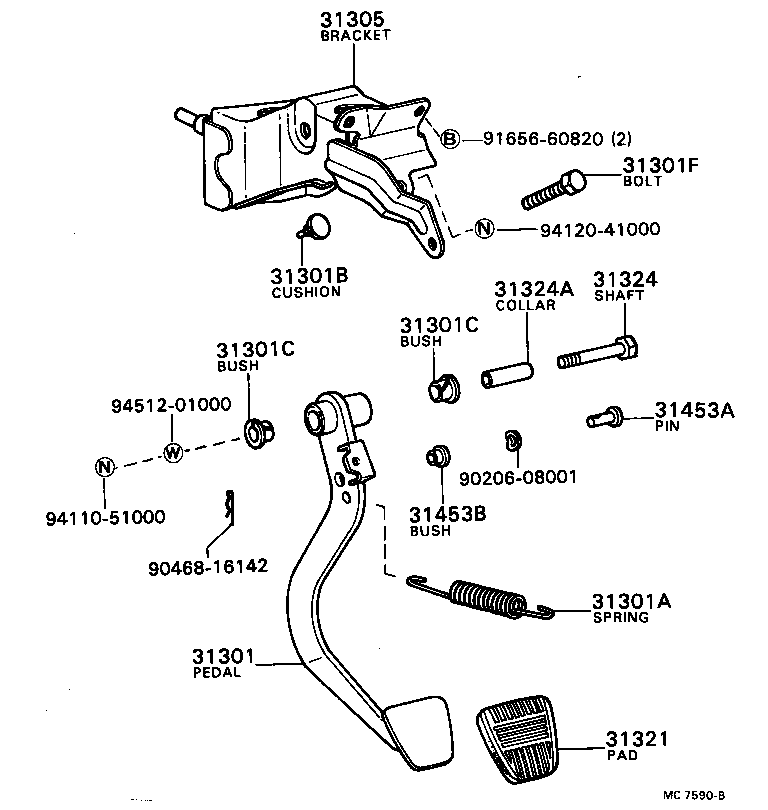

ILLUST NO. 1 OF 2(8102- )GZ10..5F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-24020 |
GZ10..5F |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90506-14002 |
GZ10..5F |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06008 |
GZ10..5F |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13192 |
GZ10,MZ11,12..5F |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13192 |
GZ10,MZ11,12..5F |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10109 |
GZ10..5F |
1 | ||
| 31305 - BRACKET SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-24010 |
GZ10..5F |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14010 |
GZ10,MZ11..5F |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90101-10039 |
GZ10,MZ11,12..5F |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10021 |
GZ10,MZ11,12..5F |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08027 |
GZ10..5F L=24 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
GZ10,MZ11,12..5F |
1 | ||
| Common parts | ||||
| 90206-08001 | ||||
| 90468-16142 | ||||
| 91656-60820 | ||||
| 94110-51000 | ||||
| 94120-41000 | ||||
| 94512-01000 | ||||

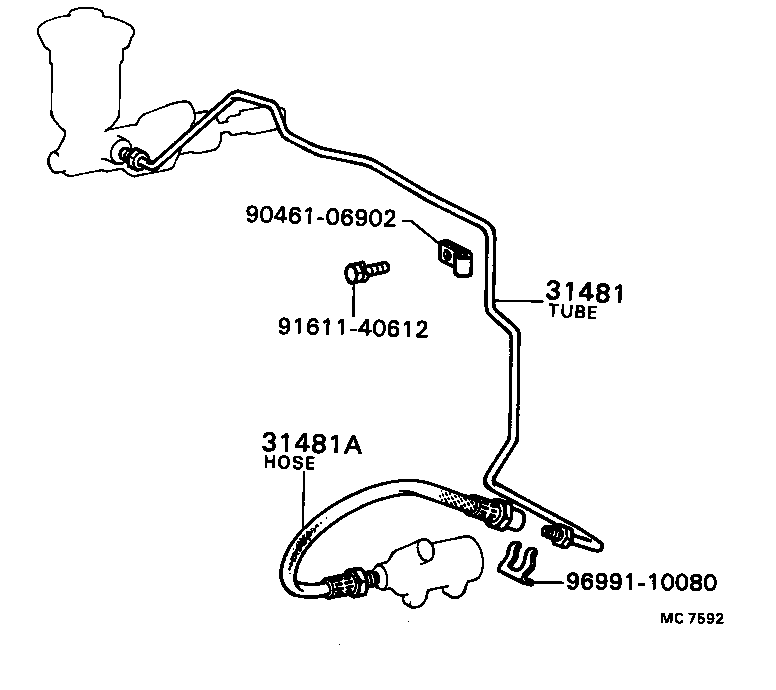

ILLUST NO. 2 OF 2(8102- )5F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-24020 |
GZ10..5F |
1 | ||
| 31481A - HOSE, CLUTCH, NO.1 | ||||
| 96940-33805 |
GZ10..5F |
1 | ||
| Common parts | ||||
| 90461-06902 | ||||
| 91611-40612 | ||||
| 96991-10080 | ||||
