NSP172G-MNXQB (2015)
Toyota Sienta
Production
Jun 2015
-
Sep 2018
Engine
2NRFKE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1506- )

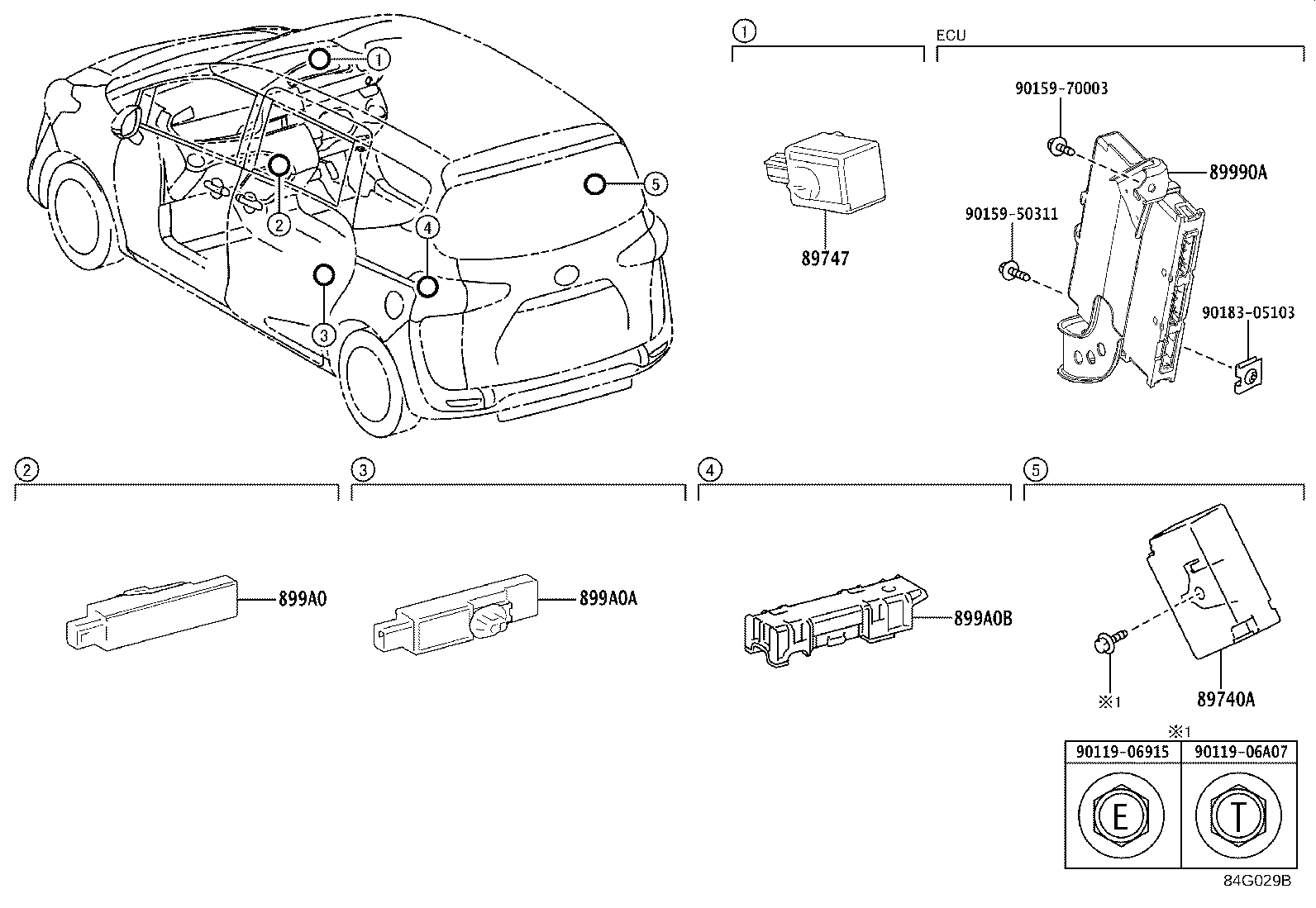

Click highlighted areas on diagram
ﾅｼ(ｽﾏｰﾄｴﾝﾄﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89741 - RECEIVER, DOOR CONTROL | ||||
| 89741-52620 |
NCP175,NHP170,NSP17#..X ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾌﾛﾝﾄﾄﾞｱ & ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 89741-52620 |
NSP172..X ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾌﾛﾝﾄﾄﾞｱ) |
1 | ||
| 89741-52620 |
NCP175,NHP170,NSP17#..X |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06A07 | ||||
(1506- )NSP172
Click highlighted areas on diagram
ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89740A - RECEIVER ASSY, SMART DOOR CONTROL | ||||
| 89740-52440 |
NSP172..X ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾌﾛﾝﾄﾄﾞｱ) |
1 | ||
| 89740-52440 |
NCP175,NHP170,NSP17#..G |
1 | ||
| 89747 - BUZZER, WIRELESS DOOR LOCK | ||||
| 89747-30040 |
NCP175,NHP170,NSP17#..G |
1 | ||
| 89747-30040 |
NSP172..X ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾌﾛﾝﾄﾄﾞｱ) |
1 | ||
| 89990A - COMPUTER ASSY, SMART KEY | ||||
| 89990-52540 |
NSP172..X ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾌﾛﾝﾄﾄﾞｱ) |
1 | ||
| 89990-52540 |
NSP172..G |
1 | ||
| 899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1 | ||||
| 899A0-60010 |
NCP175,NHP170,NSP17#..G |
1 | ||
| 899A0-60010 |
NSP172..X ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾌﾛﾝﾄﾄﾞｱ) |
1 | ||
| 899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2 | ||||
| 899A0-47010 |
NCP175,NHP170,NSP17#..G |
1 | ||
| 899A0-47010 |
NSP172..X ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾌﾛﾝﾄﾄﾞｱ) |
1 | ||
| 899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3 | ||||
| 899A0-52070 |
NSP172..X ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾌﾛﾝﾄﾄﾞｱ) |
1 | ||
| 899A0-52070 |
NSP172..G |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06A07 | ||||
| 90159-50311 | ||||
| 90159-70003 | ||||
| 90183-05103 | ||||
