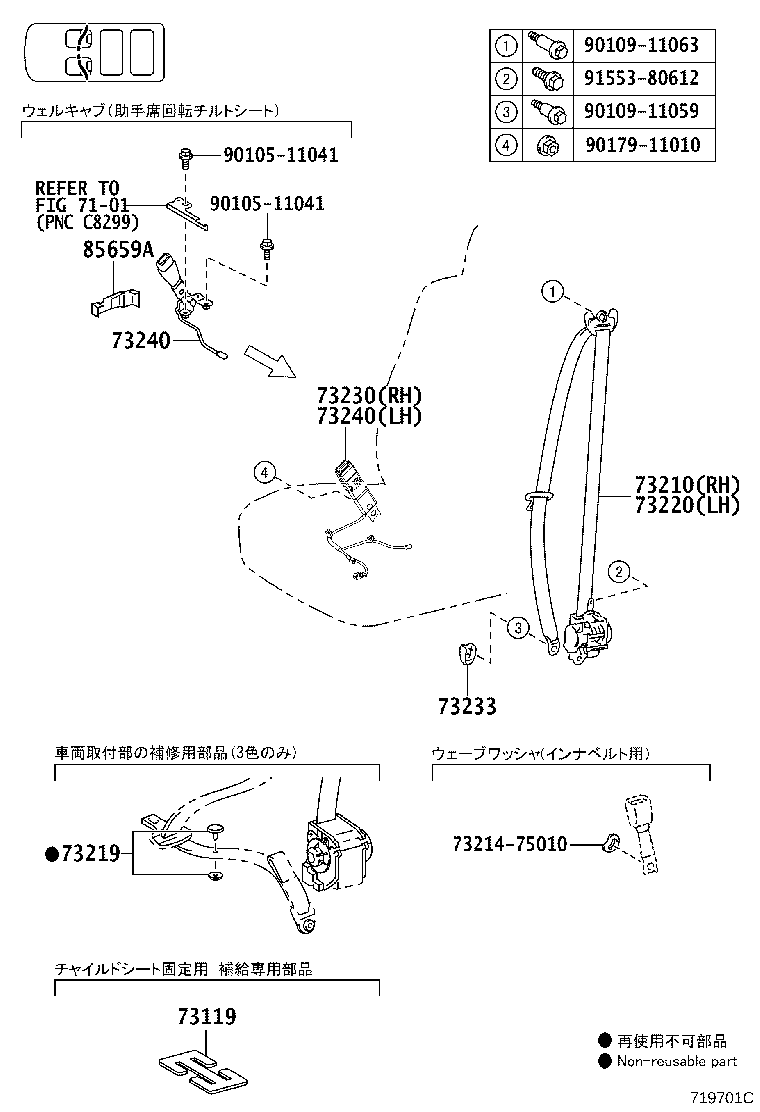

NSP172G-MNXQB (2015)
Toyota Sienta
(1506- )
ﾌﾛﾝﾄｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
NCP175,NHP170,NSP17# |
1 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-52A10C1 |
NCP175,NHP170,NSP17# BLACK,TRIM0#,2# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
NCP175,NHP170,NSP17# ﾌﾞﾗｯｸ |
1 | ||
| 73219-33020 |
NCP175,NHP170,NSP17# ｸﾞﾚｰ |
1 | ||
| 73219-33030 |
NCP175,NHP170,NSP17# ﾍﾞｰｼﾞｭ |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-52A20C1 |
NCP175,NHP170,NSP17# BLACK,TRIM0#,2# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-52B80C0 |
NCP175,NHP170,NSP17# BLACK,TRIM0#,2# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-60020C0 |
NCP175,NHP170,NSP17# BLACK,TRIM0#,2# |
2 | ||
| 73233-60020C1 |
NCP175,NHP170,NSP17# BLACK,TRIM0#,2# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-D1040C0 |
NSP172 ｳｪﾙｷｬﾌﾞ−車いす仕様車ﾀｲﾌﾟV(助手席回転ﾁﾙﾄｼｰﾄ仕様,助手席側ﾘﾔｼｰﾄ有),BLACK,TRIM0#,2# |
1 | ||
| 73240-D1040C0 |
NSP172..X ｳｪﾙｷｬﾌﾞ−車いす仕様車ﾀｲﾌﾟV(助手席回転ﾁﾙﾄｼｰﾄ仕様,助手席側ﾘﾔｼｰﾄ無),BLACK,TRIM0#,2# |
1 | ||
| 73230-52C00C0 |
NSP172..X ｳｪﾙｷｬﾌﾞ−車いす仕様車ﾀｲﾌﾟU,BLACK,TRIM0#,2# |
1 | ||
| 73230-52B90C0 |
NCP175,NHP170,NSP17# BLACK,TRIM0#,2# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73240-D1040C0 |
NSP172 ｳｪﾙｷｬﾌﾞ−車いす仕様車ﾀｲﾌﾟV(助手席回転ﾁﾙﾄｼｰﾄ仕様,助手席側ﾘﾔｼｰﾄ有),BLACK,TRIM0#,2# |
1 | ||
| 73240-D1040C0 |
NSP172..X ｳｪﾙｷｬﾌﾞ−車いす仕様車ﾀｲﾌﾟV(助手席回転ﾁﾙﾄｼｰﾄ仕様,助手席側ﾘﾔｼｰﾄ無),BLACK,TRIM0#,2# |
1 | ||
| 73230-52C00C0 |
NSP172..X ｳｪﾙｷｬﾌﾞ−車いす仕様車ﾀｲﾌﾟU,BLACK,TRIM0#,2# |
1 | ||
| 73230-52B90C0 |
NCP175,NHP170,NSP17# BLACK,TRIM0#,2# |
1 | ||
| 85659A - COVER, BELT | ||||
| 85659-D1040 |
NSP172 ｳｪﾙｷｬﾌﾞ−車いす仕様車ﾀｲﾌﾟV(助手席回転ﾁﾙﾄｼｰﾄ仕様,助手席側ﾘﾔｼｰﾄ有) |
1 | ||
| 85659-D1040 |
NSP172..X ｳｪﾙｷｬﾌﾞ−車いす仕様車ﾀｲﾌﾟV(助手席回転ﾁﾙﾄｼｰﾄ仕様,助手席側ﾘﾔｼｰﾄ無) |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-11041 | ||||
| 90109-11059 | ||||
| 90109-11063 | ||||
| 90179-11010 | ||||
| 91553-80612 | ||||
| Linked diagrams | ||||
| 7101 | ||||

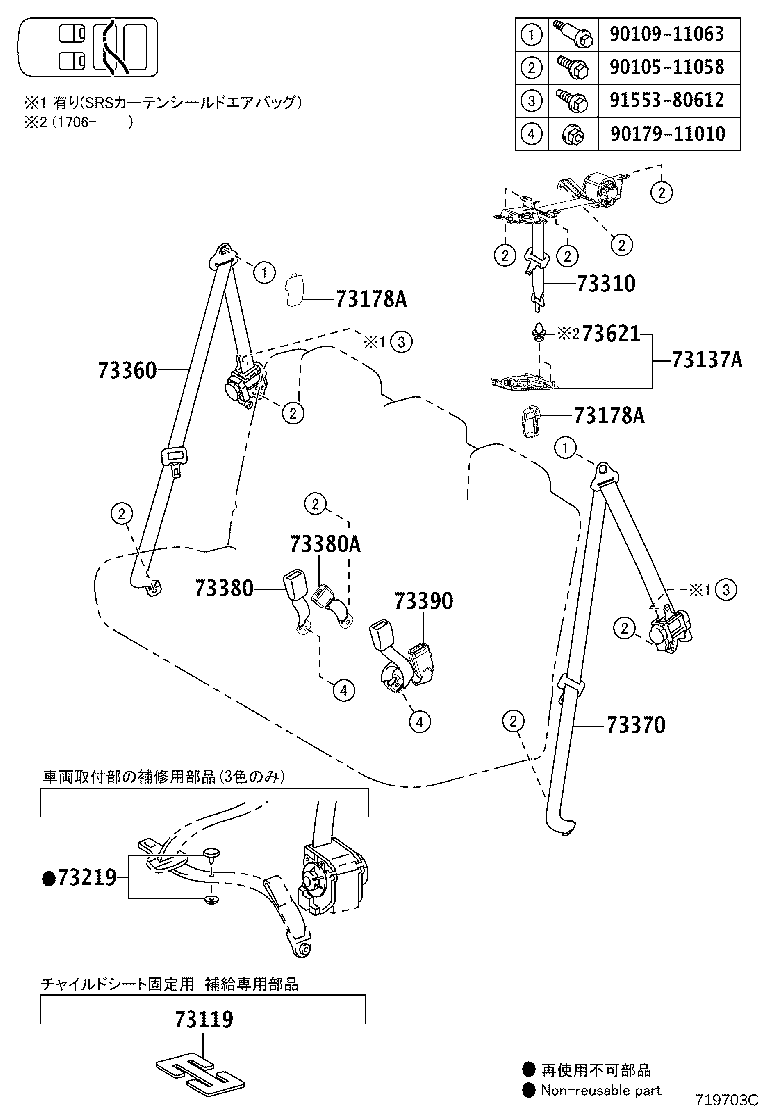

(1506- )NSP172
ﾘﾔNO.1ｼｰﾄ(ｳｪﾙｷｬﾌﾞ(LHｼｰﾄｱﾘ))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
NCP175,NHP170,NSP17# |
1 | ||
| 73137A - COVER, SHOULDER BELT ANCHOR, UPR | ||||
| 73137-52040B0 |
NHP170,NSP17#..05S,07S LT.GRAY,TRIM0#,2# |
1 | ||
| 73137-52041B0 |
NHP170,NSP17#..05S,07S LT.GRAY,TRIM0#,2# |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-42020B0 |
NCP175,NHP170,NSP17# LT.GRAY,TRIM0#,2# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-42020B0 |
NCP175,NHP170,NSP17# LT.GRAY,TRIM0#,2# |
2 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
NCP175,NHP170,NSP17# ﾌﾞﾗｯｸ |
1 | ||
| 73219-33020 |
NCP175,NHP170,NSP17# ｸﾞﾚｰ |
1 | ||
| 73219-33030 |
NCP175,NHP170,NSP17# ﾍﾞｰｼﾞｭ |
1 | ||
| 73310 - BELT ASSY, REAR SEAT 3 POINT TYPE, RH | ||||
| 73310-52091C0 |
NHP170,NSP17#..05S,07S BLACK,TRIM0#,2# |
1 | ||
| 73310-52090C0 |
NHP170,NSP17#..05S,07S BLACK,TRIM0#,2# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-52390C0 |
NCP175,NHP170,NSP17# BLACK,TRIM0#,2# |
1 | ||
| 73360-52450C0 |
NCP175,NHP170,NSP17# SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM0#,2# |
1 | ||
| 73360-52450C0 |
NSP172 ｳｪﾙｷｬﾌﾞ−車いす仕様車ﾀｲﾌﾟV(助手席回転ﾁﾙﾄｼｰﾄ仕様,助手席側ﾘﾔｼｰﾄ有)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA),BLACK,TRIM0#,2# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-52430C2 |
NSP172..X ｳｪﾙｷｬﾌﾞ−車いす仕様車ﾀｲﾌﾟU,BLACK,TRIM0#,2# |
1 | ||
| 73370-52440C0 |
NSP172 ｳｪﾙｷｬﾌﾞ−車いす仕様車ﾀｲﾌﾟV(助手席回転ﾁﾙﾄｼｰﾄ仕様,助手席側ﾘﾔｼｰﾄ有)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA),BLACK,TRIM0#,2# |
1 | ||
| 73370-52360C0 |
NCP175,NHP170,NSP17# BLACK,TRIM0#,2# |
1 | ||
| 73370-52440C0 |
NCP175,NHP170,NSP17# SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM0#,2# |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-52230C0 |
NSP172 BLACK,TRIM0#,2# |
1 | ||
| 73380-52230C0 |
NSP172..X ｳｪﾙｷｬﾌﾞ−車いす仕様車ﾀｲﾌﾟV(助手席回転ﾁﾙﾄｼｰﾄ仕様,助手席側ﾘﾔｼｰﾄ無)&“Vﾊﾟｯｹｰｼﾞ”*(V),BLACK,TRIM2# |
1 | ||
| 73380-52230C0 |
NSP172..X ｳｪﾙｷｬﾌﾞ−車いす仕様車ﾀｲﾌﾟT(助手席側ﾘﾔｼｰﾄ無)&“Vﾊﾟｯｹｰｼﾞ”*(V),BLACK,TRIM2# |
1 | ||
| 73380A - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-52220C0 |
NSP172 BLACK,TRIM0#,2# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73390-52060C0 |
NHP170,NSP17#..05S,07S BLACK,TRIM0#,2# |
1 | ||
| 73621 - CLIP | ||||
| 62217-13010 |
NHP170,NSP17#..05S,07S |
2 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90109-11063 | ||||
| 90179-11010 | ||||
| 91553-80612 | ||||

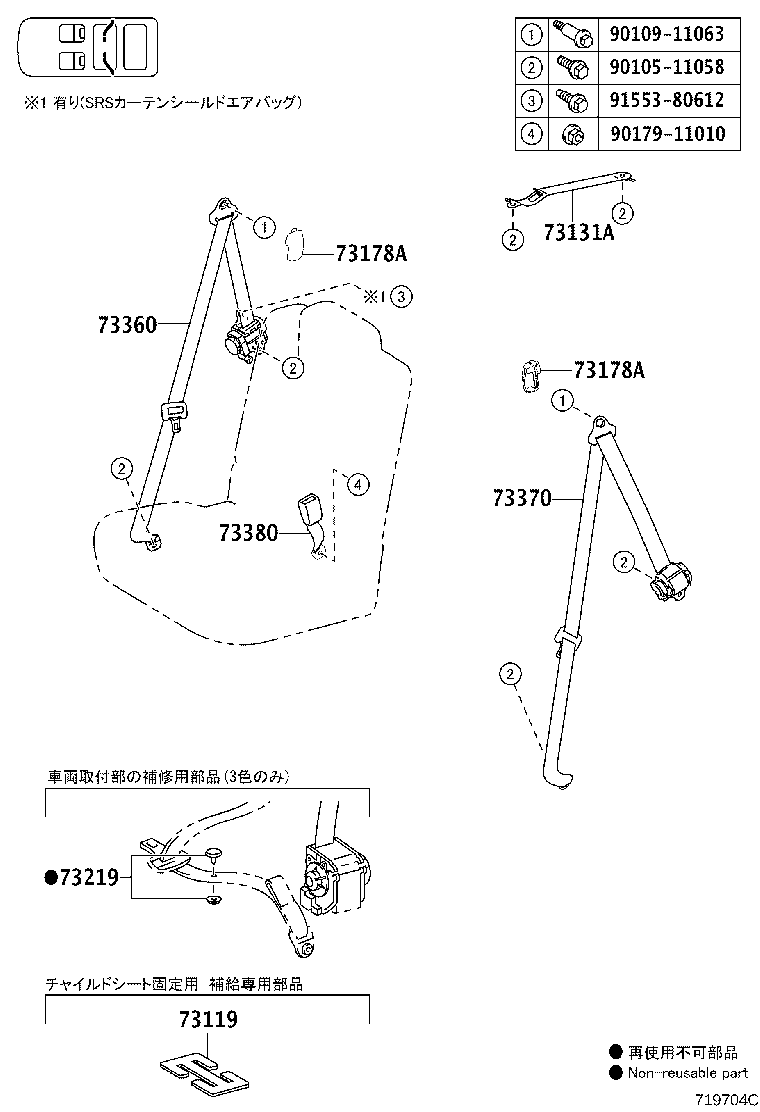

(1506- )NSP172
ﾘﾔNO.1ｼｰﾄ(ｳｪﾙｷｬﾌﾞ(LHｼｰﾄﾅｼ))
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
NCP175,NHP170,NSP17# |
1 | ||
| 73131A - BRACKET, SEAT BELT | ||||
| 73131-52030 |
NSP172..X ｳｪﾙｷｬﾌﾞ−車いす仕様車ﾀｲﾌﾟT(助手席側ﾘﾔｼｰﾄ無)&“Vﾊﾟｯｹｰｼﾞ”*(V) |
1 | ||
| 73131-52030 |
NSP172..X ｳｪﾙｷｬﾌﾞ−車いす仕様車ﾀｲﾌﾟV(助手席回転ﾁﾙﾄｼｰﾄ仕様,助手席側ﾘﾔｼｰﾄ無)&“Vﾊﾟｯｹｰｼﾞ”*(V) |
1 | ||
| 73131-52030 |
NSP172..X ｳｪﾙｷｬﾌﾞ−車いす仕様車ﾀｲﾌﾟU |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-42020B0 |
NCP175,NHP170,NSP17# LT.GRAY,TRIM0#,2# |
2 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-42020B0 |
NCP175,NHP170,NSP17# LT.GRAY,TRIM0#,2# |
2 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
NCP175,NHP170,NSP17# ﾌﾞﾗｯｸ |
1 | ||
| 73219-33020 |
NCP175,NHP170,NSP17# ｸﾞﾚｰ |
1 | ||
| 73219-33030 |
NCP175,NHP170,NSP17# ﾍﾞｰｼﾞｭ |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-52390C0 |
NCP175,NHP170,NSP17# BLACK,TRIM0#,2# |
1 | ||
| 73360-52450C0 |
NCP175,NHP170,NSP17# SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM0#,2# |
1 | ||
| 73360-52450C0 |
NSP172 ｳｪﾙｷｬﾌﾞ−車いす仕様車ﾀｲﾌﾟV(助手席回転ﾁﾙﾄｼｰﾄ仕様,助手席側ﾘﾔｼｰﾄ有)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA),BLACK,TRIM0#,2# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-52430C2 |
NSP172..X ｳｪﾙｷｬﾌﾞ−車いす仕様車ﾀｲﾌﾟU,BLACK,TRIM0#,2# |
1 | ||
| 73370-52440C0 |
NSP172 ｳｪﾙｷｬﾌﾞ−車いす仕様車ﾀｲﾌﾟV(助手席回転ﾁﾙﾄｼｰﾄ仕様,助手席側ﾘﾔｼｰﾄ有)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA),BLACK,TRIM0#,2# |
1 | ||
| 73370-52360C0 |
NCP175,NHP170,NSP17# BLACK,TRIM0#,2# |
1 | ||
| 73370-52440C0 |
NCP175,NHP170,NSP17# SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),BLACK,TRIM0#,2# |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-52230C0 |
NSP172 BLACK,TRIM0#,2# |
1 | ||
| 73380-52230C0 |
NSP172..X ｳｪﾙｷｬﾌﾞ−車いす仕様車ﾀｲﾌﾟV(助手席回転ﾁﾙﾄｼｰﾄ仕様,助手席側ﾘﾔｼｰﾄ無)&“Vﾊﾟｯｹｰｼﾞ”*(V),BLACK,TRIM2# |
1 | ||
| 73380-52230C0 |
NSP172..X ｳｪﾙｷｬﾌﾞ−車いす仕様車ﾀｲﾌﾟT(助手席側ﾘﾔｼｰﾄ無)&“Vﾊﾟｯｹｰｼﾞ”*(V),BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90109-11063 | ||||
| 90179-11010 | ||||
| 91553-80612 | ||||

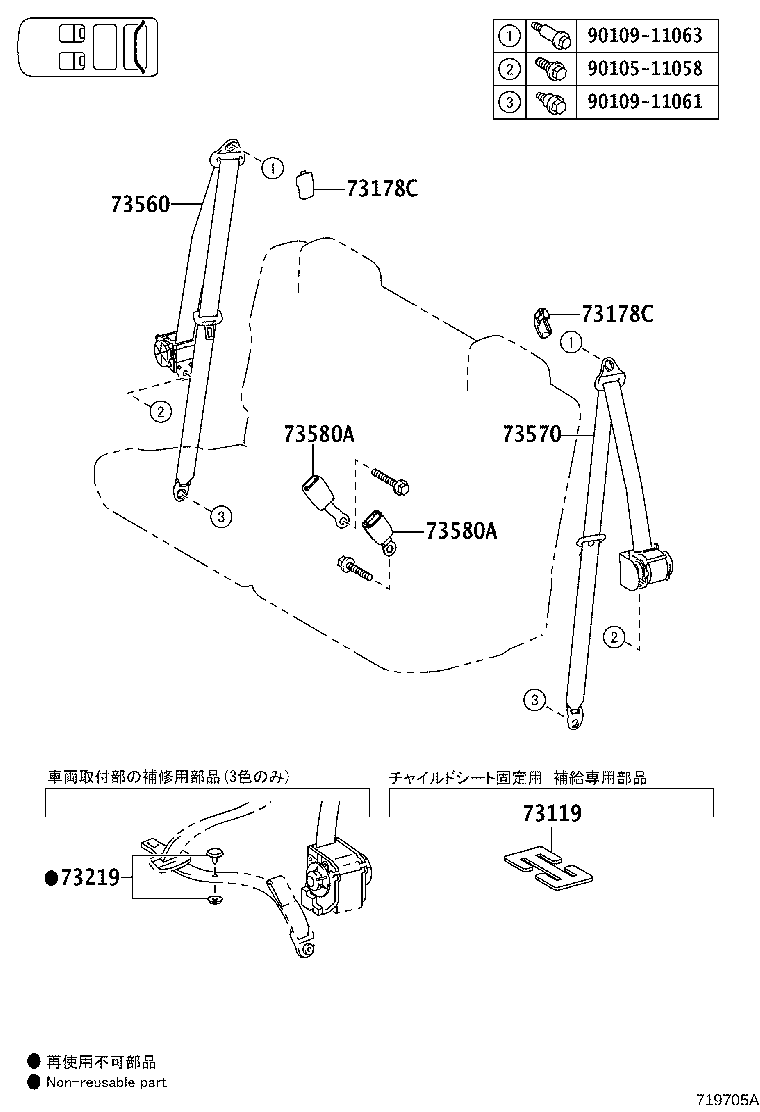

(1506- )
ﾘﾔNO.2ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
NCP175,NHP170,NSP17# |
1 | ||
| 73178C - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-42020B0 |
NCP175,NHP170,NSP17# LT.GRAY,TRIM0#,2# |
2 | ||
| 73178C - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-42020B0 |
NCP175,NHP170,NSP17# LT.GRAY,TRIM0#,2# |
2 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
NCP175,NHP170,NSP17# ﾌﾞﾗｯｸ |
1 | ||
| 73219-33020 |
NCP175,NHP170,NSP17# ｸﾞﾚｰ |
1 | ||
| 73219-33030 |
NCP175,NHP170,NSP17# ﾍﾞｰｼﾞｭ |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-52040C2 |
NSP172 BLACK,TRIM0#,2# |
1 | ||
| 73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER | ||||
| 73580-52050C0 |
NSP172 BLACK,TRIM0#,2# |
1 | ||
| 73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER | ||||
| 73580-52050C0 |
NSP172 BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90105-11058 | ||||
| 90109-11061 | ||||
| 90109-11063 | ||||

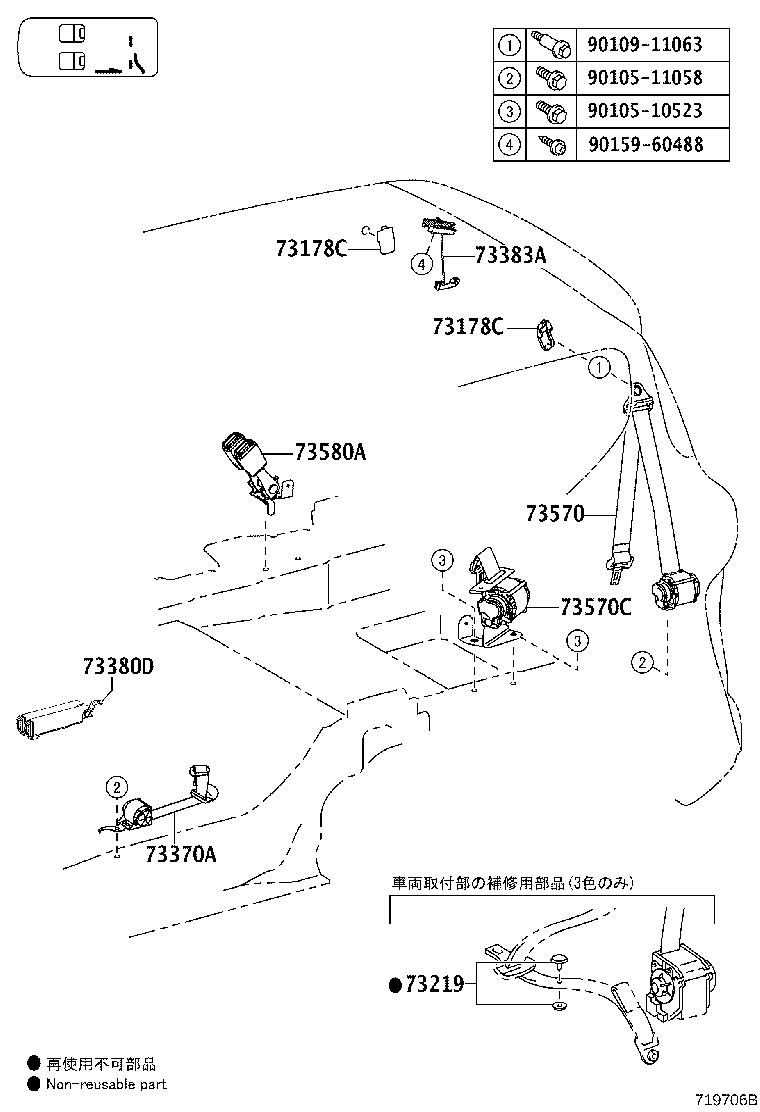

(1506- )NSP172
ｸﾙﾏｲｽﾖｳｼｰﾄﾍﾞﾙﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73178C - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-42020B0 |
NCP175,NHP170,NSP17# LT.GRAY,TRIM0#,2# |
2 | ||
| 73178C - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-42020B0 |
NCP175,NHP170,NSP17# LT.GRAY,TRIM0#,2# |
2 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
NCP175,NHP170,NSP17# ﾌﾞﾗｯｸ |
1 | ||
| 73219-33020 |
NCP175,NHP170,NSP17# ｸﾞﾚｰ |
1 | ||
| 73219-33030 |
NCP175,NHP170,NSP17# ﾍﾞｰｼﾞｭ |
1 | ||
| 73370A - BELT ASSY, WHEEL CHAIR REAR SEAT, OUTER LH | ||||
| 73370-52420C2 |
NSP172..X ｳｪﾙｷｬﾌﾞ−車いす仕様車ﾀｲﾌﾟU,BLACK,TRIM0#,2# |
1 | ||
| 73380D - BELT ASSY, REAR SEAT, INNER | ||||
| 73380-52240C2 |
NSP172..X ｳｪﾙｷｬﾌﾞ−車いす仕様車ﾀｲﾌﾟU,BLACK,TRIM0#,2# |
1 | ||
| 73383A - HOOK, RR SEAT BELT | ||||
| 73383-52010 |
NSP172 |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-52040C2 |
NSP172 BLACK,TRIM0#,2# |
1 | ||
| 73570C - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-52030C2 |
NSP172 BLACK,TRIM0#,2# |
1 | ||
| 73580A - BELT SUB ASSY, REAR NO.2 SEAT, INNER | ||||
| 73580-52050C0 |
NSP172 BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90105-10523 | ||||
| 90105-11058 | ||||
| 90109-11063 | ||||
| 90159-60488 | ||||
