NSP172G-MNXQB (2015)

Toyota Sienta

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1506-1809)

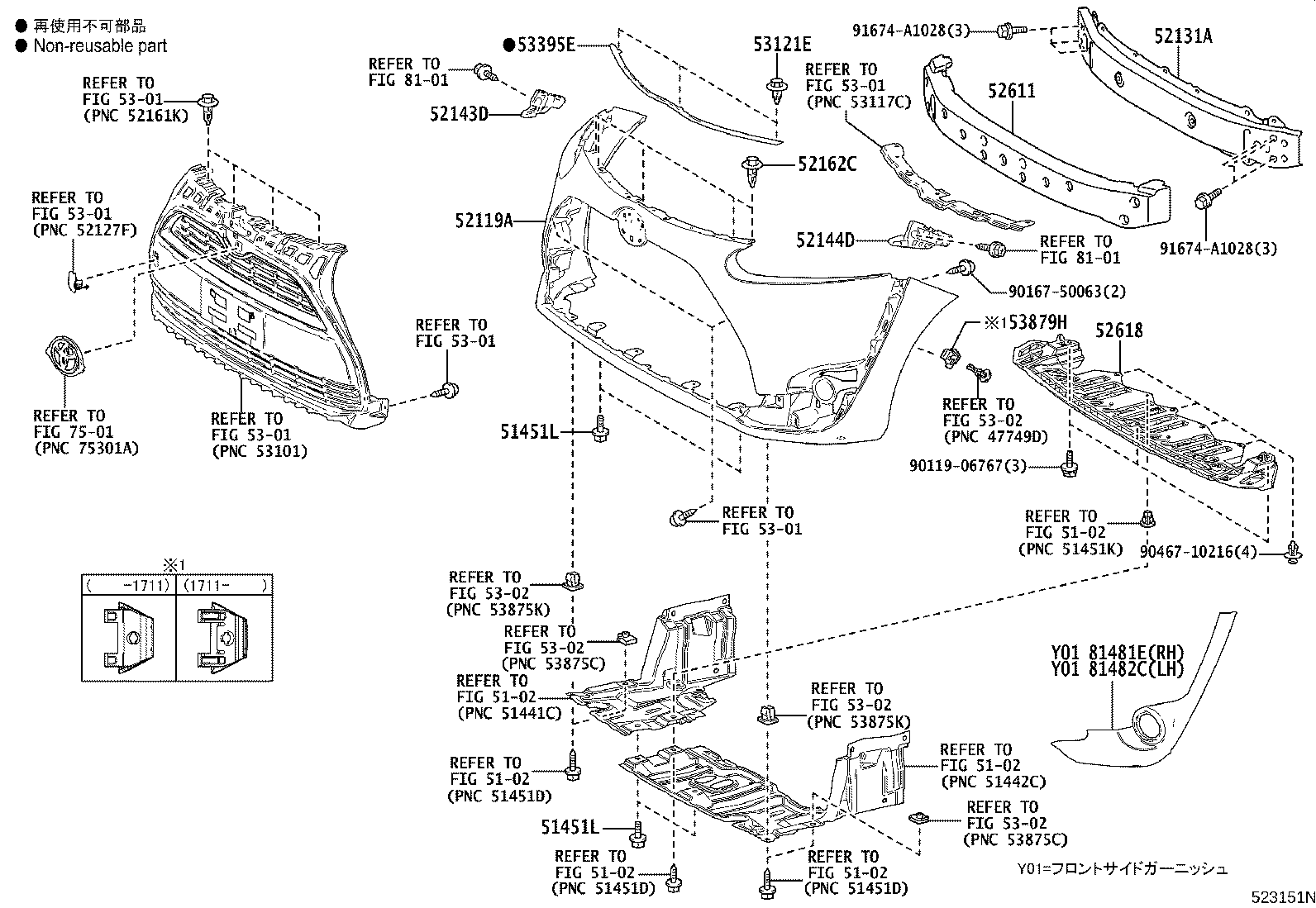

Click highlighted areas on diagram

diagram 5102 5102 5102 5102 5102 5102 51451L 51451L 52119A 52131A 52143D 52144D 52162C 52611 52618 5301 5301 5301 5301 5301 5301 5302 5302 5302 5302 5302 53121E 53395E 53879H 7501 8101 8101 81481E 81482C 9011906767 9016750063 9046710216 91674A1028 91674A1028
Part # Description Qty Price
51451L - BOLT, NO.1
90119-06991

NCP175,NHP170,NSP17#

 4
51451L - BOLT, NO.1
90119-06991

NCP175,NHP170,NSP17#

 4
52119A - COVER, FRONT BUMPER
52119-52890E1

NCP175,NHP170,NSP17#

VINTAGE BROWN PEARL CS.,4X4

 1
52119-52890B0

NCP175,NHP170,NSP17#

SILVER ME.,1F7

 1
52119-52890C0

NCP175,NHP170,NSP17#

BLACK MC.,209

 1
52119-52A00A0

NCP175,NHP170,NSP17#

ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ),WHITE PEARL CS.,070

 1
52119-52890J0

NCP175,NHP170,NSP17#

BLUE ME.,8T7

 1
52119-52A00B0

NCP175,NHP170,NSP17#

ﾍｯﾄﾞﾗﾝﾌﾟ−LED,SILVER ME.,1F7

 1
52119-52890A0

NSP172

SUPER WHITE 2,040

 1
52119-52A00A1

NSP172

ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ),SUPER WHITE 2,040

 1
52119-52A00A1

NSP172

ﾍｯﾄﾞﾗﾝﾌﾟ−LED,SUPER WHITE 2,040

 1
52119-52A00B0

NCP175,NHP170,NSP17#

ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ),SILVER ME.,1F7

 1
52119-52890A1

NCP175,NHP170,NSP17#

WHITE PEARL CS.,070

 1
52119-52A00E0

NCP175,NHP170,NSP17#

ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ),VINTAGE BROWN PEARL CS.,4X4

 1
52119-52A00A0

NCP175,NHP170,NSP17#

ﾍｯﾄﾞﾗﾝﾌﾟ−LED,WHITE PEARL CS.,070

 1
52119-52A00C0

NCP175,NHP170,NSP17#

ﾍｯﾄﾞﾗﾝﾌﾟ−LED,BLACK MC.,209

 1
52119-52A00E0

NCP175,NHP170,NSP17#

ﾍｯﾄﾞﾗﾝﾌﾟ−LED,VINTAGE BROWN PEARL CS.,4X4

 1
52119-52891A0

NSP172

SUPER WHITE 2,040

 1
52119-52A00J0

NCP175,NHP170,NSP17#

ﾍｯﾄﾞﾗﾝﾌﾟ−LED,BLUE ME.,8T7

 1
52119-52A00C0

NCP175,NHP170,NSP17#

ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ),BLACK MC.,209

 1
52119-52A00J0

NCP175,NHP170,NSP17#

ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ),BLUE ME.,8T7

 1
52119-52891A1

NCP175,NHP170,NSP17#

WHITE PEARL CS.,070

 1
52119-52891J0

NCP175,NHP170,NSP17#

BLUE ME.,8T7

 1
52119-52891E1

NCP175,NHP170,NSP17#

VINTAGE BROWN PEARL CS.,4X4

 1
52119-52A01A0

NCP175,NHP170,NSP17#

ﾍｯﾄﾞﾗﾝﾌﾟ−LED,WHITE PEARL CS.,070

 1
52119-52891B0

NCP175,NHP170,NSP17#

SILVER ME.,1F7

 1
52119-52A01C0

NCP175,NHP170,NSP17#

ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ),BLACK MC.,209

 1
52119-52A01A1

NSP172

ﾍｯﾄﾞﾗﾝﾌﾟ−LED,SUPER WHITE 2,040

 1
52119-52A01A0

NCP175,NHP170,NSP17#

ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ),WHITE PEARL CS.,070

 1
52119-52A01A1

NSP172

ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ),SUPER WHITE 2,040

 1
52119-52A01C0

NCP175,NHP170,NSP17#

ﾍｯﾄﾞﾗﾝﾌﾟ−LED,BLACK MC.,209

 1
52119-52891C0

NCP175,NHP170,NSP17#

BLACK MC.,209

 1
52119-52A01E0

NCP175,NHP170,NSP17#

ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ),VINTAGE BROWN PEARL CS.,4X4

 1
52119-52A01B0

NCP175,NHP170,NSP17#

ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ),SILVER ME.,1F7

 1
52119-52A01B0

NCP175,NHP170,NSP17#

ﾍｯﾄﾞﾗﾝﾌﾟ−LED,SILVER ME.,1F7

 1
52119-52A01E0

NCP175,NHP170,NSP17#

ﾍｯﾄﾞﾗﾝﾌﾟ−LED,VINTAGE BROWN PEARL CS.,4X4

 1
52119-52A01J0

NCP175,NHP170,NSP17#

ﾍｯﾄﾞﾗﾝﾌﾟ−LED,BLUE ME.,8T7

 1
52119-52A01J0

NCP175,NHP170,NSP17#

ﾍｯﾄﾞﾗﾝﾌﾟ−LED & 有り(ｵｰﾄﾏﾁｯｸﾊｲﾋﾞｰﾑ),BLUE ME.,8T7

 1
52131A - REINFORCEMENT, FRONT BUMPER
52131-52250

NCP175,NHP170,NSP17#

 1
52143D - BRACKET, FRONT BUMPER SIDE, RH
52143-52220

NCP175,NHP170,NSP17#

 1
52144D - BRACKET, FRONT BUMPER SIDE, LH
52144-52230

NCP175,NHP170,NSP17#

 1
52162C - PIECE, FRONT BUMPER
52161-16010

NCP175,NHP170,NSP17#

 5
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-52210

NCP175,NHP170,NSP17#

 1
52618 - ABSORBER, FRONT BUMPER, LOWER
52618-52100

NCP175,NHP170,NSP17#

 1
53121E - CLIP(FOR FRONT BUMPER), NO.1
90467-05063C0

NCP175,NHP170,NSP17#

BLACK

 3
53395E - SEAL, HOOD TO FRONT END PANEL
53395-52080

NCP175,NHP170,NSP17#

 1
53879H - RETAINER, FRONT FENDER LINER
53879-30050

NCP175,NHP170,NSP17#

 2
53879-30060

NCP175,NHP170,NSP17#

 2
81481E - COVER, FOG LAMP, RH
81481-52580

NCP175,NHP170,NSP17#

 1
81482C - COVER, FOG LAMP, LH
81482-52490

NCP175,NHP170,NSP17#

 1
Common parts
90119-06767
90167-50063
90467-10216
91674-A1028
Linked diagrams
5102
5301
5302
7501
8101
