NSP172G-MNXQB (2018)
Toyota Sienta
(1809- )

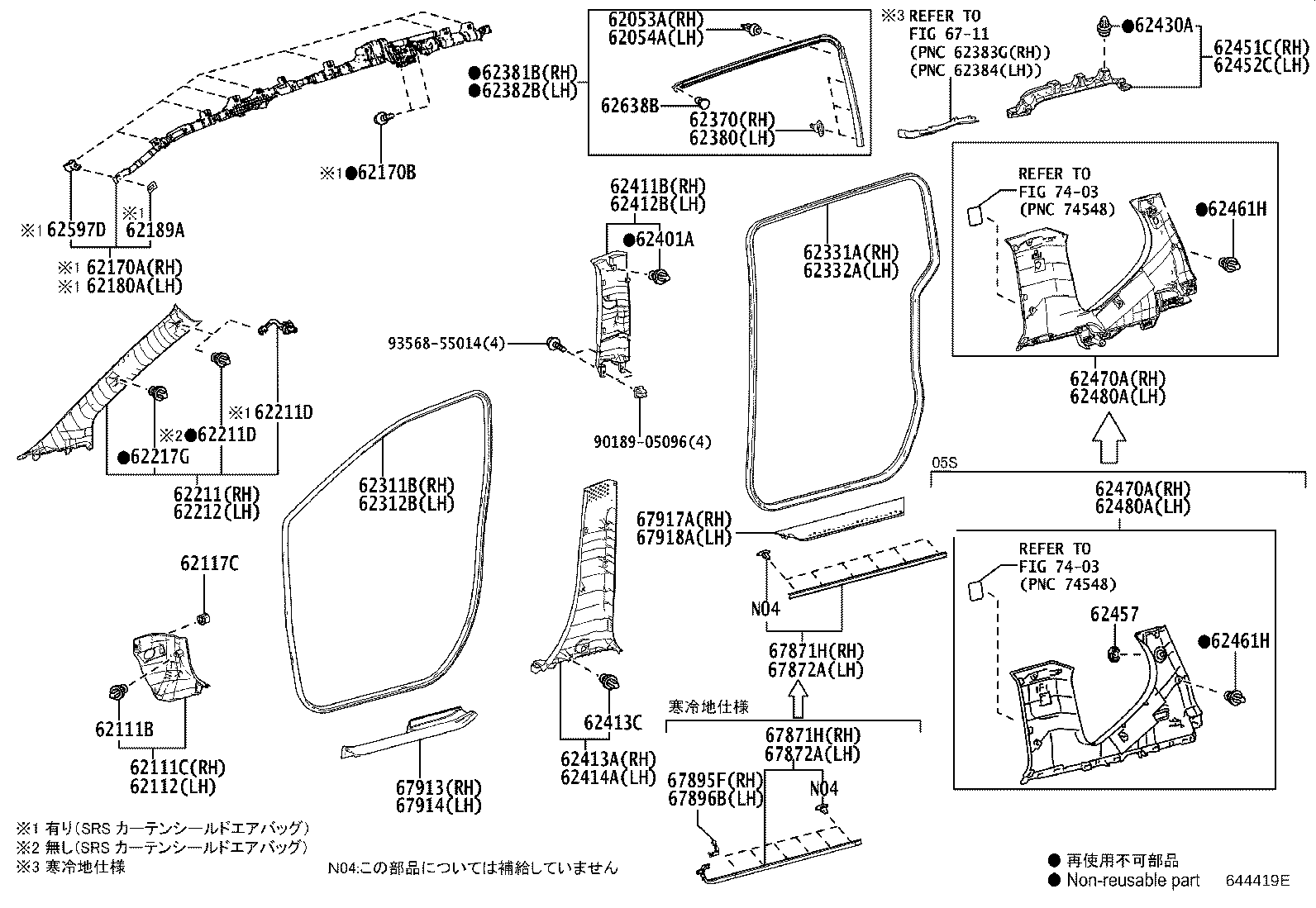

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62053A - RETAINER SUB-ASSY, ROOF SIDE WEATHERSTRIP, REAR RH | ||||
| 67867-48030 |
NCP175,NHP170,NSP17# |
1 | ||
| 62054A - RETAINER SUB-ASSY, ROOF SIDE WEATHERSTRIP, REAR LH | ||||
| 67867-48030 |
NCP175,NHP170,NSP17# |
1 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-10161 |
NCP175,NHP170,NSP17# |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-52270C0 |
NCP175,NHP170,NSP17#..WKG,WKX,X BLACK,TRIM0#,2# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-52420C0 |
NCP175,NHP170,NSP17#..WKG,WKX,X BLACK,TRIM0#,2# |
1 | ||
| 62117C - CLIP, NO.2(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
NCP175,NHP170,NSP17# |
2 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-52130 |
NCP175,NHP170,NSP17# SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 62170-52130 |
NSP172 ｳｪﾙｷｬﾌﾞ−車いす仕様車ﾀｲﾌﾟV(助手席回転ﾁﾙﾄｼｰﾄ仕様,助手席側ﾘﾔｼｰﾄ有)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
NSP172 ｳｪﾙｷｬﾌﾞ−車いす仕様車ﾀｲﾌﾟV(助手席回転ﾁﾙﾄｼｰﾄ仕様,助手席側ﾘﾔｼｰﾄ有)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
4 | ||
| 90119-06869 |
NCP175,NHP170,NSP17# SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
4 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-52110 |
NCP175,NHP170,NSP17# SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 62180-52110 |
NSP172 ｳｪﾙｷｬﾌﾞ−車いす仕様車ﾀｲﾌﾟV(助手席回転ﾁﾙﾄｼｰﾄ仕様,助手席側ﾘﾔｼｰﾄ有)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| 62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP | ||||
| 62189-42010 |
NSP172 ｳｪﾙｷｬﾌﾞ−車いす仕様車ﾀｲﾌﾟV(助手席回転ﾁﾙﾄｼｰﾄ仕様,助手席側ﾘﾔｼｰﾄ有)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
2 | ||
| 62189-42010 |
NCP175,NHP170,NSP17# SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-52360B0 |
NCP175,NHP170,NSP17#..WKG,WKX,X LT.GRAY,TRIM0#,2# |
1 | ||
| 62211-52370B0 |
NCP175,NHP170,NSP17#..WKG,WKX,X SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),LT.GRAY,TRIM0#,2# |
1 | ||
| 62211-52370B0 |
NCP175,NHP170,NSP17#..WKG,WKX,X SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA),LT.GRAY,TRIM0#,2# |
1 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 62217-24020 |
NCP175,NHP170,NSP17#..G,WKG,WKX,X SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
2 | ||
| 90467-10161 |
NCP175,NHP170,NSP17# |
2 | ||
| 62217-24020 |
NCP175,NHP170,NSP17# SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 62217-24020 |
NCP175,NHP170,NSP17#..G,WKG,WKX,X SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
2 | ||
| 90467-10161 |
NCP175,NHP170,NSP17# |
2 | ||
| 62217-24020 |
NCP175,NHP170,NSP17# SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-52360B0 |
NCP175,NHP170,NSP17#..WKG,WKX,X LT.GRAY,TRIM0#,2# |
1 | ||
| 62212-52380B0 |
NCP175,NHP170,NSP17#..WKG,WKX,X SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),LT.GRAY,TRIM0#,2# |
1 | ||
| 62212-52380B0 |
NCP175,NHP170,NSP17#..WKG,WKX,X SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA),LT.GRAY,TRIM0#,2# |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 90467-10161 |
NCP175,NHP170,NSP17# |
2 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-52250 |
NCP175,NHP170,NSP17# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-52210 |
NCP175,NHP170,NSP17# |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-52130 |
NCP175,NHP170,NSP17# |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-52150 |
NCP175,NHP170,NSP17# |
1 | ||
| 62370 - RETAINER ASSY, ROOF SIDE RAIL WEATHERSTRIP, RH | ||||
| 67867-12150 |
NCP175,NHP170,NSP17# |
3 | ||
| 62380 - RETAINER ASSY, ROOF SIDE RAIL WEATHERSTRIP, LH | ||||
| 67867-12150 |
NCP175,NHP170,NSP17# |
3 | ||
| 62381B - WEATHERSTRIP, ROOF SIDE RAIL, RH | ||||
| 62381-52040 |
NCP175,NHP170,NSP17# |
1 | ||
| 62382B - WEATHERSTRIP, ROOF SIDE RAIL, LH | ||||
| 62382-52040 |
NCP175,NHP170,NSP17# |
1 | ||
| 62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER) | ||||
| 90467-10161 |
NCP175,NHP170,NSP17# |
2 | ||
| 62411B - GARNISH, CENTER PILLAR, UPPER RH | ||||
| 62411-52230B0 |
NCP175,NHP170,NSP17#..WKG,WKX,X LT.GRAY,TRIM0#,2# |
1 | ||
| 62412B - GARNISH, CENTER PILLAR, UPPER LH | ||||
| 62412-52230B0 |
NCP175,NHP170,NSP17#..WKG,WKX,X LT.GRAY,TRIM0#,2# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-52190C0 |
NCP175,NHP170,NSP17#..WKG,WKX,X BLACK,TRIM0#,2# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
NCP175,NHP170,NSP17# |
10 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-52180C0 |
NCP175,NHP170,NSP17#..WKG,WKX,X BLACK,TRIM0#,2# |
1 | ||
| 62430A - CLIP, ROOF SIDE RAIL GARNISH | ||||
| 90467-10161 |
NCP175,NHP170,NSP17# |
6 | ||
| 62451C - GARNISH, ROOF SIDE RAIL, REAR RH | ||||
| 62451-52030B0 |
NCP175,NHP170,NSP17#..WKG,WKX,X LT.GRAY,TRIM0#,2# |
1 | ||
| 62452C - GARNISH, ROOF SIDE RAIL, REAR LH | ||||
| 62452-52040B0 |
NCP175,NHP170,NSP17#..WKG,WKX,X LT.GRAY,TRIM0#,2# |
1 | ||
| 62461H - CLIP (FOR ROOF SIDE INNER GARNISH) | ||||
| 90467-10161 |
NCP175,NHP170,NSP17#..G,GCERO,WKG,WKX,X |
14 | ||
| 62461H - CLIP (FOR ROOF SIDE INNER GARNISH) | ||||
| 90467-10161 |
NCP175,NHP170,NSP17#..G,GCERO,WKG,WKX,X |
14 | ||
| 62470A - GARNISH ASSY, ROOF SIDE, INNER RH | ||||
| 62470-52070B0 |
NCP175,NHP170,NSP17#..WKG,WKX,X LT.GRAY,TRIM0#,2# |
1 | ||
| 62470-52080B0 |
NCP175,NHP170,NSP17#..WKG,X SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA),LT.GRAY,TRIM0#,2# |
1 | ||
| 62470-52080B0 |
NCP175,NHP170,NSP17#..WKG,WKX,X SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),LT.GRAY,TRIM0#,2# |
1 | ||
| 62470A - GARNISH ASSY, ROOF SIDE, INNER RH | ||||
| 62470-52070B0 |
NCP175,NHP170,NSP17#..WKG,WKX,X LT.GRAY,TRIM0#,2# |
1 | ||
| 62470-52080B0 |
NCP175,NHP170,NSP17#..WKG,X SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA),LT.GRAY,TRIM0#,2# |
1 | ||
| 62470-52080B0 |
NCP175,NHP170,NSP17#..WKG,WKX,X SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),LT.GRAY,TRIM0#,2# |
1 | ||
| 62480A - GARNISH ASSY, ROOF SIDE, INNER LH | ||||
| 62480-52110B0 |
NCP175,NHP170,NSP17#..WKG,WKX,X SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),LT.GRAY,TRIM0#,2# |
1 | ||
| 62480-52110B0 |
NCP175,NHP170,NSP17#..WKG,X SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA),LT.GRAY,TRIM0#,2# |
1 | ||
| 62480-52100B0 |
NCP175,NHP170,NSP17#..WKG,WKX,X LT.GRAY,TRIM0#,2# |
1 | ||
| 62480A - GARNISH ASSY, ROOF SIDE, INNER LH | ||||
| 62480-52110B0 |
NCP175,NHP170,NSP17#..WKG,WKX,X SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),LT.GRAY,TRIM0#,2# |
1 | ||
| 62480-52110B0 |
NCP175,NHP170,NSP17#..WKG,X SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA),LT.GRAY,TRIM0#,2# |
1 | ||
| 62480-52100B0 |
NCP175,NHP170,NSP17#..WKG,WKX,X LT.GRAY,TRIM0#,2# |
1 | ||
| 62597D - CLIP | ||||
| 90467-18017 |
NCP175,NHP170,NSP17# SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
16 | ||
| 90467-18017 |
NSP172 ｳｪﾙｷｬﾌﾞ−車いす仕様車ﾀｲﾌﾟV(助手席回転ﾁﾙﾄｼｰﾄ仕様,助手席側ﾘﾔｼｰﾄ有)&SRSｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
16 | ||
| 62638B - CLIP | ||||
| 90467-06084 |
NCP175,NHP170,NSP17# |
2 | ||
| 67871H - WEATHERSTRIP, SLIDE DOOR, NO.1 RH | ||||
| 75631-52040 |
NCP175,NHP170,NSP17# |
1 | ||
| 75631-52050 |
NCP175,NHP170,NSP17# 寒冷地仕様 |
1 | ||
| 67871H - WEATHERSTRIP, SLIDE DOOR, NO.1 RH | ||||
| 75631-52040 |
NCP175,NHP170,NSP17# |
1 | ||
| 75631-52050 |
NCP175,NHP170,NSP17# 寒冷地仕様 |
1 | ||
| 67872A - WEATHERSTRIP, SLIDE DOOR, NO.1 LH | ||||
| 75641-52080 |
NCP175,NHP170,NSP17# |
1 | ||
| 75641-52090 |
NCP175,NHP170,NSP17# 寒冷地仕様 |
1 | ||
| 67872A - WEATHERSTRIP, SLIDE DOOR, NO.1 LH | ||||
| 75641-52080 |
NCP175,NHP170,NSP17# |
1 | ||
| 75641-52090 |
NCP175,NHP170,NSP17# 寒冷地仕様 |
1 | ||
| 67895F - WEATHERSTRIP, SLIDE DOOR, NO.3 RH | ||||
| 67895-52011 |
NCP175,NHP170,NSP17# 寒冷地仕様 |
1 | ||
| 67896B - WEATHERSTRIP, SLIDE DOOR, NO.3 LH | ||||
| 67896-52011 |
NCP175,NHP170,NSP17# 寒冷地仕様 |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-52200C0 |
NCP175,NHP170,NSP17#..WKG,WKX,X BLACK,TRIM0#,2# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-52310C0 |
NSP172 ｳｪﾙｷｬﾌﾞ−車いす仕様車ﾀｲﾌﾟV(助手席回転ﾁﾙﾄｼｰﾄ仕様,助手席側ﾘﾔｼｰﾄ有),BLACK,TRIM0#,2# |
1 | ||
| 67914-52330C0 |
NCP175,NHP170,NSP17#..WKG,WKX,X BLACK,TRIM0#,2# |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-52230C0 |
NCP175,NHP170,NSP17#..WKG,WKX,X BLACK,TRIM0#,2# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-52230C0 |
NCP175,NHP170,NSP17#..WKG,WKX,X BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90189-05096 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 6711 | ||||
| 7403 | ||||
