NSP172G-MNXNB (2015)

Toyota Sienta

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )NHP170,NSP17#

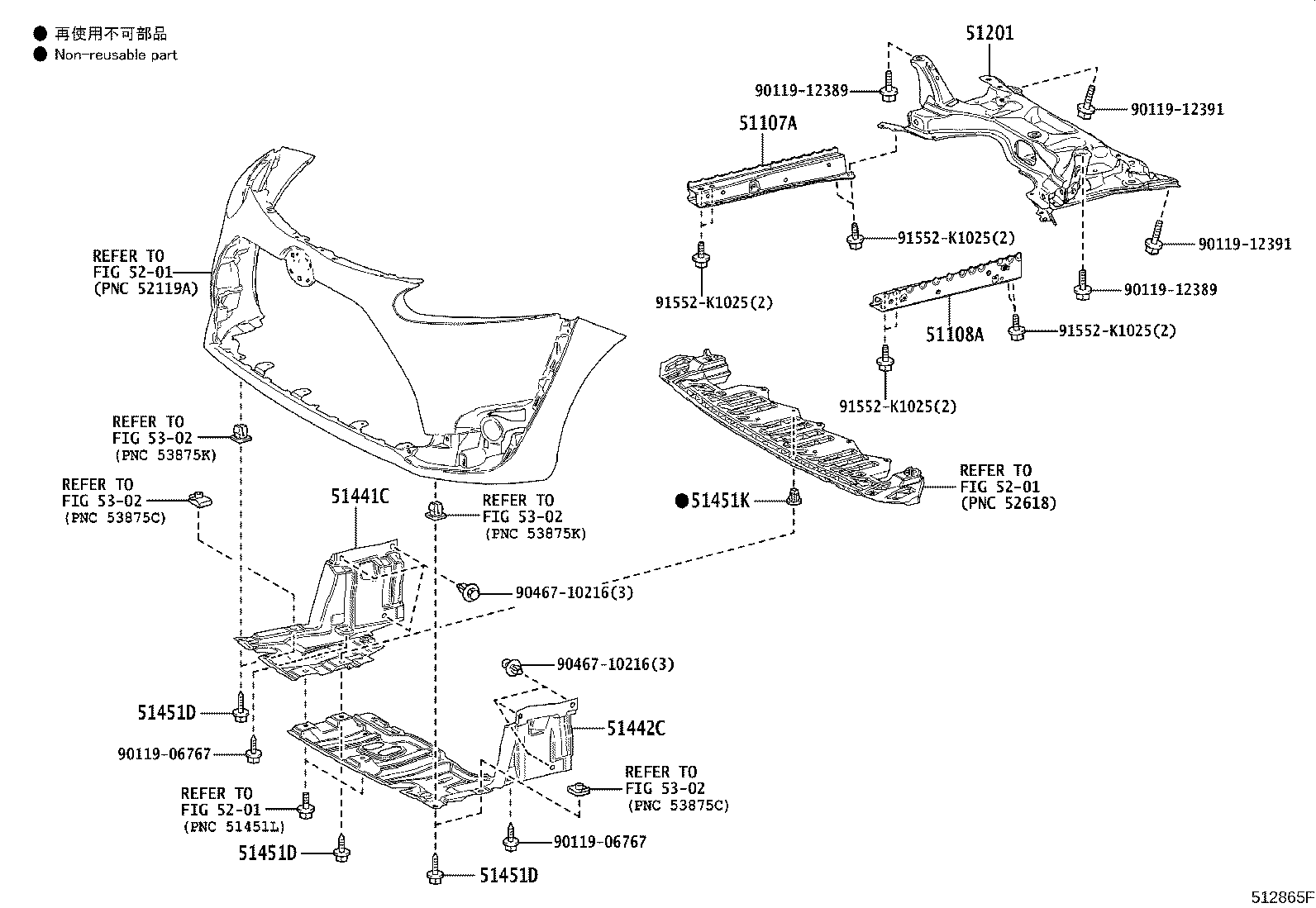

Click highlighted areas on diagram

diagram 51107A 51108A 51201 51441C 51442C 51451D 51451D 51451D 51451K 5201 5201 5201 5302 5302 5302 5302 9011906767 9011906767 9011912389 9011912389 9011912391 9011912391 9046710216 9046710216 91552K1025 91552K1025 91552K1025 91552K1025
Part # Description Qty Price
51107A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH
51107-52010

NHP170,NSP17#

 1
51108A - REINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH
51108-52010

NHP170,NSP17#

 1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-52160

NHP170,NSP17#

 1
51441C - COVER, ENGINE UNDER, RH
51441-52290

NHP170,NSP17#

 1
51442C - COVER, ENGINE UNDER, LH
51442-52170

NHP170,NSP17#

 1
51451D - SCREW, NO.1
90159-60431

NCP175,NHP170,NSP17#

 5
51451D - SCREW, NO.1
90159-60431

NCP175,NHP170,NSP17#

 5
51451D - SCREW, NO.1
90159-60431

NCP175,NHP170,NSP17#

 5
51451K - GROMMET, SCREW, NO.1
90189-06230

NCP175,NHP170,NSP17#

 1
90189-06230

NCP175,NHP170,NSP17#

 1
Common parts
90119-06767
90119-12389
90119-12391
90467-10216
91552-K1025
Linked diagrams
5201
5302
