NSP172G-MNXNB (2015)

Toyota Sienta

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(1506- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price

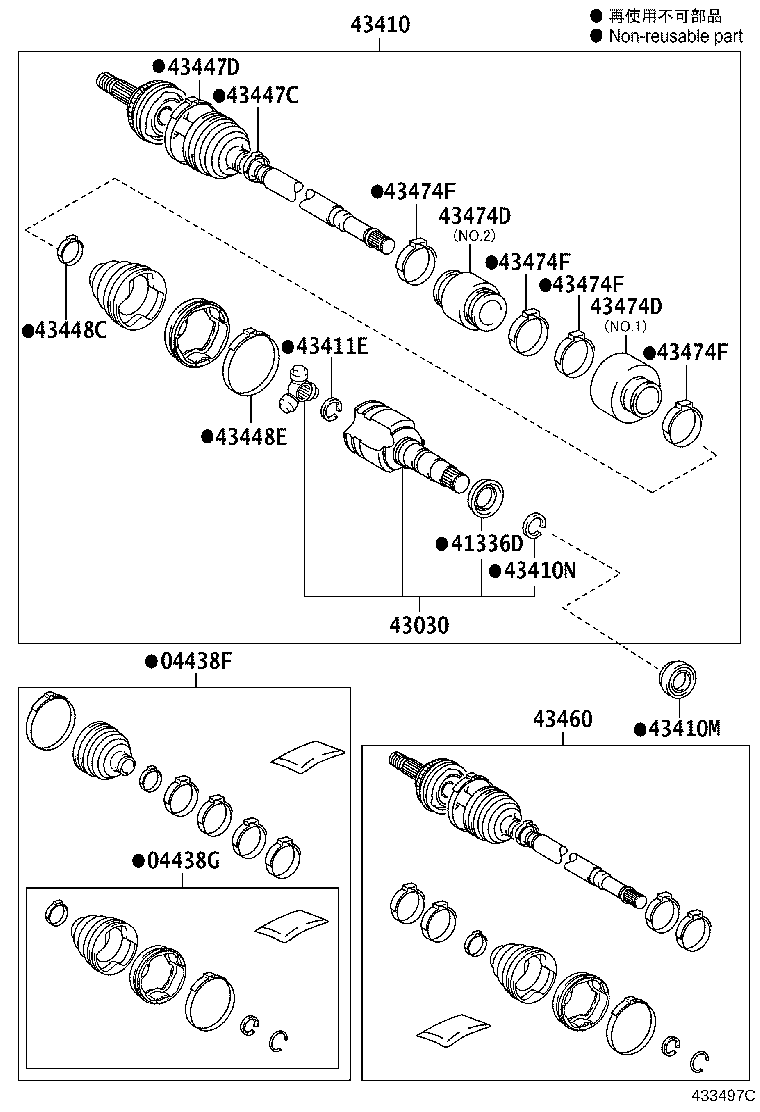

ILLUST NO. 1 OF 3(1506- )NSP17#

Click highlighted areas on diagram

ﾐｷﾞｶﾞﾜ

diagram 04438F 04438G 41336D 43030 43410 43410M 43410N 43411E 43447C 43447D 43448C 43448E 43460 43474D 43474D 43474F 43474F 43474F 43474F
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04427-52A40

NSP17#

 1
04427-52A41

NSP17#

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04437-12371

NSP17#

 1
04437-12372

NSP17#

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-12010

NSP17#

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43040-12150

NSP17#

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-52390

NSP17#

 1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90311-34046

NSP17#

 1
90311-34050

NSP17#

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90521-26004

NSP17#

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-12070

NCP175,NHP170,NSP17#

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12230

NCP175,NHP170,NSP17#

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-12240

NCP175,NHP170,NSP17#

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12230

NCP175,NHP170,NSP17#

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12180

NCP175,NHP170,NSP17#

 1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-59875

NSP17#

 1
43460-59876

NSP17#

 1
43474D - DAMPER, FRONT DRIVE SHAFT, RH
43474-52030

NSP17#

NO.1:ｲﾗｽﾄ参照

 1
43474-52080

NSP17#

NO.2:ｲﾗｽﾄ参照

 1
43474D - DAMPER, FRONT DRIVE SHAFT, RH
43474-52030

NSP17#

NO.1:ｲﾗｽﾄ参照

 1
43474-52080

NSP17#

NO.2:ｲﾗｽﾄ参照

 1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010

NSP17#

 4
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010

NSP17#

 4
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010

NSP17#

 4
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010

NSP17#

 4

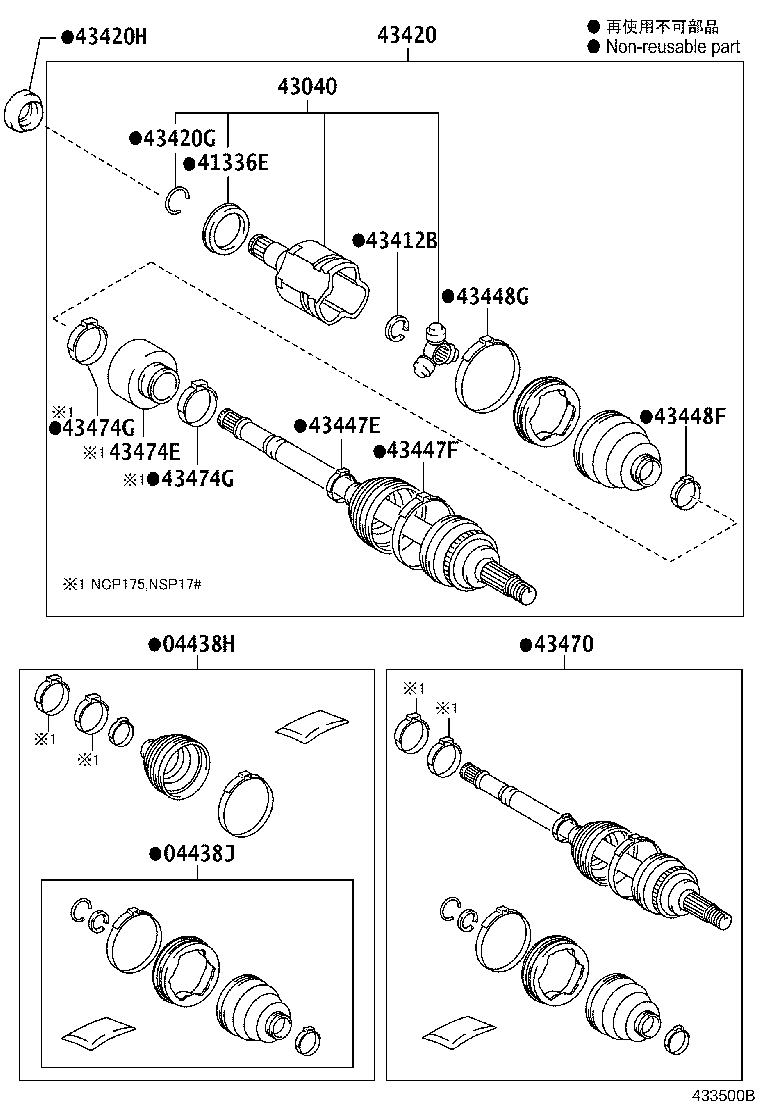

ILLUST NO. 2 OF 3(1506- )

Click highlighted areas on diagram

ﾋﾀﾞﾘｶﾞﾜ

diagram 04438H 04438J 41336E 43040 43412B 43420 43420G 43420H 43447E 43447F 43448F 43448G 43470 43474E 43474G 43474G
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04427-12633

NSP17#

 1
04427-12632

NSP17#

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04437-12372

NSP17#

 1
04437-12371

NSP17#

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-12010

NSP17#

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-12150

NSP17#

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-12070

NCP175,NHP170,NSP17#

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-52330

NSP17#

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-26004

NSP17#

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-34043

NSP17#

 1
90311-34051

NSP17#

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12230

NCP175,NHP170,NSP17#

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-12240

NCP175,NHP170,NSP17#

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12230

NCP175,NHP170,NSP17#

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12180

NCP175,NHP170,NSP17#

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-79175

NSP17#

 1
43470-79176

NSP17#

 1
43474E - DAMPER, FRONT DRIVE SHAFT, LH
43474-12200

NCP175,NSP17#

 1
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-14010

NCP175,NSP17#

 2
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-14010

NCP175,NSP17#

 2
