NSP170G-MWXNB (2015)

Toyota Sienta

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1506- )

Click highlighted areas on diagram

ﾏﾆｭｱﾙﾋｰﾀｺﾝﾄﾛｰﾙﾊﾟﾈﾙ

diagram 55901A 55901D 55902E 55902G 55903A 55903B 55906A 55908A 55909A 55911A 827111E370 9046705171
Part # Description Qty Price
55901A - BULB, HEATER CONTROL SUB-ASSY, NO.1
90010-01142

NCP175,NSP17#..X

 1
55901D - CONTROL SUB-ASSY, HEATER, NO.1
55901-52370

NCP175,NSP17#..X

 1
55902E - CONTROL SUB-ASSY, HEATER, NO.2
55902-52210

NCP175,NSP17#..X

 1
55902G - BULB, HEATER CONTROL SUB-ASSY, NO.2
90010-01142

NCP175,NSP17#..X

 1
55903A - CONTROL SUB-ASSY, HEATER, NO.3
55903-52700

NCP175,NSP17#..X

 1
55903-52640

NCP175,NSP17#..X

寒冷地仕様

 1
55903B - BULB, HEATER CONTROL SUB-ASSY, NO.3
90010-01142

NCP175,NSP17#..X

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-52132

NCP175,NSP17#..X

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-52130

NCP175,NSP17#..X

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-52140

NCP175,NSP17#..X

 1
55911A - BASE, HEATER CONTROL
55911-52030

NCP175,NSP17#..X

 1
Common parts
82711-1E370
90467-05171

ILLUST NO. 2 OF 3(1506- )

Click highlighted areas on diagram

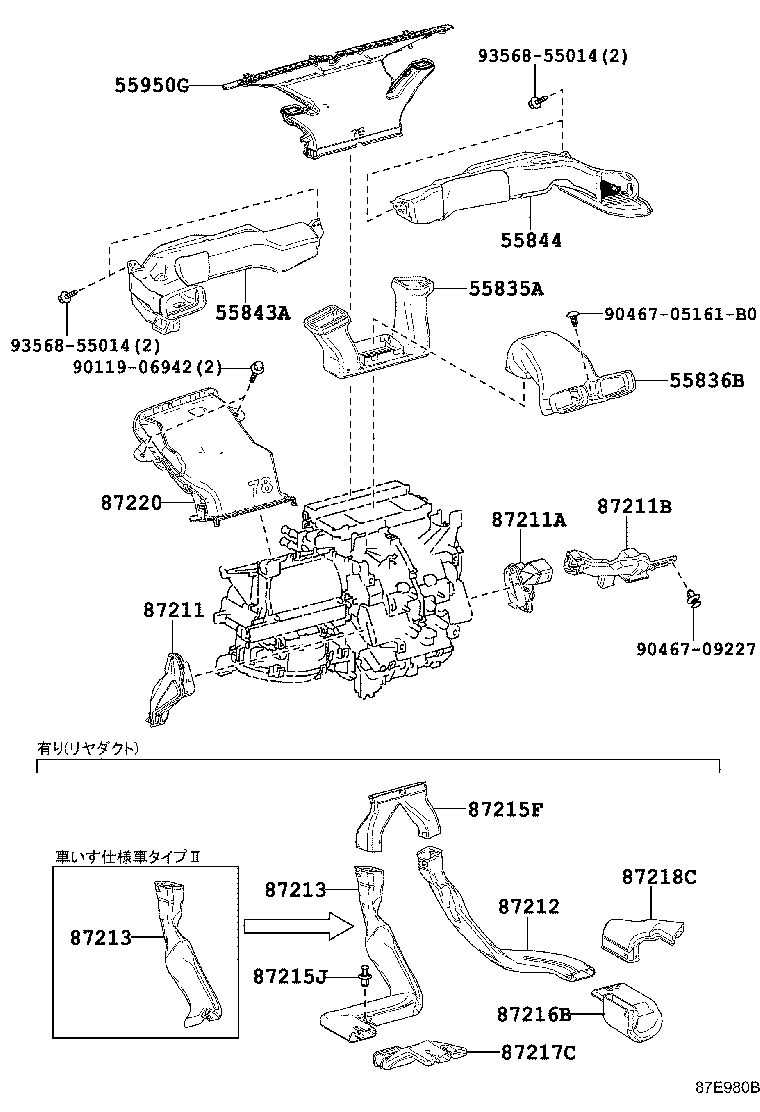

ｴｱﾀﾞｸﾄ

diagram 55835A 55836B 55843A 55844 55950G 87211 87211A 87211B 87212 87213 87213 87215F 87215J 87216B 87217C 87218C 87220 9011906942 9046705161B0 9046709227 9356855014 9356855014
Part # Description Qty Price
55835A - DUCT, HEATER TO REGISTER, CENTER
55835-52080

NCP175,NHP170,NSP17#

 1
55836B - DUCT, HEATER TO RESISTER, CENTER, NO.2
55836-52100

NCP175,NHP170,NSP17#

 1
55843A - DUCT, HEATER TO REGISTER, NO.1
55086-52030

NCP175,NHP170,NSP17#

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55084-52130

NCP175,NHP170,NSP17#

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-52230

NCP175,NHP170,NSP17#

 1
87211 - DUCT, AIR, NO.1
87211-52200

NCP175,NHP170,NSP17#

 1
87211A - DUCT, AIR, NO.2
87211-52191

NCP175,NHP170,NSP17#

 1
87211-52192

NCP175,NHP170,NSP17#

 1
87211B - DUCT, AIR, NO.3
87211-52211

NCP175,NHP170,NSP17#

 1
87212 - DUCT, AIR, REAR NO.1
87212-52140

NHP170,NSP17#

寒冷地仕様

 1
87213 - DUCT, AIR, REAR NO.2
87213-52080

NHP170,NSP17#

寒冷地仕様

 1
87213 - DUCT, AIR, REAR NO.2
87213-52080

NHP170,NSP17#

寒冷地仕様

 1
87215F - DUCT, AIR, REAR NO.3
87215-52050

NHP170,NSP17#

寒冷地仕様

 1
87215J - CLIP (FOR AIR REAR DUCT)
90467-07214

NHP170,NSP17#

寒冷地仕様

 1
87216B - DUCT, AIR, REAR NO.4
87216-52070

NCP175,NHP170,NSP17#

寒冷地仕様

 1
87217C - DUCT, AIR, REAR NO.5
87217-52050

NCP175,NHP170,NSP17#

寒冷地仕様

 1
87218C - DUCT, AIR, REAR NO.6
87218-52010

NCP175,NHP170,NSP17#

寒冷地仕様

 1
87220 - DUCT ASSY, AIR
87220-52060

NCP175,NHP170,NSP17#

 1
Common parts
90119-06942
90467-05161B0
90467-09227
93568-55014

ILLUST NO. 3 OF 3(1506- )

Click highlighted areas on diagram

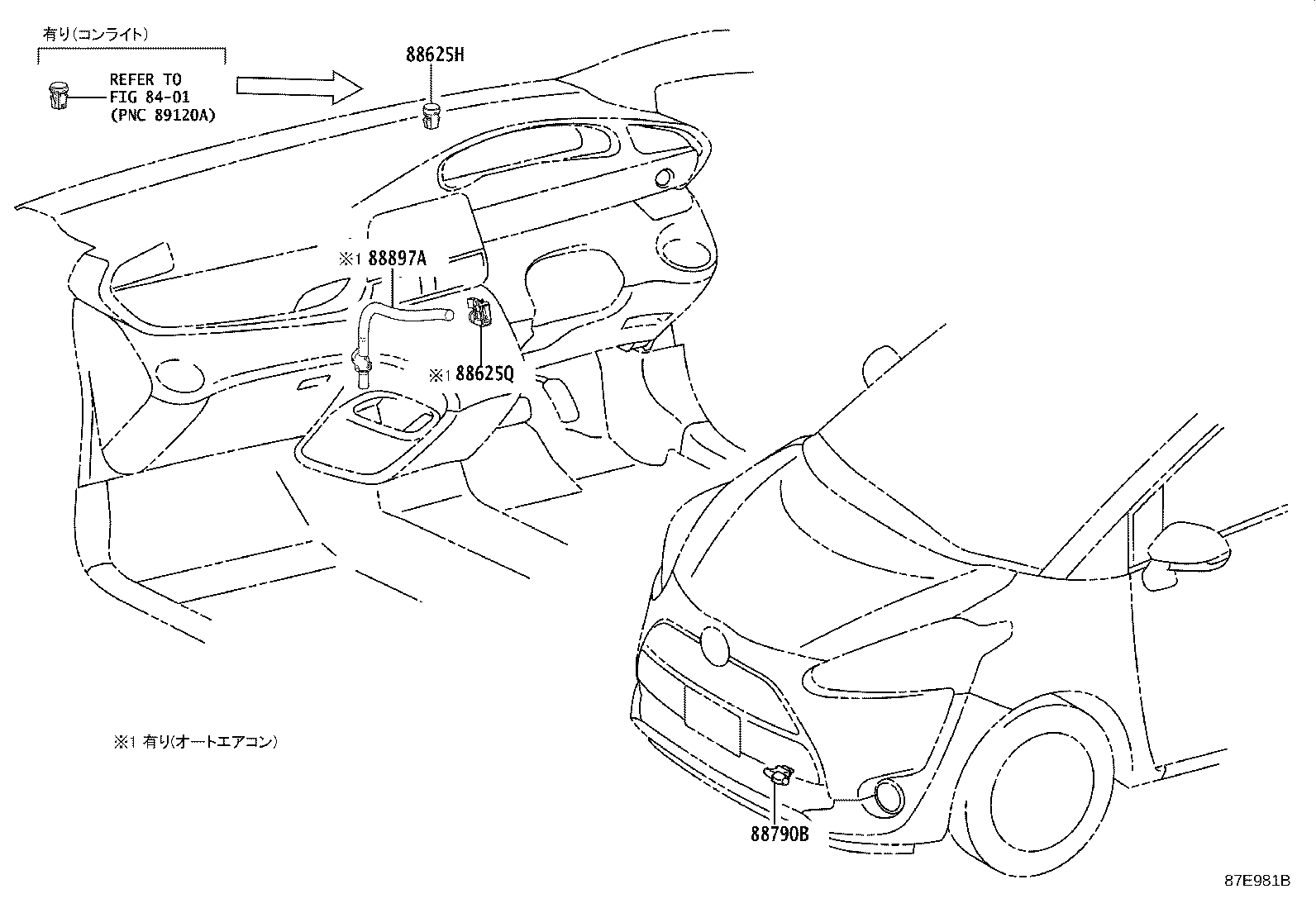

ｾﾝｻ

diagram 8401 88625H 88625Q 88790B 88897A
Part # Description Qty Price
88625H - THERMISTOR, COOLER (SOLAR SENSOR)
88625-52130

NHP170;NCP175,NSP17#..G

 1
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

NHP170;NCP175,NSP17#..G

 1
88790B - THERMISTOR ASSY
88790-28100

NCP175,NHP170,NSP17#

 1
88897A - PIPE, ASPIRATOR
88505-52030

NHP170;NCP175,NSP17#..G

 1
Linked diagrams
8401

ILLUST NO. 1 OF 3(1506- )

Click highlighted areas on diagram

ｵｰﾄﾋｰﾀｺﾝﾄﾛｰﾙﾊﾟﾈﾙ

diagram 55900 55904A 55921B 55942 86442A 9016730010 9046705171 9356855014
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-52890A0

NHP170;NCP175,NSP17#..G

FROMAGE,TRIM0#

 1
55900-52890C0

NHP170;NCP175,NSP17#..G

BLACK,TRIM2#

 1
55904A - HOUSING SUB-ASSY, HEATER CONTROL
55904-52060C0

NHP170;NCP175,NSP17#..G

BLACK,TRIM2#

 1
55904-52060A0

NHP170;NCP175,NSP17#..G

FROMAGE,TRIM0#

 1
55921B - RETAINER, HEATER CONTROL
55921-52060

NHP170;NCP175,NSP17#..G

 1
55942 - GUARD, HEATER CONTROL
55942-52020

NHP170;NCP175,NSP17#..G

 1
86442A - BOARD, HEATER CONTROL SWITCH
86442-52070

NHP170;NCP175,NSP17#..G

 1
Common parts
90167-30010
90467-05171
93568-55014
