NSP170G-MWXNB (2015)

Toyota Sienta

Production Jun 2015 - Sep 2018
Engine 2NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1506- )

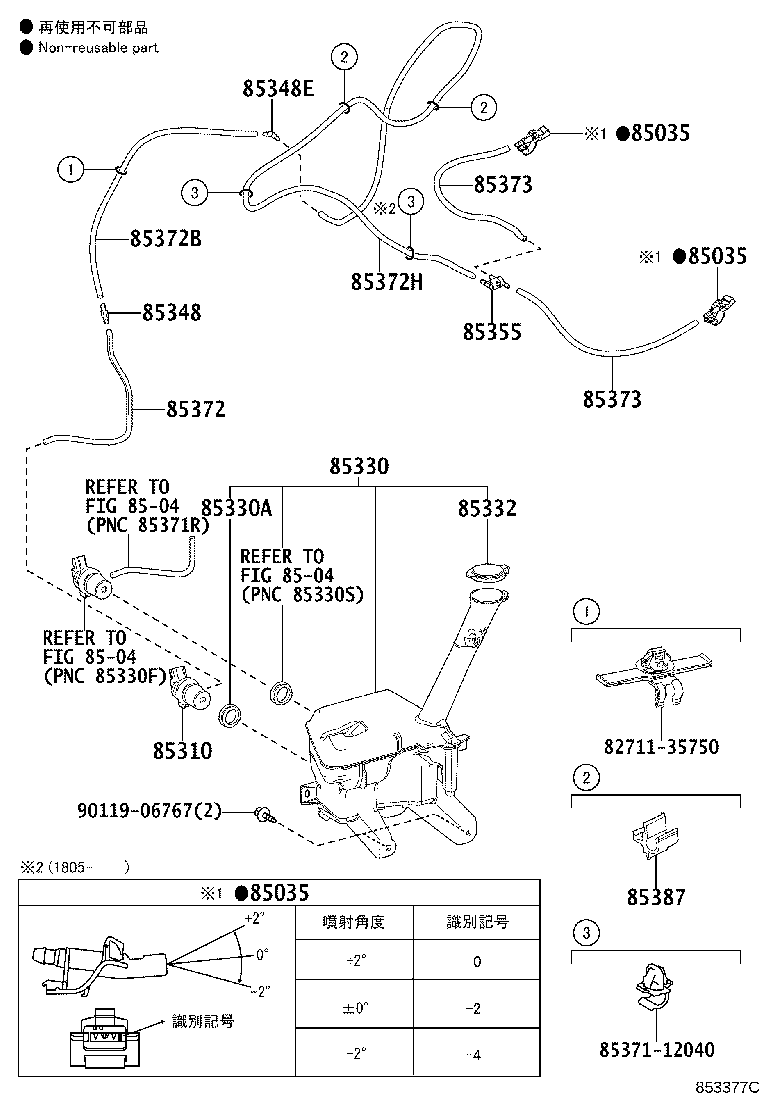

Click highlighted areas on diagram

diagram 8271135750 85035 85035 85035 8504 8504 8504 85310 85330 85330A 85332 85348 85348E 85355 8537112040 85372 85372B 85372H 85373 85373 85387 9011906767
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-12410

NCP175,NHP170,NSP17#

角度 −2

 2
85381-12420

NCP175,NHP170,NSP17#

角度 +2

 2
85381-12400

NCP175,NHP170,NSP17#

角度 0

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12410

NCP175,NHP170,NSP17#

角度 −2

 2
85381-12420

NCP175,NHP170,NSP17#

角度 +2

 2
85381-12400

NCP175,NHP170,NSP17#

角度 0

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12410

NCP175,NHP170,NSP17#

角度 −2

 2
85381-12420

NCP175,NHP170,NSP17#

角度 +2

 2
85381-12400

NCP175,NHP170,NSP17#

角度 0

 2
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-21010

NCP175,NHP170,NSP17#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-52420

NCP175,NHP170,NSP17#

 1
85330A - BUSH, WINDSHIELD WASHER JAR
85336-60300

NCP175,NHP170,NSP17#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-16070

NCP175,NHP170,NSP17#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

NCP175,NHP170,NSP17#

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85355-20200

NCP175,NHP170,NSP17#

 1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

NCP175,NHP170,NSP17#

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

NCP175,NHP170,NSP17#

*H,L=165

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90446-07001

NCP175,NHP170,NSP17#

*H,L=1020

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90446-07001

NCP175,NHP170,NSP17#

*H,L=1210

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299

NCP175,NHP170,NSP17#

*H,L=370

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33299

NCP175,NHP170,NSP17#

*H,L=370

 2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
85375-12540

NCP175,NHP170,NSP17#

 2
Common parts
82711-35750
85371-12040
90119-06767
Linked diagrams
8504
