NSP170G-MRXQB (2015)
Toyota Sienta
(1506- )NCP175,NHP170,NSP170

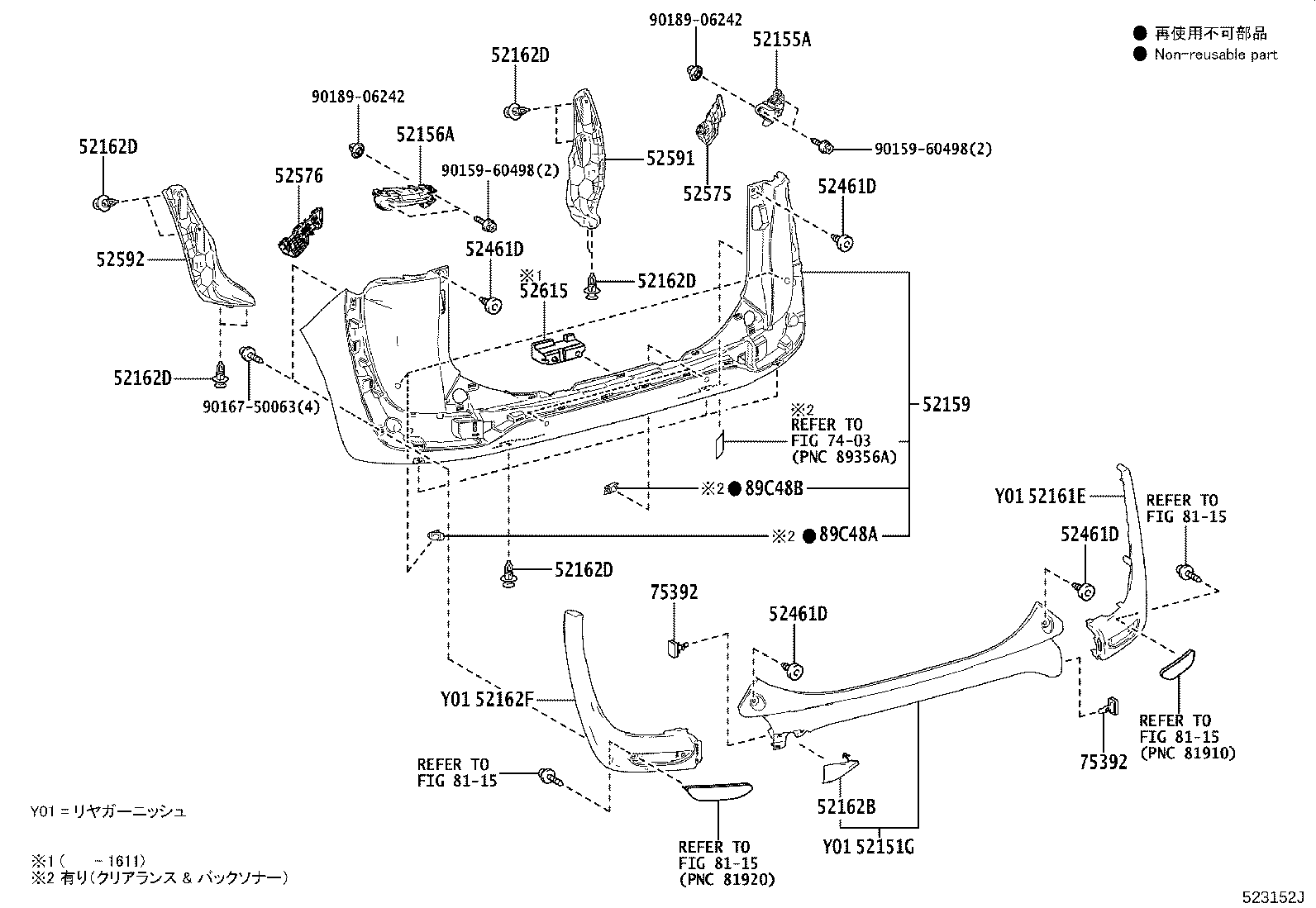

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52151G - EXTENSION, REAR BUMPER | ||||
| 52151-52010 |
NCP175,NHP170,NSP170 |
1 | ||
| 52151-52030E1 |
NCP175,NHP170,NSP170 ﾎﾞﾃﾞｰｶﾗｰ−ﾌﾚｯｸｽﾄｰﾝ,VINTAGE BROWN PEARL CS.,070 ,6W8 |
1 | ||
| 52151-52030J1 |
NCP175,NHP170,NSP170 ﾎﾞﾃﾞｰｶﾗｰ−ﾌﾚｯｸｽﾄｰﾝ,DK.BLUE ME.,1F7 ,209 ,5B6 |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-52131 |
NCP175,NHP170,NSP17# |
1 | ||
| 52155-52130 |
NCP175,NHP170,NSP17# |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-52130 |
NCP175,NHP170,NSP17# |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-52770C0 |
NCP175,NHP170,NSP170 BLACK MC.,209 |
1 | ||
| 52159-52770D1 |
NCP175,NHP170,NSP170 RED M.M.,3T8 |
1 | ||
| 52159-52770B0 |
NCP175,NHP170,NSP170 SILVER ME.,1F7 |
1 | ||
| 52159-52770C0 |
NCP175,NHP170,NSP170 ﾎﾞﾃﾞｰｶﾗｰ−ﾌﾚｯｸｽﾄｰﾝ,BLACK MC.,209 |
1 | ||
| 52159-52770G1 |
NCP175,NHP170,NSP170 ﾎﾞﾃﾞｰｶﾗｰ−ﾌﾚｯｸｽﾄｰﾝ,GREEN M.M.,6W8 |
1 | ||
| 52159-52770A0 |
NCP175,NHP170,NSP170 ﾎﾞﾃﾞｰｶﾗｰ−ﾌﾚｯｸｽﾄｰﾝ,WHITE PEARL CS.,070 |
1 | ||
| 52159-52770G1 |
NCP175,NHP170,NSP170 GREEN M.M.,6W8 |
1 | ||
| 52159-52770F1 |
NCP175,NHP170,NSP170 ﾎﾞﾃﾞｰｶﾗｰ−ﾌﾚｯｸｽﾄｰﾝ,AIR YELLOW,5B6 |
1 | ||
| 52159-52770F1 |
NCP175,NHP170,NSP170 AIR YELLOW,5B6 |
1 | ||
| 52159-52770E1 |
NCP175,NHP170,NSP170 VINTAGE BROWN PEARL CS.,4X4 |
1 | ||
| 52159-52770B0 |
NCP175,NHP170,NSP170 ﾎﾞﾃﾞｰｶﾗｰ−ﾌﾚｯｸｽﾄｰﾝ,SILVER ME.,1F7 |
1 | ||
| 52159-52770A0 |
NCP175,NHP170,NSP170 WHITE PEARL CS.,070 |
1 | ||
| 52159-52770J0 |
NCP175,NHP170,NSP170 BLUE ME.,8T7 |
1 | ||
| 52161E - EXTENSION, REAR BUMPER SIDE, RH | ||||
| 52161-52180E1 |
NCP175,NHP170,NSP170 ﾎﾞﾃﾞｰｶﾗｰ−ﾌﾚｯｸｽﾄｰﾝ,VINTAGE BROWN PEARL CS.,070 ,6W8 |
1 | ||
| 52161-52180J1 |
NCP175,NHP170,NSP170 ﾎﾞﾃﾞｰｶﾗｰ−ﾌﾚｯｸｽﾄｰﾝ,DK.BLUE ME.,1F7 ,209 ,5B6 |
1 | ||
| 52161-52170 |
NCP175,NHP170,NSP17# |
1 | ||
| 52162B - PLATE, REAR BUMPER, NO.1 | ||||
| 52162-52180 |
NCP175,NHP170,NSP170 |
1 | ||
| 52162-52190E1 |
NCP175,NHP170,NSP170 ﾎﾞﾃﾞｰｶﾗｰ−ﾌﾚｯｸｽﾄｰﾝ,VINTAGE BROWN PEARL CS.,070 ,6W8 |
1 | ||
| 52162-52190J1 |
NCP175,NHP170,NSP170 ﾎﾞﾃﾞｰｶﾗｰ−ﾌﾚｯｸｽﾄｰﾝ,DK.BLUE ME.,1F7 ,209 ,5B6 |
1 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NCP175,NHP170,NSP170 |
12 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NCP175,NHP170,NSP170 |
12 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NCP175,NHP170,NSP170 |
12 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NCP175,NHP170,NSP170 |
12 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-16010 |
NCP175,NHP170,NSP170 |
12 | ||
| 52162F - EXTENSION, REAR BUMPER SIDE, LH | ||||
| 52162-52150 |
NCP175,NHP170,NSP17# |
1 | ||
| 52162-52170J1 |
NCP175,NHP170,NSP170 ﾎﾞﾃﾞｰｶﾗｰ−ﾌﾚｯｸｽﾄｰﾝ,DK.BLUE ME.,1F7 ,209 ,5B6 |
1 | ||
| 52162-52170E1 |
NCP175,NHP170,NSP170 ﾎﾞﾃﾞｰｶﾗｰ−ﾌﾚｯｸｽﾄｰﾝ,VINTAGE BROWN PEARL CS.,070 ,6W8 |
1 | ||
| 52461D - CUSHION, REAR BUMPER | ||||
| 52461-52020 |
NCP175,NHP170,NSP17# |
4 | ||
| 52461D - CUSHION, REAR BUMPER | ||||
| 52461-52020 |
NCP175,NHP170,NSP17# |
4 | ||
| 52461D - CUSHION, REAR BUMPER | ||||
| 52461-52020 |
NCP175,NHP170,NSP17# |
4 | ||
| 52461D - CUSHION, REAR BUMPER | ||||
| 52461-52020 |
NCP175,NHP170,NSP17# |
4 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-52200 |
NCP175,NHP170,NSP17# |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-52180 |
NCP175,NHP170,NSP17# |
1 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-52360 |
NCP175,NHP170,NSP17# |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-52350 |
NCP175,NHP170,NSP17# |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-52080 |
NCP175,NHP170,NSP170 |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
NCP175,NHP170,NSP170 |
2 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
NCP175,NHP170,NSP170 |
2 | ||
| Common parts | ||||
| 90159-60498 | ||||
| 90167-50063 | ||||
| 90189-06242 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8115 | ||||
