NSP170G-MNXNB (2018)
Toyota Sienta

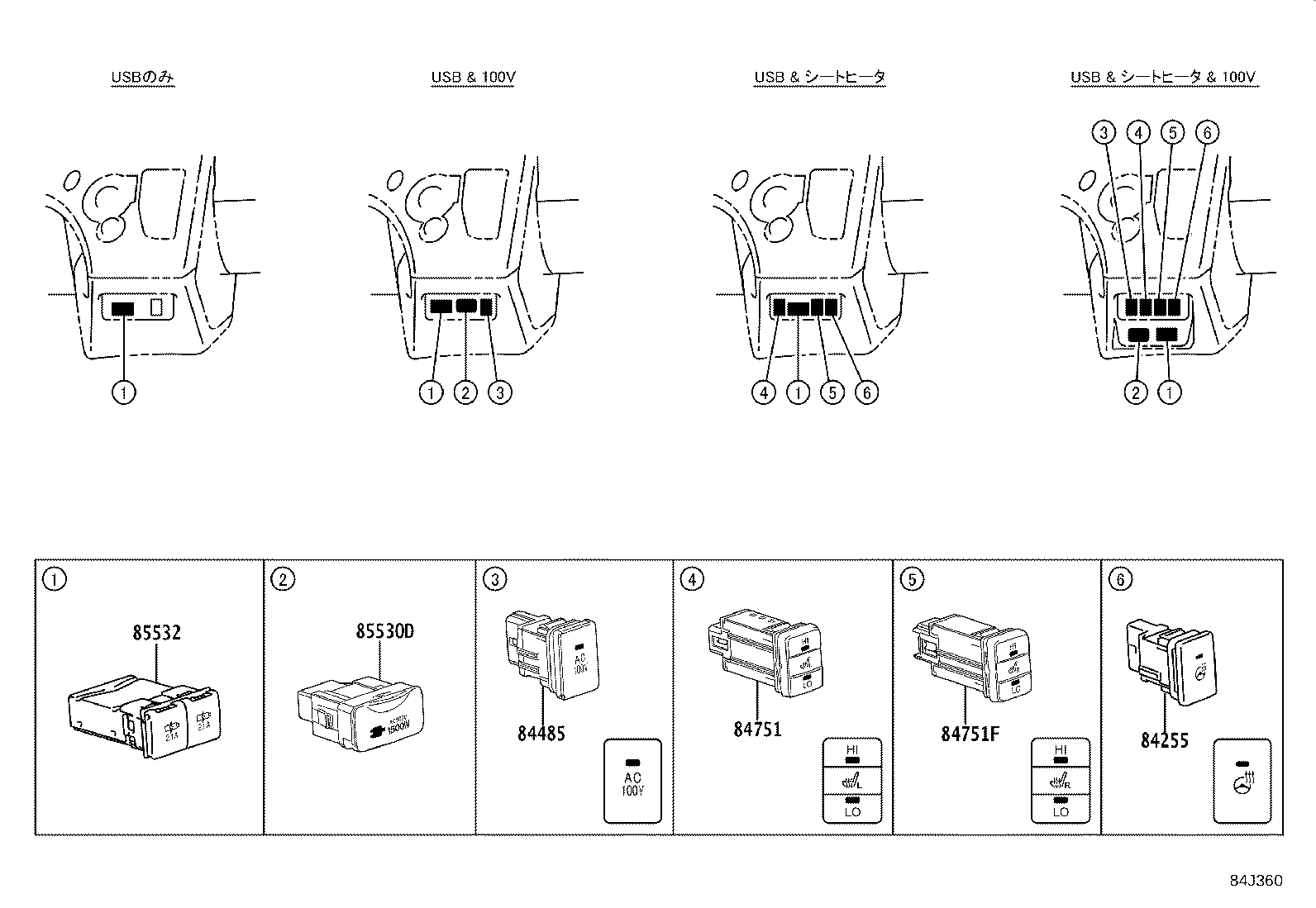

ILLUST NO. 6 OF11(1809- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84255 - SWITCH, STEERING HEATER | ||||
| 84255-52010 |
NCP175,NHP170,NSP17#..FNBSG,FNGCR,G,GCERO,WKG ﾌﾛﾝﾄｻｲﾄﾞｶﾞﾗｽ−ｽｰﾊﾟｰUVｶｯﾄ & 赤外線ｶｯﾄ & 撥水加工有り |
1 | ||
| 84255-52010 |
NCP175,NHP170,NSP17# ﾌﾛﾝﾄｻｲﾄﾞｶﾞﾗｽ−ｽｰﾊﾟｰUVｶｯﾄ & 赤外線ｶｯﾄ |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-28042 |
NCP175,NHP170,NSP17# ﾌﾛﾝﾄｻｲﾄﾞｶﾞﾗｽ−ｽｰﾊﾟｰUVｶｯﾄ & 赤外線ｶｯﾄ |
1 | ||
| 84751-28042 |
NCP175,NHP170,NSP17#..FNBSG,FNGCR,G,GCERO,WKG ﾌﾛﾝﾄｻｲﾄﾞｶﾞﾗｽ−ｽｰﾊﾟｰUVｶｯﾄ & 赤外線ｶｯﾄ & 撥水加工有り |
1 | ||
| 84751F - SWITCH, SEAT HEATER | ||||
| 84751-52082 |
NCP175,NHP170,NSP170..G,X ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Bﾀｲﾌﾟ)&ﾌﾛﾝﾄｻｲﾄﾞｶﾞﾗｽ−ｽｰﾊﾟｰUVｶｯﾄ & 赤外線ｶｯﾄ |
1 | ||
| 84751-52082 |
NCP175,NHP170,NSP17#..FNBSG,FNGCR,G,GCERO,WKG ﾌﾛﾝﾄｻｲﾄﾞｶﾞﾗｽ−ｽｰﾊﾟｰUVｶｯﾄ & 赤外線ｶｯﾄ & 撥水加工有り |
1 | ||
| 84751-52082 |
NCP175,NHP170,NSP170..G,X ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Aﾀｲﾌﾟ)&ﾌﾛﾝﾄｻｲﾄﾞｶﾞﾗｽ−ｽｰﾊﾟｰUVｶｯﾄ & 赤外線ｶｯﾄ |
1 | ||
| 84751-52082 |
NCP175,NHP170,NSP17# ﾌﾛﾝﾄｻｲﾄﾞｶﾞﾗｽ−ｽｰﾊﾟｰUVｶｯﾄ & 赤外線ｶｯﾄ |
1 | ||
| 84751-52082 |
NCP175,NHP170,NSP170..G ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Bﾀｲﾌﾟ)&ﾌﾛﾝﾄｻｲﾄﾞｶﾞﾗｽ−ｽｰﾊﾟｰUVｶｯﾄ & 赤外線ｶｯﾄ & 撥水加工有り |
1 | ||
| 84751-52082 |
NCP175,NHP170,NSP170..G ｳｪﾙｷｬﾌﾞ−助手席回転ﾁﾙﾄｼｰﾄ(Aﾀｲﾌﾟ)&ﾌﾛﾝﾄｻｲﾄﾞｶﾞﾗｽ−ｽｰﾊﾟｰUVｶｯﾄ & 赤外線ｶｯﾄ & 撥水加工有り |
1 | ||
| 85532 - SOCKET, USB CHARGER | ||||
| 85532-15010 |
NCP175,NHP170,NSP17# |
1 | ||

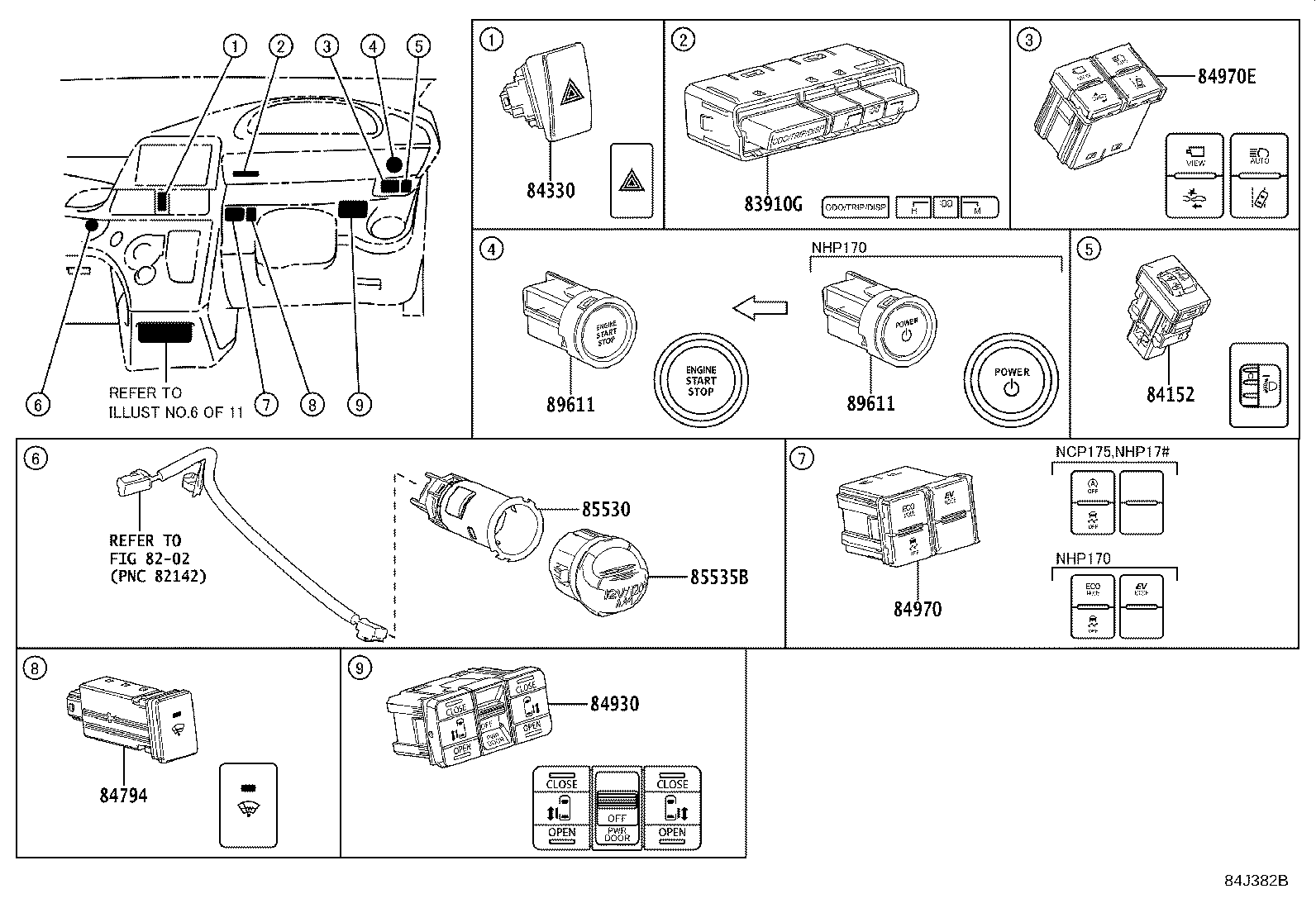

ILLUST NO. 5 OF11(1809- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910G - CLOCK ASSY | ||||
| 84975-52300 |
NHP170;NCP175,NSP17#..FNBSG,FNGCR,G,GCERO,WKG |
1 | ||
| 84975-52290 |
NCP175,NSP17#..FNBSX,WKX,X |
1 | ||
| 84975-52300 |
NCP175,NSP17#..FNBSX,WKX,X Toyota Safety Sense−有り |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52170 |
NCP175,NHP170,NSP17#..FNBSX,WKX,X ﾍｯﾄﾞﾗﾝﾌﾟ−LED(*CL=LED) |
1 | ||
| 84152-52170 |
NCP175,NHP170,NSP17#..FNBSG,FNBSX,G,WKG,WKX,X ﾍｯﾄﾞﾗﾝﾌﾟ−LED(*CL=LED) & 有り(*AHS) |
1 | ||
| 84152-52170 |
NCP175,NHP170,NSP17#..FNBSG,FNBSX,G,WKG,WKX,X |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-52160 |
NCP175,NHP170,NSP17# |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84794-35011 |
NCP175,NHP170,NSP17# 寒冷地仕様 |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-28160 |
NCP175,NHP170,NSP17#..FNBSX,WKX,X |
1 | ||
| 84930-28170 |
NCP175,NHP170,NSP17#..FNBSG,FNGCR,G,GCERO,WKG |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-52020 |
NSP17# |
1 | ||
| 84970E - SWITCH ASSY, COMBINATION NO.2 | ||||
| 84970-52010 |
NCP175,NHP170,NSP17#..FNBSX,WKX,X Toyota Safety Sense−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−LED(*CL=LED) & 有り(*AHS) |
1 | ||
| 84970-52160 |
NCP175,NHP170,NSP17#..FNBSX,WKX,X Toyota Safety Sense−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−LED(*CL=LED) & 有り(*AHS)&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 84970-52010 |
NCP175,NHP170,NSP17#..FNBSG,FNGCR,G,GCERO,WKG |
1 | ||
| 84970-52180 |
NCP175,NHP170,NSP17#..FNBSX,WKX,X ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 84970-52010 |
NCP175,NHP170,NSP17#..FNBSX,WKX,X Toyota Safety Sense−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ & 有り(*AHB) |
1 | ||
| 84970-52160 |
NCP175,NHP170,NSP17#..FNBSG,FNGCR,G,GCERO,WKG ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 84970-52160 |
NCP175,NHP170,NSP17#..FNBSX,WKX,X Toyota Safety Sense−有り&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾊﾛｹﾞﾝ & 有り(*AHB)&ﾊﾞｯｸﾓﾆﾀ−有り(ﾊﾟﾉﾗﾐｯｸﾋﾞｭｰﾓﾆﾀ) |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-52010 |
NCP175,NHP170,NSP17# |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-52052 |
NCP175,NHP170,NSP17# |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52034 |
NCP175,NSP17#..FNBSG,FNGCR,G,GCERO,WKG |
1 | ||
| 89611-52034 |
NCP175,NSP170..FNBSX,X ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾌﾛﾝﾄﾄﾞｱ & ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52034 |
NCP175,NSP17#..FNBSG,FNGCR,G,GCERO,WKG |
1 | ||
| 89611-52034 |
NCP175,NSP170..FNBSX,X ｽﾏｰﾄｴﾝﾄﾘ−有り(ﾌﾛﾝﾄﾄﾞｱ & ﾊﾞｯｸﾄﾞｱ) |
1 | ||
| Linked diagrams | ||||
| 8202 | ||||
